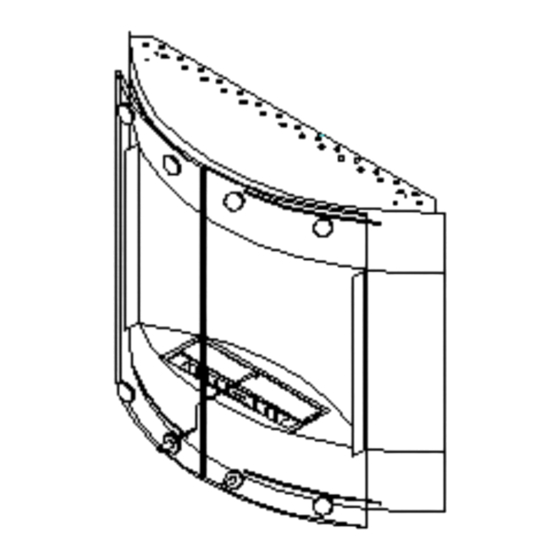

Instruction Manual for Wall Mounted Fireplace, Models: ARC 103A & VAGUE 101A
CONTENTS :
Safety instructions ..............................................p. 2
Wall mounted fireplace installation ................p. 3
Burner installation .................................................p. 3
Burner .......................................................................p. 3
Combustible Fuel ...................................................p. 4
Instructions ............................................................p. 4
Cleaning the burner ..............................................p. 5
Cleaning the fireplace ...........................................p. 5
Warranty ...................................................................p.6
110 rue Robinson Sud, Granby (Quebec) J2G 7L4
Tel. : (450) 372-8008 Fax : (450) 372-8009
www.decoflame.ca
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for decoflame ARC 103A
Summary of Contents for decoflame ARC 103A
-
Page 1: Table Of Contents
110 rue Robinson Sud, Granby (Quebec) J2G 7L4 Tel. : (450) 372-8008 Fax : (450) 372-8009 www.decoflame.ca Instruction Manual for Wall Mounted Fireplace, Models: ARC 103A & VAGUE 101A CONTENTS : Safety instructions ..........p. 2 Wall mounted fireplace installation ....p. 3 Burner installation ..........p. 3 Burner ...............p. -
Page 2: Safety Instructions
The « » fireplace is for decorative purposes only, and not to be used as your main decoflame heat source. Keep children and pets away while operating the fireplace, especially while lighting it up. -
Page 3: Burner
Never light the combustible fuel in a burner that is not properly positioned. Only use « » combustible fuel in your fireplace. decofuel Never use any fuel other than the fuel specifically identified for use in an unvented decorative device. Never use gasoline, solvents, methylated or burning alcohol, thinner, ethanol gel, etc. The use of an ethanol gel is strictly prohibited since this will render your tank unusable. - Page 4 Make sure that the shut off device works properly before lighting. INSTALLATION OF THE WALL MOUNTED FIREPLACE AND BURNER Models ARC 103A & VAGUE 101A are wall-mounted. A horizontal support and two vertical supports are provided with the fireplace. Determine the location of your fireplace. It must be located at a minimum of 12’’ above the floor, at a minimum of 24’’...
-
Page 5: Burner
4 no. 12 x 1 ½’’ wood screws (no.4). You will need two people to move the fireplace (no.5) into position, place it onto the hooks of the horizontal support (no.1) by matching up the hooks with the square holes at the back of the unit. Make sure that the fireplace is level. -
Page 6: Instructions
INSTRUCTIONS Read and follow the instructions in their entirety before using the fireplace. Never add fuel when the fireplace is functioning, wait until the reservoir and the fireplace have cooled (wait at least 15 minutes) before refilling. GENERAL RULES : Only use the fireplace according to these instructions. Do not use the fireplace in a bathroom or any other small room. -
Page 7: Extinguishing
The flames will reach their maximum height within 15 to 30 minutes, depending on the com- bustible fuel temperature. During this period, a slight odour may appear. If necessary, air out the room for a few minutes. Let the fire burn until all of the fuel has been depleted. You can extinguish the fire at all times simply by completely closing the burner. -
Page 8: Cleaning The Fireplace
LIMITED WARRANTY guarantees, to the original purchaser (retail sale), that this product is free of any decoflame defects in material or workmanship and commits to reparing or replacing (at dis- decoflame’s cretion) any defective product , free of charge ,within 2 years from the date of purchase. - Page 9 INSTALLATION OF THE WALL MOUNTED FIREPLACE AND BURNER: ARC 103A...
- Page 10 INSTALLATION OF THE WALL MOUNTED FIREPLACE AND BURNER: VAGUE 101A...
