Summary of Contents for DKB HEAT 3 burner bbq

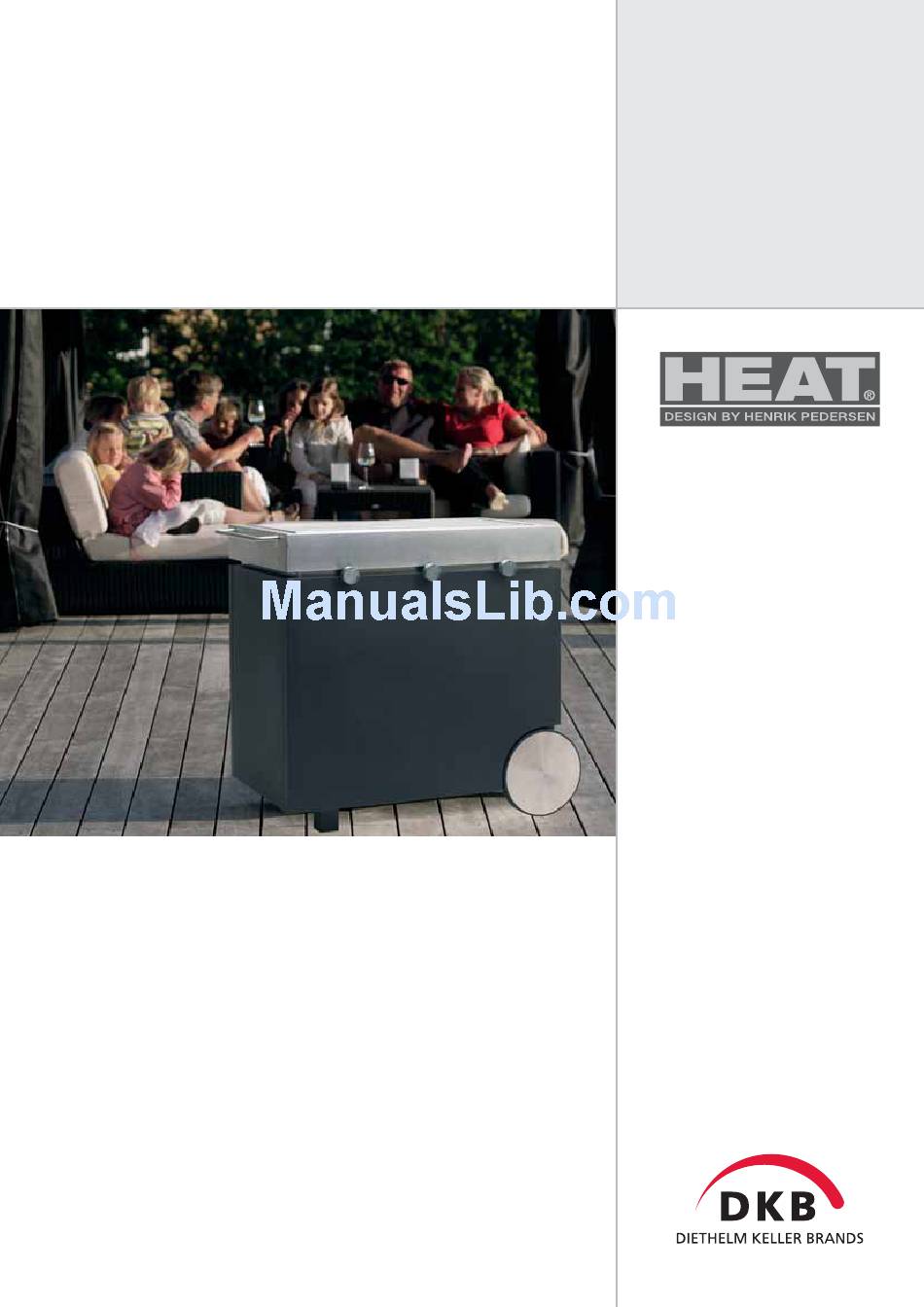

- Page 1 HEAT 3 BURNER BBQ 30 MBAR OWNERS MANUAL: USE OUTDOORS ONLY. Read the manual before using the bbq. WARNING: Accessible parts may be very hot. Keep young children away.
-
Page 2: Danger & Warnings
DANGER & WARNINGS DANGER This manual contains important information about the assembly, If you smell gas: operation and maintenance of this outdoor propane/ butane bbq. 1. Shut off gas to the bbq General safety information is presented on this page and is also located 2. -
Page 3: Service Safety
SERVICE SAFETY DANGER • Keep all connections and fi ttings clean. Inspect propane /butane CARBON MONOXIDE HAZARD gas bottle and bbq propane / butane connections for damage • This bbq is a combustion bbq. All combustion bbqs produce car- before attaching. bon monoxide (CO) during the combustion process. -
Page 4: Specifications
SPECIFICATIONS GAS BOTTLE Gas bottles up to and including the 15 kg size may be used. Do not Model Total Heat output Total gas input Injector size use gas bottles larger than 15 kg. The bbq can be mounted with a 5kg HEAT 3 12,7 Kwh / 44.000 BTU 900 g/t... -
Page 5: Installation
INSTALLATION Install the grid (Fig. 4) SET UP Remove the compo- nents from the carton (Fig. 1) The gas pipe must be of a type that is approved in relation to national regulations and require- Open the right side door ments and may never and install the grease be more than 1.5 me-... - Page 6 CHANGING A GAS BOTTLE – BUTANE This bbq may be used with butane at an operating pressure of 28 - 30 mbar. NEVER use an unregulated gas supply or a regulator for other operating pressures. WARNING: Changing a gas bottle must be carried out in a fl ame free environment. BUTANE gas bottles have various types of connections.
- Page 7 CHANGING A GAS BOTTLE – PROPANE This bbq may be used with propane at an operating pressure of 30-37 mbar. NEVER use an unregulated gas supply or a regulator for other operating pressures. WARNING: Changing a gas bottle must be carried out in a fl ame free environment. Propane gas bottles have various types of connections.
-
Page 8: Leak Testing
LEAK TESTING ELECTRONIC LIGHTING SYSTEM All factory-made connections have been thoroughly tested for gas • Before use open battery compartment in the buttom of the bbq leaks and the burners have been fl ame tested. However, shipping and and insert a AA/LR6 battery 1,5 V. handling may have loosened a gas fi... -
Page 9: Cooking Temperatures
COOKING MAINTENANCE TEMPERATURES The bbq is equipped with 3 burners which may be adjusted individu- TO CLEAN ally – two U-pipe burners and one side burner respectively. • Make sure grill is cold. • Detach regulator from gas bottle. U-pipe burners may be set to a temperature in the range of 80-350 •... -
Page 10: Troubleshooting
TROUBLE SHOOTING Problem Possible cause Corrective action SMELL OF GAS SHUT OFF LP GAS BOTTLE VALVE AT ONCE. DO NOT USE THE APPLIANCE UNTIL LEAK IS SEALED. Leak detected at gas bottle, regulator or 1. Regulator fi tting loose. 1. Tighten fi tting and “Leak Test” . other connection. - Page 11 OTHER PRODUCTS BY Table BBQ ▲ Walmounted gas heater ▲ Firepit ▲ Mini Cube ▲ 4 Burner BBQ ▲ HEAT R Gas ▲ HEAT R Charcoal ▲ Cube 53 BBQ ▲ HEAT cover for 4 burner BBQ ▲ HEAT Cover for Walmounted gas heater ▲ HEAT cover for Table BBQ ▲...
- Page 12 N’ulilisez l’appareil qu’à l’extérieur. Lisez les instructions attentivement avant l’utilisation. ADVERTENCIA: Las piezas accesibles pueden estar muy calientes. Mantenga alejados a los niños pequeños. Sólo para uso al aire libre. Lea estas instrucciones antes de usar la barbacoa. DKB Household Switzerland AG Eggbühlstrasse 28 Postfach CH-8052 Zürich www.HEATbbq.com...
