Digital Projection TITAN sx+-500 User Manual

High brightness digital video projector
Hide thumbs Also See for TITAN sx+-500:
Table of Contents

Advertisement

Quick Links

Download this manual See also: User Manual

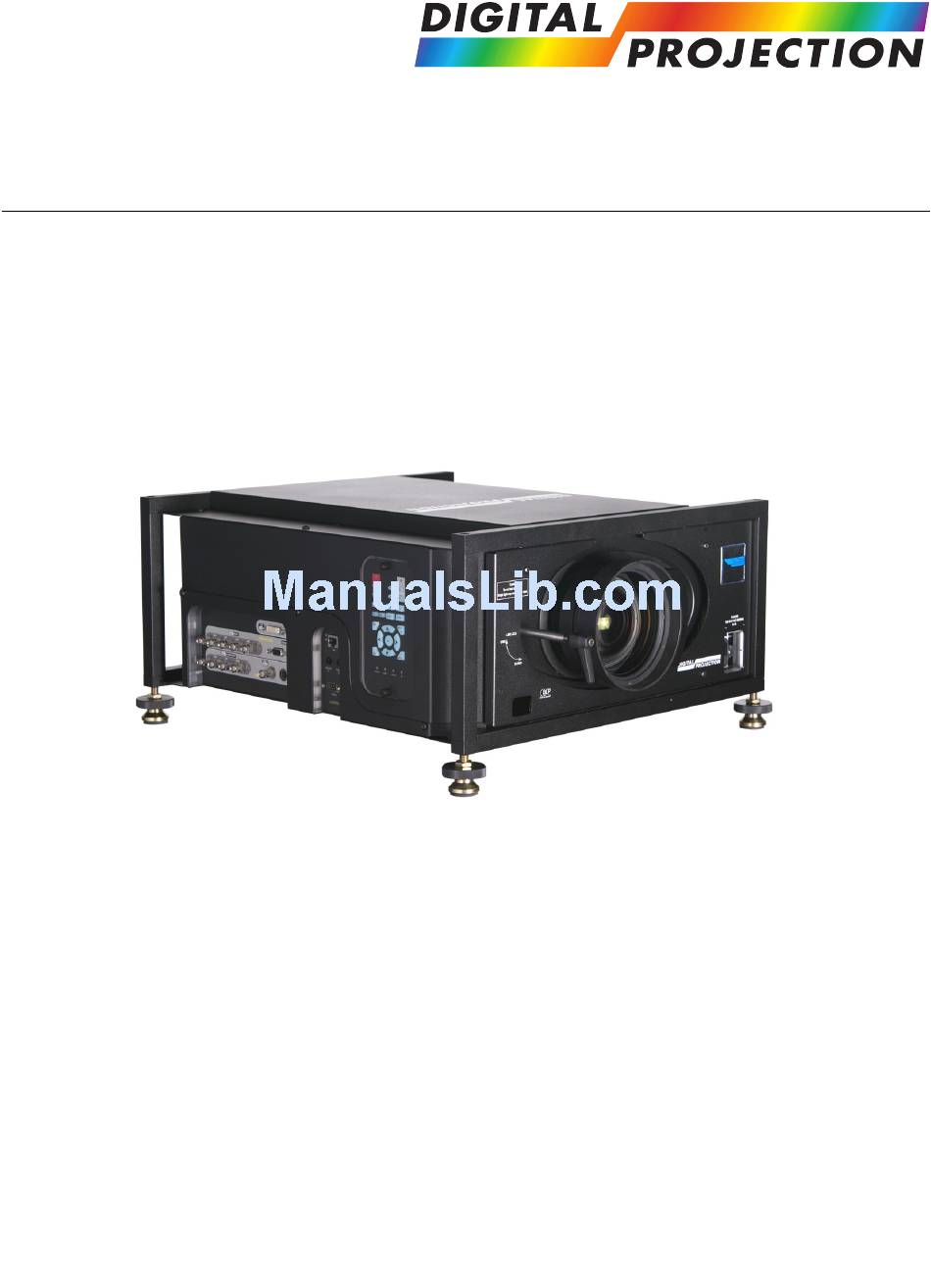

TITAN sx+-500
High Brightness Digital Video Projector
User Manual
105-947A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TITAN sx+-500 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Digital Projection TITAN sx+-500

Summary of Contents for Digital Projection TITAN sx+-500

  • Page 1 TITAN sx+-500 High Brightness Digital Video Projector User Manual 105-947A...

  • Page 2: Declaration Of Conformity

    73/23/EEC Low Voltage Equipment Directive, amended by 93/68/EEC. Products covered by this Declaration Large screen video projector type TITAN sx+-500 Basis on which Conformity is being declared The products identified above comply with the protection requirements of the above EU directives, and the manufacturer has applied the following standards.

  • Page 3: Important Information

    Product revision • Because we at Digital Projection continually strive to improve our products, we may change specifications and designs, and add new features without prior notice. Projectors built prior to this revision of the User Manual may therefore not include all the features described.

  • Page 4: General Precautions

    Important Information Digital Projection User Manual TITAN sx+-500 General precautions Notes Do not open the cabinet. There are no user serviceable parts inside. Use only the power cable provided. Ensure that the power outlet includes a Ground connection, as this equipment MUST be earthed.

  • Page 5: Installation Precautions

    APPLY button. Always keep a written note of the original settings, and any changes you have made. Software update should NOT be carried out except by, or with the supervision of, Digital Projection Service personnel. Rev A page iii...

  • Page 6: Compliance With International Standards

    Electronic Equipment. Our products are designed with reuse, recycling and recovery of all components in mind. To this end, at end of life, your projector may be returned to Digital Projection Ltd or its agent so that the environmental impact can be minimised.

  • Page 7: Table Of Contents

    Digital Projection User Manual Contents TITAN sx+-500 TITAN User Manual CONTENTS Important Information Symbols used in this guide ....................i Warnings ..............................i Trademarks ..............................i Product revision ............................i Manual revision ............................i General precautions ......................ii Installation precautions ....................iii Operation and configuration precautions ..............iii...
  • Page 8 Contents Digital Projection User Manual TITAN sx+-500 3. Getting started Switching the power on ....................3.2 Selecting an input or test pattern ..................3.2 Input ............................... 3.2 Adjusting the lens ......................3.3 Focus ..............................3.3 Zoom ..............................3.3 Shift ................................ 3.3 Adjusting the projected image ..................3.4 Picture settings .............................
  • Page 9 Lamp ..............................4.35 On Screen Display ..........................4.37 Password ............................. 4.38 Communication ........................... 4.39 Network ..............................4.40 Restore Defaults ..........................4.45 Information menu......................4.46 Projector Information .......................... 4.46 Source Information ..........................4.46 Digital Projection Contact Information ....................4.47 continued Rev A page vii...
  • Page 10 Contents Digital Projection User Manual TITAN sx+-500 5. Userware 6. Maintenance Changing the lamp......................6.2 Changing the air filter .....................6.3 Cleaning ...........................6.4 Projector ..............................6.4 Lens ................................ 6.4 Lamp module ............................6.4 7. Appendix Troubleshooting ......................7.2 Specifications ........................7.4 Part numbers ............................7.4 Optical ..............................

  • Page 11: Introduction

    1. Introduction Contents Introduction What’s in the box?........................1.2 Key features of the projector....................1.3 Getting to know the projector ....................1.4 Front panel, – lens and power ........................1.4 Rear panel – lamp and air filter ........................1.4 Side panel – connection and control ......................1.5 Rev A...

  • Page 12: What's In The Box

    1. Introduction Digital Projection User Manual TITAN sx+-500 What’s in the box? Notes • Make sure your box contains everything listed. If any pieces are missing, contact your dealer. Lenses are optional. Order • You should save the original box and packing materials, in case you ever need to lenses from your Digital ship your Projector.

  • Page 13: Key Features Of The Projector

    Digital Projection International, Texas Instruments' first DLP™ partner and the original innovator of the 3-chip DLP™ projector, proudly introduces the Titan sx+- 500. Incredibly bright, high resolution and high in contrast, the Titan sx+-500 offers a radically new electronics configuration ideally suited for the staging and large-venue permanent installation markets.

  • Page 14: Getting To Know The Projector

    1. Introduction Digital Projection User Manual TITAN sx+-500 Getting to know the projector Notes Front panel, – lens and power Air outlet Front Infra-red window (remote control) For more detailed information about lenses, see section 2. Installation Air inlet -...

  • Page 15: Side Panel - Connection And Control

    Digital Projection User Manual 1. Introduction TITAN sx+-500 Side panel – connection and control Notes For information about how to connect the projector, see Connecting the projector in section 2. Installation, and Control panel Connections in section 7. Appendix. For information about how to use the control panel, see section 4.
  • Page 16 1. Introduction Digital Projection User Manual TITAN sx+-500 Rev A page 1.6...

  • Page 17: Installation

    2. Installation Contents Installation Screen requirements .......................2.2 Aspect ratio ..............................2.2 Fitting the image to the DMD ........................2.2 Images displayed full height ......................... 2.2 Images displayed full width .......................... 2.2 Diagonal screen sizes ..........................2.3 Fitting the image to the screen ........................2.4 Positioning the screen and projector ......................

  • Page 18: Screen Requirements

    2. Installation Digital Projection User Manual TITAN sx+-500 Screen requirements Notes Aspect ratio Fitting the image to the DMD If the source image supplied to the projector is smaller than 1400 x 1050 pixels, then the image will not fill the DMD. The following example shows how a number of common formats may be displayed.

  • Page 19: Diagonal Screen Sizes

    Digital Projection User Manual 2. Installation TITAN sx+-500 Diagonal screen sizes Notes Screen sizes are sometimes specified by their diagonal size (D) in inches. When dealing with large screens and projection distances at different aspect ratios, it is more convenient to measure screen width (W) and height (H).

  • Page 20: Fitting The Image To The Screen

    2. Installation Digital Projection User Manual TITAN sx+-500 Fitting the image to the screen Notes It is important that your screen is of sufficient height and width to display images at all the aspect ratios you are planning to use.

  • Page 21: Positioning The Screen And Projector

    Digital Projection User Manual 2. Installation TITAN sx+-500 Positioning the screen and projector Notes For optimum viewing, the screen should be a flat surface perpendicular to the floor. The bottom of the screen should be 1.2m (4 feet) above the floor and the front row The projector should be of the audience should not have to look up more than 30°...

  • Page 22: Choosing A Lens

    2. Installation Digital Projection User Manual TITAN sx+-500 Choosing a lens Notes A number of lenses are available for use with the projector. Which lens you choose will depend on the screen size, image aspect ratio and projection distance. If you are simply connecting the output of a camera or computer directly to the projector, then the image size (in pixels) may well be fixed.

  • Page 23: Lens Chart

    Digital Projection User Manual 2. Installation TITAN sx+-500 Lens chart Notes Use the chart below to choose which lens best suits your application. For a 5:4 full height image, example measuring 1313 x 1050 pixels: • For a screen width of 12m at a distance of 35m, the 2.77 - 4.51: 1 zoom lens A Throw ratio factor (TRF) of would be best suited.

  • Page 24: Method Two: Choosing A Lens By Calculation

    2. Installation Digital Projection User Manual TITAN sx+-500 Method two: Choosing a lens by calculation Notes For any screen size not listed above, or if you need to be more precise, then use the calculations below. The Throw ratio for a particular •...

  • Page 25: Useful Lens Calculations

    Digital Projection User Manual 2. Installation TITAN sx+-500 Useful lens calculations Notes The Throw ratio for a particular The following lens calculations may be useful: lens is fixed, but assumes that the image fills the width of the DMD. Throw ratio =...

  • Page 26: Shifting The Image

    2. Installation Digital Projection User Manual TITAN sx+-500 Shifting the image Notes For more information on using The normal position for the projector is at the centre of the screen. However, you the Lens shift feature, see can set the projector above or below the centre, or to one side, and adjust the image section 4.

  • Page 27: Fitting The Lens

    Digital Projection User Manual 2. Installation TITAN sx+-500 Fitting the lens Notes • Turn the lens release lever anti-clockwise so that it is pointing upwards, to open the lock. • Remove the rear lens cap from the lens. Make sure the rear lens cap is •...

  • Page 28: Mounting The Projector

    2. Installation Digital Projection User Manual TITAN sx+-500 Mounting the projector Notes The projector is designed to be used on a flat surface, but the optional rigging frame will allow it to be suspended from a lighting truss. The four adjustable feet under the...

  • Page 29: Stacking Projectors

    Digital Projection User Manual 2. Installation TITAN sx+-500 Stacking projectors Notes The rigging frame is capable of supporting the weight of up to two other projectors, using the built-in frame couplings. The projectors can be stacked on top of each other, or suspended below each other.

  • Page 30: Connecting The Projector

    2. Installation Digital Projection User Manual TITAN sx+-500 Connecting the projector Notes Input Control connection panel connection panel Signal Inputs The following inputs are available: 3. DVI 4. SDI 2. RGB2 For more information on selecting an input source, see section 4.

  • Page 31: Control Connection Examples

    Digital Projection User Manual 2. Installation TITAN sx+-500 Control connection examples Notes LAN connection For more information about pin All of the projector’s features can be controlled via a LAN connection, using a connections and control codes standard internet browser package such as Internet Explorer.

  • Page 32: Power Connection

    2. Installation Digital Projection User Manual TITAN sx+-500 Power connection Notes When mains power is applied, the projector will go into Standby mode. The Power indicator on the control panel will show amber until the POWER on the remote control or the keypad, is pressed.

  • Page 33: Getting Started

    3. Getting started Contents Getting started Switching the power on ......................3.2 Selecting an input or test pattern ..................3.2 Input ................................. 3.2 Adjusting the lens ........................3.3 Focus ................................3.3 Zoom ................................3.3 Shift .................................. 3.3 Adjusting the projected image ....................3.4 Picture settings ...............................

  • Page 34: Switching The Power On

    3. Getting started Digital Projection User Manual TITAN sx+-500 Switching the power on Notes • Connect the power cable between the mains supply and the projector. For more information about connecting the power cable, see Power Connections, in Section 2. Installation.

  • Page 35: Adjusting The Lens

    Digital Projection User Manual 3. Getting started TITAN sx+-500 Adjusting the lens Notes For more detailed information Focus about: - using the control keys on the • Press followed by to adjust the focus. remote control or keypad, - using the menus,...

  • Page 36: Adjusting The Projected Image

    3. Getting started Digital Projection User Manual TITAN sx+-500 Adjusting the projected image Notes Picture settings For more detailed information about: • Press a key, followed by to adjust these picture settings: - using the control keys on the Brightness...

  • Page 37: Controlling The Projector

    4. Controlling the projector Contents 4. Controlling the projector Overview ..........................4.4 Controlling the projector ..........................4.4 Input modes and settings ..........................4.5 Input mode detection ............................ 4.5 Mode library and mode history ........................4.5 Input presets ..............................4.6 Indicators ..........................4.7 Input status indicators ............................
  • Page 38 4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Input menu ..........................4.18 Input Source ..............................4.18 Presets ................................4.19 Recall Presets ............................4.19 Save Presets .............................. 4.20 Picture menu .......................... 4.21 Brightness ..............................4.21 Contrast ................................. 4.21 Saturation ..............................4.21 Hue .................................
  • Page 39 LAN Subnet Mask ............................4.42 LAN Gateway Mask ........................... 4.43 Wifi ................................4.43 Channel ..............................4.44 SSID ................................4.44 Restore Defaults ............................4.45 Information menu ........................4.46 Projector Information ............................ 4.46 Source Information ............................4.46 Digital Projection Contact Information ......................4.47 Rev A page 4.3...

  • Page 40: Overview

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Overview Notes Controlling the projector The projector can be controlled from: • the remote control • the keypad • the RS232 input • the Ethernet input For more information about controlling the projector using the RS232 and Ethernet inputs, see Remote communications protocol in section 7.

  • Page 41: Input Modes And Settings

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Input modes and settings Notes Input mode detection The projector can automatically detect the following parameters from the incoming video signal: • line frequency • frame rate • interlace / progressive...

  • Page 42: Input Presets

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Any subsequent changes that you make to the modal settings will be saved in the Notes mode history, with the input mode. Mode Mode library history defaults NTSC NTSC modal...

  • Page 43: Indicators

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Indicators Notes Input status indicators 1. RGB1 4. SDI 3. DVI There are more indicators on the Control panel, and these are 2. RGB2 described on the next page. 6. S-Video 7.

  • Page 44: The Control Panel

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 The control panel Notes Many features are controlled Keypad layout from the menus using the menu navigation keys on the remote The controls on the keypad are identical to those at the top of the remote control, control or keypad.

  • Page 45: The Remote Control

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 The remote control Notes Many features are controlled Layout from the menus using the menu navigation keys on the remote control or keypad. For more information about using the menus, see later in Transmit this section, Using the menus.

  • Page 46: Using The Control Keys

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Using the control keys Notes Power • Press POWER and hold for 3 seconds, to switch the power ON. • Press POWER and hold for 3 seconds, to switch the power OFF.

  • Page 47: Auto-Detect Input Mode

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Auto-detect input mode Notes For more information about • Press to force the projector to re-detect the input mode input mode detection, see (see Input modes and settings, earlier in this section).

  • Page 48: Input Presets

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Input Presets Notes Recall • To recall a set of modal settings that have been saved, press and hold For more information about whilst pressing the lettered key A – S.

  • Page 49: Red, Green And Blue

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Red, Green and Blue Notes The red, green and blue keys • Press to switch the red, green or blue components OFF are disabled when the OSD is or ON.

  • Page 50: Magnify And Pan

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Magnify and pan Notes The magnify feature utilises a • Press Magnify MAGNIFY digital zoom. Used with the pan control, this can be used to: followed by to adjust the size of the picture.

  • Page 51: Using The Menus

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Using the menus Notes Some menu controls can be Navigating menus and submenus accessed directly using the control keys (see earlier in this When the menus are in use and the OSD is ON, the top level menu headings are section).
  • Page 52 4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Notes Press to open the menu. The blue highlight moves to the first item in the menu, which may be submenu, for example the Projector Setup submenu. Setup menu •...

  • Page 53: Menu Controls

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Menu controls Notes Some menus have controls, as shown in the examples below. Some menus items may be greyed out - unavailable due to the effect of settings made in other menus, or due to the type of input signal.

  • Page 54: Input Menu

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Input menu Notes Some menu controls can be To return to the main menu, press up to three times. accessed directly using the control keys (see earlier in this section).

  • Page 55: Presets

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Input menu continued Notes Presets Some menu controls can be accessed directly using the Sixteen sets of parameters can be saved and recalled (A – S). The parameters control keys (see earlier in this saved for each Preset are: section).

  • Page 56: Save Presets

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Input menu continued Notes Save Presets Some menu controls can be accessed directly using the • Press to select Save Preset. control keys (see earlier in this section). Press to open the Save Presets A ~ H submenu.

  • Page 57: Picture Menu

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Picture menu Notes Some menu controls can be To return to the main menu, press up to three times. accessed directly using the control keys (see earlier in this section).

  • Page 58: Gamma Correction

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Picture menu continued Notes Gamma Correction Video recordings are often supplied with a gamma adjustment applied. The projector’s gamma adjustment can be used to correct for this. • Press to select Gamma.

  • Page 59: Aspect Ratio

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Picture menu continued Notes Aspect Ratio Aspect Ratio selection can be • Press to select Aspect Ratio. found in both the Picture and Geometry menus. Press to select from: Fill...

  • Page 60: Geometry Menu

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Geometry menu Notes Some menu controls can be To return to the main menu, press up to three times. accessed directly using the control keys (see earlier in this section).

  • Page 61: User Horizontal Aspect Ratio

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Geometry menu continued Notes User Horizontal Aspect Ratio • Press to select User H Aspect. Horizontal and Vertical Press to adjust the slider (internal number – adjust to fit). Aspect Ratio adjustments are...

  • Page 62: Blanking

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Geometry menu continued Notes Blanking Blanking curtains can be applied to each edge of the picture. • Press to select Blanking. Press to open the Blanking submenu. Geometry Menu Blanking...

  • Page 63: Colour Menu

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Colour menu Notes To return to the main menu, press up to three times. When using the menus, press to hide or From the main menu: reveal the On-Screen-Display. • Press until Colour is highlighted.

  • Page 64: Colour Mode

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Colour menu continued Notes Colour Mode • Press to select Colour Mode. Read the notes on Colour and Global Colourimetry earlier in Press to select from: this section before making...

  • Page 65: Trim

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Colour menu continued Notes Trim The Trim submenu is available • Press to select Trim. only if Global Colour Mode is selected. Press to open the Trim submenu. Colour Menu...

  • Page 66: Setup Menu

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Setup menu Notes To return to the main menu, press up to three times. From the main menu: When using the menus, press • Press until Setup is highlighted. to hide or Press to open the Setup menu.

  • Page 67: Projector

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Setup menu, continued Notes Projector • Press to select Projector. Press to open the Projector submenu. Setup Menu Projector Orientation • Press to select Orientation. Press to select from: Desktop Front...
  • Page 68 4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Setup menu, Projector continued Notes Keystone Used to correct for distortion caused by the projector being mounted higher or lower than the screen. • Press to select Keystone. Press to adjust the slider (-128 to +127).

  • Page 69: Global Colourimetry

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Setup menu continued Notes Global Colourimetry • Press to select Global Colourimetry. Press to open the Global Colourimetry submenu. Setup Menu Global Colourimetry Some menu items may be greyed out - unavailable due to...
  • Page 70 4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Setup menu, Global Colourimetry continued Notes Colour Mode • Press to select Colour Mode. Read the notes on Colour and Press to select from: Global Colourimetry earlier in this section before making...

  • Page 71: Lamp

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Setup menu, continued Notes Lamp • Press to select Lamp. Press to open the Lamp submenu. The middle row shows the current lamp setting. Setup Menu Lamp Change Lamp Setting •...

  • Page 72: Lamp Power

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Setup menu, Lamp continued Notes Lamp Power • Press to select the Lamp Power setting. Press to adjust the Lamp Power from: 80 to 100% in 1% steps Lamp Mode •...

  • Page 73: On Screen Display

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Setup menu continued Notes On Screen Display • Press to select On Screen Display. Press to open the On Screen Display submenu. Setup Menu On Screen Display OSD Position • Press...

  • Page 74: Password

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Setup menu continued Notes Password Entry to the password protected area is available to authorised service personel only. • Press to select Password. Press to open the Password control box.

  • Page 75: Communication

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Setup menu continued Notes Communication • Press to select Comunication. Press to open the Comunication submenu. Setup Menu Comunication Projector Address When fresh batteries are • Press to open the Projector address control box.

  • Page 76: Network

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Setup menu continued Notes Network • Press to select Network. Press to open the Network submenu. Setup Menu Network LAN MAC Address • Projector’s unique ID - for information only - cannot be changed.

  • Page 77: Dhcp

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Setup menu, Network continued Notes DHCP • Press to select DHCP Press to open the DHCP control box. Press to select from: Press to apply the new DHCP setting. LAN IP Address •...

  • Page 78: Lan Subnet Mask

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Setup menu, Network continued Notes LAN Subnet Mask • Press to select LAN Subnet LAN IP Subnet cannot be Press to open the LAN Subnet control box. changed if DHCP is set to ON.

  • Page 79: Lan Gateway Mask

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Setup menu, Network continued Notes LAN Gateway Mask • Press to select LAN Gateway LAN IP Gateway cannot be Press to open the LAN IP Address control box. changed if DHCP is set to ON.

  • Page 80: Channel

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Setup menu, Network continued Notes Channel • Press to select Channel. The Channel setting is not Press to open the Channel control box. available if Connection is set to Wired.

  • Page 81: Restore Defaults

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Setup menu, continued Notes Restore Defaults • Press to select Restore Defaults. Press Restore Defaults will restore all settings to factory The following message will be displayed. defaults. If you are not sure this is...

  • Page 82: Information Menu

    4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Information menu Notes To return to the main menu, press up to three times. When using the menus, press to hide or From the main menu: reveal the On-Screen-Display. •...

  • Page 83: Digital Projection Contact Information

    Digital Projection User Manual 4. Controlling the projector TITAN sx+-500 Information menu continued Notes Digital Projection Contact Information When using the menus, press • Press to select Digital Projection. to hide or Press to see the DP Contact Information screen.
  • Page 84 4. Controlling the projector Digital Projection User Manual TITAN sx+-500 Rev A page 4.48...
  • Page 85 5. Userware Contents Userware Rev A...
  • Page 86 5. Userware Digital Projection User Manual TITAN sx+-500 Rev A page 5.2...
  • Page 87 6. Maintenance Contents Maintenance Changing the lamp ........................6.2 Changing the air filter ......................6.3 Cleaning ...........................6.4 Projector ................................6.4 Lens .................................. 6.4 Lamp module ..............................6.4 Rev A...

  • Page 88: Maintenance

    6. Maintenance Digital Projection User Manual TITAN sx+-500 Changing the lamp Notes • Turn the power OFF and allow the lamp to cool for 5 minutes. Always allow the lamp to cool • Unscrew the four door screws, and detach the rear door - the door is tethered, for 5 minutes before: so cannot be removed completely.

  • Page 89: Changing The Air Filter

    Digital Projection User Manual 6. Maintenance TITAN sx+-500 Changing the air filter Notes • Turn the power OFF and allow the lamp to cool for 5 minutes. Always allow the lamp to cool • Unscrew the four door screws, and remove the rear door.

  • Page 90: Cleaning

    6. Maintenance Digital Projection User Manual TITAN sx+-500 Cleaning Notes Turn the projector off before cleaning. Projector Never use strong detergents or solvents such as alcohol Clean the cabinet periodically with a damp cloth. If heavily soiled, use a mild or thinners to clean the detergent.
  • Page 91 7. Appendix Contents Appendix Troubleshooting ........................7.2 Specifications ..........................7.4 Part numbers ..............................7.4 Optical ................................7.4 Electrical ................................7.5 Physical ................................7.5 Lens Data ................................. 7.6 Connections ..........................7.8 1. RGB1 input ..............................7.8 2. RGB2 input ..............................7.8 3. DVI-D input ..............................7.9 4.

  • Page 92: Appendix

    7. Appendix Digital Projection User Manual TITAN sx+-500 Troubleshooting Problem Possible solutions The projector will not power up. Check that the mains plug is plugged in and that the mains supply is switched on. Check any external fuses or breakers.
  • Page 93 See this section 6. Appendix, Connections Check that the correct control codes are being used. See Serial communications protocol (available from Digital Projection) Projector does not respond to control If you are using a cable, check that the cable is connected properly at both ends, commands from the remote control.

  • Page 94: Specifications

    7. Appendix Digital Projection User Manual TITAN sx+-500 Specifications Part numbers Projector 105-925 Power cable 10A, Europe 102-163 Power cable 13A, North America 102-165 Power cable 10A, United Kingdom 102-180 Remote control 105-023 4x AAA batteries 105-922 Remote cable 5m...

  • Page 95: Electrical

    Digital Projection User Manual 7. Appendix TITAN sx+-500 Electrical Inputs RGB1, RGB2, DVI, SDI, Composite Video, S-Video, Component Pixel clock up to 165MHz Control inputs 1 x LAN 1 x wifi LAN 1 x RS232 serial: 19200 baud, 8 bits, 1 stop bit, no parity...

  • Page 96: Lens Data

    7. Appendix Digital Projection User Manual TITAN sx+-500 Lens Data 105-607 105-608 105-609 105-610 throw ratio 0.73 : 1 fixed 1.2 : 1 fixed 1.2 : 1 fixed 1.5 - 2.02 : 1 zoom full DMD image width 1.5m - 4.4m 2.5 - 12.4m...

  • Page 97: Digital Projection

    Digital Projection User Manual 7. Appendix TITAN sx+-500 105-611 105-612 105-613 throw ratio 2.02 - 2.77 : 1 zoom 2.77 - 4.51 : 1 zoom 4.51 - 7.53 : 1 zoom full DMD image width 1.4 - 11.9m 2 - 16.3m 1.7 - 17.7m...

  • Page 98: Connections

    7. Appendix Digital Projection User Manual TITAN sx+-500 Connections Notes 1. RGB1 input If using a signal source with a 5 x 75 ohm BNC combined sync (SYNC) output, connect this to the H/V terminal. When using luminance and R / Cr...

  • Page 99: Dvi-D Input

    Digital Projection User Manual 7. Appendix TITAN sx+-500 3. DVI-D input Notes 24 way D-type connector TMDS Data 2- pin view of female connector TMDS Data 2+ TMDS Data 2/4 Shield TMDS Data 4- TMDS Data 4+ DDC Clock DDC Data...

  • Page 100: Sdi Input

    7. Appendix Digital Projection User Manual TITAN sx+-500 4. SDI input Notes 1 x 75 ohm BNC SMPTE 292 / HD-SDI signals are very high speed digital signals which require better quality coaxial cable than conventional analogue video. The data rate is 1.5 Gigabits per second.

  • Page 101: Lan Connection

    Digital Projection User Manual 7. Appendix TITAN sx+-500 LAN connection Notes 10BaseT Unshielded Twisted Pair cable Use: The standard wire colours as as follows: • a straight cable to connect to a White / Orange stripe hub or network, or...

  • Page 102: Serial Control Input

    7. Appendix Digital Projection User Manual TITAN sx+-500 Serial control input Notes unused Received Data The projector is a DTE, so use: Transmitted Data pin view of female connector Data Terminal Ready • a straight cable to connect to a...

  • Page 103: Using Windows Hyperterminal To Connect To The Projector

    Digital Projection User Manual 7. Appendix TITAN sx+-500 Using Windows Hyperterminal to connect to the projector Notes Many features of the projector can be controlled remotely by sending ascii character strings to the serial control input, or via a LAN, using the protocol and syntax described in the following pages.

  • Page 104: Dimensions

    7. Appendix Digital Projection User Manual TITAN sx+-500 Dimensions to be confirmed Rev A page 7.14...
