- Page 1 Model LTM-WAVE-RC User Manual LTM-WAVE-RC Wireless 8-Channel Receiver For use with LTM-WAVE-AG Transmitter © 2003 Laird Telemedia.

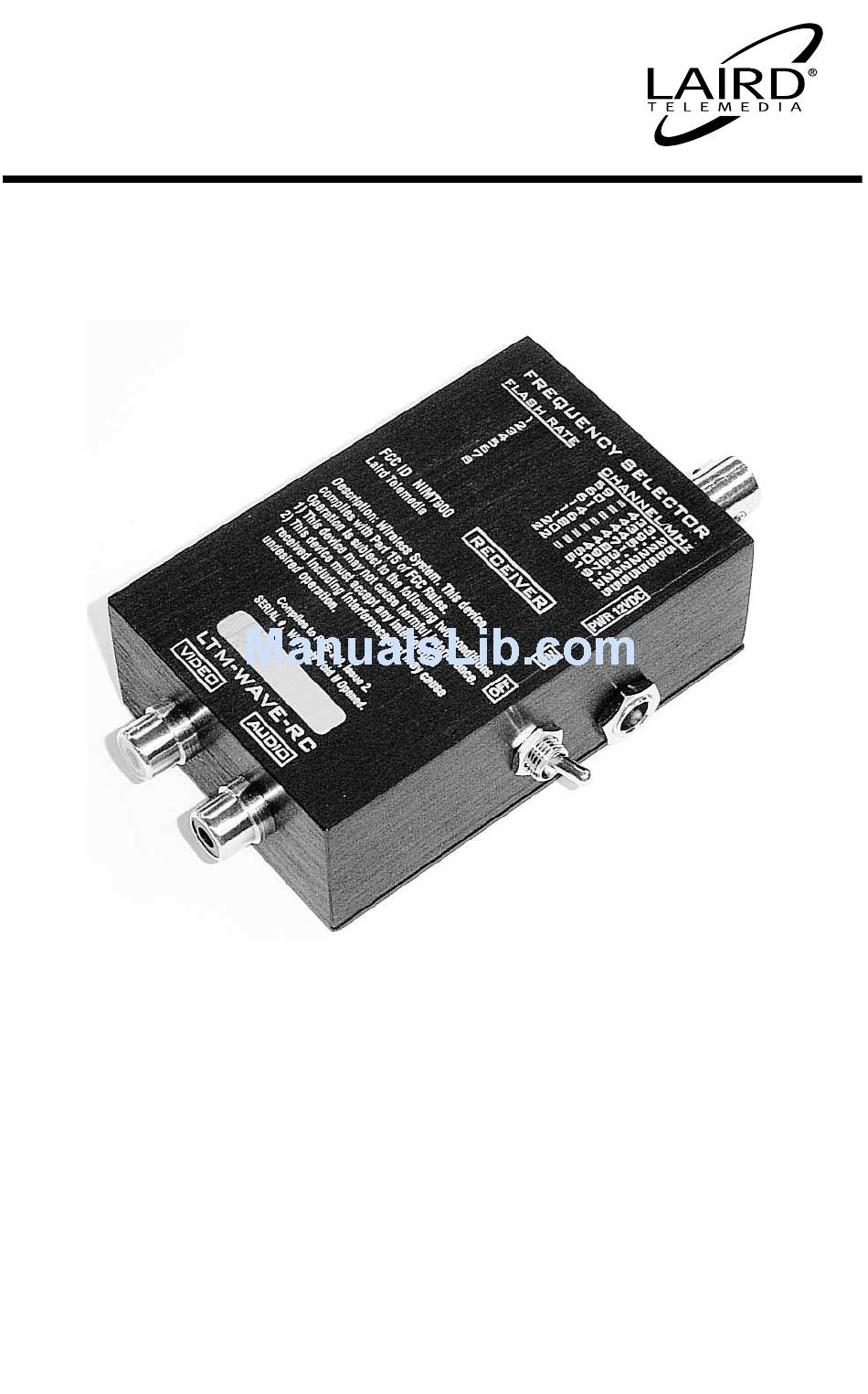

- Page 2 LTM-WAVE-RC Wireless 8-Channel Receiver For use with LTM-WAVE-AG Transmitter ESCRIPTION The LAIRD WAVE-RC is a powerful and efficient means of remote monitoring your LTM-WAVE-AG trans- mitter. The system may be used to receive standard NTSC composite video signal and can receive a clean UHF signal up to 250 feet line-of-site and approximately 75 feet indoors between walls.
- Page 3 UHF transmitters operate in the Amateur Radio Service (ARS) frequencies, and according to FCC regulations, requires licens- ing for legal operation. There are no restrictions on the sale of this equipment, however LAIRD TELEMEDIA urges the user to become familiar with and observe all laws and regulations governing ARS licensing and the operation of ARS equipment.
- Page 4 Wireless 8-Channel Receiver For use with LTM-WAVE-AG Transmitter THE LTM-WAVE-RC IS A SPECIALIZED PRODUCT DESIGNED TO OPERATE AS A UHF LOW POWER RECEIVER / DEMODULATOR FOR THE LTM-WAVE-AG TRANSMITTER. IT HAS BEEN OPTIMIZED BY DESIGN TO WORK WITH THAT TRANSMITTER AS A SET.
- Page 5 ETTING P THE The LTM-WAVE-RC is completely micro-processor controlled. This allows for the AGILE method of fre- quency programming. The unit has 8 standard TV channels for reception. The channel listings are screened on the face of the product. Please note that the first 3 channels are CATV cable channels and require that the LTM-WAVE-AG be set to CATV for these channels to work.
- Page 6 LTM-WAVE-RC Wireless 8-Channel Receiver For Use with LTM-WAVE-AG Transmitter WAVE-RC ETTING P THE SETTING THE FREQUENCIES: To set the transmission frequency press and hold the Button below the LED for 4 seconds. The LED will flash rapidly then stop. Release the button and then press it the number of times corresponding to the frequency you require.
- Page 7 The Velcro pro- vided is very strong and will require care to remove it once the two pieces are secured. LTM-WAVE-AG Transmitter Companion Product for the LTM-WAVE-RC Receiver (Sold Separately)
- Page 8 2000 Sterling Road • Box 720 Mount Marion, NY 12456 800-898-0759 • 845-339-9555 Fax: 845-339-0231 www.lairdtelemedia.com...
