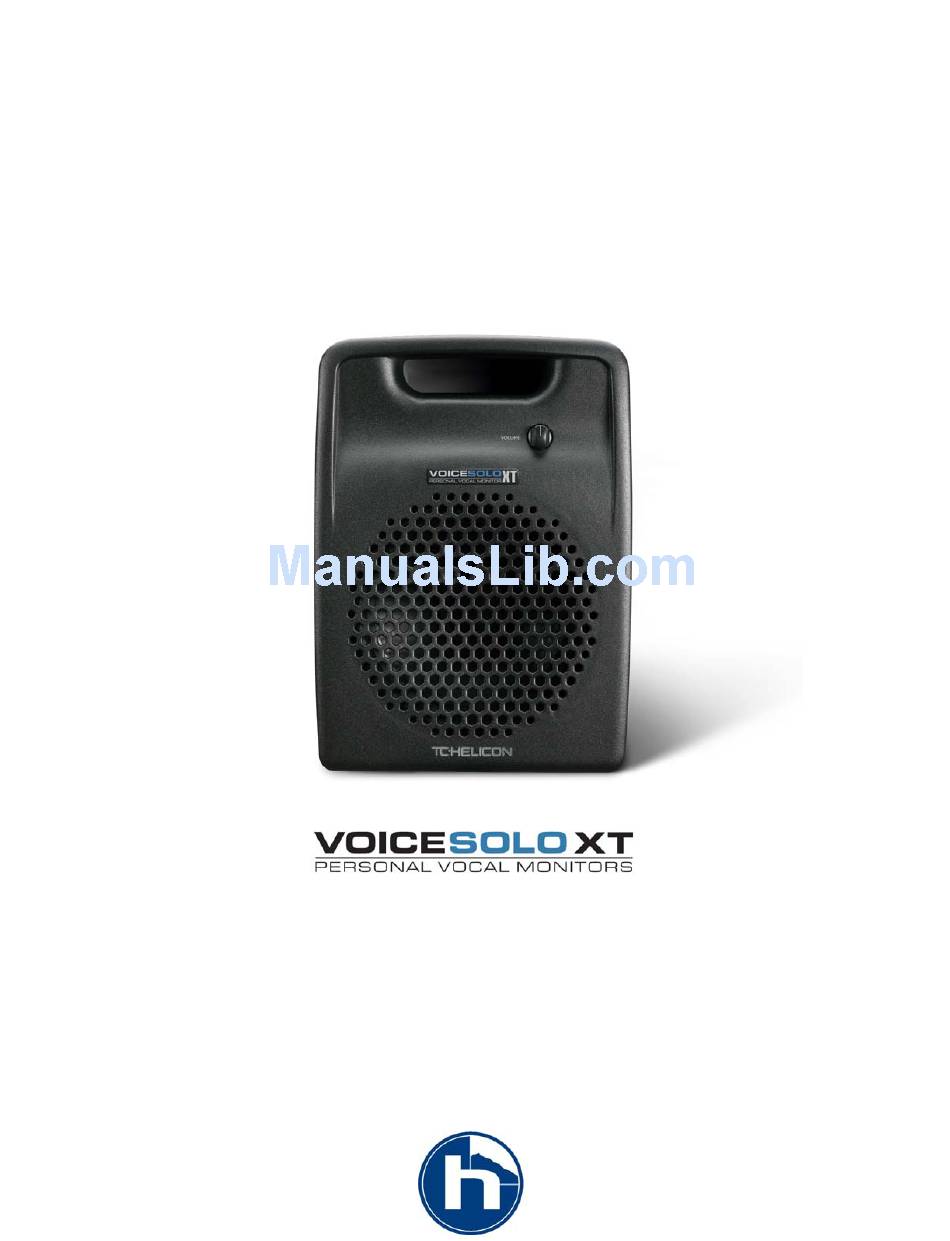

- Page 1 VSM-200P XT USER MANUAL...
- Page 3 IMPORTANT SAFETY INSTRUCTIONS The lightning flash with an arrowhead symbol within an The exclamation point within an equilateral triangle is equilateral triangle, is intended to alert the user to the intended to alert the user to the presence of important presence of uninsulated “dangerous voltage”...
-
Page 5: Table Of Contents
Using VoiceSoloP XT ...11 Specifications ....12 Specifications, interface, and features are subject to change without notice due to continued product improvement VoiceSolo VSM-200P XT Rev 1.0 English version... -
Page 6: Introduction
This yields a TC-Helicon’s core value is that the voice is the world's wide range of benefits over existing wedge-type or in-ear most beautiful instrument. Therefore, everything TC- options such as: Helicon does is dedicated to this instrument. - Page 7 • Mail: complete and return the registration card included with your product Support If you run into technical challenges, TC-Helicon will be more than happy to help. There are a number of sources for product support. We've prioritized them below according to the speed at which you will access the help information.
-
Page 8: Front Panel Diagram
With less powerful amplifiers and high volume expectation, the most efficient path is to leave the VSM-200P XT volume control up full and for you to control volume with your mixer and/or amplifier. 2. Tuned bass port This allows VoiceSoloP XT to produce low frequencies. -
Page 9: Back Panel Diagram
Chaining three VSM-200P XTs will lower the impedance to 240W / PEAK: This is the maximum VoiceSoloP XT can 2.6 Ohms and adding a fourth VSM-200P XT will bring the withstand for a very brief period of time. impedance to 2 Ohms. Consult your amplifier’s manual to confirm that it is capable of driving a 2 Ohm load. -
Page 10: Mic Stand Mounting Procedure
Mic Stand Mounting VoiceSoloP XT Placement Options 1. Separate the boom from the stand by unscrewing the boom from the vertical shaft of the microphone stand. To VoiceSoloP XT can be placed in 4 different ways. This do this, tighten the clutch you use to raise and lower the versatility allows you to use it as a mic stand mounted stand first. - Page 11 Mic Stand Mounting 3. Place VoiceSoloP XT on the mic stand so the stand 5. Screw the Mic Boom Mount Attachment into your boom. goes into the hole on the bottom of the VoiceSoloP XT. If you don’t need to mount VoiceSoloP XT on a boom stand, you are finished with your setup.
- Page 12 Mic Stand Mounting 7. Your VoiceSoloP XT should now look like this. 2. Still holding the boom so that it does not swing away, turn the lock nut counter-clockwise until it’s snug against the bottom of the boom. Note that it’s not possible to completely tighten the lock nut with your fingers, the final action is done by swinging the boom snug against the lock nut.
-
Page 13: Using Voicesolop Xt
Using VoiceSoloP XT with a hyper-cardioid pickup pattern because, in Introduction exchange for reduced sensitivity at the back-sides of the The following paragraphs should be read at least once to mic, there is more sensitivity directly at the back of the learn more about safe and successful use of VoiceSoloP mic. -
Page 14: Specifications
Specifications Connectors Connectors : 2 paralleled Speakon ® combo jacks that accept Speakon or 1/4” connectors Speaker Speaker : 6.5 inch ICT custom-designed point source driver including inductively coupled tweeter Nominal impedance : 8 ohms Power : 120 Watt Program / 240 Watt Peak power handling Sensitivity (I Watt @ 1 meter) : 90 dB (1 kHz octave band) Conical dispersion...
