Axiom Audio AX2010A User Manual

KEY FEATURES
• High output line array element
• Compact size, very good output-to-weight ra o
• High quality, low compression, low distor on HF driver
• Very stable horizontal coverage
INTRODUCTION
The AX2010A Ver cal Line Array element is designed for a wide range of sound reinforcement applica ons where a fl exible and easy to use ver cal
array systems is needed. The AX2010A has been designed both for rental live sound applica ons and for fi xed installa ons and has been engineered
for the simplest use possible but without sacrifi cing anything in sound
quality and performance.
compression drivers, equipped with very light-weight diaphragms. Two
transmission line waveforming waveguides have been used to load
the HF drivers, in order to provide a detailed and natural sound and to
achieve a long-distance HF projec ng capacity.
The two 10" woofers employed in the reproduc on of the mid-bass
range are equipped with very light-weight cones. The lightness of the
diaphragm is furthermore improved by the use of aluminium voice
coil instead of conven onal copper. This ensure a fast reproduc on of
the mid range and of mid-bass musical passages, improving also the thermal capacity of the voice
coil and, consequently, controlling the overall power compression. The two 10" woofers are back
loaded by a short hybrid transmission line that minimizes the eff ect of the box resonances and eliminates the "boxy" mid-bass sound commonly
obtained from regular bassrefl ex enclosures. The crossover fi lter approach is based on a "Constant Power" technique. Thanks to a par cular phase
combina on between the two ways around the crossover frequency, this approach is able to provide a very stable horizontal coverage and a very
stable off -axys sound image, also minimizing unwanted eff ects around the crossover frequency. The further applica on of phase lineariza on
techniques, combined to constant power crossover, yield a linear phase response and a coherent me response. This allows for a natural percep on
of acous c instruments and voices and for an improved depth of the sound image.
TECHNICAL SPECIFICATION
Acous cal
System type
Low frequency transducer
High frequency transducer
Frequency response (±3 dB)
Horizontal Coverage Angle
Ver cal Coverage Angle
Maximum Peak SPL @ 1m
Electrical
Input Impedance
Input Sensi vity
Signal Processing
Direct access Controls
* Nominal consump on is measured with pink noise with a crest factor of 12
dB, this can be considered a standard music program.

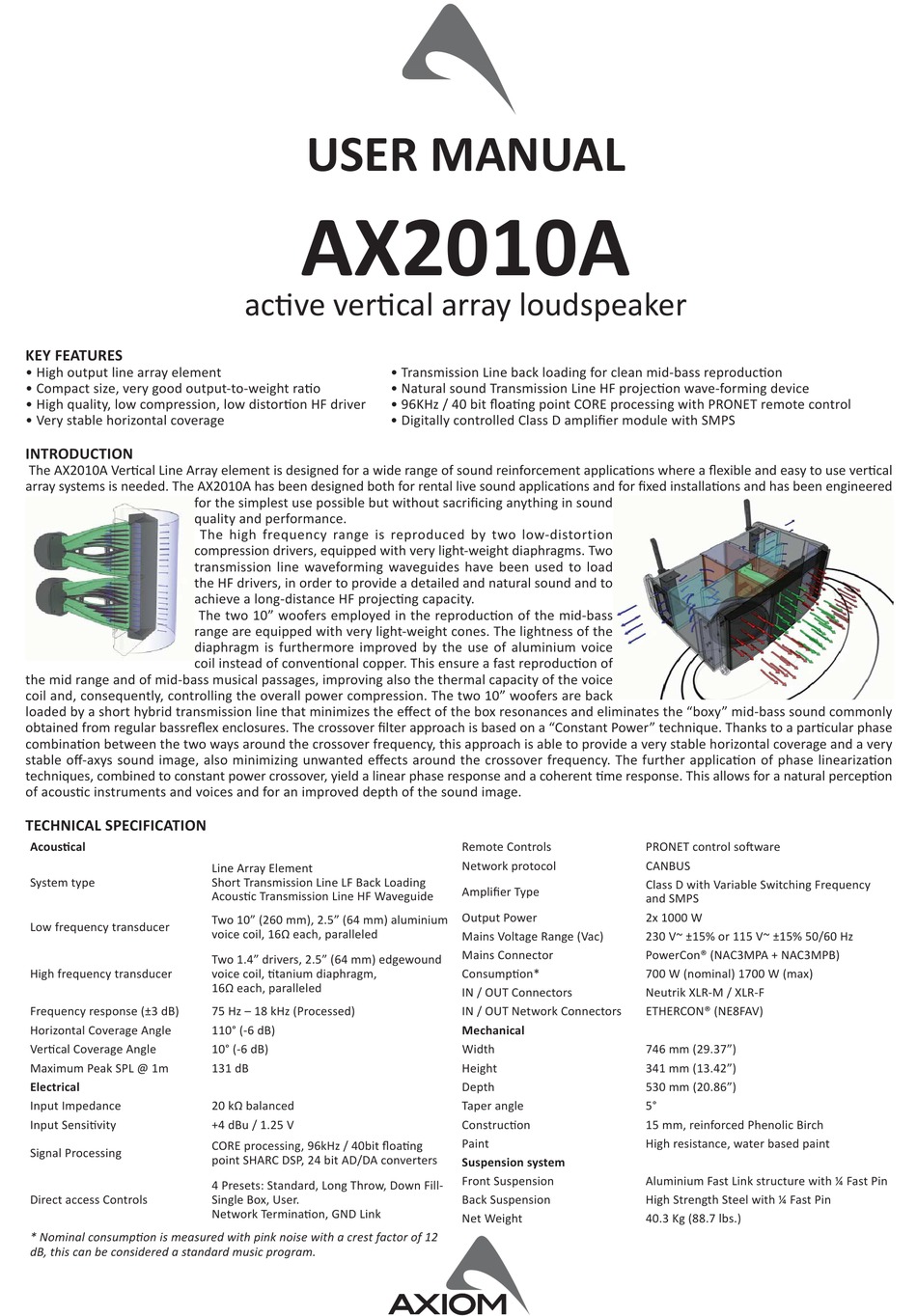

USER MANUAL

AX2010A
ac ve ver cal array loudspeaker
The high frequency range is reproduced by two low-distortion
Line Array Element
Short Transmission Line LF Back Loading
Acous c Transmission Line HF Waveguide
Two 10" (260 mm), 2.5" (64 mm) aluminium
voice coil, 16Ω each, paralleled
Two 1.4" drivers, 2.5" (64 mm) edgewound
voice coil, tanium diaphragm,
16Ω each, paralleled
75 Hz – 18 kHz (Processed)
110° (-6 dB)
10° (-6 dB)
131 dB
20 kΩ balanced
+4 dBu / 1.25 V
CORE processing, 96kHz / 40bit fl oa ng
point SHARC DSP, 24 bit AD/DA converters
4 Presets: Standard, Long Throw, Down Fill-
Single Box, User.
Network Termina on, GND Link
• Transmission Line back loading for clean mid-bass reproduc on
• Natural sound Transmission Line HF projec on wave-forming device
• 96KHz / 40 bit fl oa ng point CORE processing with PRONET remote control
• Digitally controlled Class D amplifi er module with SMPS
Remote Controls
Network protocol
Amplifi er Type
Output Power
Mains Voltage Range (Vac)
Mains Connector
Consump on*
IN / OUT Connectors
IN / OUT Network Connectors
Mechanical
Width
Height
Depth
Taper angle
Construc on
Paint
Suspension system
Front Suspension
Back Suspension
Net Weight
PRONET control so ware
CANBUS
Class D with Variable Switching Frequency
and SMPS
2x 1000 W
230 V~ ±15% or 115 V~ ±15% 50/60 Hz
PowerCon® (NAC3MPA + NAC3MPB)
700 W (nominal) 1700 W (max)
Neutrik XLR-M / XLR-F
ETHERCON® (NE8FAV)
746 mm (29.37")
341 mm (13.42")
530 mm (20.86")
5°
15 mm, reinforced Phenolic Birch
High resistance, water based paint
Aluminium Fast Link structure with ¼ Fast Pin
High Strength Steel with ¼ Fast Pin
40.3 Kg (88.7 lbs.)
