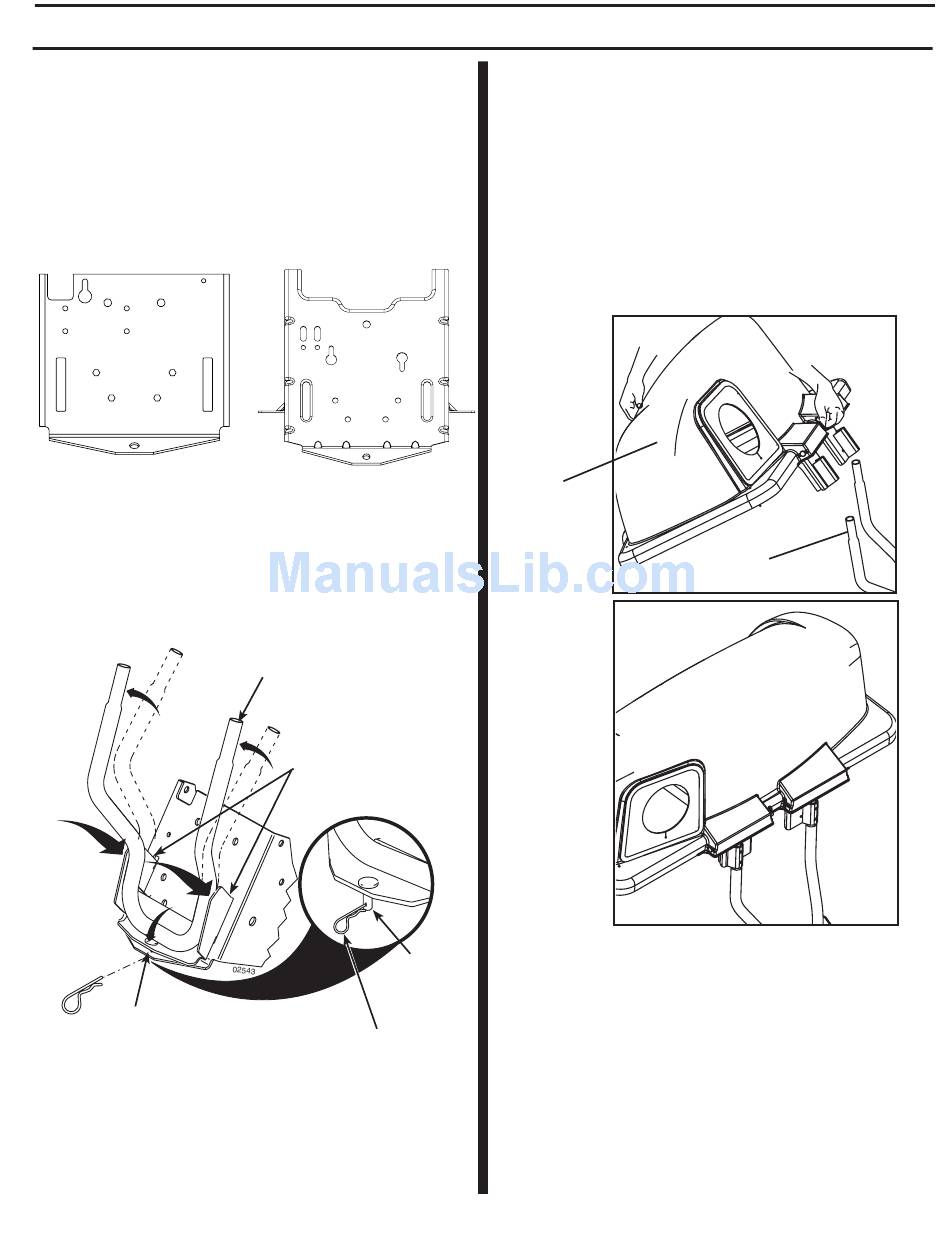

HANG SUPPORT ASSEMBLY ON
REAR DRAWBAR (See Fig. 1)
Determine the correct support assembly for your tractor.
The support assemblies are marked "A" and "B".
Compare the drawbar illustrations below to the drawbar
located at the rear of your tractor.
Use the support assembly indicated for your tractor and
discard the other support assembly.
DRAWBAR A
Use Support Assembly
Marked "A"
1.
Slide flanges of support assembly into drawbar slots first,
then, pivot backwards inserting pin into drawbar pin hole.
2.
Be sure support assembly is seated properly, then secure
with retainer spring.
INSERT
FLANGES
FIRST INTO
DRAWBAR
SLOTS
DRAWBAR
PIN HOLE

ASSEMBLY

DRAWBAR B
Use Support Assembly
Marked "B"
SUPPORT
ASSEMBLY
DRAWBAR SLOTS
(Drawbar "A" shown)
RETAINER
FIG. 1
SPRING
2
MOUNTING COVER ASSEMBLY TO
SUPPORT ASSEMBLY (See Fig. 2)
NOTE: For ease of assembly, you may wish to obtain the
assistance of another person for mounting cover assembly
to tractor.
1. Position cover assembly on ground behind tractor.
2. Lift and rotate cover to align cover brackets with support
assembly tubes.
3. Slide cover assembly down onto the support tubes.
COVER
ASSEMBLY
PIN
5
SUPPORT
ASSEMBLY
03024
FIG. 2
