ASSEMBLY / PRE-OPERATION

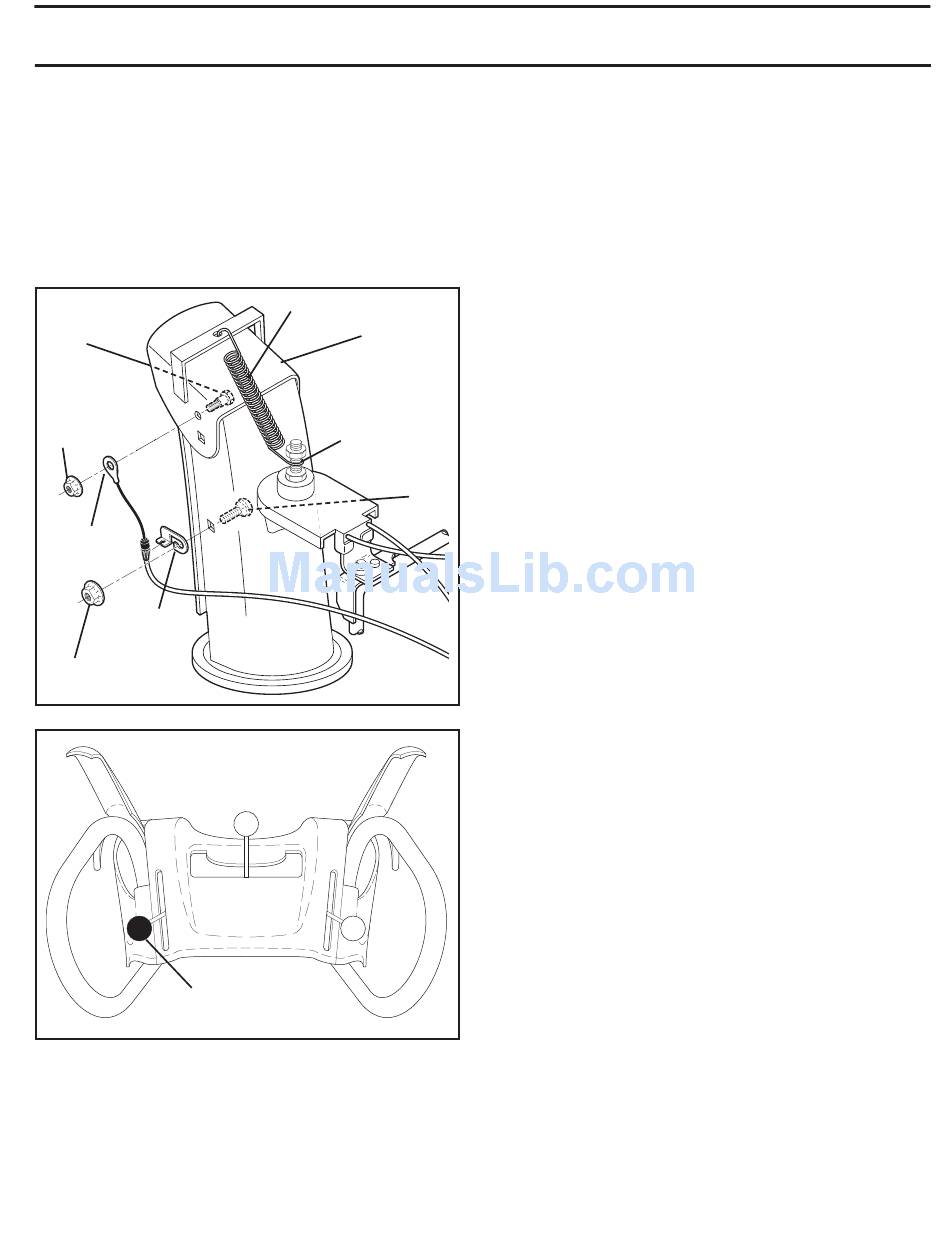

INSTALL CHUTE DEFLECTOR REMOTE CONTROL
(See Figs. 8 and 9)
1. Install remote cable bracket to discharge chute with
5/16-18 carriage bolt and 5/16-18 locknut as shown.
Tighten securely.
2. Install remote cable eyelet to chute deflector with
1/4-20 shoulder bolt and 1/4-20 locknut as shown.
Tighten securely.
3. Install spring hooks between hex nuts on chute rotater
head and into hole in chute deflector as shown.
1/4-20
SHOULDER
BOLT
1/4-20
LOCK NUT
CABLE
EYELET
REMOTE
CABLE
BRACKET
5/16-18
LOCKNUT
CHUTE DEFLECTOR
CONTROL LEVER
CHECK TIRE PRESSURE
The tires on your snow thrower were overinflated at the fac-
tory for shipping purposes. Correct and equal tire pres sure
is important for best snow throwing performance.
• Reduce tire pressure to 14-17 PSI (19-24.5 N-m).
SPRING
CHUTE
DE FLEC TOR
HOOK
BE TWEEN
HEX NUTS
ON CHUTE
ROTATER
HEAD
5/16-18
CARRIAGE
FIG. 8
FIG. 9
BOLT
7
