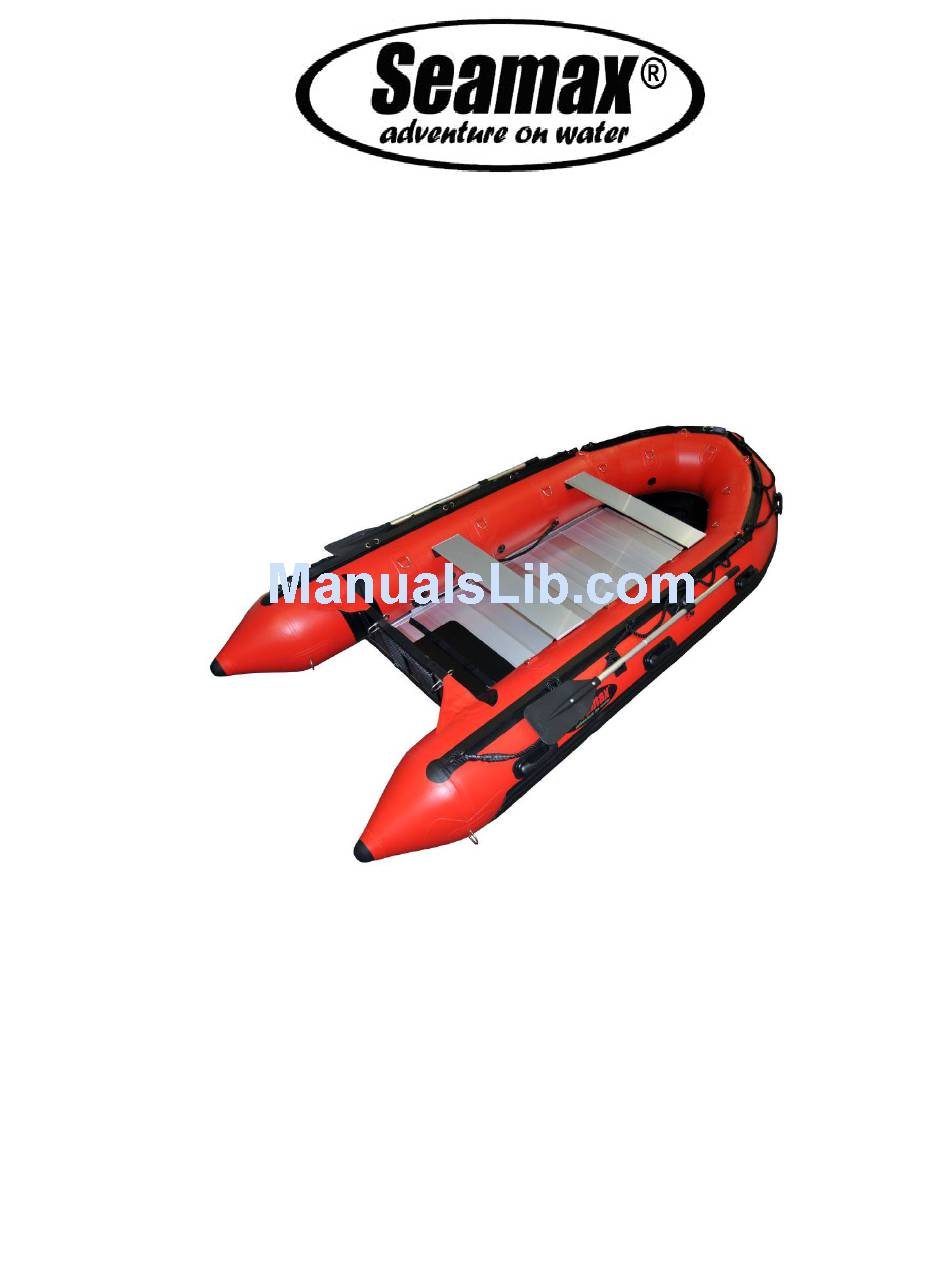

Inflatable Boat User Manual
Manuel de l'utilisateur bateau gonflable
SECURITY . STABILITY . DURABILITY
seamax inflatable boats
SEAMAX MARINE & OUTDOOR INTERNATIONAL
120-11791 MACHRINA WAY, RICHMOND, BC, CANADA V7A 4V3
www.seamaxcanada.com www.seamaxboat.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Inflatable boat and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Seamax Inflatable boat

Summary of Contents for Seamax Inflatable boat

  • Page 1 Inflatable Boat User Manual Manuel de l'utilisateur bateau gonflable SECURITY . STABILITY . DURABILITY seamax inflatable boats SEAMAX MARINE & OUTDOOR INTERNATIONAL 120-11791 MACHRINA WAY, RICHMOND, BC, CANADA V7A 4V3 www.seamaxcanada.com www.seamaxboat.com...
  • Page 2 All of us at SEAMAX CANADA want to thank you for choosing a SEAMAX Inflatable boat. This Owners Manual contains all the safety and operating information you will need to get the most out of your Inflatable boat. It also contains information on how to provide care and maintenance to protect your investment. Store this manual in a safe place for future reference and remember.

  • Page 3: Warranty And Service

    Product Registration To be eligible for warranty coverage, the product must be registered with SEAMAX CANADA within 90 days from purchase other than purchasing from Seamax Directly or Seamax Online. When you receive the product, you will be required to complete the warranty registration card and submit to SEAMAX CANADA via E-mail, FAX or mail.
  • Page 4 Seamax Inflatable Boat – English User Manual Submitting the SEAMAX Inflatable Boat Registration Card is the only valid warranty registration identification. Warranty Claims may not be accepted without presentation of this registration card. The consumer must provide COMPLETE access to the product for warranty service by delivering the product for inspection to SEAMAX CANADA or a dealer authorized to service the purchaser’s product.

  • Page 5: General Information

    Read and understand this manual carefully. Learn how to operate your boat properly. If you have any questions or concerns, please feel free to contact your local dealer or SEAMAX CANADA .Safety and operating information that is practiced, along with using good common sense, can help prevent personal injury and product damage.
  • Page 6 Seamax Inflatable Boat – English User Manual Protecting People While Cruising It is very difficult for a person standing or floating in the water to take quick action to avoid a boat heading in his or her direction, even at slow speed. Always slow down and exercise extreme caution any time you are boating in an area where there might be people in the water.
  • Page 7 Seamax Inflatable Boat – English User Manual Impact with Underwater Hazards Reduce speed and proceed with caution whenever you drive a boat in shallow water areas, or in areas where you suspect underwater obstacles may exist. These obstacles could be struck by the bottom leg of the outboard or the boat bottom and cause severe damage to the boat and or motor.
  • Page 8 Seamax inflatable boats are certified by transport Canada and carry our own manufacture's identification code. Each Seamax boat carries a capacity plate along with a warning plate on the transom as required by Transport Canada .This certification along with the CE certification allows Seamax Boats to be sold world wide.
  • Page 9 Inspect and familiarize yourself with all the components and the safety features of your new inflatable boat. Knowing the functions of all the components of your boat is very important .Not only for safety reasons but to assist in any questions or concerns you may have.
  • Page 10 Seamax Inflatable Boat – English User Manual away from the side chambers and makes the floor installation much easier. Before Assemble check over Double check all valves and make sure they are all in the closed position, you can also use the included valve wrench to ensure all the valves are seated tightly against the floor material.
  • Page 11 The air floor is designed to be light weight and installed once, its design allows the floor to remain in the boat and be deflated and folded up with the rest of the boat. Seamax air mat floors are specially designed using two layers of fabric held together by thousands of polyester cross threads.
  • Page 12 Seamax Inflatable Boat – English User Manual Air floor Boat Assemble Unfold the floor on a clean flat surface that is free of any sharp objects that could damage the air mat Lay the floor flat and ensure that all valves are snug and the air valve is in the closed position. Install plywood slat in holder(under the 2 strap) this is to provide the support to push down the inflatable keel to provide a deep V keel under the boat .check over to make sure there are defects.
  • Page 13 Seamax Inflatable Boat – English User Manual Special Pump for Seamax Airmat floor inflatable boats: • We will give double stages foot pump for Seamax Air Series from 2011 model. It can support 4.4PSI at lower pressure and 14.7 PSI at high pressure. •...
  • Page 14 Seamax Inflatable Boat – English User Manual Model eMarine305 eMarine365 Sport240 Sport270 Sport360 Sport420 Floor Boards Side Joiners Model HD330 HD360 HD380 HD470 AIR270 AIR320 Floor Boards Side Joiners Placement of the floorboards Tips: • You will notice that the first couple of times you install the floorboards it will be a little difficult this is normal, After a while it will all go easier because the material will have stretched.
  • Page 15 Seamax Inflatable Boat – English User Manual A. Clear a flat surface that is clean and free of sharp objects. Unfold the boat and spread it out flat. Start with the front floorboard; slide it into the bow, push this as far in the nose as possible or until the valve base of the keel is in the middle of the opening in the front floorboard.
  • Page 16 Seamax Inflatable Boat – English User Manual C. Slightly inflate the keel in order to raise the floorboards off the floor. Attach the side joiner onto each side of floorboards within the recessed floor portion. - 15 -...
  • Page 17 Seamax Inflatable Boat – English User Manual - 16 -...
  • Page 18 Seamax Inflatable Boat – English User Manual About Inflating IMPORTANT Do not inflate or deflate one air chamber at a time. When inflating or deflating, maintain a balanced air pressure between air chambers to prevent stress or potential damage to the inside diaphragms that separate the air chambers.
  • Page 19 Seamax Inflatable Boat – English User Manual Oar’s installation Two Pieces of foldable oars • Two pieces oar, Blade piece & Handle piece • Standard: Gray & Black Color; 4.3FT & 5.3FT Total Length • Oar handle diameter: 1 ¼ inch •...
  • Page 20 15 minutes of boating to ensure the butterfly bolts are still tight to the transom. Self Draining SEAMAX inflatable boats come with two styles of self draining system. To test the valve, while in a forward motion remove the plug from the drain and the water will automatically run out. The inner diaphragm will prevent water from returning.
  • Page 21 Towing the Boat If the inflatable boat is to be towed by another boat, the inflatable boat must be empty. Remove outboard, fuel tank, and equipment. Attach a line between the towing rings to form a bridle. Attach a towing line to this bridle and tow the boat at slow speed.
  • Page 22 Due temperature difference the pressure can increase or decrease. It may not lose more than 20% of the pressure in 24 hours by the Inflatable Boat’s Standard regulations check the following steps it this should happen 1.
  • Page 23 Small tears and punctures in the air chambers which are 1cm (0.393 in.) or less, can be repaired in an emergency. Larger areas, or if the patch will overlap a seam, should be patched by a professional repair person. If you are not sure of the repair procedure, you can contact SEAMAX customer support by visiting our website.
  • Page 24 Seamax Inflatable Boat – English User Manual Maintenance Your Boats fabric is PVC; you can keep it clean with simple soap and the water. When you find persistent stains like oil and tar, you can remove them with thinner, after you have used thinner; always clean the boat with fresh water.

  • Page 25: Boat Specifications

    Seamax Inflatable Boat – English User Manual 8. BOAT SPECIFICATIONS Seamax Styles V-Hull consists of a separate longitudinal inflation tube or wood keel located beneath the floorboards. Once inflated, it provides a moderate V-keel at the bow of the boats by pushing the fabric floor down and away from the floorboards.
  • Page 26 Seamax Inflatable Boat – English User Manual AIR Series SEAMAX AIR SERIES with the Round Noise design helps to provide maximum space in the boat. SEAMAX AIR SERIES uses an air mat floor, the floor is specifically designed with thousand of polyester threads crisscrossing one another, and once it is inflated to a high pressure it becomes as tough and rigid as a conventional wooden floor boat.
  • Page 27 5 feet aluminum oar x 2 SPORT Series & Emarine Series SEAMAX SPORT comes with updated aluminum floor boards. Aluminum Floor makes it the ideal choice for day tripping and fishing activities alike. Its aluminum frame is strong and durable to provide years of dependable service.
  • Page 28 5.7 ft oar x 2 OCEAN Series SEAMAX OCEAN SERIE comes with an Aluminum floor and multi-colors. This series is designed for higher speed higher and comes with a larger cockpit space. The aluminum floor is easy to maintain with its exceptional resistance to all types of impact, it is the most popular floor request of all boat floors.
  • Page 29 Seamax Inflatable Boat – English User Manual Seamax OCEAN Series Specifications OCEAN290 OCEAN320 OCEAN380 OCEAN430 2012 model Overall length 9.5 ft / 2.90 m 10.5 ft / 3.2 m 12.5 ft / 3.8 m 14 ft / 4.3 m Beam (max width) 5 ft / 1.51 m...
  • Page 30 Seamax Inflatable Boat – English User Manual Seamax OCEAN T Series Specifications OCEAN380T OCEAN430T OCEAN500T Overall length 12.5 feet / 3.8 meter 14 feet / 4.3 meter 16.5 feet / 5.0 meter Beam (overall width) 5.5 feet / 1.68 meter 6.2 feet / 1.90 meter...
  • Page 31 River rafting is a tough sport and the rafts must be made to handle the bumps, scrapes, rocks and other challenges unique to rafting. SEAMAX RIVERSTAR raft is fully wrapped, built tough with a heavy-duty floor, the bottom wear patches from bow to stern, side rubbing strake, convenient, reinforced D-rings, and maintenance-free valves and overpressure valve.
  • Page 32 This form can be downloaded from our website -- All fields are required. This form is NOT required for Customer Directly Purchasing from Seamax or Seamax online. Ce formulaire n'est pas requis pour la clientèle achetant directement à partir Seamax ou Seamax ligne. Register your boat warranty by submitting this form, thanks! Email: register@seamaxcanada.com...
  • Page 33 Seamax Inflatable Boat – English User Manual Seamax Accessories – Boat Bimini Top 2 Bow Bimini Top for Boats from 7ft to 10ft 3 Bow Bimini Top for Boats from 10.5ft to 13 - 32 -...
  • Page 34 Seamax Inflatable Boat – English User Manual 4 Bow Bimini Top for Boats from 14ft to 18ft T-Top for RIB Boat from 16ft to 24ft Visit our website www.seamaxboat.com for detail sizes. - 33 -...
  • Page 35 Max. pressure: 80kpa / 11.6 PSI / Pressure Setting: By each 1 Kpa / 0.15 PSI Max. pressure for Seamax inflatable boat – Boat Chamber 25kpa / 3.6 PSI High Pressure AIRMAT Floor for Inflatable Boat 60kpa – 80kpa / 8.7-11 PSI Air Valve Connector –...
  • Page 36 Seamax Inflatable Boat – English User Manual Seamax Accessories – Motor Well Boat Cover Available models Point of making Size A - for Length 7.5-8ft / beam 4.3ft 600D coated PU material & all weather water proof. Size B - for 9.0ft / beam 5.0ft Trailer able design, it covers well with boat &...
  • Page 37 Boat dolly is designed for boats with transom, Max loading 400Lbs, best for boat under 16 FT. • Transom bracket screw’s diameter is 5/16 inch. Locate all 4 screw’s position before drilling holes. • If inflatable boat comes with Spray Guard, please adjust the best position for installation. - 36 -...
  • Page 38 Seamax Inflatable Boat – English User Manual More Parts & Accessories Always Visit Our Website for Product’s Information! SEAMAX MARINE & OUTDOOR INTERNATIONAL 120-11791 MACHRINA WAY, RICHMOND, BC, CANADA V7A 4V3 www.seamaxcanada.com www.seamaxboat.com 1877-907-7766 604-277-7766 - 37 -...
