- Page 1 Operating, Installation and Service Instructions Direct- and Indirect-fired Diesel/Kerosene Heaters TOR 67 WU TOR 115 WU TOR 175 WU MIR 37 WU MIR 55 WU MIR 85 WU...
- Page 2 ________________________________________________________________________________________________...
-
Page 3: General Safety Rules
1. GENERAL SAFETY RULES • READ INSTRUCTIONS CAREFULLY. READ AND FOLLOW ALL INSTRUCTIONS. PLACE INSTRUCTIONS IN A SAFE PLACE FOR FUTURE REFERENCE. DO NOT ALLOW ANYONE WHO HAS NOT READ THESE INSTRUCTIONS TO ASSEMBLE, LIGHT, ADJUST OR OPERATE THE HEATER. •... -

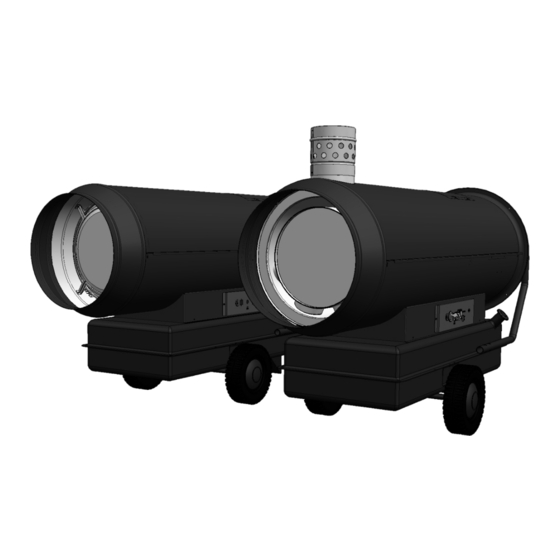

Page 4: Product Description
40.4 Flue Diameter (in) Tank Capacity (gal) 26.5 36.0 Fuel Pressure (psi) Air Lock Setting 3.2 Direct-fired heaters Model # TOR 67 WU TOR 115 WU TOR 175 WU Firing rate (BTU/hr) 227,000 396,500 607,000 Air Flow Rate (ft³/min) 1650... -
Page 5: Installation Instructions
4. INSTALLATION INSTRUCTIONS 4.1. General instructions • THE INSTALLATION OF THE EQUIPMENT SHALL BE IN ACCORDANCE WITH THE REGULATION OF AUTHORITIES HAVING JURISDICTION AND CSA B139. • The heater must be operated only by properly trained personnel. The manufacturer’s instructions must be followed. -
Page 6: Instructions For Use
Maintenance and checks • Depending on the operational conditions, usually every year, the heater should be checked by qualified personnel. • Prior to start-up, the user must check for any evident non-compliance with rules of use, safety and protection. 5. INSTRUCTIONS FOR USE 5.1 Start-up •... -
Page 7: Maintenance
5.3. Shut down. • Set switch to “OFF” to shut the flame off. The fan will go on rotating for 1 min 45 sec to cool the heater down. The fan motor will automatically stop at the end of the aftercooling time, then the unit can be disconnected from mains. -
Page 8: Wiring Diagram
8. WIRING DIAGRAM TOR 67 WU, TOR 115 WU MIR 37 WU, MIR 55 WU, MIR 85 WU Fuel Solenoid Valve Ignition Transformer black brown Motor Warning Lamp Air Pressure Switch Fuse Flame Sensor Reset Button Switch Remote Thermostat Heated Filter TRcont. - Page 9 ________________________________________________________________________________________________...
