- Page 1 Analog to Digital Audio Converter with Audio Delay Operation Manual DCT-4T...
-
Page 2: Table Of Contents
TABLE OF CONTENTS 1. Introduction................. 1 2. Features..................1 3. Package Contents..............1 4. Operation Controls and Functions..........2 4.1 Front Panel................2 4.2 Rear Panel................2 5. Connection and Installation............3 6. Specifications................3... -
Page 3: Introduction
1. Introduction Analog to Digital Audio Converter is designed to convert analog stereo audio signal from L/R input to Coaxial S/PDIF and Toslink Optical outputs simultaneously, with additional audio delay (150 mini-seconds) function selectable. The output digital audio signal is 2-channel uncompressed LPCM (Linear Pulse Code Modulation) with sampling rate at 48 KHz. -
Page 4: Operation Controls And Functions

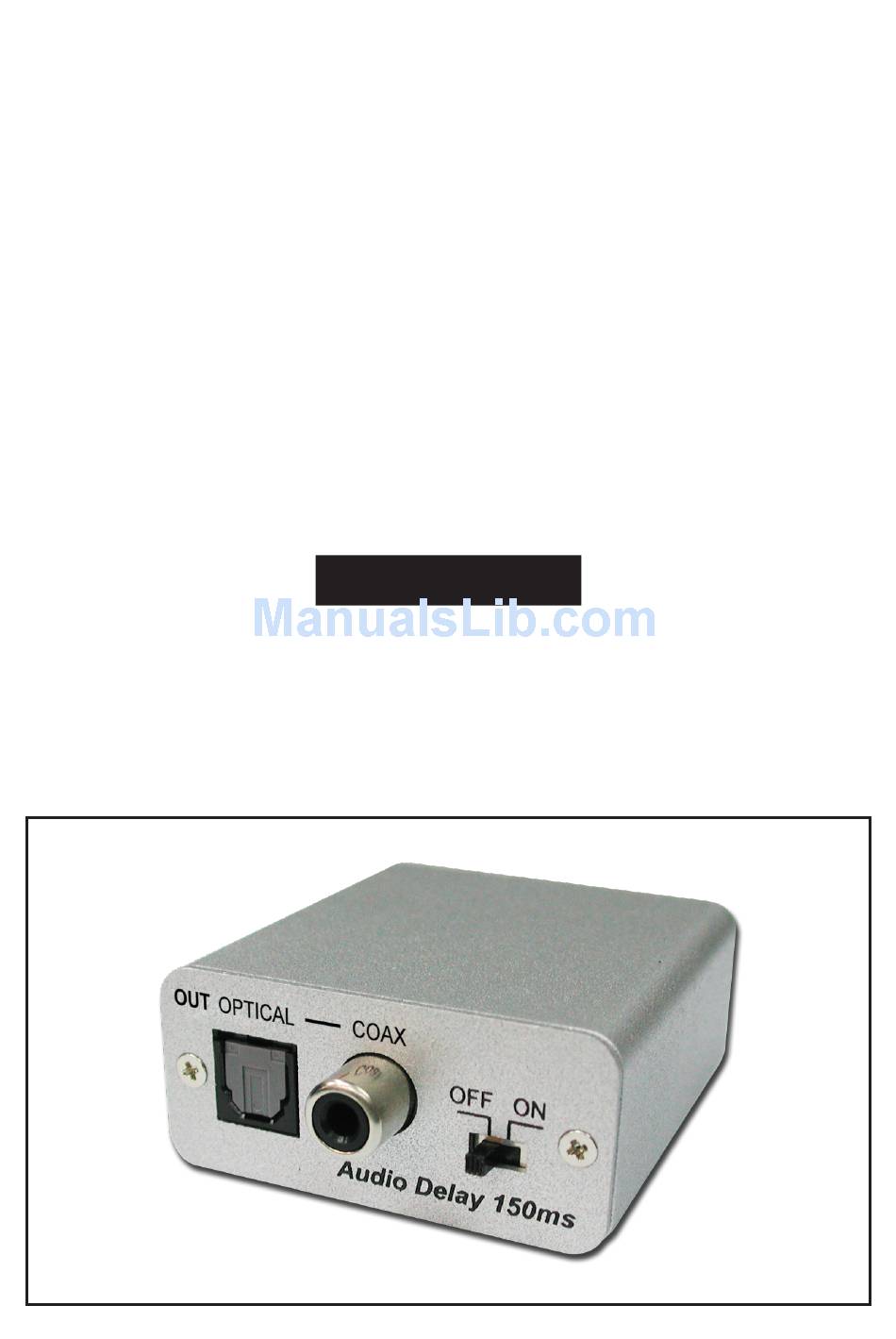

4. Operation Controls and Functions 4.1. Front Panel 4.2. Rear Panel DC 5V OUT OPTICAL COAX OFF ON OFF ON AUDIO DELAY 150ms 1 Coaxial and TOSLink (Optical Fiber) Output Ports: Connect the output ports to the Coaxial or TOSLink (Optical Fiber) input port of audio equipments such as audio amplifier and AV receiver, using proper cable. -
Page 5: Connection And Installation
5. Connection and Installation COAXIAL OPTICAL Amplifier A/V Receiver 6. Specifications Input ports Stereo R/L Output ports 1 x TOSLink (Optical Fiber) , 1 x Coaxial Power Supply 5V/0.36~0.5A DC (US/EU standards, CE/FCC/UL certified) Dimensions (mm) 67(W) x 50(D) x 23(H) Weight(g) Chassis Material Plastic... - Page 7 2008.1.17 MPM-DCT4T...
- Page 8 CYPRESS TECHNOLOGY CO., LTD. Home page: http://www.cypress.com.tw...
