AccuLine 40-6680 Instruction Manual

Self-leveling five-beam laser pointer
Hide thumbs Also See for 40-6680:
Table of Contents

Advertisement

Quick Links

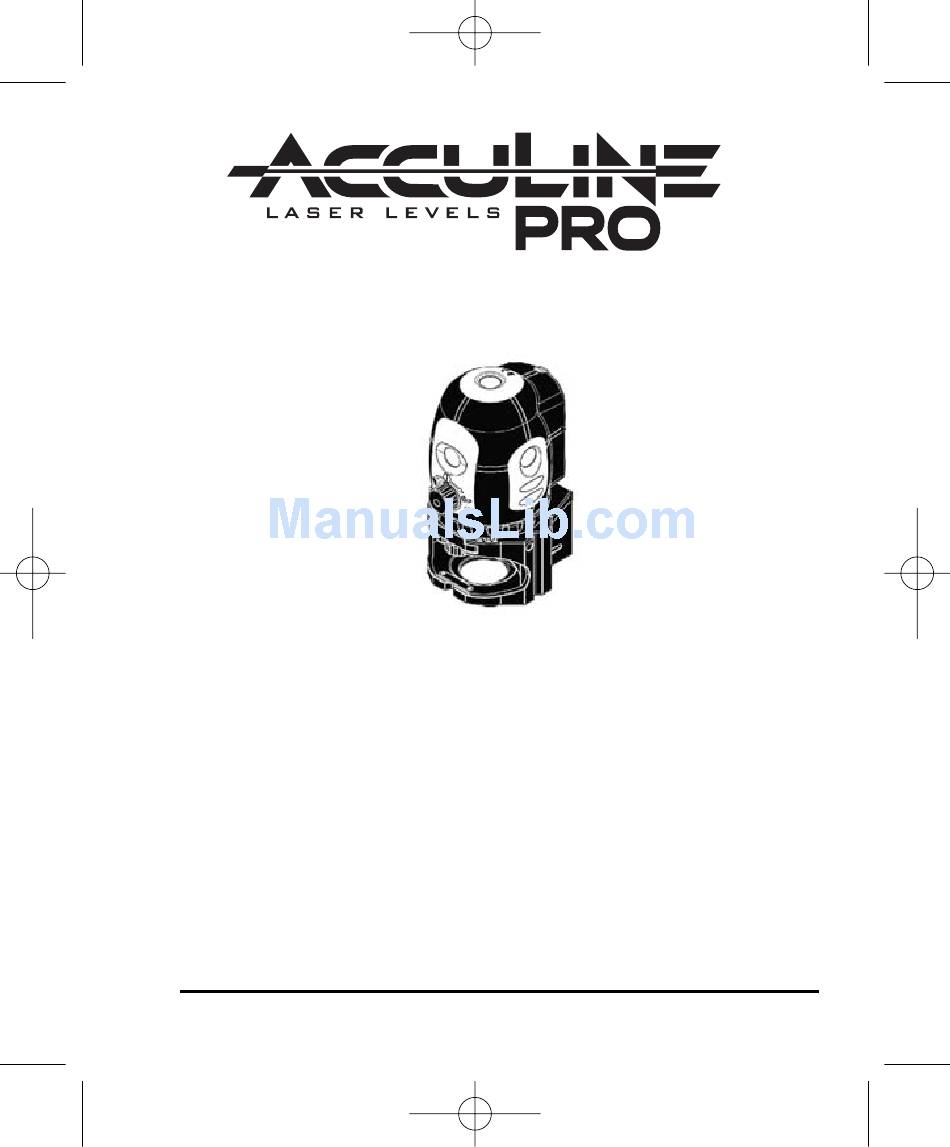

40-6680 English
5/23/05
9:24 AM
Page 1
™

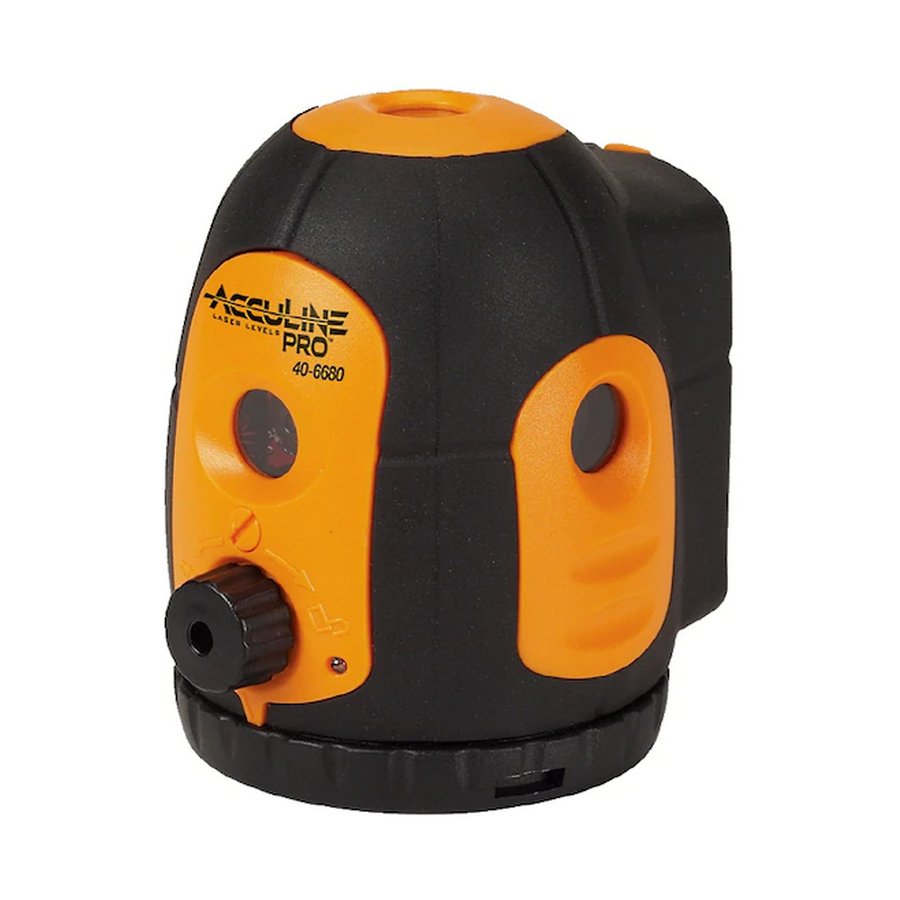

Self-Leveling Five-Beam Laser Pointer
Model No. 40-6680
Instruction Manual
Congratulations on your choice of this Self-Leveling Five-Beam Laser
Pointer. We suggest you read this instruction manual thoroughly before
using the instrument. Save this instruction manual for future use.
This tool emits five laser beams, which projects a series of visible points
on surfaces around the product (i.e. left, right, front, up, and down).
Beam visibility depends upon lighting conditions in the work area.
This is a Class IIIa laser tool and is manufactured to comply with CFR
21, parts 1040 .10 and 1040 .11 as well as international safety rule
IEC 285.
©2005 Johnson Level & Tool
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 40-6680 and is the answer not in the manual?

Questions and answers

Related Manuals for AccuLine 40-6680

Summary of Contents for AccuLine 40-6680

  • Page 1 9:24 AM Page 1 ™ Self-Leveling Five-Beam Laser Pointer Model No. 40-6680 Instruction Manual Congratulations on your choice of this Self-Leveling Five-Beam Laser Pointer. We suggest you read this instruction manual thoroughly before using the instrument. Save this instruction manual for future use.

  • Page 2: Table Of Contents

    40-6680 English 5/23/05 9:24 AM Page 2 Table of Contents 1. Kit Contents Self-Check and Calibration 2. Features and Functions Technical Specifications 3. Safety Instructions 10. Application Demonstrations 4. Location/Content 11. Care and Handling of Warning Labels 12. Product Warranty 5.

  • Page 3: Safety Instructions

    • Use only original AccuLine Pro ™ parts and accessories purchased from your AccuLine Pro authorized dealer. Use of non-AccuLine Pro parts and accessories will void warranty. ©2005 Johnson Level & Tool...

  • Page 4: Location/Content

    40-6680 English 5/23/05 9:24 AM Page 4 CAUTION: If using this product with any type of tinted goggles, please note safety warning below. WARNING! The tinted goggles are designed to enhance the visibility of the laser beam. They DO NOT offer protection to the eyes from direct exposure of the laser beam.
  • Page 5 40-6680 English 5/23/05 9:24 AM Page 5 5. Location of Part/Components Laser Output Window Battery Door On/Off Switch Power Indicator Lamp Laser Output Window 1/4" – 20 thread Slider Set Belt Slot Magnet Locking 5/8" – 11 Knob thread ©2005 Johnson Level & Tool...

  • Page 6: Operating Instructions

    40-6680 English 5/23/05 9:24 AM Page 6 6. Operating Instructions IMPORTANT: It is the responsibility of the user to verify the calibration of the instrument before each use. Battery Installation Note: Always check to be sure that the on/off switch is in the off position before removing and replacing batteries.

  • Page 7: Using The Product

    40-6680 English 5/23/05 9:24 AM Page 7 7. Using the Product This laser level was designed for various mounting applications. 1. Stand alone for use on any flat surface Fig. 4.2 (Fig. 4.1). 2. 1/4" – 20 thread for use on standard camera mount tripod (Fig.

  • Page 8: Self-Check And Calibration

    40-6680 English 5/23/05 9:24 AM Page 8 6. Strap/mounting base for use when mounting to round, square or irregu- lar shaped objects is required (Fig. 7). Fig. 7 7. Laser beam compensation dimensions for the laser level (Fig. 8). Fig. 8 8.

  • Page 9: Technical Specifications

    40-6680 English 5/23/05 9:24 AM Page 9 9. Technical Specifications Laser Wavelength 650nm±10 Laser Classification Class IIIa ≤5mW Maximum Power Output Accuracy ±1/4"/100 ft. (±2mm/10m) Working Range Maximum 100 ft. (30m) depending upon light conditions Self-Leveling Range ±4.5° with laser flashing and sound...

  • Page 10: Application Demonstrations

    40-6680 English 5/23/05 9:24 AM Page 10 10. Application Demonstrations Plumb reference for lamp installation Reference for fence installation Reference for pipeline installation Reference for dormer installation Reference for door frame installation Reference for baseboard installation Reference for vertical partition Reference for constructing cubic partition ©2005 Johnson Level &...

  • Page 11: Care And Handling

    Do not return this product to the store/retailer or place of purchase. Required repair/calibration must be done by an authorized AccuLine Pro™ service center or Johnson Level & Tool's limited warranty, if applicable, will be void and there will be NO WARRANTY. Contact our...

  • Page 12: Product Registration

    40-6680 English 5/23/05 9:24 AM Page 12 Customer Service Department to obtain a Return Material Authorization (RMA) number for return to an authorized service center. Proof of purchase is required. NOTE: The user is responsible for the proper use and care of the product.

  • Page 13: Accessories

    14. Accessories AccuLine Pro™ accessories are available for purchase through authorized AccuLine Pro dealers. Use of non-AccuLine Pro accessories will void any applicable limited warranty and there will be NO WARRANTY. If you need any assistance in locating any accessories, please contact our Customer Service Department.
