Summary of Contents for Daikin FTXS80KVMA
-
Page 1: Operation Manual

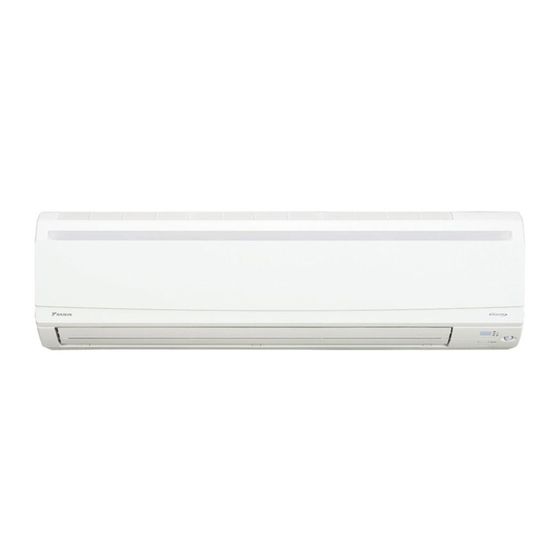

DAIKIN ROOM AIR CONDITIONER Operation Manual MODELS FTXS80KVMA FTXS90KVMA FTXS100KVMA... -
Page 2: Table Of Contents
CONTENTS READ BEFORE OPERATION Safety Precautions ......... 2 Names of Parts ..........4 Preparation before Operation......7 OPERATION AUTO · DRY · COOL · HEAT · FAN Operation ............. 10 Adjusting the Airflow Direction ..... 12 COMFORT AIRFLOW Operation....14 INTELLIGENT EYE Operation ..... -
Page 3: Safety Precautions
READ BEFORE OPERATION Safety Precautions • Keep this manual where the operator can easily find it. • Read the precautions in this manual carefully before operating the unit. • The precautions described herein are classified as WARNING and CAUTION. They both contain important information regarding safety. -
Page 4: Installation Site
• Do not place appliances that produce naked flames in places exposed to the air flow from the unit as this may impair combustion of the burner. • Do not block air inlets nor outlets. Impaired air flow may result in insufficient performance or trouble. •... -
Page 5: Names Of Parts
Names of Parts ■ Indoor Unit... -
Page 6: Outdoor Unit
■ Outdoor Unit 80/90 class 100 class ■ Indoor Unit 1. Air filter 12. OPERATION lamp (green) 2. Titanium apatite photocatalytic 13. TIMER lamp (yellow): (page 20.) air-purifying filter 14. INTELLIGENT EYE lamp (green): (page 15.) 3. Air inlet 15. Indoor Unit ON/OFF switch: 4. -
Page 7: Remote Controller
■ Remote Controller <Open the front cover> <ARC452A4> 1. Signal transmitter: 11. SWING button: • It sends signals to the indoor unit. • Louvers (vertical blades) (page 12.) 2. Display: 12. COMFORT/SENSOR button: • It displays the current settings. • COMFORT AIRFLOW and INTELLIGENT (In this illustration, each section is shown EYE operation (page 14, 15.) with its displays on for the purpose of... -
Page 8: Preparation Before Operation
Preparation before Operation ■ To set the batteries 1. Slide the front cover to take it off. Position + and – correctly! 2. Set 2 dry batteries AAA.LR03 (alkaline). 3. Set the front cover as before. ■ To operate the remote controller •... -
Page 9: Operation
Preparation before Operation ■ To set the clock 1. Press “CLOCK button”. “ ” is displayed. “ ” and “ ” blink. 2. Press “SELECT button” to set the current day of the week. 3. Press “CLOCK button”. “ ” blinks. 4. - Page 10 ■ Turn the breaker on • After the power is turned on, the flaps of the indoor unit opens and closes once to set the reference position. NOTE ■ Tips for saving energy • Be careful not to cool (heat) the room too much. Recommended temperature setting Keeping the temperature setting at a moderate level helps save energy.
-
Page 11: Auto · Dry · Cool · Heat · Fan Operation
OPERATION AUTO · DRY · COOL · HEAT · FAN Operation The air conditioner operates with the operation mode of your choice. From the next time on, the air conditioner will operate with the same operation mode. ■ To start operation 1. -
Page 12: To Change The Airflow Rate Setting
■ To change the airflow rate setting 5. Press “FAN setting button”. DRY mode AUTO or COOL or HEAT or FAN mode Five levels of airflow rate setting from “ ” to “ ” plus “ ” “ ” are available. The airflow rate setting is not variable. -
Page 13: Adjusting The Airflow Direction
Adjusting the Airflow Direction You can adjust the airflow direction to increase your comfort. ■ To adjust the flaps (horizontal blades) 1. Press “SWING button ”. • “ ” is displayed on the LCD and the flaps will begin to swing. 2. - Page 14 ■ To start 3-D airflow 1. 3. Press the “SWING button ” and the “SWING button ”: the “ ” and “ ” display will light up and the flap and louvers will move in turn. ■ To cancel 3-D airflow 2.
-
Page 15: Comfort Airflow Operation
COMFORT AIRFLOW Operation The flow of air will be in the upward direction while in cooling mode and in the downward direction while in heating mode, which will provide a comfortable wind that will not come in direct contact with people. ■... -
Page 16: Intelligent Eye Operation
INTELLIGENT EYE Operation “INTELLIGENT EYE” is the infrared sensor which detects the human movement. ■ To start INTELLIGENT EYE operation 1. Press “COMFORT/SENSOR button” and select “ ” on the LCD. • Each time the “COMFORT/SENSOR button” is pressed a different setting option is displayed on the LCD. - Page 17 INTELLIGENT EYE Operation “INTELLIGENT EYE” is useful for energy saving ■ Energy saving operation • Change the temperature –2°C in heating / +2°C in cooling / +2°C in dry mode from set temperature. • Decrease the airflow rate slightly in FAN mode only. •...
-
Page 18: Powerful Operation
POWERFUL Operation POWERFUL operation quickly maximizes the cooling (heating) effect in any operation mode. You can get the maximum capacity. ■ To start POWERFUL operation 1. Press “POWERFUL button”. • POWERFUL operation ends in 20 minutes. Then the system automatically operates again with the previous settings which were used before POWERFUL operation. -
Page 19: Outdoor Unit Quiet Operation
OUTDOOR UNIT QUIET Operation OUTDOOR UNIT QUIET operation lowers the noise level of the outdoor unit by changing the frequency and fan speed on the outdoor unit. This function is convenient during night. ■ To start OUTDOOR UNIT QUIET operation 1. -
Page 20: Econo Operation
ECONO Operation ECONO operation is a function which enables efficient operation by limiting the maximum power consumption value. This function is useful for cases in which attention should be paid to ensure a circuit breaker will not trip when the product runs alongside other appliances. -
Page 21: Timer Operation
TIMER Operation Timer functions are useful for automatically switching the air conditioner on or off at night or in the morning. You can also use OFF TIMER and ON TIMER in combination. ■ To use OFF TIMER operation • Check that the clock is correct. If not, set the clock to the present time. -
Page 22: To Combine On Timer And Off Timer
■ To use ON TIMER operation • Check that the clock is correct. If not, set the clock to the present time. (page 8.) 1. Press “ON TIMER button”. “ ” is displayed. “ ” blinks. 2. Press “SELECT button” until the time setting reaches the point you like. -
Page 23: Weekly Timer Operation
WEEKLY TIMER Operation Up to 4 timer settings can be saved for each day of the week. It is convenient if the WEEKLY TIMER is set according to the family’s life style. ■ Using in these cases of WEEKLY TIMER An example of WEEKLY TIMER settings is shown below. - Page 24 ■ To use WEEKLY TIMER operation Setting mode • Make sure the day of the week and time are set. If not, set the day of the week and time. (page 8.) Program 1 Program 2 Program 3 Program 4 [Monday] 25˚C 27˚C...
- Page 25 WEEKLY TIMER Operation 8. Press “SELECT button” to select the desired temperature. • The temperature can be set between 10°C and 32°C. Cooling: The unit operates at 18°C even if it is set at 10 to 17°C. Heating: The unit operates at 30°C even if it is set at 31 to 32°C.
- Page 26 Copy mode • A reservation made once can be copied another day of the week. The whole reservation of the selected day of the week will be copied. Program 1 Program 2 Program 3 Program 4 [Monday] 25˚C 27˚C 6:00 8:30 17:30 22:00...
- Page 27 WEEKLY TIMER Operation ■ Confirming a reservation • The reservation can be confirmed. Press “ button”. • The day of the week and the reservation number of current day will be displayed. Press “SELECT button” to select the day of the week and the reservation number to be confirmed.
-
Page 28: Care And Cleaning
CARE Care and Cleaning Before cleaning, be sure to stop the operation and CAUTION turn the breaker off. Units ■ Indoor unit, outdoor unit and remote controller 1. Wipe them with softy cloth soak in water. ■ Front panel 1. Open the front panel. •... -
Page 29: Air Filter
Filters 1. Open the front panel. (page 27.) 2. Pull out the air filters. • Push a little upwards the tab at the center of each air filter, then pull it down. 3. Take off the titanium Titanium apatite photocatalytic apatite photocatalytic air-purifying filter air-purifying filter. -
Page 30: Before A Long Idle Period
NOTE • Operation with dirty filters: (1) cannot deodorize the air. (2) cannot clean the air. (3) results in poor heating or cooling. (4) may cause odour. • To order titanium apatite photocatalytic air-purifying filter contact to the service shop there you bought the air conditioner. -
Page 31: Troubleshooting
TROUBLESHOOTING Troubleshooting These cases are not troubles. The following cases are not air conditioner troubles but have some reasons. You may just continue using it. Case Explanation Operation does not start soon. • This is to protect the air conditioner. You should wait for about 3 minutes. -
Page 32: Check Again
Case Explanation ■ For system protection, the air conditioner may stop operating The operation stopped suddenly. on a sudden large voltage fluctuation. (OPERATION lamp is on.) It automatically resumes operation in about 3 minutes. No remote controller signals are • The batteries are dying and the remote controller is displayed. -
Page 33: Call The Service Shop Immediately
Call the service shop immediately. WARNING ■ When an abnormality (such as a burning smell) occurs, stop operation and turn the breaker off. Continued operation in an abnormal condition may result in troubles, electric shocks or fire. Consult the service shop where you bought the air conditioner. ■... - Page 34 Two-dimensional bar code is a code for manufacturing. 3P266961-1 M09B395 (1008) HT...
