Summary of Contents for Cypress DCT-1D

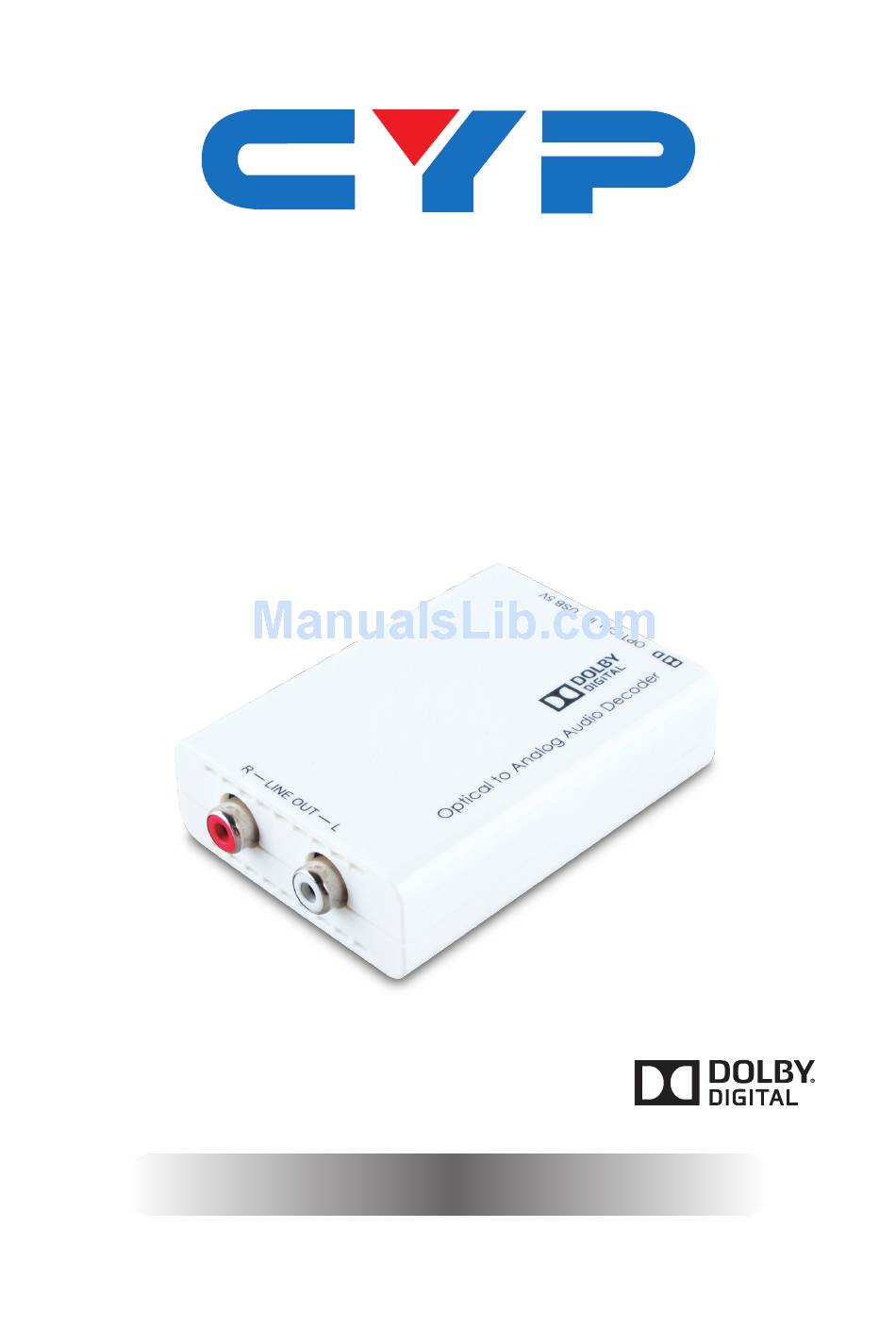

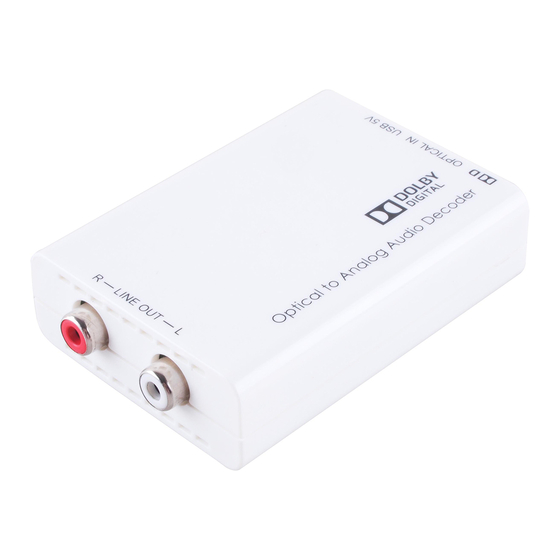

- Page 1 DCT-1D Optical to Analog Audio Converter with Dolby Digital Decoder ® Operation Manual Operation Manual...
- Page 3 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 4: Safety Precautions
SAFETY PRECAUTIONS Please read all instructions before attempting to unpack, install or operate this equipment and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: • Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 5: Table Of Contents
CONTENTS 1. Introduction ..........1 2. Applications ........... 1 3. Package Contents ........ 1 4. System Requirements ......1 5. Features ..........2 6. Operation Controls and Functions ..3 6.1 Front Panel .........3 6.2 Rear Panel .........3 7. Connection Diagram ......4 8. -
Page 6: Introduction
1. INTRODUCTION ® The Optical to Analog Audio Converter (DAC) with Dolby Digital Decoder provides the ideal solution for converting an optical digital audio signal to analog stereo audio. With audio sampling rate support up to 48 kHz (Dolby Digital)/96 kHz (LPCM) and I/O data rate support up to 24-bit, it provides high quality sound conversion. -
Page 7: Features
5. FEATURES • Supports optical digital audio signal input and conversion into analog audio signal L/R output • Supports uncompressed digital LPCM stereo or Dolby Digital 5.1CH audio inputs • Supports LPCM 2CH audio sampling rates from 32 to 96 kHz (32, 44.1, 48, 88.2 and 96 kHz) •... -
Page 8: Operation Controls And Functions
6. OPERATION CONTROLS AND FUNCTIONS 6.1 Front Panel OPTICAL IN USB 5V Dolby/PCM LED Indicator: When the source audio is encoded with Dolby Digital the LED will illuminate. OPTICAL IN: Connect the Optical input to an Optical digital audio source, such as a Games Console, HDTV or Set-top Box. USB 5V: Connect the USB power port to any powered USB with a Mini-USB cable or Mini-USB to AC adaptor. -
Page 9: Connection Diagram
7. CONNECTION DIAGRAM HDTV without Analog Audio Output Power Digital Optical Power Supply Input Analog Stereo Output Amplifier (with a spare analog input) -
Page 10: Specifications
8. SPECIFICATIONS Input Port 1×Optical Output Port 1×L/R (2×RCA) Power Supply Powered by USB bus Output Level 1Vrms ± 10% THD+N <0.018% Frequency Response ±1 dB >80 dB Crosstalk <-80 dB Dimensions 55 mm (W)×82 mm (D)×22.5 mm (H) Weight 46 g Chassis Material Plastic... - Page 12 CYPRESS TECHNOLOGY CO., LTD Home page: http://www.cypress.com.tw MPM-DCT1D...
