Cisco Aironet Series 3700 Access Point
Figure 33
Figure 34
Assuming that the antenna is mounted on a wall, the Azimuth (in Red) is the signal going forward from
the antenna. The elevation, in Blue, is the "up/down" pattern.
Cisco Aironet Series 2700/3700 Access Points Deployment Guide
26

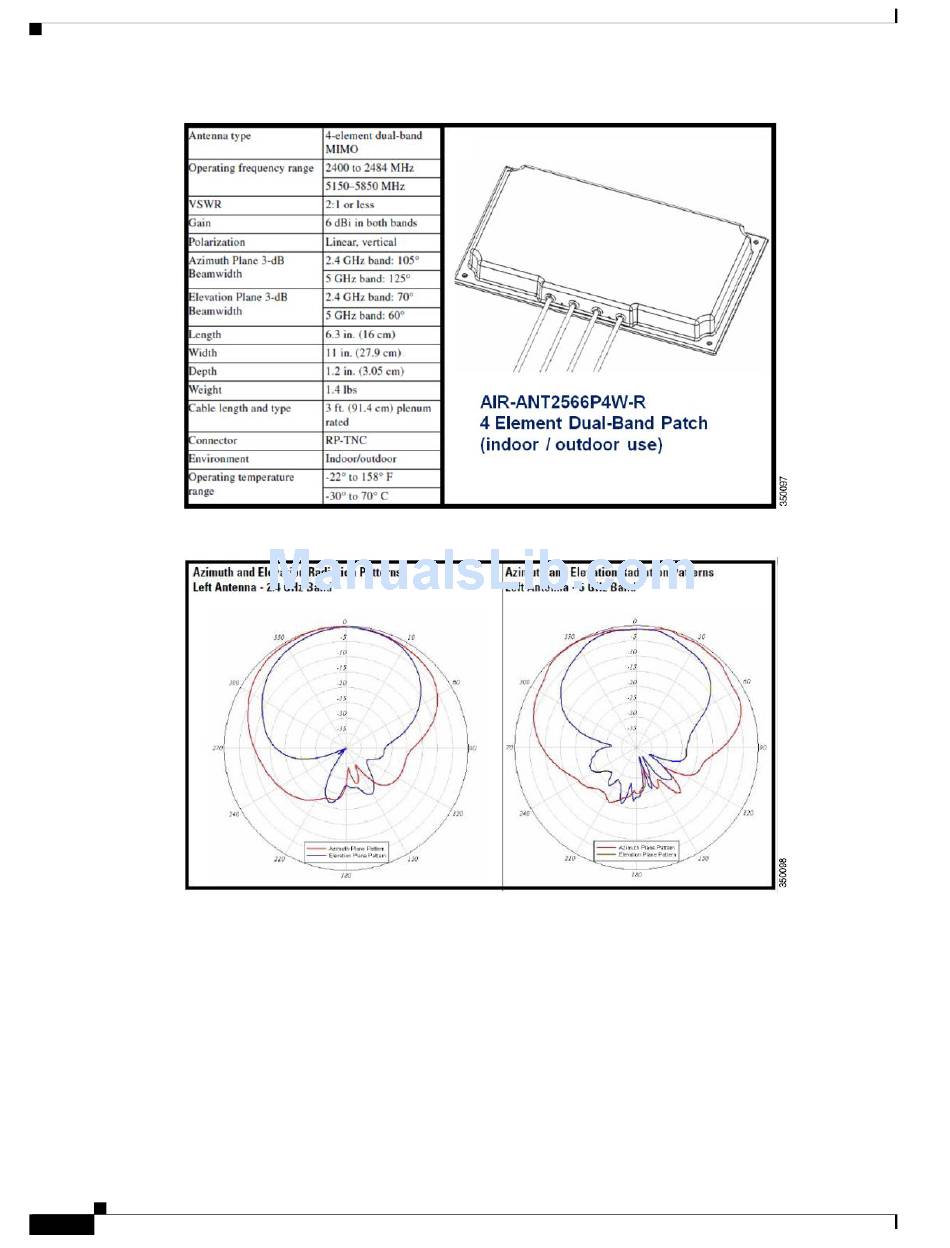

Specifications for the AIR-ANT2566P4W-R Dual-Band Patch Antenna
Radiation Pattern for the AIR-ANT2566P4W-R Dual-Band Patch Antenna
