Black Box LMC7001A-R4 Installation Manual

© 2000-2005 Black Box Corp. All rights reserved.
The information in this document is subject to change without notice. Black Box assumes no responsibility for any errors that may appear
in this document. All product names are trademarks of the manufacturer. Specific brands and product names may be trademarks and are
the property of their respective companies.
Document Number 55-80216BB-01 B6
1000 Park Drive • Lawrence, PA 15055-1018 USA
TEL: (724) 746-5500 • FAX: 724-746-0746
info@blackbox.com • www.blackbox.com
8
LMC7001A-R4 – LMC7002A-R4 – LMC7003A-R4 – LMC7004A-R4 – LMC7005A – LMC7006A

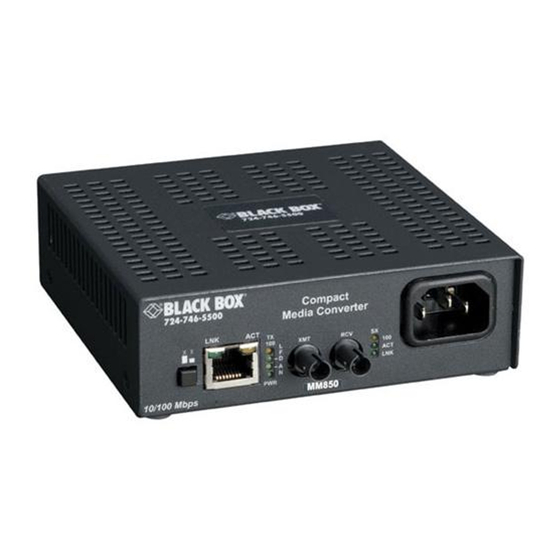

10/100 Autosensing Media Converter™ is a low-cost, standalone, IEEE
802.3 single-conversion media converter which converts between:
10/100 Autosensing Media Converter is a 1U high, table-top unit that
includes diagnostic LEDs, an internal, universal (100/240 VAC) power
supply, one RJ-45 connector for the twisted pair port and one pair of ST
(LMC7001A-R4 for 850 nm multi-mode, LMC7005A for 1300 nm multi-
mode, and LMC7003A-R4 for 1310 nm single mode) or SC (LMC7002A-R4
for 850 nm multi-mode, LMC7006A for 1300 nm multi-mode, and
LMC7004A-R4 for 1310 nm single-mode) connectors for the fiber port.

Installing 10/100 Autosensing Media Converter

10/100 Autosensing Media Converter comes ready to install. The only
adjustments that may need to be made after installation are:
To install the 10/100 Autosensing Media Converter , first make sure that the
unit is placed on a suitable flat surface, leaving some space behind the unit.
Attach the cables between the 10/100 Autosensing Media Converter and each
device that will be interconnected, then plug the unit into a reliable, filtered
power source.
NOTE: All network cables must be connected for link LEDs to glow.

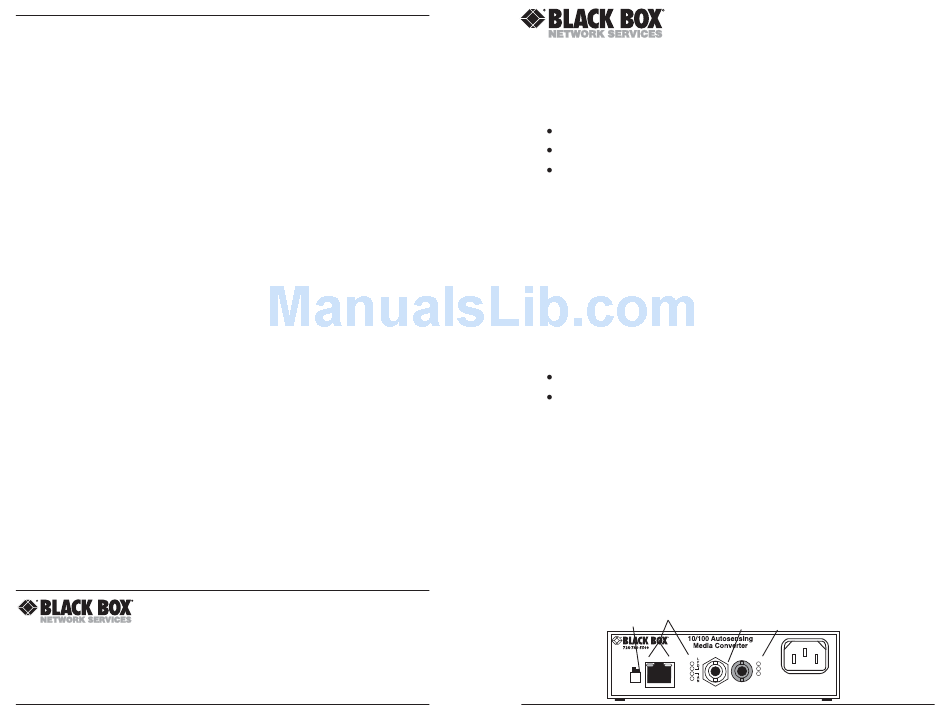

The following diagram shows the faceplate on the 10/100 Autosensing

Media Converter

operate the same. Refer to page 5 for LED functionality.
January 2005
10/100 Autosensing
Media Converter

Installation Guide

10Base-T twisted pair and 10Base-FL single or multi-mode fiber;
100Base-TX twisted pair and 100Base-SX multi-mode fiber
100Base-TX twisted pair and 100Base-FX single-mode fiber
Configuring the unit for its mode of operation and other features.
Setting the twisted pair port for a crossover workstation or pass-
through connection.
. Regardless of the type of fiber connectors, the LEDs
Twisted Pair
Crossover/
LEDs
pass-through Fiber Optic
switch port
XMT RCV
TX
LNK ACT
100
X II
PWR
10/100 Mbps
1
SX
LEDs
SX
100
ACT
LNK
