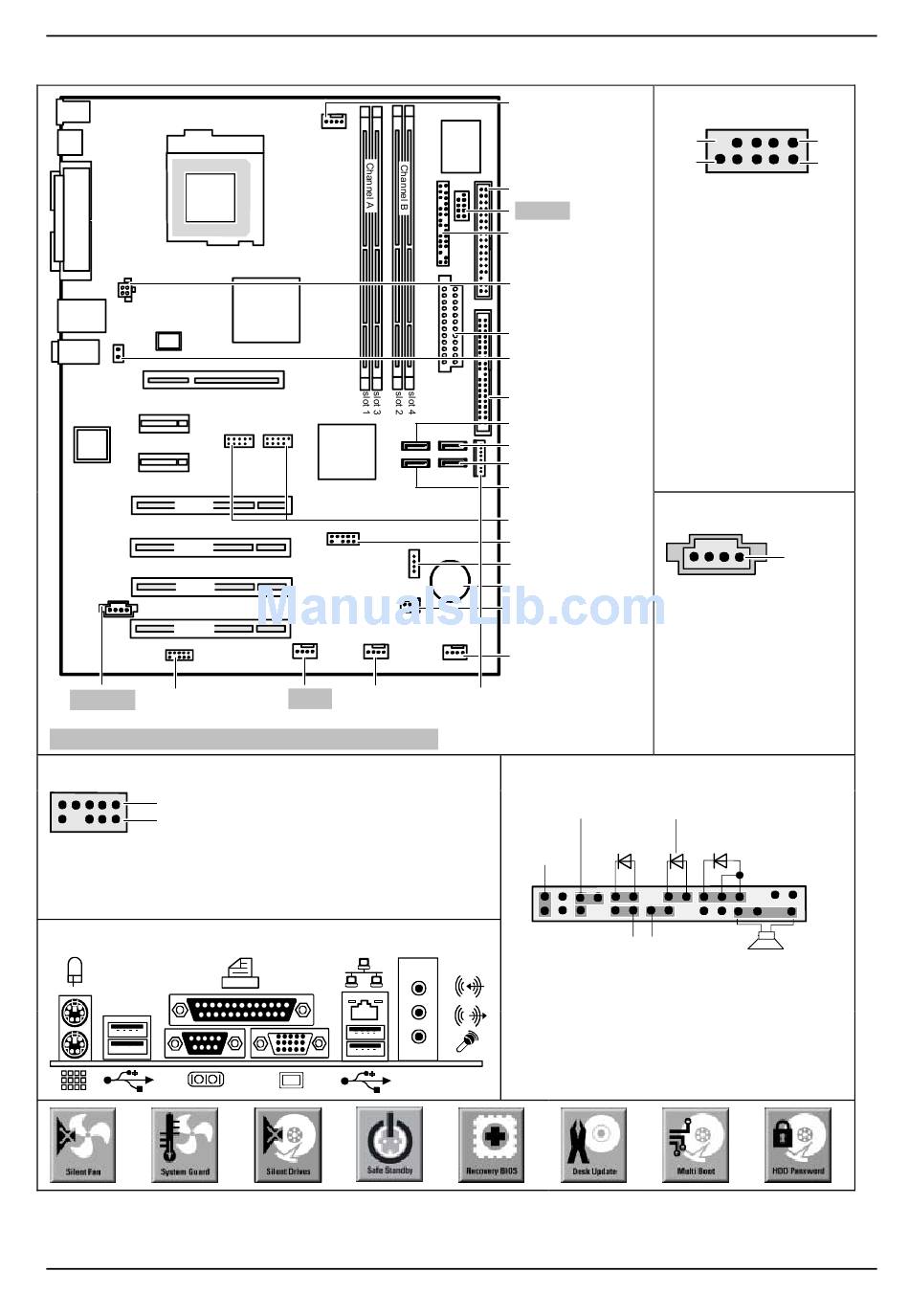

Mainboard D2156 - Internal connectors and slots
PCIe x16
PCIe x1
PCIe x1
PCI 1
PCI 2
PCI 3
PCI 4
Audio in
Audio front panel
Optionale Komponenten / Optional components
High Definition Audio (default)
1
2
1 = Micro input Left
2 = Analog GND
3 = Micro input Right
4 = Presence Detect

External connectors

A26361-D2156-Z110-1-8N19, edition 2
Fan 4 Fan 2
5 = Right line / Headphone output
6 = Sense 1 return
7 = Jack sense Send
8 = Key
9 = Left line / Headphone output
10 = Sense 2 return
Fan 1
Floppy disk drive
Serial2

Front panel

Additional power
supply +12 V
Power supply
TPM jumper
IDE-drives 1/2
Serial ATA3
Serial ATA4
Serial ATA2
Serial ATA1
USB
LCD display
SCSI LED
Battery
Intrusion
Fan 3
Power supply control
Front panel
Power On/Off
HD-LED
Reset
Recovery Password
1) Both jumper positions possible
2) 2pin or 3pin connector possible
Recovery inserted = The system starts from
floppy and allows a BIOS recovery
Password inserted = System- and BIOS Pass-
word are skipped when device is switched on
USB - dual channel
9
10
1 = VCC X
2 = VCC Y
3 = Data negative X
4 = Data negative Y
5 = Data positive X
6 = Data positive Y
7 = GND
8 = GND
9 = Key
10 = Not connected
Audio In (optional)
1 = Left audio input
2 = Analog GND
3 = Analog GND
4 = Right audio input
1)
Message LED
Power On
LED 2)
Speaker
A26361-D2156-Z140-1-7619
1
2
1
1
2
