- Page 1 Balanced Analogue Interface Module USER GUIDE Publication AP9109...
-
Page 3: Warranty
Limited One Year Manufacturers Warranty This product is warranted to be free from defects in materials or workmanship for period of one year from the date of purchase by the original owner. To ensure a high level of performance and reliability for which this equipment has been designed and manufactured, read this User Guide before operating. -
Page 4: Packed Items

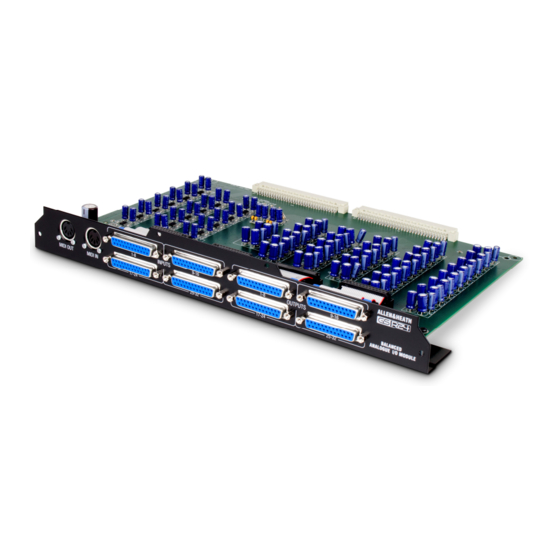

PACKED ITEMS Check that you have received the following: ALLEN&HEATH INPUTS 9-16 OUTPUTS 9-16 BALANCED MIDI OUT MIDI IN ANALOGUE I/O MODULE 17-24 25-32 17-24 25-32 GS-R24 BALANCED ANALOGUE INTERFACE MODULE Also Packed in the box Safety Instructions—English • Safety Instructions—French •... -
Page 5: Table Of Contents
CONTENTS Thank you for purchasing your Allen & Heath GS-R24 Analogue interface module. To ensure that you get the maximum benefit from the unit please spare a few minutes familiarizing yourself with the features and setup procedures outlined in this user guide. For further information please refer to the additional information available on our web site, or contact our technical support team. -
Page 6: Specifications
GS-R24 ANALOGUE MODULE SPECIFICATIONS General Specifications Number of audio channels Output Number of audio channels Input Nominal Signal Level +4dBu Balanced Analogue signal connector type 25 pin D-Sub Female (TASCAM standard pinout) MIDI Input 5pin DIN MIDI Output 5pin DIN Headroom Analogue Headroom 21dB... -
Page 7: Fitting Instructions
MODULE FITTING INSTRUCTIONS Beware of ESD! Observe anti-static handling precautions—avoid touching the electronic devices on the circuit board, ensure any static build up is discharged to earth before handling the module. This can be achieved by ensuring the console is connected to the psu and the psu is plugged in to a mains outlet but switched OFF, then touching a metal part of the console panel such as a screw head. -
Page 8: Analogue In/Out Connector Pin Numbers
25 PIN D TYPE CONNECTOR PINNING Analogue Input & Output 25 way D connector pin ident. Pin assignment (Input or Output connectors) Connection guidelines & notes IN No. Designation CH 8 HOT The pin assignment of the 25 pin D Sub Miniature type CH 8 GROUND connectors conforms to the TASCAM DB-25 pin-out CH 7 COLD... -
Page 9: Module Panel Features
MODULE PANEL FEATURES ALLEN&HEATH INPUTS OUTPUTS 9-16 9-16 BALANCED MIDI OUT MIDI IN ANALOGUE I/O MODULE 25-32 25-32 17-24 17-24 MIDI Input & Output Standard 5 pin DIN MIDI connectors. The MIDI OUT carries the MIDI data generated by the MIDI controllers and switches on the GS-R24. The MIDI IN is the MIDI data required to illuminate LEDs and provide mov- ing fader information to the console. -
Page 10: Product Support
PRODUCT SUPPORT www.allen-heath.com Investigate ALLEN & HEATH’s other ranges at Large Live Sound mixers — iLive digital, and GL Series Small Format Live Sound mixers — ZED, MixWizards and PA Series DJ products — Xone Series Sound Management Series — iDR Series Registering your product Thank you for buying the Allen &...
