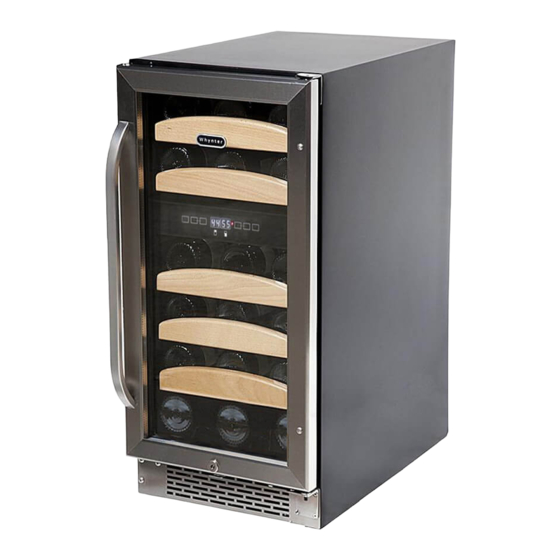

Whynter BWR-281DZ Instruction Manual

Compressor cooling built-in dual temperature zone wine refrigerator
Hide thumbs Also See for BWR-281DZ:
Table of Contents

Advertisement

Quick Links

WHYNTER Compressor Cooling Built-in Dual Temperature
Zone Wine Refrigerator
MODEL# : BWR-281DZ / BWR-461DZ
Instruction Manual
Thank you for your purchase of this WHYNTER product. Please read this Instruction Manual carefully before
using product to ensure proper use. Keep this manual in a safe place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BWR-281DZ and is the answer not in the manual?

Questions and answers

Related Manuals for Whynter BWR-281DZ

Summary of Contents for Whynter BWR-281DZ

  • Page 1 Zone Wine Refrigerator MODEL# : BWR-281DZ / BWR-461DZ Instruction Manual Thank you for your purchase of this WHYNTER product. Please read this Instruction Manual carefully before using product to ensure proper use. Keep this manual in a safe place for future reference.

  • Page 2: Table Of Contents

    TABLE OF CONTENTS Appliance Safety Important Safe guides Parts and Features Technical Data Important Safety Instructions Installation Instructions Before Using Your Appliance Installation of Your Appliance Built-in Cabinet Instructions Electrical Connection Extension Cord Installing Stainless Steel Handle Reversing the Door Swing of Your Appliance Operating Your Appliance Recommended Temperature Settings Setting Temperature Controls...

  • Page 3: Appliance Safety

    APPLIANCE SAFETY Your safety and the safety of others are very important to us. To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic precautions This is the Safety Alert Symbol. This symbol alerts you to potential hazards that may result in serious injury.
  • Page 4  Do not store or use gasoline or other flammable vapors and liquids in the vicinity of the appliance or any other appliance.  Before proceeding with cleaning and maintenance operations, make sure to unplug the appliance.  Do not connect or disconnect the electric plug with wet hands. ...

  • Page 5: Parts And Features

    PARTS & FEATURES Model BWR-281DZ Model BWR-461DZ 1. DOOR 5. BOTTOM GRILLE 2. CONTROL PANEL 6. LEVELING LEGS 3. STAINLESS STEEL HANDLE 7. SECURITY LOCK 4. SHELVES 8. CABINET Page 5...

  • Page 6: Technical Data

    PRODUCT FEATURES  Capacity: 28 standard 750ml wine bottle capacity for BWR-281DZ Upper Zone Capacity: 10 bottles Lower Zone Capacity: 18 bottles  Capacity: 46 standard 750ml wine bottle capacity for BWR-461DZ Upper Zone Capacity: 16 bottles Lower Zone Capacity: 30 bottles ...

  • Page 7: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of fire, electrical shock, or injury when using your appliance, follow these basic WARNING precautions:  Read all instructions before using the appliance.  DANGER or WARNING: An empty cooler can be a hazardous for children or small pets. If disposing of the cooler, remove gasket seals, latches, lids or the entire door from your unused appliance, or take other action to ensure the cooler is harmless.

  • Page 8: Built-In Cabinet Instructions

    These appliances are designed for both built-in and free standing installation. For built-in installation, ensure proper service access and ventilation, allow at least ¼” (6.35mm) space on each side and at the top. Cabinet Opening Dimensions (min.) BWR-281DZ BWR-461DZ Width 15.5”...

  • Page 9: Reversing The Door Swing Of Your Appliance

    REVERSING THE DOOR SWING OF YOUR APPLIANCE This appliance has the capability of the door opening from either the left or right side. The appliance is delivered to you with the door opening from the left side. Should you desire to reverse the opening direction, please follow the following reversal instructions.

  • Page 10: Operating Your Appliance

    OPERATING YOUR APPLIANCE It is recommended you install the appliance in a place where the ambient temperature is between 72º- 78ºF / 23º-26ºC. If the ambient temperature is above or below recommended temperatures, the performance may be affected. For example, placing your appliance in extreme cold or hot conditions may cause interior temperatures to fluctuate.

  • Page 11: Setting Temperature Controls

    NOTE:  If the appliance is unplugged, encounter power interruption, or turned off, you must wait 3 to 5 minutes before restarting the appliance. If attempted to restart before this time delay, the appliance will not start.  When the appliance is used for the first time or restarted after having been shut off for a long time, there could be a few degrees variance between the temperature you select and the one indicated on the display.

  • Page 12: Modes

    under exactly the same excellent conditions. the Silent mode, the interior fan stops working when the set temperature is reached. Dynamic Climate mode is the default preset mode which creates low noise. To change to Silent mode, press and hold the UP key for approximately five seconds. The wine refrigerator will beep three times to confirm silent mode is on.

  • Page 13: Storage

    Wine bottles may differ in size and dimensions so the actual number of bottles can be stored may vary. The 28 or 46 bottle capacities are approximate maximums when storing traditional Bordeaux 750 ML bottles and includes bulk storage. BWR-281DZ BWR-461DZ DOOR LOCK The appliance is provided with a lock and key combination.

  • Page 14: Wine Shelves

    WINE SHELVES BWR-281DZ This appliance is equipped with 5 removable shelves. To prevent damage to the door gasket, make sure the door is opened completely before pulling the shelves out.  For easy access of the wine bottles, you must pull the shelves approximately ⅓ out of the railing.

  • Page 15: Wine Shelves

    WINE SHELVES BWR-461DZ This appliance is equipped with 5 pull-out roller shelves, which you can move the wooden roller shelves in and out smoothly without worrying about pulling the whole shelf out.  To prevent damage to the door gasket, make sure the door is opened completely before pulling the shelves out.

  • Page 16: Care And Maintenance

    CARE AND MAINTENANCE CLEANING YOUR APPLIANCE  Turn off the power, unplug the appliance, and remove all items including shelves.  Wipe the interior with a warm water and baking soda solution. The solution should be about 2 tablespoons of baking soda to one quart of water. ...

  • Page 17: Troubleshooting Guide

    TROUBLESHOOTING GUIDE Most common problems can be resolved by referring to the troubleshooting suggestions listed below. PROBLEM POSSIBLE CAUSE SOLUTIONS  There is a power failure.  Ensure the appliance is plugged in The appliance does  The appliance is not plugged in. not operate.
  • Page 18 PROBLEM POSSIBLE CAUSE SOLUTIONS Display “E0”, “E1”.  “E0” indicates the communication error  Call for service “E2”, “E3”, “E4”, “E5” for 3 zone models or “E7”  “E1” or “E2” indicates that the air temperature sensor is failed  “E3” or “E4” indicates that the de-frost sensor in the evaporator is failed ...

  • Page 19: Warranty Information

    MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE, ARE LIMITED TO ONE YEAR OR THE SHORTEST PERIOD ALLOWED BY LAW, BUT NOT LESS THAN ONE YEAR. WHYNTER SHALL NOT BE LIABLE FOR CONSEQUENTIAL OR INCIDENTAL DAMAGES SUCH AS PROPERTY DAMAGE AND INCIDENTAL EXPENSES RESULTING FROM ANY BREACH OF THIS WRITTEN LIMITED WARRANTY OR ANY IMPLIED WARRANTY.

This manual is also suitable for:

Bwr-461dz
