- Page 1 Hoover WindTunnel Bagless Canister Cleaner with Powered Nozzle ® www.hoover.com ® Review this manual before operating cleaner. Owner’s Manual English pp. 1-12 Español pàg.13-19 Français p.20-26...
-
Page 2: Table Of Contents
Your cleaner is model________________________________________________________ and has serial number ______________________________________________________ It is suggested that you attach your sales receipt to this owner’s manual. Verification of date of purchase may be required for warranty service of your Hoover product. Index Assembling Cleaner ...3 Cleaner Description...4... -
Page 3: Assembling Cleaner
If you should happen to need assistance during assembly or operation, Visit us online at www.hoover.com to find the service outlet nearest you (click on the “Service” button) OR Call 1-800-944-9200 for an automated referral of authorized service outlet locations (U.S. -
Page 4: Cleaner Description

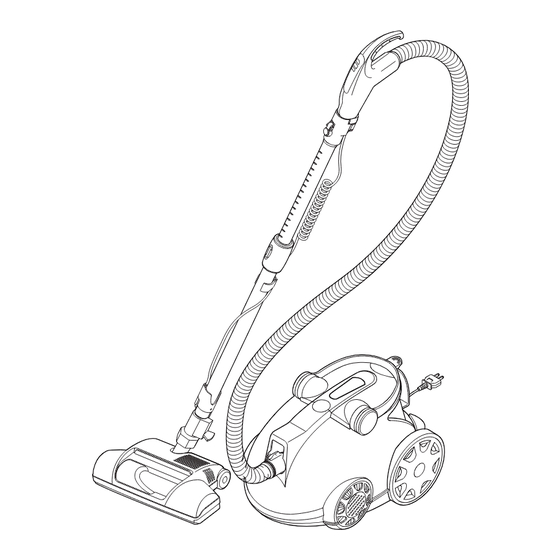

2. How to use Cleaner description The assembled cleaner will look like the drawing. 1. WindTunnel™ carpet and floor power nozzle: automatically adjusts to different carpet pile heights 2. Headlight 3. Quick disconnect pedal: step on pedal to separate wand from power nozzle 4. -
Page 5: Polarized Plug
Polarized plug To reduce the risk of electric shock, this appliance has a polarized plug (one blade is wider than the other). This plug will fit in a polarized outlet only one way. If the plug does not fit fully in the outlet, reverse the plug. -
Page 6: Cleaning Tools
Edge cleaning Special edge groomers are provided on both sides of the nozzle to remove dirt in carpet near baseboards and furniture. Guide side of nozzle parallel to edge of carpet or furniture as shown. 2-10 How to clean stairs Place cleaner on stair. -
Page 7: Belt Replacement
What to buy There are other belts manufactured that are similar in shape and size, but are not designed for the HOOVER power nozzle. Such belts do not operate the agitator cor- rectly and may create stress which could damage your power nozzle. Use only a genuine HOOVER Belt part no. - Page 8 Return nozzle to original position and lift off hood. 3-11 If belt is not broken but is stretched or cut, pull it off the motor pulley (H). 3-14 Replace brush roll cover (G) over agita- tor brush roll. Replace 3 short screws. Remove brush roll cover (G) by remov- ing the 3 Phillips head screws.
-
Page 9: Thermal Protector
Headlight replace- ment The headlight, located on top of the power nozzle, operates when the clean- er is turned on. Use only HOOVER part no. 27317-307, which is a fused bulb, when replacing the headlight. How to replace Disconnect cleaner from electrical outlet and disconnect power nozzle from extension wands. -
Page 10: Replacing Belt
Pivot bottom plate down and snap closed. 3-26 Replacing belt When replacing belt, ask for HOOVER part no. 38528037. 1. Remove bottom plate, belt guard and brush roll as described in Figs. 3-20 through 3-22. -
Page 11: If You Have A Problem
(U.S. only). Please do not send your cleaner to The Hoover Company in North Canton for ser- vice, this will only result in delay. If further assistance is needed, contact The Hoover Company Consumer Response Center, North Canton, Ohio 44720, Phone: 330-499-9499. -
Page 12: Warranty
The Hoover Company online at www.hoover.com This warranty does not cover pick up delivery, or house calls; however, if you mail your appliance to a Hoover Factory Service Center for warranty service, transportation will be paid one way. While this warranty gives you specific legal rights, you may also have other rights which vary from state to state.
