Size: Indicates capacity of individual drive
Location: Shows physical location of drive. Indicates on which IDE channel
(1 or 2), and whether drive is Master or Slave on cable. This allows user to
identify drives for removal/replacement.
Mapping: Indicates physical parameters of drive (cylinders, heads, sectors)
Timing: Shows selection of drive timing (directly related to burst speed)
based on type of drive and cable used.
Array Pull-down Menu

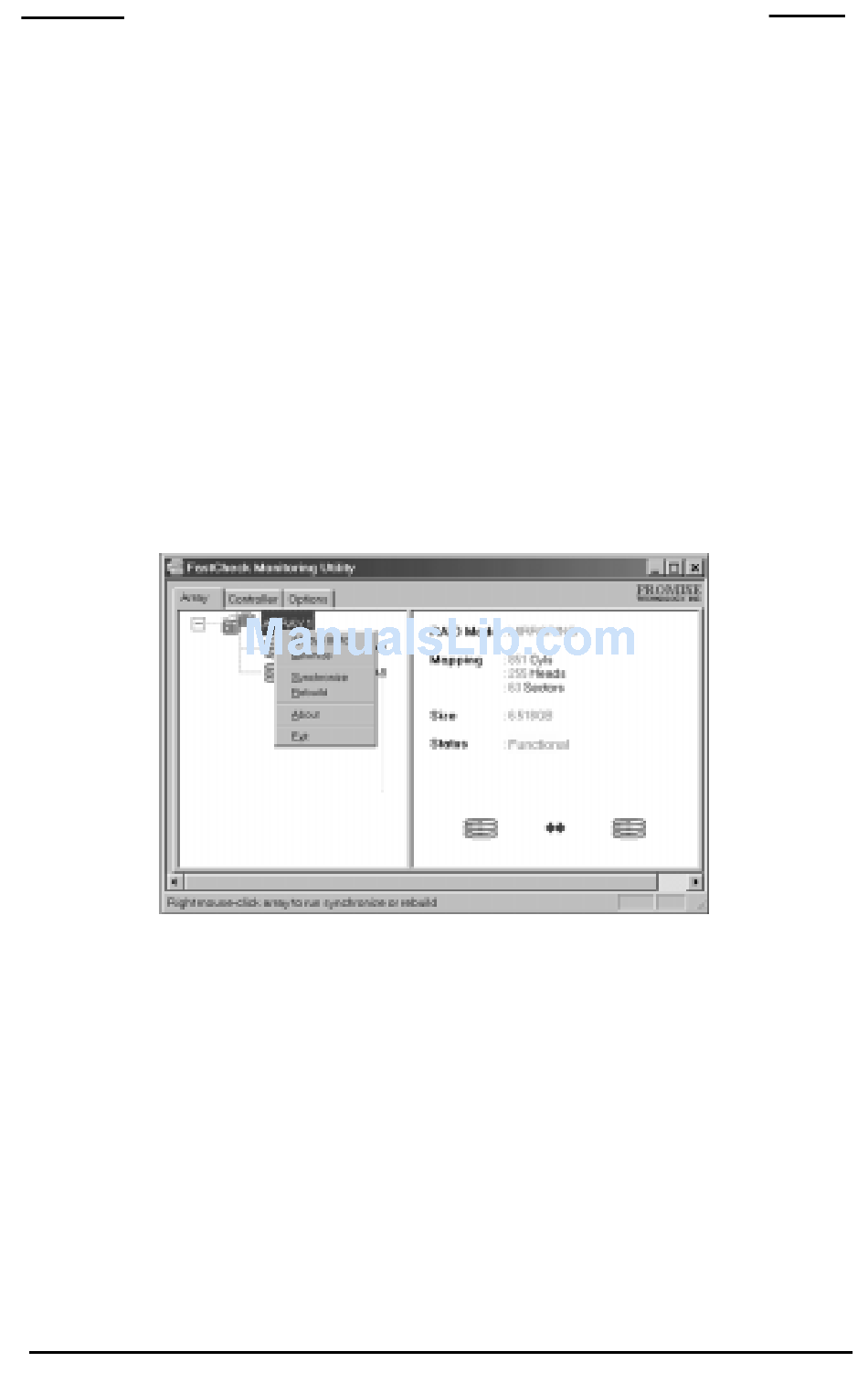

At the bottom of the Array window, it indicates to right-click on an Array to
perform synchronization or rebuild operations. Right-clicking displays the
following pull-down menu:
From this menu, users may choose to have the Window appear on top, Minimize,
Synchronize mirrored drives, Rebuild a mirrored array, About check version #, or
Exit.
FastCheck TM Monitoring Utility
5-5
