Summary of Contents for Tvone 1T-CT-641

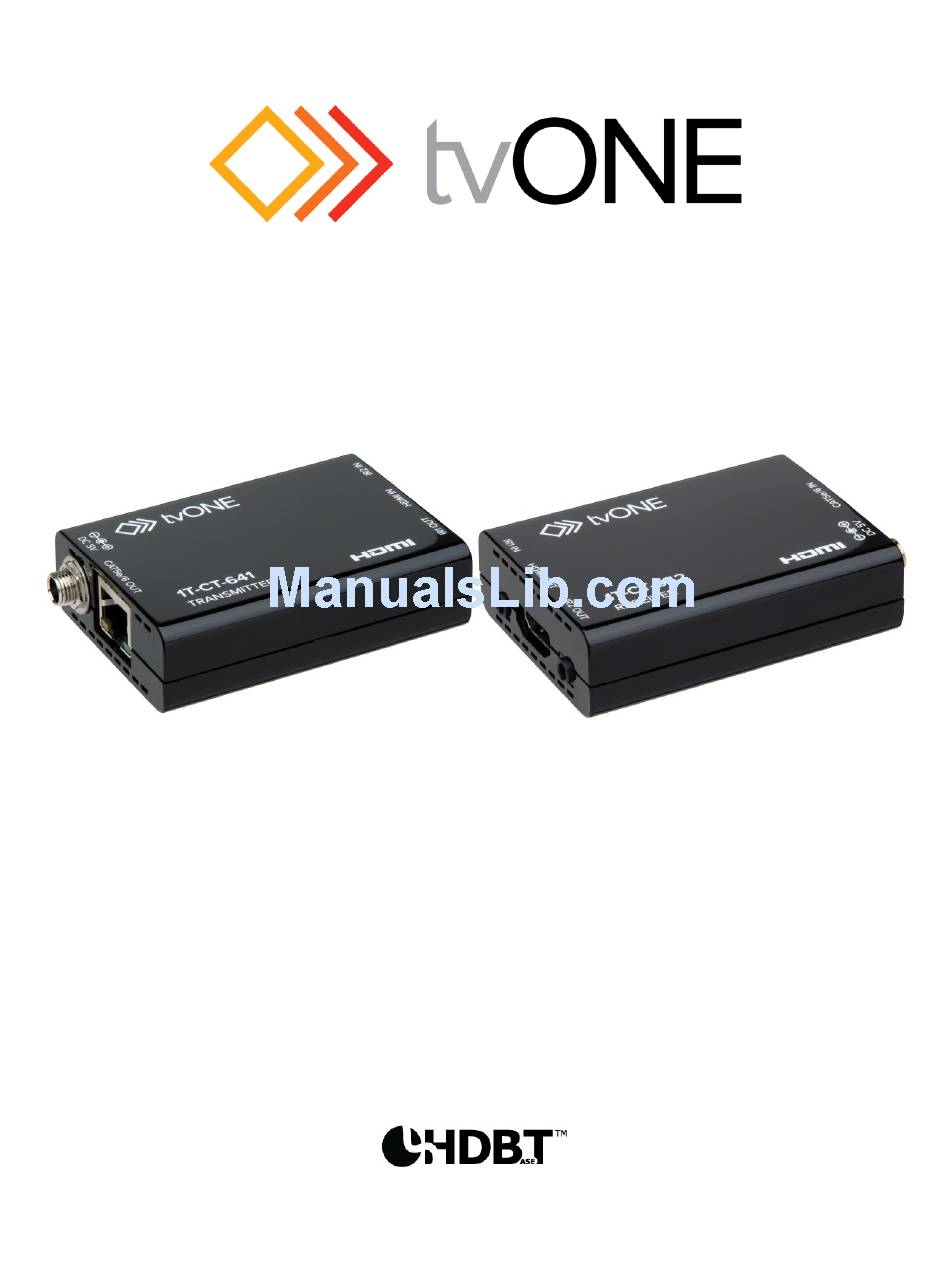

- Page 1 1T-CT-641 Transmitter 1T-CT-642 Receiver Instruction Manual 1T-CT-641/1T-CT-642 HDMI over single Cat.5e/Cat.6...
-
Page 2: Table Of Contents
Table of Contents Introduction Specifications Checking Package Contents Connecting The Hardware Operating The Unit Troubleshooting Limited Warranty Regulatory Compliance Contact Information... -
Page 3: Introduction
Liability Statement Every effort has been made to ensure that this product is free of errors. tvONE cannot be held liable for the use of this hardware or any direct or indirect consequential damages arising from its use. It is the responsibility of the user of the hardware to check that it is suitable for his/her requirements and that it is installed correctly. -
Page 4: Specifications
Features The 1T-CT-641/1T-CT-642 HDMI over single Cat.5e/Cat.6 system has many features that provide superior performance: HDMI with 3D, 4k(24Hz/30Hz) support HDCP and DVI compliant Uncompressed HDMI signal distribution to 60 meters (197 feet) HDBaseT-Lite Class B performance enhancing technology * ... - Page 5 HDBaseT-Lite Class B Support Maximum Bandwidth Uncompressed video/audio to 10.2Gbps/300MHz Maximum Range 60m (197 ft.) at 1080p@60Hz One 1T-CT-641/642 Tx/Rx System 40m (131 ft.) at 4k@30Hz Environmental Operating Temperature 0° to +40° C (+32° to +104° F) Operating Humidity 20% to 90%, Non-condensing Storage Temperature -20°...
-
Page 6: Checking Package Contents
Note: Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or tvONE immediately. Have the Model, Serial Number and Invoice available for reference when you call. - Page 7 12 bit signals, 15 meters (~45’) for 8 bit signals). 2. (OPTIONAL) If there is an IR controllable device on the 1T-CT-641 side that you wish to control remotely from the 1T-CT-642 side, connect the IR emitter to the IR1 OUT connector on the 1T-CT-641.
-
Page 8: Operating The Unit
After trying the above suggestions should the problem still persist, contact your dealer for additional suggestions before contacting tvONE. Should the dealer’s technical personnel be unable to assist you, contact tvONE via our support website: http://tvone.crmdesk.com. Create a technical support request on the site and our... -
Page 9: Limited Warranty
The liability of tvONE with respect to any defective products will be limited to the repair or replacement of such products. In no event shall tvONE be responsible or liable for any damage... -
Page 10: Regulatory Compliance
REGULATORY COMPLIANCE The 1T-CT-641 and 1T-CT-642 HDMI over single Cat.5e/Cat.6 cable products have been tested for compliance with appropriate FCC and CE rules and regulations. The power adaptor/supply has been tested for compliance with appropriate UL, CUL, CE, PSE, GS Rules, regulations and/or guidelines. This product and power adapter is RoHS compliant.
