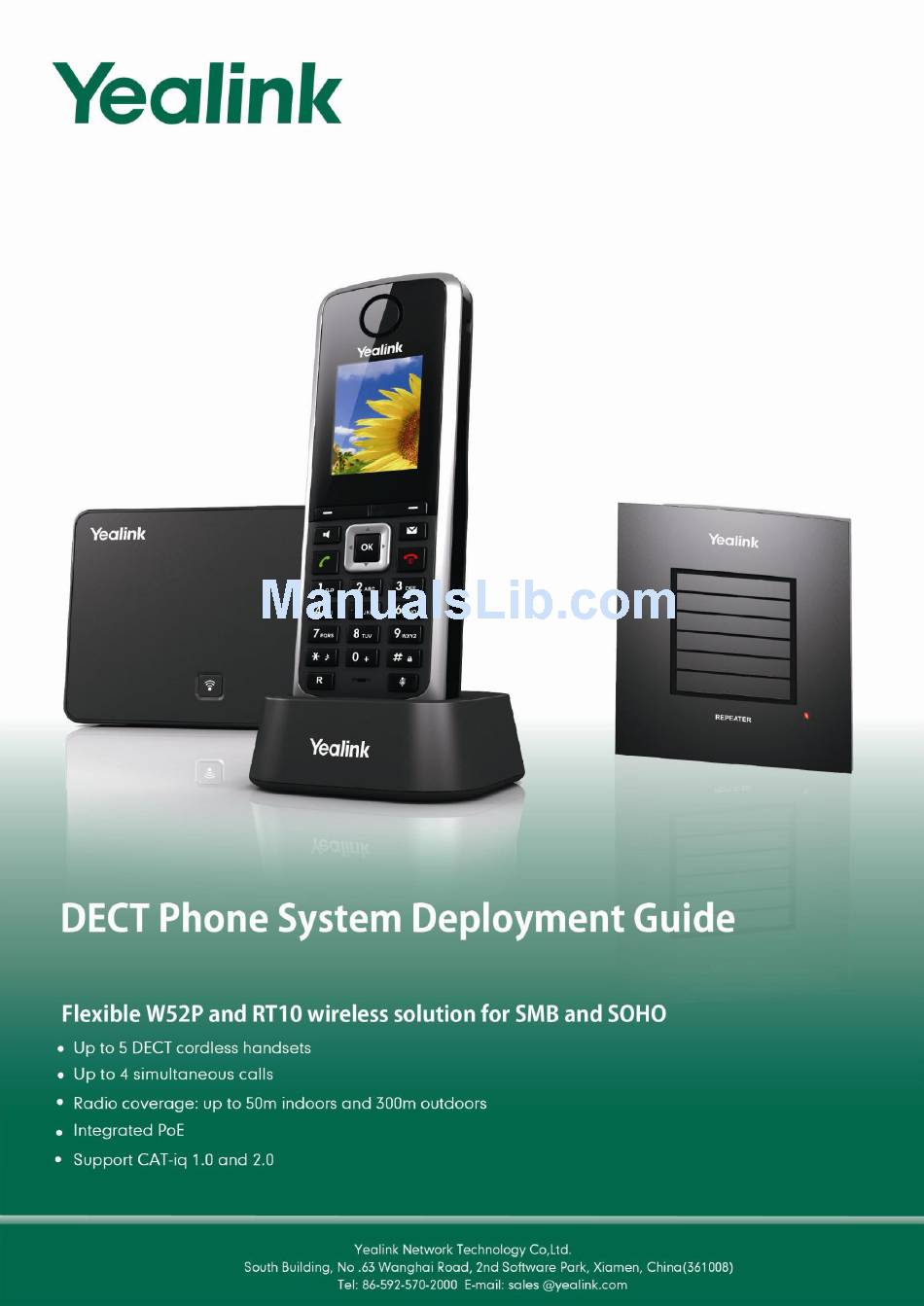

  • Page 2 DECT phone system. To complete the deployment, prior knowledge of DECT telephony concepts are necessary. For a better understanding of W52P IP DECT phones and repeater RT10, refer to the related documentations listed below. At the completion of this guide you should be comfortable with the following: Using the handset to measure the radio signal strength and signal quality.
  • Page 3 Deployment in a Wider Single Floor Building ............. 8 Deployment in a Multi-Floor Building ................9 Deployment in a User Dense Building ............... 10 Deploying W52P DECT Phone System with Repeater ..........11 Traffic Measurements ....................13 Recommended Placement of Base Stations and Repeaters ........13...
  • Page 4 Outside in free air: radius < 300m, depending on reflections and surroundings. Yealink DECT repeater RT10 is designed in accordance with DECT standard. The RT10 repeater has the same radio coverage as the base station. When additional coverage area is needed, a repeater should be added, which is similar to adding a base station on the multi-cell system (the number of call paths is not increased).
  • Page 5 Yealink DECT Phone System Deployment Guide Site survey process is an information gathering process. The information received in the site survey determines user requirements and the number of cells required to support traffic. Begin the site survey by interviewing the user representative familiar with the full expectation of coverage and performance of IP DECT phone solution.
  • Page 6 DECT systems in a more user dense site. Yealink provides five DECT systems for different radio frequencies usage in various countries (or regions). The maximum number of base stations may vary among countries (or regions).
  • Page 7 Yealink DECT Phone System Deployment Guide This chapter describes how to choose appropriate locations for base stations and repeaters on different sites. The purpose of this chapter is to familiarize you with the procedures that are needed to carry out a site plan.
  • Page 8 Yealink DECT Phone System Deployment Guide mounting the permanent base station. The final position for the first base station is the intersection point (position 3) of the two radio coverage cells. Locating the area center for the second base station ...
  • Page 9 Yealink DECT Phone System Deployment Guide In some deployment, there is no overlap between the deployment base stations of critical points. To deploy in these environments: Mark the areas of the site to be deployed.  Place the deployment base stations on the critical point P1.
  • Page 10 Yealink DECT Phone System Deployment Guide The deployment procedure varies according to: Radio transmission and reception through the floors  Similarities and differences between floors  The study of transmission and reception through the floors determines whether several floors will be included in a same coverage area. There are two approaches in deploying a multiple storey building: If the degree of attenuation of the building construction materials (e.g., wood) of...
  • Page 11 Yealink DECT Phone System Deployment Guide To ensure a higher-quality audio experience and avoid interferences, comply with rules introduced in the section “Area Dimensions and Site Density” when deploying multiple DECT systems in a more user dense site. The deployment process consists of the following steps: Count the total number of users and associated traffic in the local site.
  • Page 12 Yealink DECT Phone System Deployment Guide Example Deployment of North America DECT System Note To ensure correct operation of the DECT system, we recommend that the distance between base stations should be greater than 1.5m, and the distance between areas should be greater than 60m.
  • Page 13 Yealink DECT Phone System Deployment Guide The following gives two illustrative cases to assist in explaining how to identify the quantity and position of the repeaters at prospective customer sites. Single Repeater Only In this case, an extended coverage range (30m) is required. You can install a repeater within the base station coverage area.
  • Page 14 Yealink DECT Phone System Deployment Guide Calculating the traffic per homogeneous area covers two aspects: The average level of the total duration of communications per user.  The average mobility per user and per area on the site.  Up to 4 DECT handsets can simultaneously make or receive calls. This means 2 DECT users can place calls to 2 other DECT users or 4 DECT users can place calls to 4 other non-DECT users.
  • Page 15 Yealink DECT Phone System Deployment Guide attenuation patterns. Large Halls: Base stations and repeaters can be deployed in large halls that contain a central open space area with windows to the other areas. This provides a good coverage for the rooms in the inner circle on all floors (e.g.
