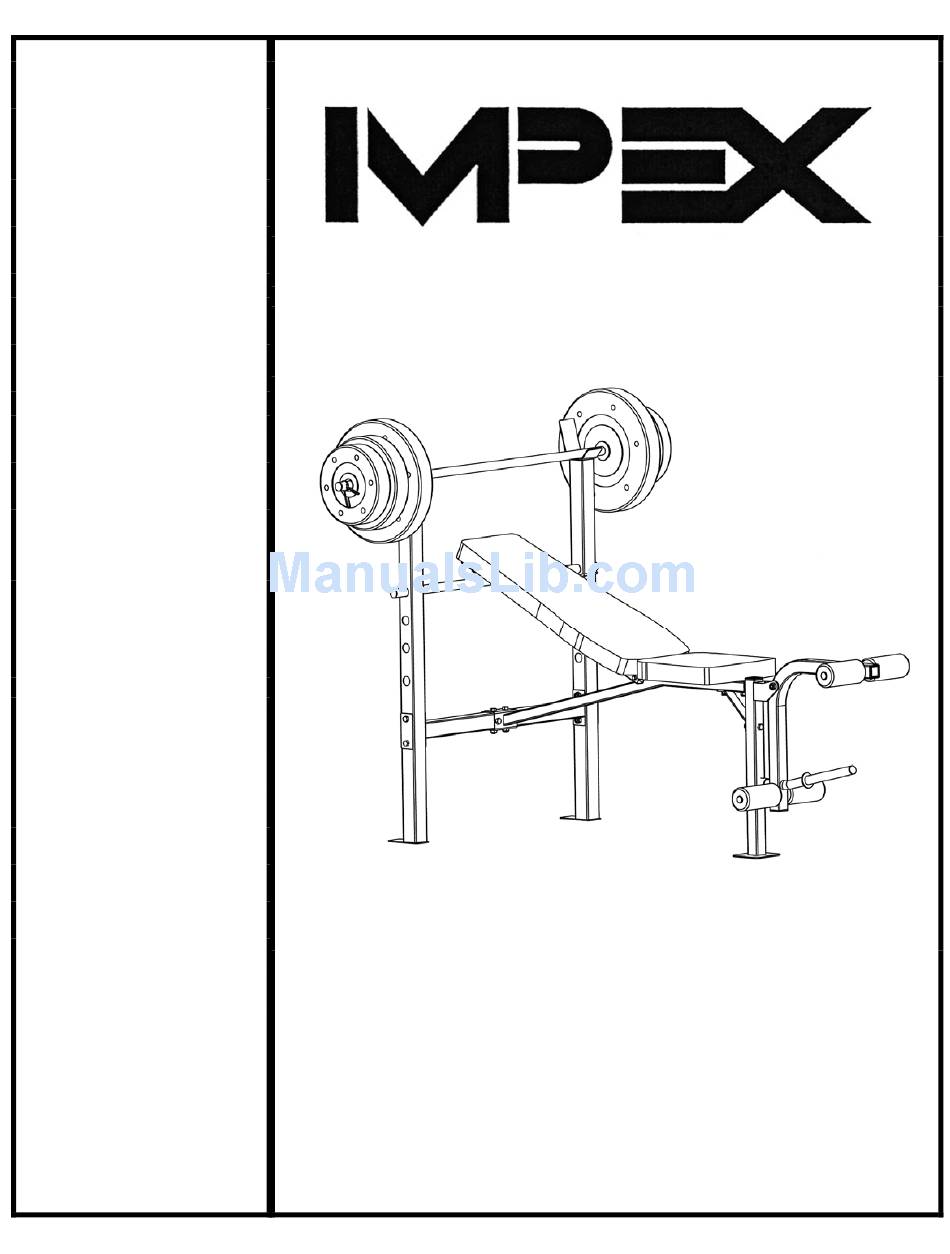

NOTE:
Please read all instructions
carefully before using this
product
Table of Contents

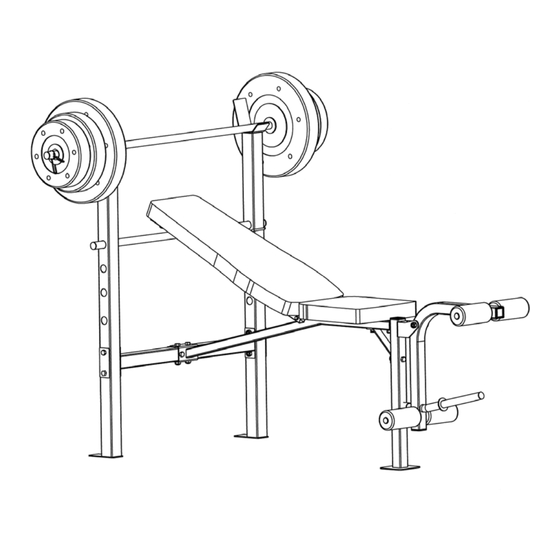

COMPETITOR BENCH
Safety Notice
CB-204
Hardware Pack
Assembly Instruction
Parts List
Warranty
Ordering Parts
Model
CB 204
Retain This
Manual for
Reference
07-31-07
®
IMPEX
INC.
2801 S. Towne Ave, Pomona, CA 91766
OWNER'S
Tel: (800) 999-8899 Fax: (626) 961-9966
www.impex-fitness.com
MANUAL
info@impex-fitness.com
Advertisement
Table of Contents
Related Manuals for Impex CB-204
Summary of Contents for Impex CB-204
- Page 1 NOTE: Please read all instructions carefully before using this product Table of Contents COMPETITOR BENCH Safety Notice CB-204 Hardware Pack Assembly Instruction Parts List Warranty Ordering Parts Model CB 204 Retain This Manual for Reference 07-31-07 ® IMPEX INC. 2801 S. Towne Ave, Pomona, CA 91766...
-
Page 2: Table Of Contents
TABLE OF CONTENTS BEFORE YOU BEGIN..................IMPORTANT SAFETY NOTICE............... HARDWARE PACK ………..…............... ASSEMBLY INSTRUCTIONS................EXPLODED DIAGRAM.................………. PARTS LIST…………………………………………………………………………. WARRANTY....................… ORDERING PARTS..................BEFORE YOU BEGIN ® Thank you for selecting the Competitor Bench CB204 by IMPEX INC. For your safety and benefit, read this manual carefully before using the machine. As a manufacturer, we are committed to provide you complete customer satisfaction. -
Page 3: Important Safety Notice
IMPORTANT SAFETY NOTICE PRECAUTIONS This exercise machine is built for optimum safety. However, certain precautions apply whenever you operate a piece of exercise equipment. Be sure to read the entire manual before you assemble or operate your machine. In particular, note the following safety precautions: 1. - Page 4 WRANING LABEL REPLACEMENT The warning label shown here have been placed on the Cross Brace. If the label is missing or illegible, please call customer service at 1-800-888-8899 for replacements. Apply the label in the location shown.
-
Page 5: Hardware Pack
Hardware Pack NOTE: The following parts are not drawn to scale. Please use your own ruler or scale to measure the size. -
Page 6: Assembly Instruction
ASSEMBLY INSTRUCTION Tools Required Assembling the Machine: Two Adjustable Wrenches. NOTE: It is strongly recommended two or more people assembling this machine to avoid possible injury. STEP 1 (See Diagram 1) A.) Connect the two Upright Beams (#1) by a Cross Brace (#2) in the mid-span. B.) Secure each end of Cross Brace to each Upright Beam with two M8 x 2 ½”... - Page 7 STEP 2 (See Diagram 2) A.) Attach the Front Support (#5) to Main Seat Support (#3). Secure it with one M8 x 1 5/8” Carriage Bolt (#28), Ø 5/8” Washer (#26), and M8 Aircraft Nut (#24). Do not tighten the Nut and Bolt yet.
- Page 8 STEP 3 (See Diagram 3) A.) Attach the Leg Developer (#6) to the open bracket on the Front Support (#5). Secure it with one M10 x 2 3/8” Hex Bolt (#21), Ø ¾” Washer (#31), and M10 Aircraft Nut (#27). B.) Insert two Foam Tubes (#13) half way through the holes on the Leg Developer.
- Page 9 A.) Attach the side-holes on the two Backrest Supports (#7) to the pivot on the Main Seat Support (#3). Place the other end of the Backrest Supports rest against the Backrest Adjustment Bar (#11). B.) Attach the Backrest Board (#8) to the Backrest Supports. Secure it with four M6 x 1 5/8”...
-
Page 11: Parts List
PARTS LIST KEY NO. DESCRIPTION Q’ty Upright Beam Cross Brace Main Seat Support Diagonal Support Front Support Leg Developer Backrest Support Backrest Board Seat Pad Bracket Backrest Adjustment Bar Foam Roll Foam Tube Ø ¾” End Cap Ø 1” End Cap Rubber Bumper 1 ½”... -
Page 12: Limited Warranty
® IMPEX INC. LIMITED WARRANTY ® IMPEX Inc. ("IMPEX ") warrants this product to be free from defects in workmanship and material, under normal use and service conditions, for a period of two years on the Frame from the date of purchase. This warranty extends only to the original purchaser.
