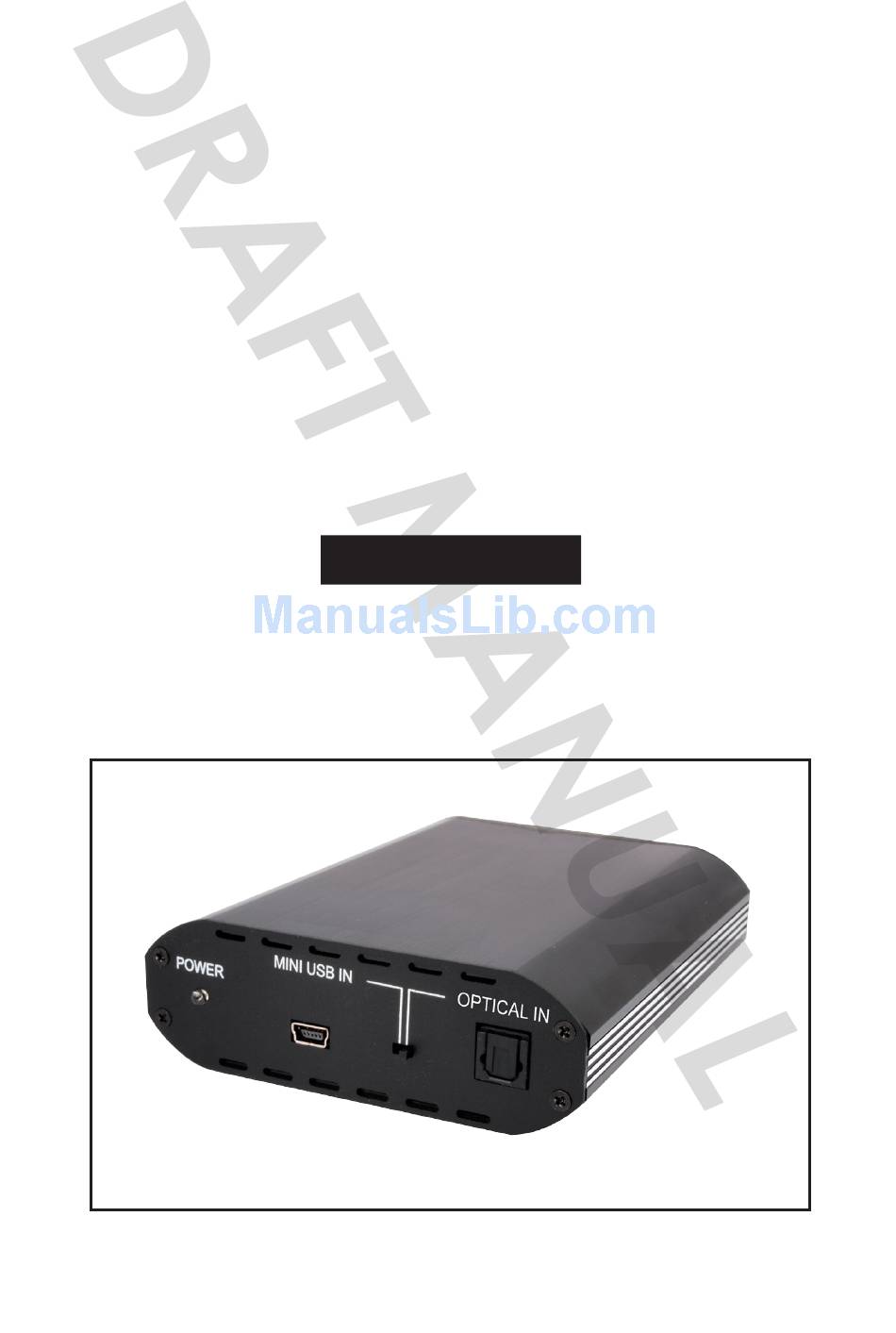

- Page 1 DCT-15 Audio Converter with Optical Operation Manual DCT-15...
- Page 2 Cypress Technology assumes no responsibility for any inaccuracies that may be contained in this document. Cypress also makes no commitment to update or to keep current the information contained in this document.
-
Page 3: Safety Precautions
Safety Precautions Please read all instructions before attempting to unpack or install or operate this equipment, and before connecting the power supply. Please keep the following in mind as you unpack and install this equipment: Always follow basic safety precautions to reduce the risk of fire, electrical shock and injury to persons. -
Page 4: Table Of Contents
Table of Contents 1. Introduction .................. 1 2. Applications ................. 1 3. Package Contents ..............1 4. System Requirements ..............1 5. Features ..................1 6. Specifications ................1 7. Operation Controls and Functions ..........2 Front Panel ..............3 Rear Panel .............. -
Page 5: Introduction
1. Introduction USB Audio converter with optical is an useful device for your external audio output. It is designed to easy fit with the current most use sources with input of USB or optical and powered by USB. The optical output can be linked with amplifier or any sound system that’s with SPDIF input in the meantime, the R/L can still be linked to display or speakers for the simultaneous stereo output. -
Page 6: Specifications
6. Specifications Input Port Optical and Mini USB USB Sampling Frequency 48/44.1KHz / 16 bits Optical Sample Frequency Up to 192 kHz / 24 bits Output Port Optical and R/L ESD Protection Human body model: ± 8kV (air-gap discharge) ± 6kV (contact discharge) Dimensions(mm) 90 (W) x 120 (D) x 25(H) Weight(g) -
Page 7: Operation Controls And Functions

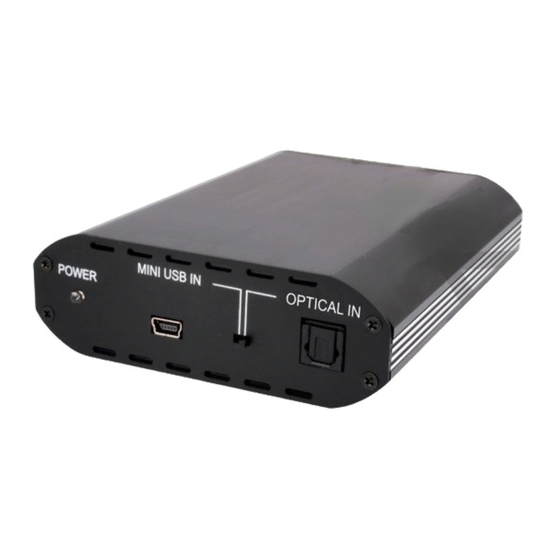

7. Operation Controls and Functions 7.1 Front Panel . Power LED: This red LED will illuminate when the device is connected with power supply. . Mini USB In: This slot is where you connect input audio source .signal or for power supply with USB cable from the PC or notebook. -
Page 8: Connection And Installation
8. Connection and Installation BlueRay DCT-15 ONKYO AMP Active Speaker... - Page 9 Acronyms Acronym Complete Term Universal Serial Bus...
