Husqvarna H354SLG Owner's Manual page 7

4

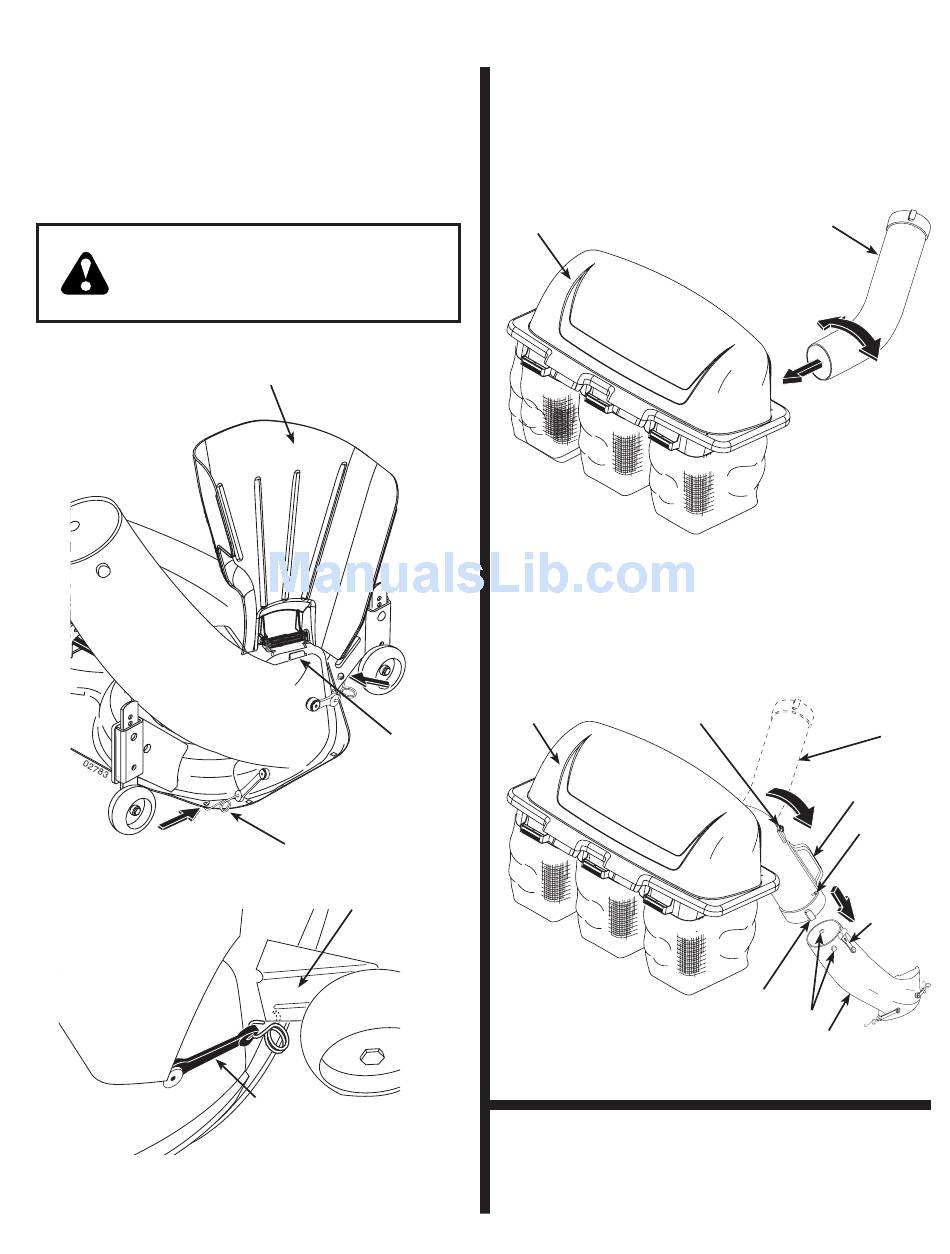

LOWER CHUTE (See Fig. 4)
1. Raise and hold deflector shield in upright position.
2. Place slot in lower chute over mounting tab on mower
and position lower chute over mower opening as
shown.
3. Hook rear latch into flange hole on back of mower.
4. Hook front latch into hole in front gauge wheel bracket
or under gauge wheel bracket on mower without a hole
in the bracket.
CAUTION: Do not remove deflector
shield from mower. Raise and hold
shield when attaching lower chute
and allow it to rest on chute while in
operation.
DEFLECTOR
SHIELD
MOUNTING
TAB
REAR LATCH
GAUGE WHEEL
BRACKET
FRONT
LATCH
FIG. 4
5
UPPER CHUTE (See Figs. 5A and 5B)
1. Lower mower to its lowest cutting position.
2. Assemble upper chute by inserting curved end into
hole in back of cover.
TIP: Holding upper chute as shown and twisting while
installing in cover will help keep the rubber seal in place.
NOTE: Handle carefully so as not to damage full bag in di -
ca tor.
COVER
3. Push in and turn upper chute until it is in line with lower
chute.
4. Align the bosses on lower chute with alignment slots
on upper chute and slide together.
5. Secure with rubber latch by hooking hole in latch over
latch pin.
COVER FULL BAG INDICATOR
6
LEVEL MOWER DECK
• Be sure deck is properly leveled for best mower
per for mance. See your tractors owner's manual for
instructions.
7
UPPER CHUTE
FIG. 5A
HANDLE
LATCH PIN
ALIGNMENT
SLOT
BOSSES
LOWER CHUTE
FIG. 5B
UPPER
CHUTE
RUBBER
LATCH
