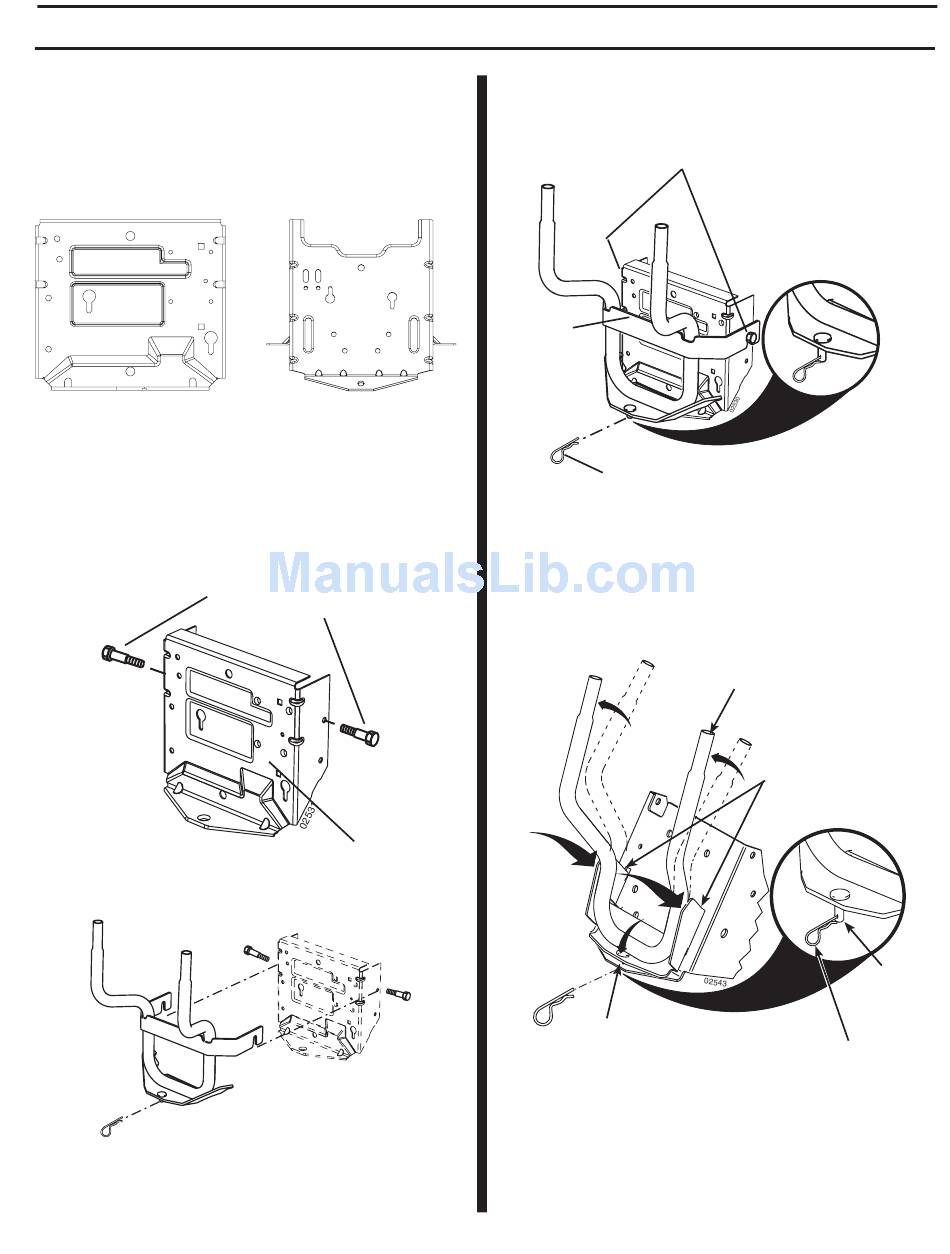

BAGGER SUPPORT ASSEMBLY
Determine which type drawbar you have on your tractor.
Compare the drawbar illustrations below to the drawbar
located at the rear of your tractor.
Follow the support assembly instructions that apply to your
type drawbar.
DRAWBAR A
(Vertical Drawbar)
DRAWBAR A (See Figs. 1A, 1B & 1C)
1. Remove and discard the upper bolt on both sides of
the drawbar. Using the same holes, install the shoulder
bolts supplied and tighten securely.

ASSEMBLY

DRAWBAR B
(Sloping Drawbar)
REMOVE AND DISCARD
UPPER BOLTS AND INSTALL
SHOULDER BOLTS SUPPLIED
DRAWBAR
FIG. 1A
FIG. 1B
2. Align support assembly pin with hole in drawbar and
hang assembly over the shoulder bolts.
3. Be sure support assembly is seated properly and secure
with retainer spring supplied.
SHOULDER
BOLTS
SUPPORT
ASSEMBLY
RETAINER
SPRING
DRAWBAR B (See Fig. 1D)
1. Slide flanges of support assembly into drawbar slots first,
then, pivot backwards inserting pin into drawbar pin hole.
2. Be sure support assembly is seated properly, then secure
with retainer spring.
INSERT
FLANGES
FIRST INTO
DRAWBAR
SLOTS
DRAWBAR
PIN HOLE
5
FIG. 1C
SUPPORT
ASSEMBLY
DRAWBAR SLOTS
RETAINER
SPRING
FIG. 1D
PIN
