1999-2006 FORD EXCURSION & FORD F-250 TO F-550 PICK-UP

TOOLS REQUIRED:

Ratcheting Wrench
Standard Socket Set

HARDWARE:

QTY DESCRIPTION
4
¼-20 x ¾" Hex Head Bolts
4
¼" Flat Washers

SUB ASSEMBLY:

1. Remove front seat base bolts.
2. Determine (1) driver and (2) passenger side brackets.
3. Two passenger brackets are supplied. One of the two brackets will not be used. Passenger side
bracket with drill hole is intended primarily for use on 2004 Ford F-250 to F-550. This will
accommodate vehicles with larger passenger seat bases.

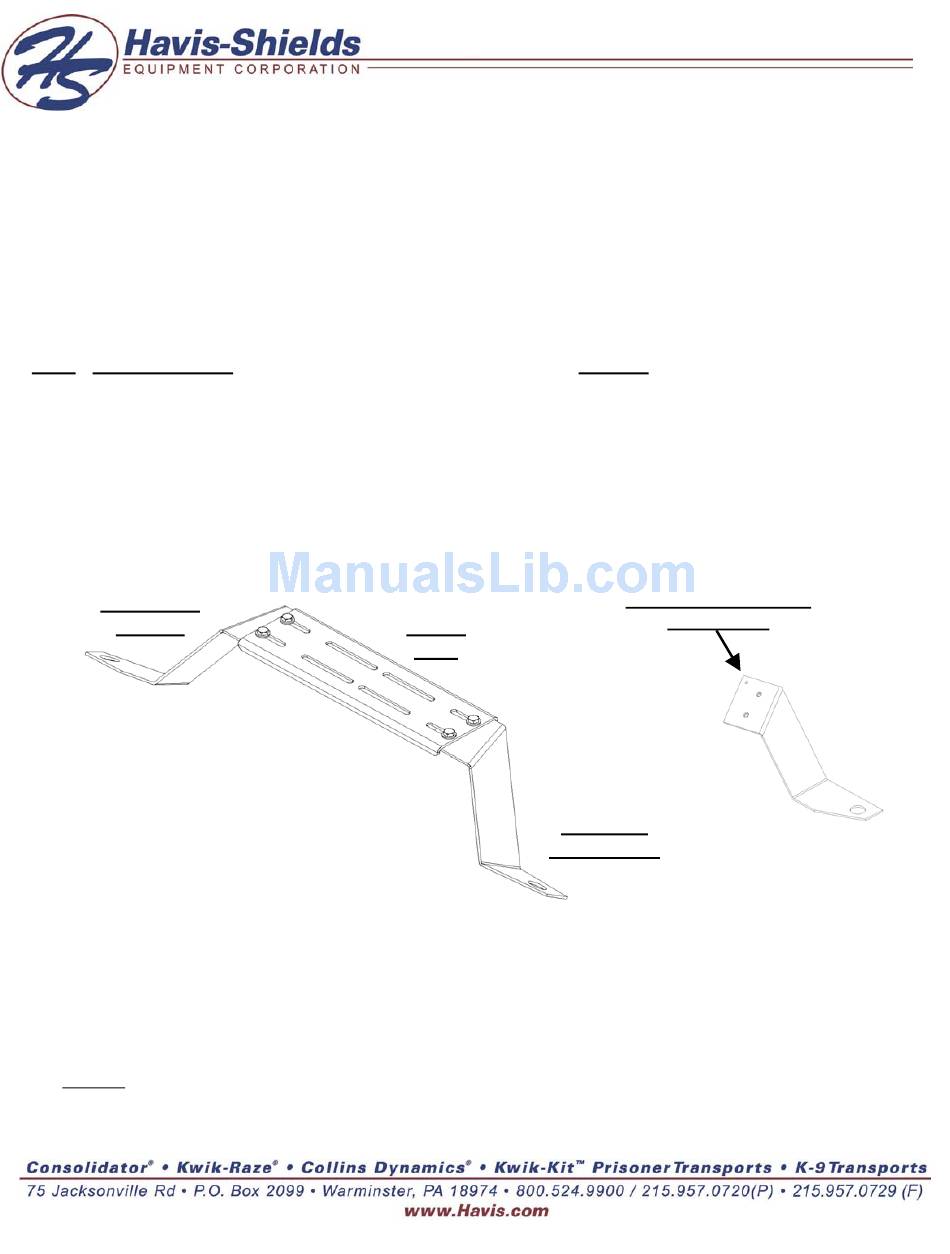

Driver Side
Bracket

INSTALLATION:

1. MOUNT C-B23 HUMP BRACKET:
• Remove inner bolts on driver and passenger seat bases.
• Bolt Driver Side Bracket to vehicle so that bracket is between seat base and floor.
• Repeat process for passenger side being sure to use correct bracket.
• Bolt Center Plate to Driver and Passenger Side Brackets using (4) ¼-20 x 3/4" Hex
Head Bolts and ¼" Flat Washers.

NOTES:

1. For vehicles with Bench seats cut carpet to expose nuts in floor where bracket hole lands.
2. If using a Trak mount application, bolt Trak to Center Plate prior to Driver and Passenger Side
Brackets.
INSTALL INSTRUCTIONS C-B23
FRONT HUMP MOUNT BRACKET
Torx Bit Set
Metric Socket Set
PART #
GSM33001
GSM31005
Center
Plate
Passenger
Side Bracket
Passenger Side Bracket
w/ Drill Hole
C-B23-INST-9-06
