Building In

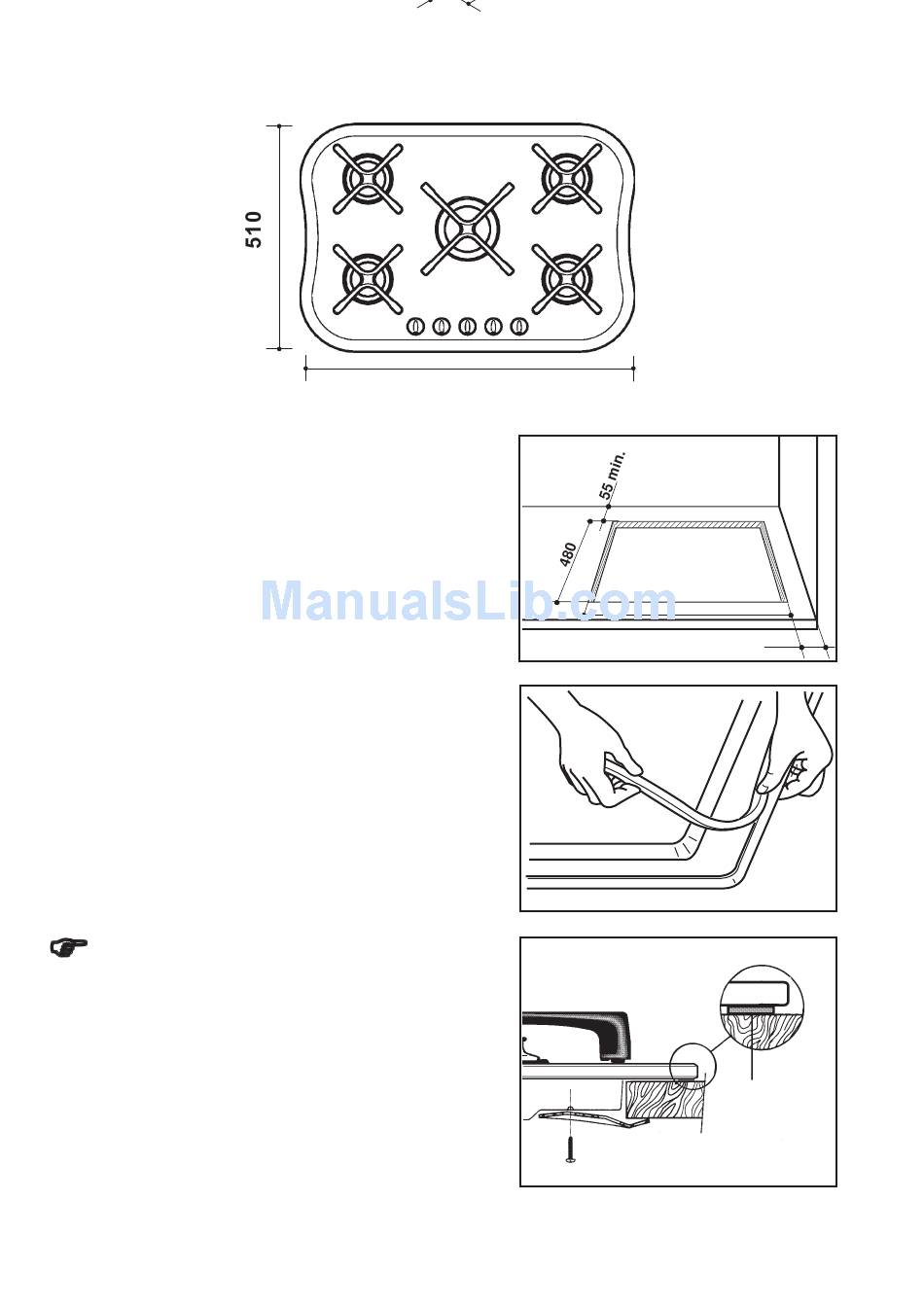

Fig. 5
Dimensions are given in millimeters
These hobs can be inserted in a built-in kitchen unit
whose depth is between 550 and 600 mm. The hob
dimensions are shown in Fig. 5.
The edge of the cut out must have a minimum distance
from the rear wall of 55 mm.
If there are side walls, or sides of the furniture unit near
the hob, the cut out edges must have a minimum
distance of 150 mm.
Hanging forniture units or hoods must be placed at 650
mm minimum from the hob.
Fitting the hob to the worktop
The hob can be installed in a kitchen unit with an opening
for insertion whose dimensions are shown in fig. 6.
Before fitting the hob into the cut out, an adhesive seal
must be fitted to the underside outside edge (Fig. 7) of
the hob. It is essential that no gaps are left in this seal in
order to prevent spillage near the hob seeping into the
cabinet below.
To install the hob, proceed as follows:
1) Remove the pan supports, the burners caps
and crowns and turn the hob upside down,
taking care the ignition candles are not
damaged in this operation.
2) Place the sealing gasket all around the glass
top edge as shown in diagram 7.
3) Fit the hob in the cut out and push it down
until the glass top and the working top make
contact, as shown in diagram 8.
750
FO 2038
Fig. 6
Fig. 7
FO 2321
Fig. 8
a) Sealing gasket
560
150 min
FO 2320
