All Refrigerator; Optional Accessories - Frigidaire Fprh17D7K F Features

All-Refrigerator Specifications
• Product Shipping Weight (approx.) – 227 Lbs.
An electrical supply with grounded three-prong receptacle is
•
required. The power supply circuit must be installed in accordance
with current edition of National Electrical Code (NFPA 70) and
local codes & ordinances.
• Voltage Rating – 115V / 60 Hz / 15 or 20 Amps
• Amps @ 115 Volts = 5 Amps
• Always consult local and national electric & plumbing codes.

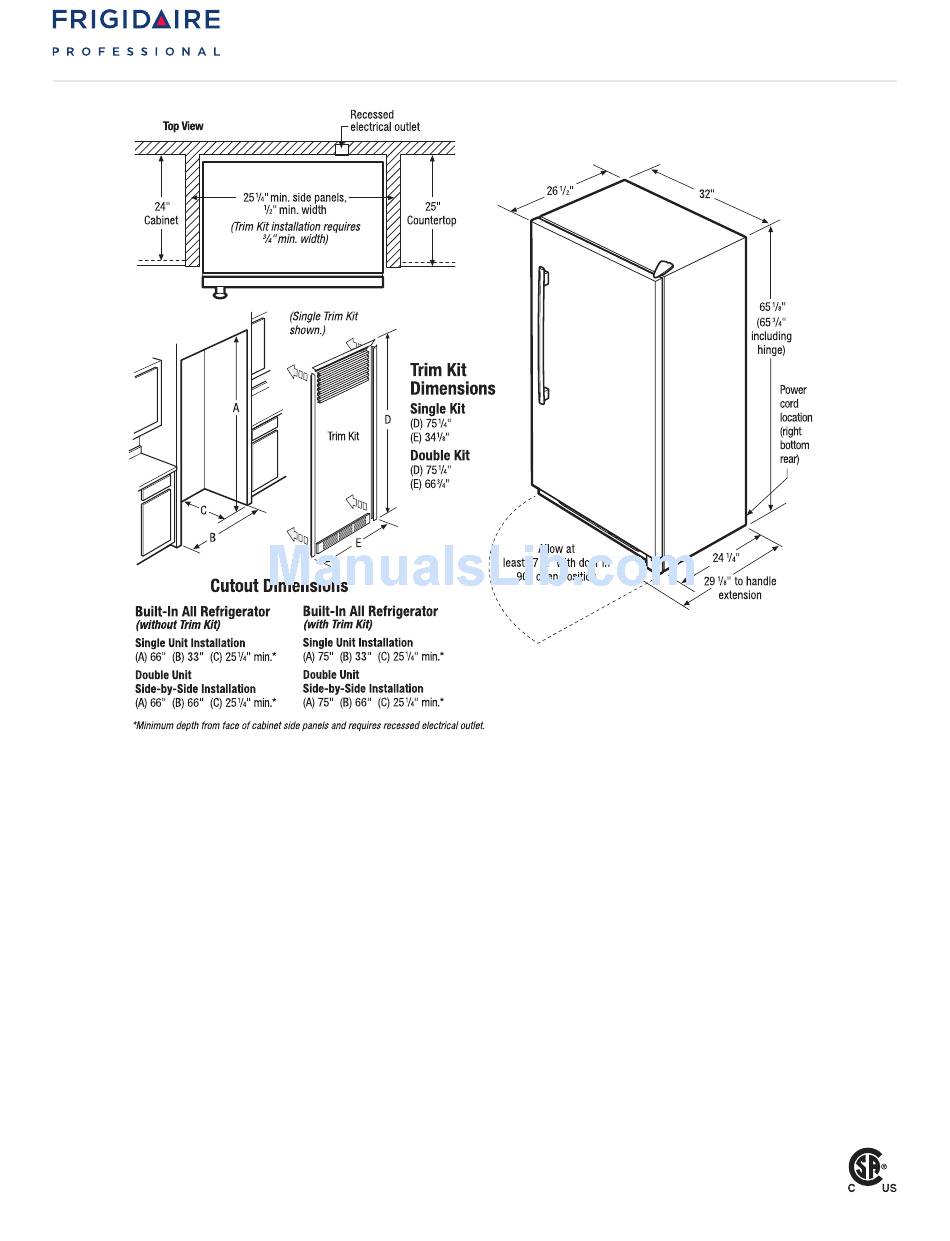

• Minimum opening of 66" H x 33" W x 25-1/4" D required for single-unit
"Built-In Look" installation; 66" W required for double-unit installation.
(66" H to be measured from finished floor to underside of soffit or
overhead cabinet.)
Minimum 25-1/4" depth requires recessed electrical outlet.
•
• Remove all wall / floor molding prior to built-in installation.
• When installing refrigerator adjacent to wall, cabinet or other
appliance that extends beyond front edge of unit, 20" minimum
clearance recommended to allow for optimum 140° door swing,
providing complete crisper access and removal. (Absolute 4"
minimum clearance will ONLY allow for 90° door swing which
will provide limited crisper access with restricted removal.)
FRIGIDAIRE®
USA 10200 David Taylor Drive Charlotte, NC 28262
• •
CANADA 5855 Terry Fox Way Mississauga, ON L5V 3E4
• •
FPRH17D7K 07/10
1-800-FRIGIDAIRE frigidaire.com
• •
1-800-265-8352 frigidaire.ca
• •
© 2010 Electrolux Home Products, Inc.
Note: Optional Trim Kits available for Built-In
All Refrigerator. For specifications, refer to Trim
Kits Installation page on web.
• Refrigerator must be placed on level surface of hard material, same
height as flooring. Surface must support approximately 800 lbs.
when fully loaded. Unit equipped with 4-point leveling.
If optional Single or Double Trim Kit is to be used, different cutout
•
dimensions are required. (Refer to cutout dimensions on this page
and to Trim Kits Installation Specifications page on web.)
Note: For planning purposes only. Refer to Product Installation Guide
on the web at frigidaire.com for detailed instructions.

Optional Accessories

• Single Trim Kit – (PN # ALLREFKIT).
Double Trim Kit – (PN # DUOTRIMKIT).
•

All Refrigerator

FPRH17D7K F 17 Cu. Ft. Built-In
Specifications
subject to change.
Printed in the U.S.A.
