HOW TO ASSEMBLE
CAUTION: Assemble the cleaner before using.
NOTE: Features may vary by model yet all parts assemble the same.

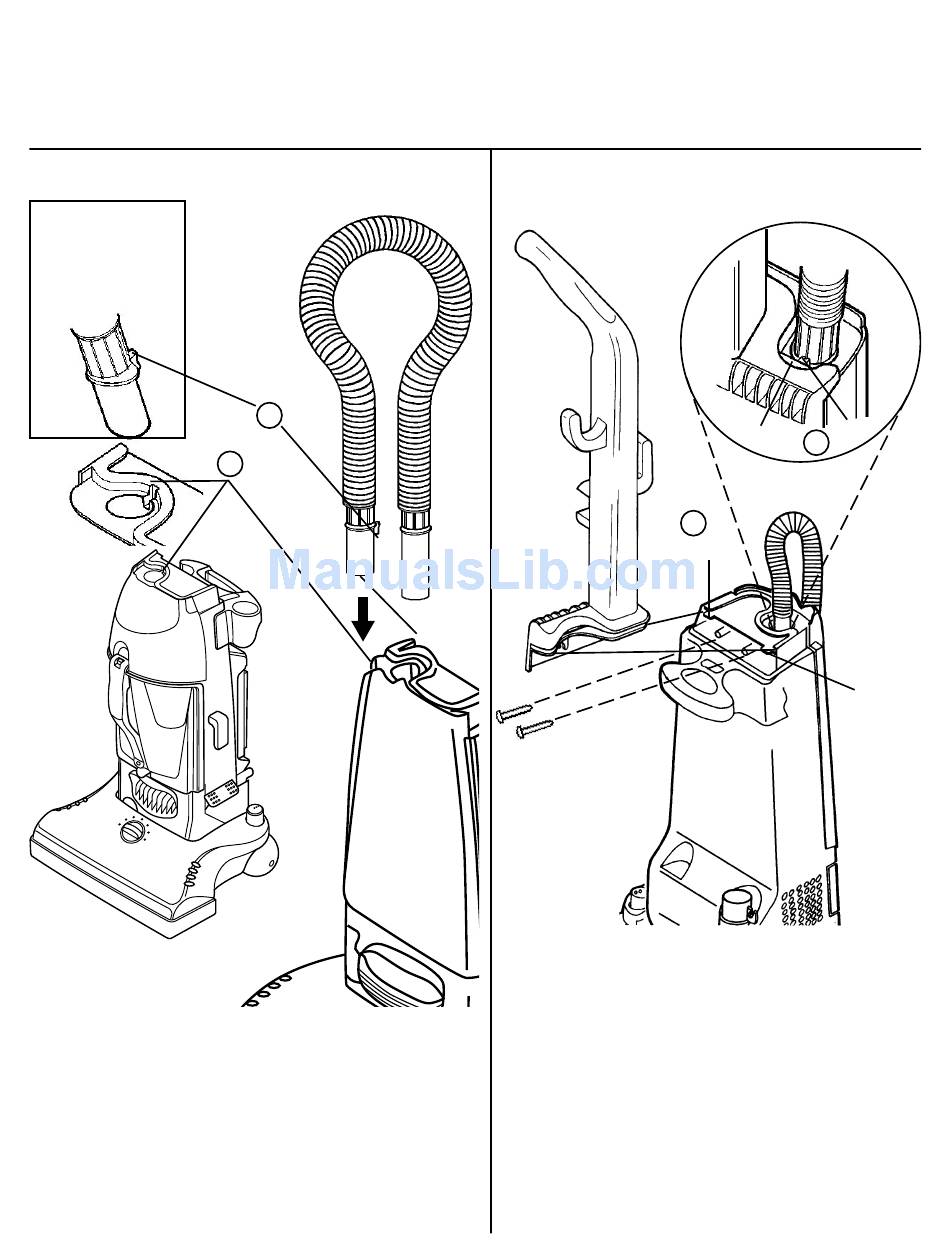

Step A Attach Hose
IMPORTANT:
Hose
MUST BE
inserted
before attaching
the handle.
Notch
1. Locate the tab on the hose adapter of the extension hose
(shortest end).
2. Insert hose adapter into opening on top of unit. The hose
adapter tab must be placed all the way down into the
notch.
Tab
1
2
Step B Attach Handle
CAUTION: Do not catch cord under handle.
Hose
Adapter
3. From rear of cleaner, align handle with groove and
slide onto cleaner. If necessary, use thumb and finger
pressure to slide handle into position.
4. Once handle is in place, check that the hose adapter
tab is completely secure under the ledge of the
handle.
5. Attach handle with two 5/8 inch screws in the
assembly packet. Use either a slotted or Phillips
screwdriver.
Tab
Ledge
4
3
Groove
Groove
head
®
5
