Tecnik Appliances
2 Brindley Road
Old Trafford
Manchester M169 HQ
ó C d
. 9000311156 A

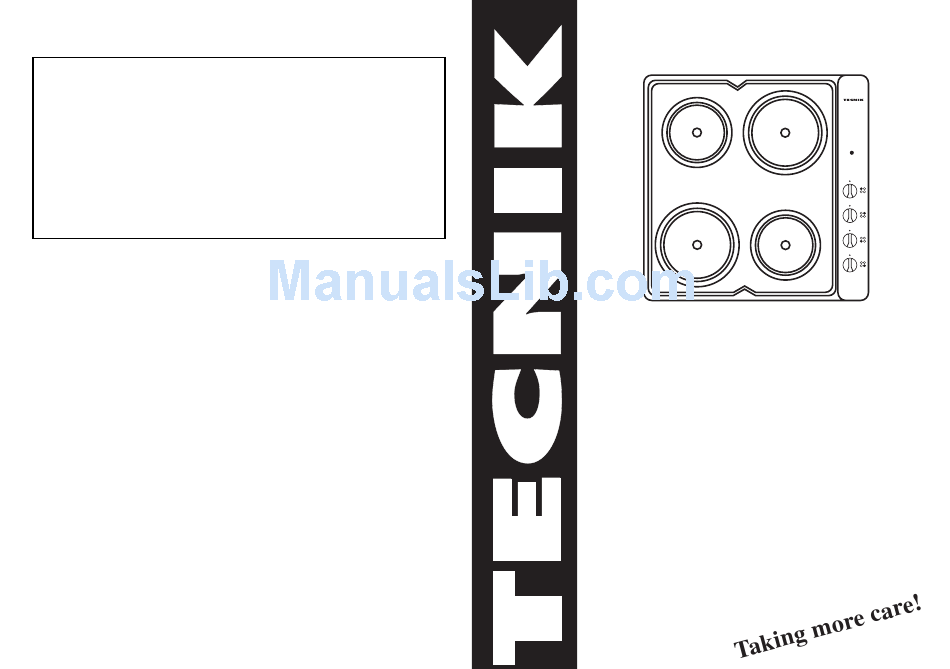

Operating and
Assembly Instructions
PLEASE READ THESE INSTRUCTIONS THOROUGHLY
This appliance must be operated in accordance with the
instructions given in this manual. It is for domestic use only in
the preparation and cooking of food and should be built into a
fitted kitchen unit.
1
6
2
5
3
4
1
6
2
5
3
4
1
6
2
5
3
4
1
6
2
5
3
4
Advertisement
Table of Contents
Related Manuals for Tecnik Hob
Summary of Contents for Tecnik Hob
-
Page 1: Assembly Instructions
This appliance must be operated in accordance with the instructions given in this manual. It is for domestic use only in the preparation and cooking of food and should be built into a fitted kitchen unit. Tecnik Appliances 2 Brindley Road Old Trafford Manchester M169 HQ ó... -
Page 2: Table Of Contents
Packaging and old appliances …………………………………... 6 Disposing in an environmentally-responsible manner … 6 Hob installation ……………………………………………….……………7 Safety precautions ……………………………………………………… 7 Before installing …………………………………………………………… 7 Preparing the kitchen unit …………………………………………… 8 Hob installation ……………………………………………………………. 8 Hob connection …………………………………………………………… 8 Removal of cooking hob ……………………………………………. 9... -
Page 3: Safety Precautions
Important notes Read these instructions carefully. Reading these instructions will enable you to use yopur appliance safely and effectively. These operating instructions should be retained, and passed onto the owner if the appliance is sold. The manufacturer is exempt from all responsibility resulting from non-compliance with the requirements of this manual. -
Page 4: Electric Hotplates
Do not clean the appliance using steam cleaners. Risk of electrocution! The graphics in this instruction manual are given as a guide only. Electric hotplates Before using for the first time To remove the new smell, switch the hotplates on to full power for five minutes, one by one, without placing any pans on top. -
Page 5: Warnings For Use
Place the pan in the centre of the hotplate. Otherwise it could be overturned. Always use the pan lids when cooking. Do not strike the hob and do not place excessive weight on it. Pans should be placed on the hob carefully. -
Page 6: Cleaning And Maintenance
Over time, bluish or yellowish stains may appear on the hob and around the edges of the hotplates. Use stainless steel cleaners. Do not use abrasive cleaning products. Preventing damages The hob must be kept dry. Salt water and wet pans can damage the hob. -
Page 7: Technical Assistance Service
Do not clean the appliance using steam cleaners; this could cause damage. Technical Assistance Service When contacting our Technical Assistance Service, please provide the product number (E-Nr.) and production number (FD) of the appliance. This information is given on the specifications plate of the appliance and can be found on the sticker in the instruction manual. -
Page 8: Hob Installation
Before you begin, turn off the appliance’s electricity supply. The appliance’s electrical connection cables must not be in contact with the hot parts of the hob. This could cause damageto the cable insulation. Appliances with any electrical component must be earthed. -
Page 9: Preparing The Kitchen Unit
Preparing the kitchen unit Make the appropriate size cut in the work surface. Fig. 4. If there is no oven below the cooking hob, place a non- inflammable separator (e. g. metal or plywood) 10mm from the bottom of the cooking hob. This will prevent access to the base of the hob. -
Page 10: Removal Of Cooking Hob
The cable type and minimum section must be respected. The hob is fitted with a 6 x 1,5mm2 electrical cable made of silicone suitable for a 220-230V, 2 phase connection. For any other connectioon, see figure 5. - Page 11 Fig. 3 Fig. 1 Fig. 2 Fig. 5 Mín. 50 Mín. 30 Fig. 4...
- Page 12 Fig. 6 Fig. 8 Fig. 9 E-Nr 230/ 400 3N V~ 50 Hz 7000 W HSE6RAG400 Type...
