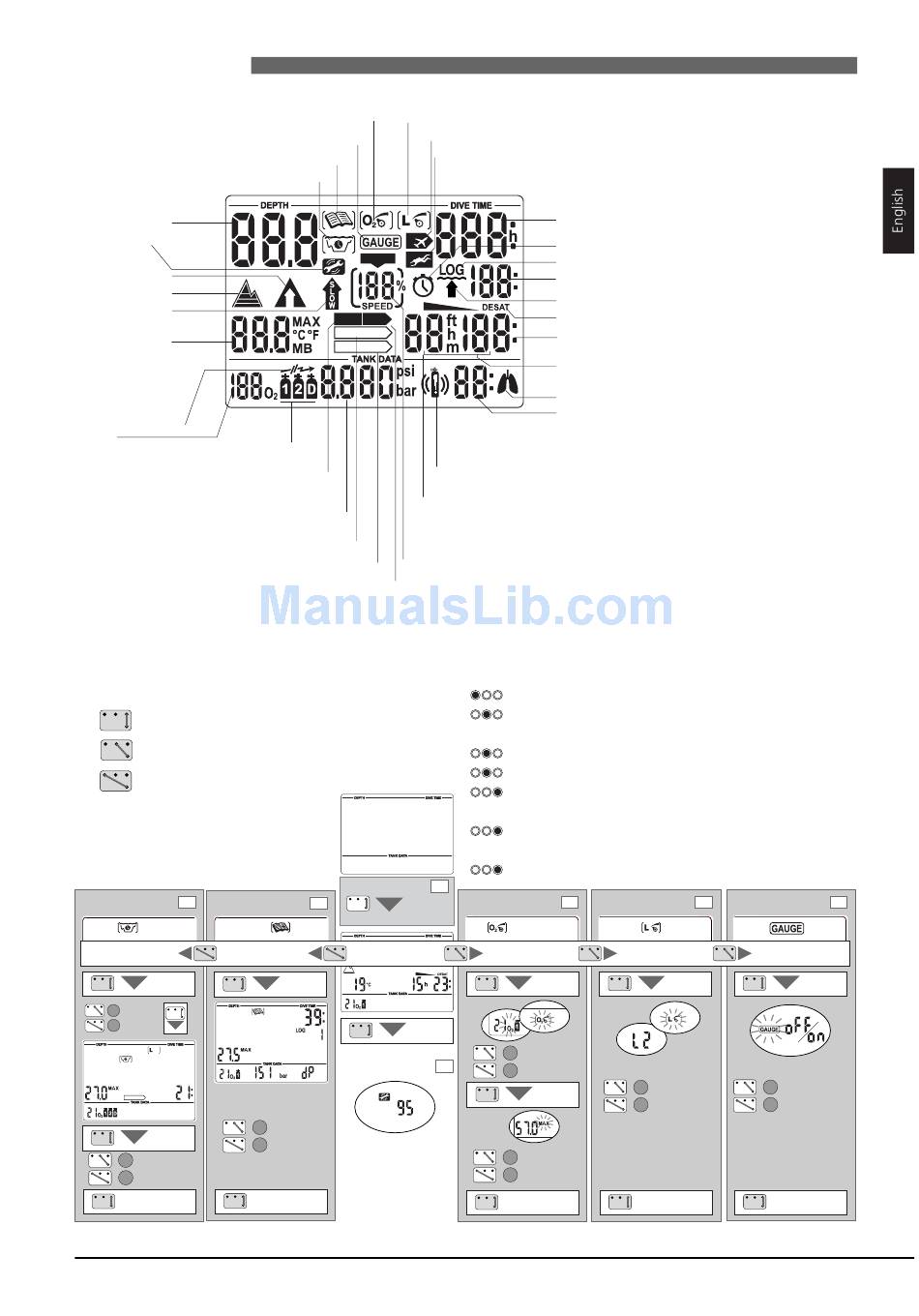

Quick reference
Dive planner icon
Current depth
Service icon
Ascent obligation
Altitude sections
Too fast ascent
Maximum depth
Temperature
Microbubble level
Maximum Operating
Depth (MOD)
Transmitter warning
O mix Tank icons
2
Decompression stop obligation
Ignored decompression stop
Tank pressure / Gas consumed
Partial pressure of oxygen ppO
Decompression stop indicator
Operating scheme
Start / Confirmation / Enter
+ / Navigate
– / Navigate
Dive planner 37 Logbook
( )
+
Surface
– interval
%
NO STOP
%
+
Bottom time
–
Exit (2 sec.)
Display switches off automatically after 3 minutes without operation.
I UWATEC ® Smart dive computers
O mix icon (input)
2 Microbubble level icon (input / MB level reduced)
Gauge icon
Logbook icon
NO
NO
CNS O %
2
DECO STOP
LEVELSTOP
NO STOP
%
Decompression depth / Level stop depth
2
Oxygen toxicity CNSO
Level stop indicator Ascent rate
Battery capacity
No-stop indicator
Display
switched off
Switching on
39
Navigation
%
Battery capacity
%
+
Dive number
–
Exit
Do not fly Icon
Do not dive icon
Microbubble warning
Dive time / No-fly time / SOS duration
Icon for stopwatch and safety stop
Logbook indicator
Total ascent time / Dive number
Ascent time icon
Desaturation time indicator
No-stop time / Decompression duration / MB no-stop time
Level stop duration / Duration of Microbubble Warning
Desaturation duration / Duration of surface interval
Increased workload warning
Remaining bottom time RBT / Number of active tanks
Tank pressure warning
At the surface: several gas mixture have been set
2
Select (press) and confirm (press and hold) gas mixtures
Activate the timer for safety stops (dive mode only, in
depths < 6.5 m / 20 ft) (press)
Operate the stopwatch (gauge mode only) (press)
Set a bookmark (press)
Toggle between maximum depth > temperature >
MB level > ...(press)
Intermediate time and reset (in gauge mode only and
while stopwatch is active) (press)
Switching on the backlight (press and hold)
