Strong SRT 6350 CI User Manual

Digital satellite receiver with common interface
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

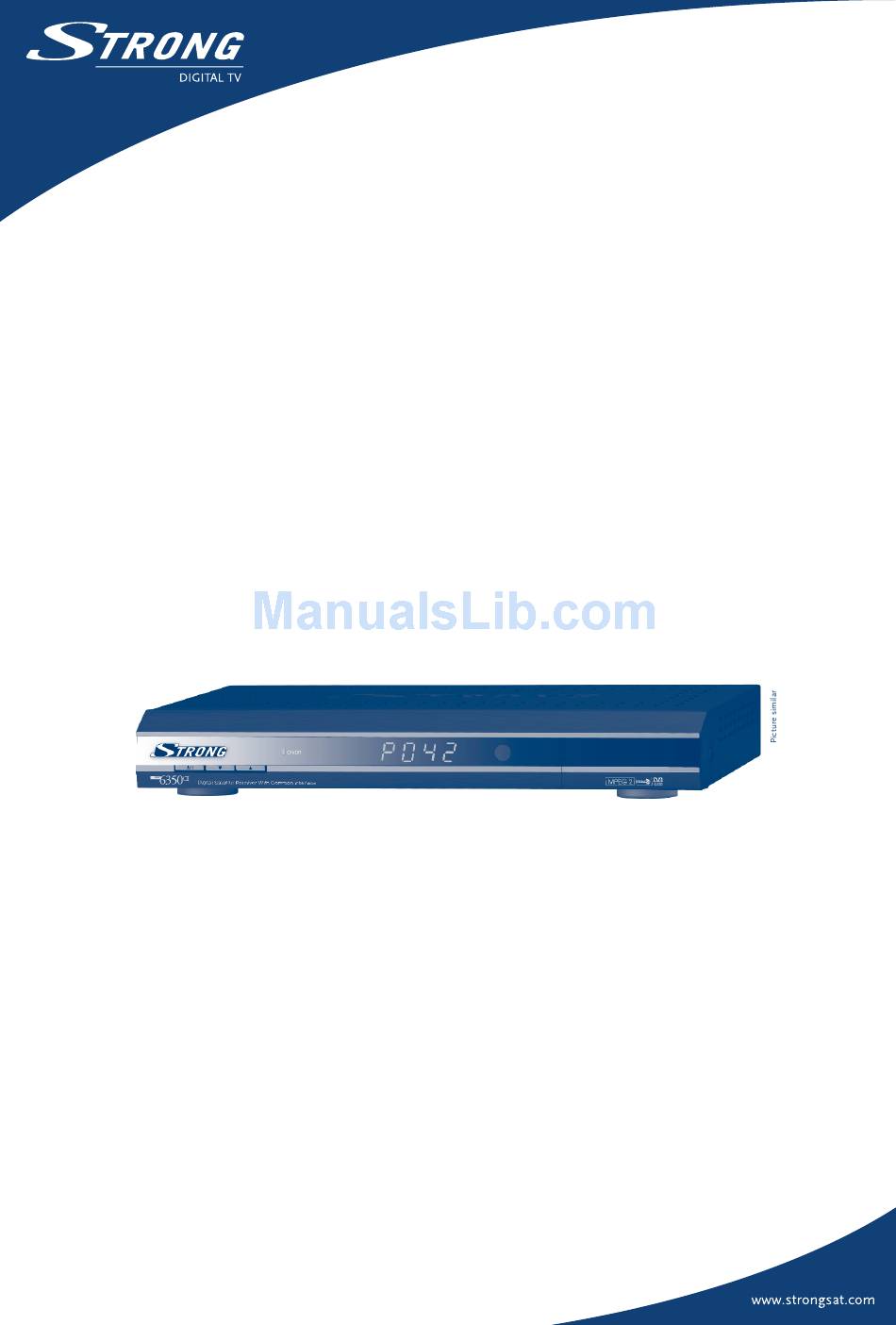

Digital Satellite Receiver with
Common Interface SRT 6350 CI
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SRT 6350 CI and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Strong SRT 6350 CI

Summary of Contents for Strong SRT 6350 CI

  • Page 1 Digital Satellite Receiver with Common Interface SRT 6350 CI User Manual...
  • Page 3 Attachments — For your safety, and to avoid damaging the controls could damage the product and require extensive product, use only accessories recommended by STRONG. repair work by a qualified technician. Water and Moisture — Never use this product around water (near 4.
  • Page 4 Safety Instructions...

  • Page 5: Table Of Contents

    PART 1 • English TABLE OF CONTENTS 1.0 INTRODUCTION Safety Instructions Storage Equipment Set-up Features & Accessories 2.0 YOUR RECEIVER Front Panel Rear Panel Remote Control Unit 3.0 CONNECTIONS Connecting to TV & VCR Connecting to Digital Audio Amplifier Connecting to Satellite Dish Connecting to computer by serial cable for downloading software 4.0 STARTING UP FOR THE FIRST TIME Language Selection...

  • Page 6: Introduction

    PART 1 • English INTRODUCTION Safety Instructions DO NOT INSTALL YOUR RECEIVER: In a closed or poorly ventilated cabinet; directly on top of or under any another equipment; on a surface which might obstruct the ventilation slots. DO NOT EXPOSE THE RECEIVER OR ITS ACCESSORIES: To direct sunlight or near any other equipment that generates heat;...

  • Page 7: Equipment Set-Up

    PART 1 • English Equipment Set-up We recommend you consult a professional installer to set up your equipment. Otherwise, please follow the instructions below: Refer to the user manual of your TV and your antenna. Make sure that the SCART cable and outdoor components are in a good condition and the SCART connections are well shielded This manual provides complete instructions for installing and using this receiver.

  • Page 8: Features & Accessories

    PART 1 • English Features & Accessories For all digital Free-To-Air TV and Radio programmes via satellite Common Interface slot compatible to all Conditional Access Modules Fast channel filtering by first letter of channel name Zoom function for selected video region Digital sound through coaxial output (S/PDIF) Display showing channel number or time Separate power switch...

  • Page 9: Your Receiver

    PART 1 • English YOUR RECEIVER Front Panel Figure 1 1. Power On/Off button 2. Channel Up/Down buttons 3. MODE INDICATOR RED light indicates that the receiver is in STAND-BY mode. GREEN light indicates that the receiver is in AWAKE mode. 4.

  • Page 10: Remote Control Unit

    PART 1 • English Remote Control Unit Turns the receiver On/Off. Mutes audio output of the receiver. Toggle between TV and AV mode Controls the numerical operation and especially changes program directly. Shows the current favourite program list. TV/R Switch between TV and RADIO modes. MENU Shows the main menu INFO...

  • Page 11: Connections

    PART 1 • English CONNECTIONS Connecting to TV & VCR Basic connection with a SCART cable (Fig. 3) 1. Connect the satellite signal from the LNB to the SAT IN connector. 2. Connect the TV SCART connector at the back of the receiver to the SCART IN connector on your TV set Advanced connection of the receiver to the TV set and VCR (Fig.

  • Page 12: Starting Up For The First Time

    Ensure that your satellite receiver is correctly connected to your television and dish and your satellite signal is of good quality. If you are not sure about this then ask your local strong dealer to check your installation or satellite signal. Confirm that the power plug of receiver is plugged into the wall outlet. Turn on the receiver. The Installation Wizard will appear on screen when you power on receiver for the first time.

  • Page 13: Main Menu

    PART 1 • English MAIN MENU All the important settings and features of your receiver can be operated in Main Menu. The Main Menu consists of five sub-menus: “Channel Organiser”, “Installation”, “Timer”, “Games” and “Common Interface”. Press the MENU button when the menu is off, the MAIN MENU screen will appear. Channel Organiser In MAIN MENU screen, press UP/DOWN to select Channel Organiser, and then press OK or u to enter the Channel Organiser menu, which consists of the sub-menus “Sort Channels”, “Add to...

  • Page 14: Installation

    PART 1 • English On screen will appear keyboard. To delete current name of the group select Backspace (t) symbol and press OK. To enter new name use tupq and OK buttons. Press RED button to save new name or press GREEN button to discard changes. 5.1.3 Edit Channels In this menu you can edit channel name, lock and delete channels.
  • Page 15 PART 1 • English Dish position: this item value depends from the mode of the Dish. if mode of selected dish is “Fixed” then this item is not selectable if mode of selected dish is “DiSEqC 1.2” then value can be “Not stored” (in case dish position for selected satellite was not stored”) or in range from 1 to 64 if position has been stored.
  • Page 16 PART 1 • English PCR PID: Use Numeric buttons to enter value of PCR PID in decimal Press RED (Search) button to start channel search. 5.2.1.1 Positioner setup If in Dish setup menu you have configured Dish mode as “DiSEqC 1.2” then you have to setup position of the dish to each satellite that you want to install.
  • Page 17 PART 1 • English and using Numeric buttons enter values in appeared dialog box. Band control: Use tu buttons to select value. Set to Auto in order receiver automatically select band by sending 22 kHz control signal. Set to ON in order receiver generate 22 kHz control signal continuously, or set to OFF in order to disable 22 kHz control signal.
  • Page 18 PART 1 • English format (4:3 or 16:9), Scart mode (RGB or CVBS), press pqtu buttons to move the cursor and OK to confirm selection. OSD settings To set Banner duration (how long information banner will be displayed on screen), Transparency level of the menu and CAM messages (On or OFF), use pqtu buttons to move the cursor and OK to confirm selection.

  • Page 19: Timer

    PART 1 • English Warning: Do not switch power off and do not disconnect the receiver from the aerial during update process. Information Display the information about software version installed in the receiver. Factory reset This will delete all user settings and installed channels. Receiver will restart with Installation Wizard menu. 5.2.6 Parental lock In this menu, you can set menu lock status (Disabled or Enabled) and change the PIN code.

  • Page 20: Watching Tv And Listening To The Radio

    PART 1 • English 5.4.3 Snake pqtu: change direction of snake movement. 5.5 Common Interface When Conditional Access Module is inserted you can enter to this menu and get the information about your CAM, smart card subscription status, manage maturity rating and PIN codes of the smart card.

  • Page 21: Channel List

    PART 1 • English Channel list To call on screen the current channel list press OK button from view mode. Use pqtu buttons to select channel and press OK to switch to full screen view mode. 6.3.1 Fast alphabet filtering Press RED (Filter) button to filter channels in alphabet order.

  • Page 22: A.1 Troubleshooting

    PART 1 • English A.1 TROUBLESHOOTING There may be various reasons for the abnormal operation of the receiver. Check the receiver according to the procedures shown below. If the receiver does not work properly after checking it, please contact the dealer. Don’t open the receiver cover. This may cause a dangerous situation. Symptom Cause Remedy...
  • Page 23 PART 1 • English Audio Decoder: ISO/IEC 11172 LAYER I&II Sampling rate: 32, 44.1, 48 kHz Audio modes: Stereo, Mono Tuner Front-End: DVB-S Input Frequency Range: 950 ~ 2150 MHz RF Input Level: -25 ~ -65 dBm LNB Power: 13.5 / 18 V DC (+/- 5%), Max. 400 mA, Overload protected DiSEqC Versions: 1.0 &...
  • Page 24 PART 1 • English...

  • Page 25: Environmental Issues

    Environmental Issues ENVIRONMENTAL ISSUES Strong is committed to reducing the impact of its products on the environment. To maximise the benefits of our design enhancements, your co-operation is required. Electronic product recycling Packaging Do not dispose of this product with your When disposing of this domestic rubbish.
  • Page 26 Environmental Issues...
