Prevent Overload - SPL Transient Designer 9842 User Manual

Important advice for connection to digital
recording systems:
Each unit connected to the T
handle high input levels. With maximum ATTACK values the
instantaneous input level can increase by up to +15 dB. For this
reason it is recommended to connect the T
analogue mixing console, because these generally have enough
headroom to process peak levels of more than 15 dB without
clipping. However, it is imperative to check the input levels of the
mixer and any clip monitor LEDs at the channel inserts.
If the T D
RANSIENT ESIGNER
interface, a Yamaha O2R mixer or similar units with internal A/D-
converter, ATTACK values of about +6 dB may overload the
converters. In such cases reduce the Input Gain of these systems
to provide adequate headroom to accommodate the enhanced
transients.
Transient Designer
D should be able to
RANSIENT ESIGNER
RANSIENT
is connected directly to a ProTools 888
D to an
ESIGNER
Tech Talk

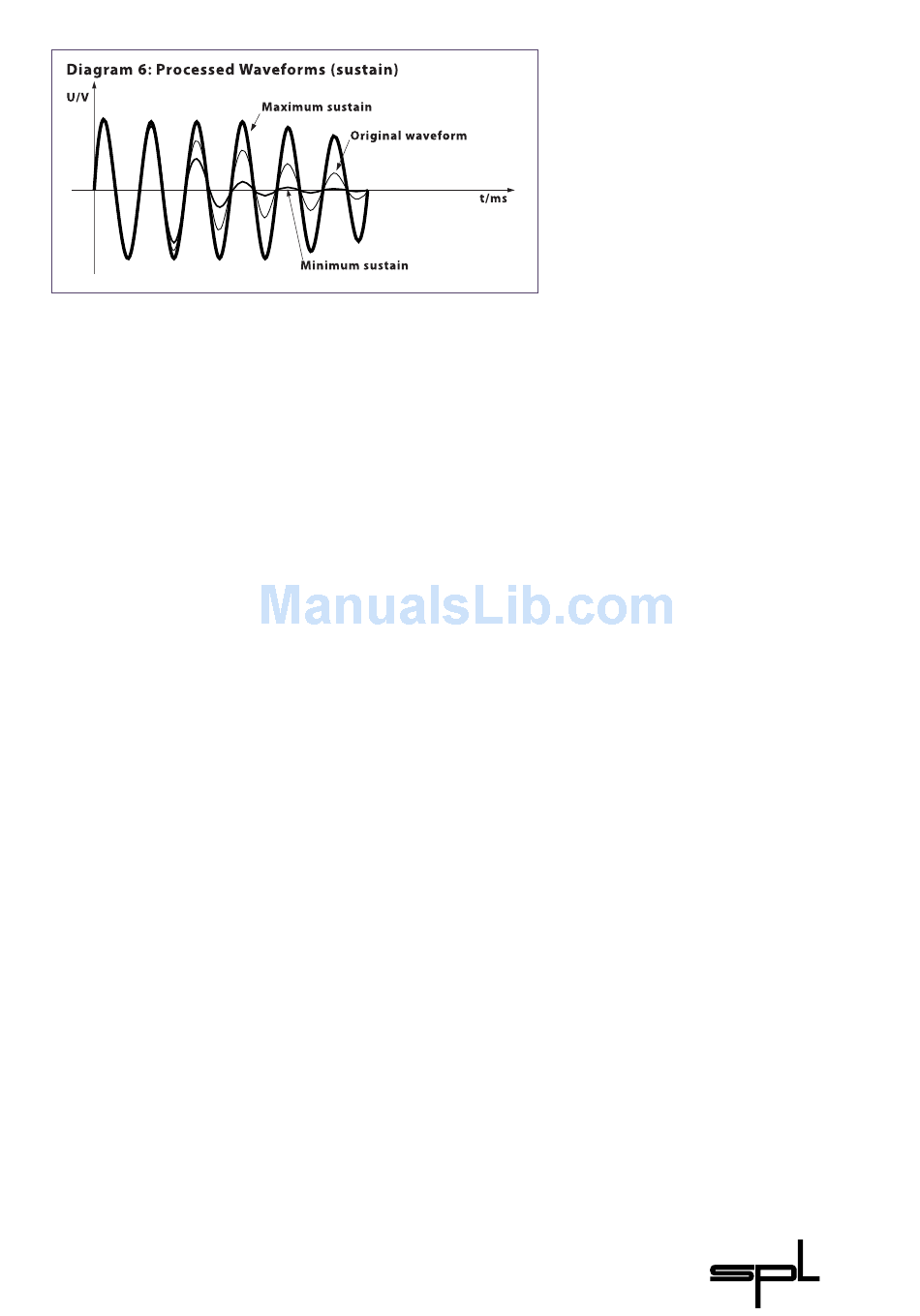

Diagram 6
illustrates the processed
curves with maximum and
minimum sustain compared
to the original curve from
Diagram 1.

Prevent overload

9
