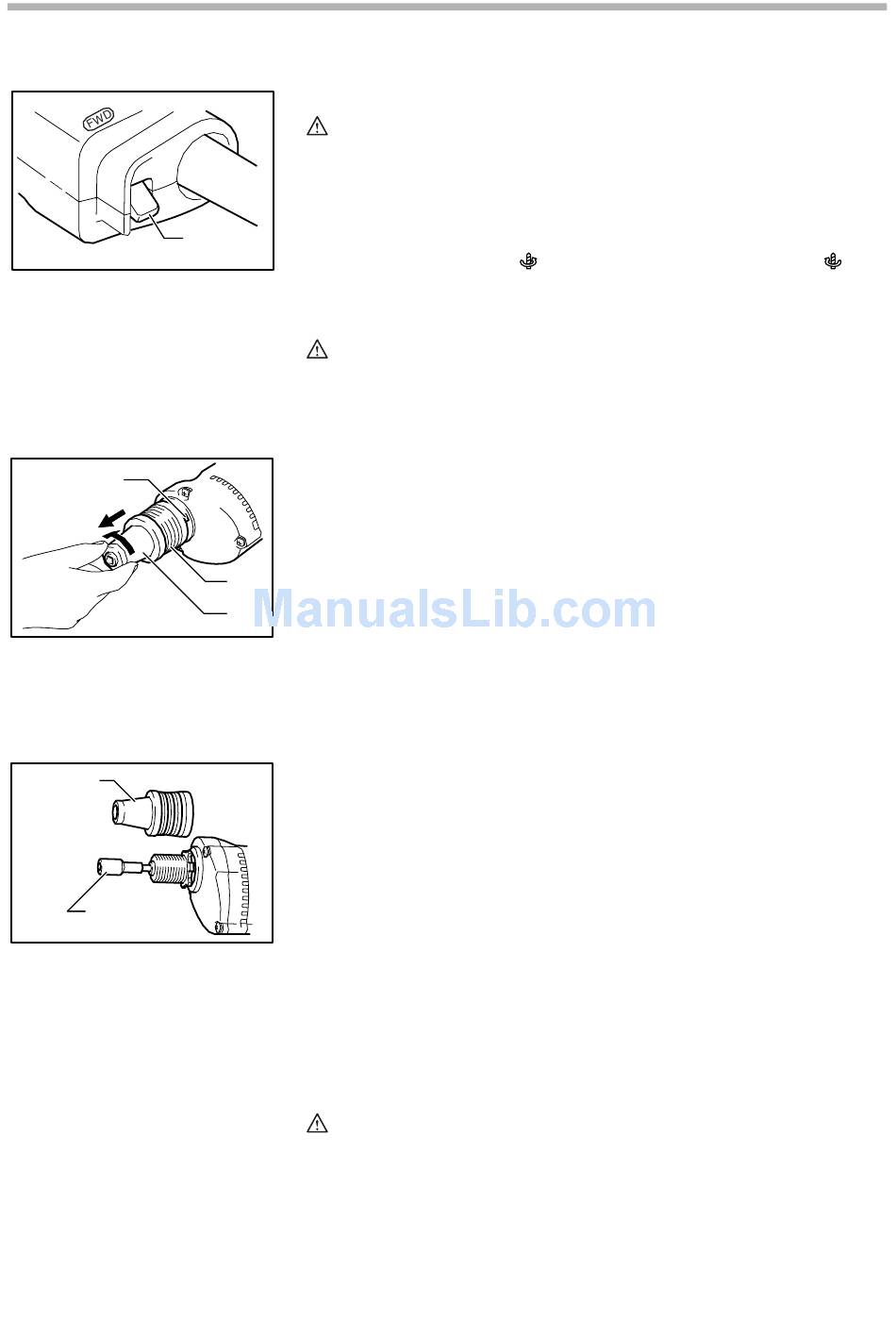

Operation - Makita 6802BV Instruction Manual

1. Reversing switch lever
ASSEMBLY
1
1. Locking position
2. Locking sleeve
3. Locator
1
2
1. Locator
2. Magnetic socket bit

OPERATION

6
Reversing switch action
004159
CAUTION:
• Always check the direction of rotation before operation.
• Use the reversing switch only after the tool comes to a complete stop.
Changing the direction of rotation before the tool stops may damage the
tool.
1
This tool has a reversing switch to change the direction of rotation. Move the
reversing switch lever to the
tion for counterclockwise rotation.
CAUTION:
• Always be sure that the tool is switched off and unplugged before
carrying out any work on the tool.
Installing or removing locator assembly
004165
To remove the locator assembly, pull the locking sleeve forward and then turn it
counterclockwise. To install the locator assembly, screw it clockwise and then
push the locking sleeve back in lightly toward the motor. Turn the locking
sleeve slightly to match the locking positions and then push in firmly to lock the
locator in place.
2
3
Installing or removing the socket bit
004167
After removing the locator assembly, pull firmly to remove the magnetic socket
bit. To install the bit, insert it into the tool as far as it will go.
Fit the screw on the point of the bit and place the point of the screw on the sur-
face of the workpiece to be fastened. Apply pressure to the tool and start it.
Withdraw the tool as soon as the clutch cuts in. Then release the switch trig-
ger.
CAUTION:
• When fitting the screw onto the point of the bit, be careful not to push in
on the screw. If the screw is pushed in, the clutch will engage and the
screw will rotate suddenly. This could damage a workpiece or cause an
injury.
• Use the proper bit for the head of the screw that you wish to use.
• Do not continue unnecessary clutching operation.
position for clockwise rotation or the posi-
