FUNCTIONAL
DESCRIPTION
1
2
3
4

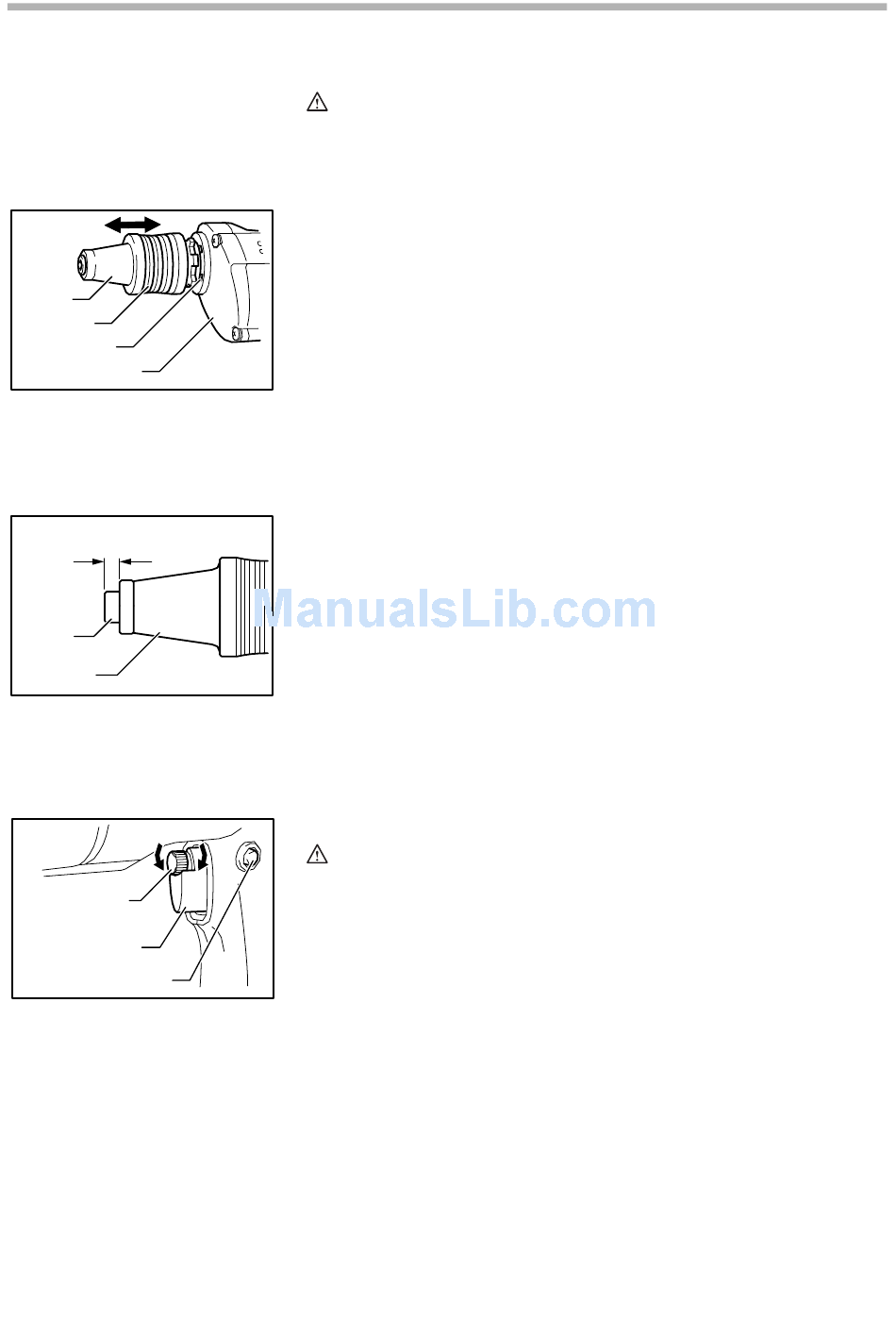

1. Locator
2. Locking sleeve
3. Locking position
4. Gear housing
0.5 mm
1
2
1. Socket bit
2. Locator
4
1
2
3
1. Speed control screw
2. Switch trigger
3. Lock button
4. Low
5. High
CAUTION:
• Always be sure that the tool is switched off and unplugged before
adjusting or checking function on the tool.
Depth adjustment
004146
Pull the locking sleeve forward and then turn it to adjust the depth. Initially,
adjust the locator assembly to create a distance of approximately 0.5 mm from
the tip of the locator to the tip of the socket bit. One full turn of the locator
equals 1.5 mm change in depth. After adjusting the locator assembly, push the
locking sleeve in to lock the locator in place. Drive a trial screw into your mate-
rial or a piece of duplicate material. If the depth is not suitable for the screw,
continue adjusting until the proper depth setting is obtained.
004151
Switch action
004157
5
CAUTION:
• Before plugging in the tool, always check to see that the switch trigger
actuates properly and returns to the "OFF" position when released.
To start the tool, simply pull the switch trigger. Tool speed is increased by
increasing pressure on the switch trigger. Release the switch trigger to stop.
For continuous operation, pull the switch trigger and then push in the lock but-
ton.
To stop the tool from the locked position, pull the switch trigger fully, then
release it.
A speed control screw is provided so that maximum tool speed can be limited
(variable). Turn the speed control screw clockwise for higher speed, and coun-
terclockwise for lower speed.
NOTE:
• Even with the switch on and motor running, the bit will not rotate until you
fit the point of the bit in the screw head and apply forward pressure to
engage the clutch.
5
