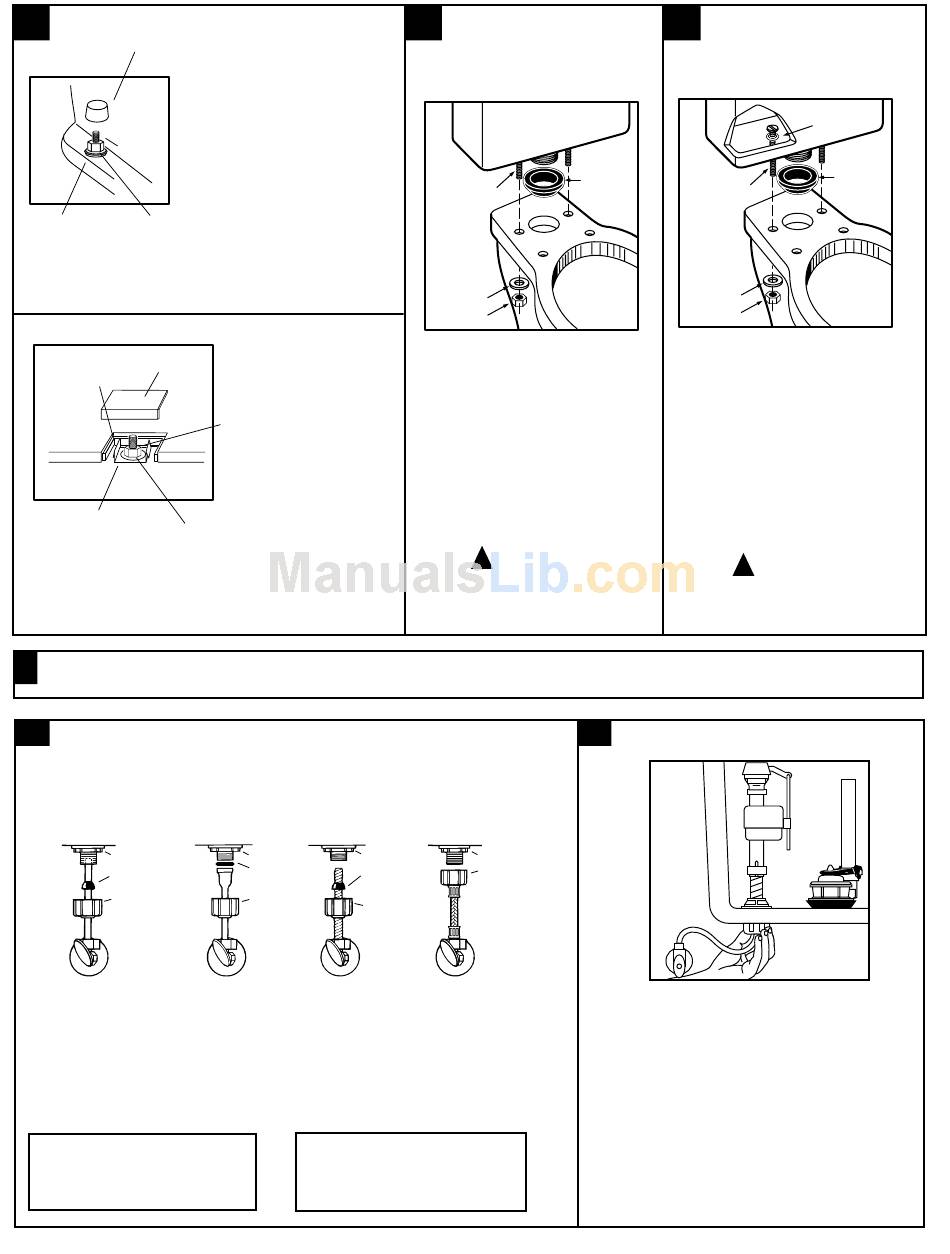

American Standard Cadet III 13L 2650 Installation Instructions page 2

6b
INSTALL BOLTS AND CAPS
BOLT CAP
CLOSET
BOLT
WASHER NUT
a. Install caps on washers. (If necessary, cut bolt height
to size before installing caps.)
b. Smooth off the bead of sealant around base. Remove
excess sealant.
COVER COVER
MTG. CLIP
WASHER
NUT
a. Press covers over mounting clips. (If necessary,
cut bolt height to size before installing covers.)
b. Smooth off the bead of sealant around base.
Remove excess sealant.
8
INSTALL TOILET SEAT Install toilet seat in accordance with manufacturer's directions.
9a
Before continuing, determine the type of water supply connecation you have from
the chart below and use the appropriate assembly parts required to properly
reconnect the water supply. DO NOT use plumber's putty to seal these fittings.
METAL/COPPER METAL FLANGED
FLARED TUBING
LOCK NUT
CONE
WASHER
COUPLING
NUT
WATER
SHUT-OFF
These parts must be used as
illustrated to insure water-tight
connection. Use of existing
coupling nut may result in
water leakage. Water supply
tube or pipe must extend at
least 1/2" inside threaded
shank of valve (does not apply
to flanged tubing).
CAUTION: DO NOT USE
CONE WASHER WITH
PLASTIC SUPPLY LINE.
Ellisse 2184
Baby Devoro 2315
Deco 2059
Cadet III 13L 2650/2660
Sonoma 2454
HERITAGE 2176
CLOSET
BOLT
METAL SPIRAL
TUBING TUBING
LOCK NUT LOCK NUT
EXISTING
EXISTING
WASHER
CONE
WASHER
EXISTING
COUPLING COUPLING
NUT
NUT
WATER WATER
SHUT-OFF SHUT-OFF
Use existing Use existing spiral
coupling nut cone washer.
and washer. Fluidmaster cone
washer may not
seal completely on
spiral type supply
line.
CAUTION: Overtightening of
LOCK NUT or COUPLING NUT
could result in breakage and
potential flooding.
7a
For Tanks/Bowls using Speed
Connect System (Tank
mounting bolts pre-installed).
RUBBER
TANK MTG.
GASKET
BOLTS PRE-
INSTALLED
WASHER
NUT
INSTALL TANK
a. Install large rubber gasket over
threaded outlet on bottom of tank
and lower tank onto bowl so that
tapered end of gasket fits evenly into
bowl water inlet opening, and tank
mounting bolts go through mounting
holes. Secure with metal washers
and nuts.
b. With tank parallel to wall, alternately
tighten nuts until tank is snugged
down evenly against bowl surface.
!
CAUTION:
DO NOT OVERTIGHTEN NUTS MORE
THAN REQUIRED FOR A SNUG FIT!
9b
VINYL/BRAIDED
CONNECTOR
LOCK NUT
COUPLING
NUT
WATER
SHUT-OFF
Captive cone
washers already
included. No
additional washers
needed.
- 2 -
7b
For all other Tanks/Bowls
RUBBER
WASHER
TANK MTG.
BOLTS
WASHER
NUT
INSTALL TANK
a. Install large rubber gasket over
threaded outlet on bottom of tank
and lower tank onto bowl so that
tapered end of gasket fits evenly into
bowl water inlet opening.
b. Insert tank mounting bolts and
rubber washers from inside tank,
through mounting holes, and secure
with metal washers and nuts.
c. With tank parallel to wall, alternately
tighten nuts until tank is snugged
down evenly against bowl surface.
!
CAUTION:
DO NOT OVERTIGHTEN NUTS MORE
THAN REQUIRED FOR A SNUG FIT!
With correct washers in place
(see Step 9a), tighten
COUPLING NUT 1/4 turn beyond
hand tight. DO NOT
OVERTIGHTEN.
7 3 0 5 1 3 - 1 0 0 R E V. D
RUBBER
GASKET
