Interactive Health Perfect Chair touchSONIC Quick Manual

Perfect Chair
feel • hear • relax
set-up
Follow the instructions in your Use and Care guide to set up
your chair and install the touchSONIC Pad, then proceed
with the following preparations:

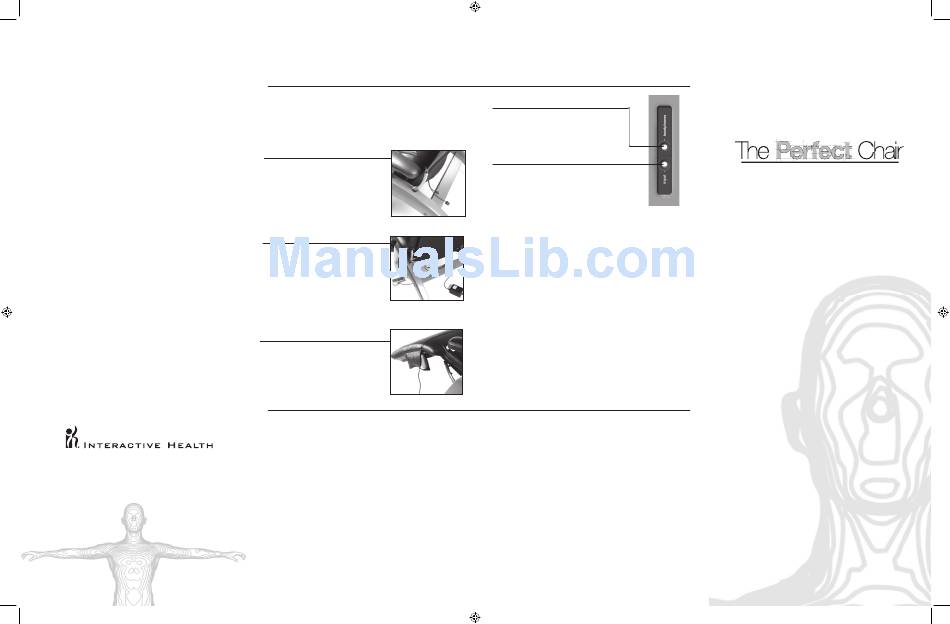

1. Thread cables
Fold touchSONIC pad forward and
locate the audio/power cables
located near the fold. Insert the
power and hand-held remote con-
nectors through hole in the bottom
of the seat suspension fabric.
2. Connections
Connect the power supply and the
remote control cables to correspond-
ing connectors. Route cables as
shown to ensure that they do not
become entangled in moving parts.
Plug the power supply into a stan-
dard 120VAC wall outlet.
3. Store Controller/Connect Audio
Place the remote in the holster for
convenience.
Connect the audio source of your
choosing into the 1/8" stereo input
jack (Stereo, CD, MP3 Player or
video game).
w w w . i n t e r h e a l t h . c o m
touchSONIC
®
specifications
General
• Power requirements: AC 120VAC, 60Hz.
• Power consumption: 36 Watts
Input:
• 1/8 Stereo 20K Impedance
• Input range with no clamping or distortion 20 milivolt to
2 volt RMS. A typical line output spec. is 1 volt RMS
• Inputs beyond this range and up to 10 volt RMS will
cause clamping and distortion of the signals but will not
damage the system
Headphone Output
• 1/8 Stereo 63mW per Channel (32 ohm)
headphones
Use your favorite headphones with
or without the taction speakers
enabled. Accepts all 1/8" stereo
headphone jacks.
input
Accepts any standard 1/8" stereo
input. CD player, DVD player, MP3
player, Surround Sound rear channel,
video game, headphone or any other
sound source.
connection tips
Connect the touchSONIC pad to any of the following outputs
on your sound source:
1. Line out
This can be done by using an unused line out from your
stereo or device or by splitting the left and right signals in
order to provide line output to multiple devices.
2. Headphone
Connect a patch cable between the input jack on the
touchSONIC pad and a standard headphone output on your
sound source.
3. Speaker output
This can be done directly as a split signal, as a parallel
signal bridge from the speaker, or directly from the speaker
output. For rear channel output, option 2 or 3 are suggested.
See the enclosed Speaker Connection card and your audio
source use and care manual for more information.
Speaker Output
Stereo 9 Watts per Channel RMS
13 Watts per Channel Peak Power
18 Watts per Channel Max. Music
Power
Intensity Output
18 Watts RMS Power
25 Watts Peak Power
36 Watts Max. Music Power
Speakers 10 Hz. to 20 kHz.
Earphones 10 Hz. to 20 kHz.
Intensity (TACTION) 10 Hz. to 300 Hz.
®
TouchSonic Sound System

Quick Guide
