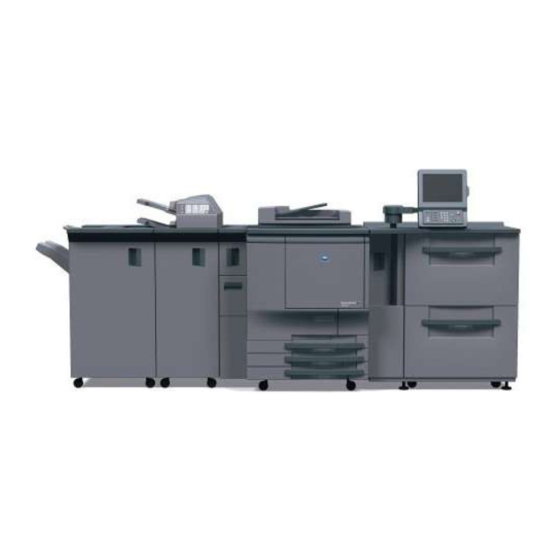

Konica Minolta BIZHUB PRO C6500E User Manual
  1. Manuals
  2. Brands
  3. Konica Minolta Manuals
  4. All in One Printer
  5. BIZHUB PRO C6500E
  6. User manual

Konica Minolta BIZHUB PRO C6500E User Manual

Hide thumbs
1
2
Table Of Contents
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
110
111
112
113
114
115
116
117
118
119
120
121
122
123
124
125
126
127
128
129
130
131
132
133
134
135
136
137
138
139
140
141
142
143
144
145
146
147
148
149
150
151
152
153
154
155
156
157
158
159
160
161
162
163
164
165
166
167
168
169
170
171
172
173
174
175
176
177
178
179
180
181
182
183
184
185
186
187
188
189
190
191
192
193
194
195
196
197
198
199
200
201
202
203
204
205
206
207
208
209
210
211
212
213
214
215
216
217
218
219
220
221
222
223
224
225
226
227
228
229
230
231
232
233
234
235
236
237
238
239
240
241
242
243
244
245
246
247
248
249
250
251
252
253
254
255
256
257
258
259
260
261
262
263
264
265
266
267
268
269
270
271
272
273
274
275
276
277
278
279
280
281
282
283
284
285
286
287
288
289
290
291
292
293
294
295
296
297
298
299
300
301
302
303
304
305
306
307
308
309
310
311
312
313
314
315
316
317
318
319
320
321
322
323
324
325
326
327
328
329
330
331
332
333
334
335
336
337
338
339
340
341
342
343
344
345
346
347
348
349
350
351
352
353
354
355
356
357
358
359
360
361
362
363
364
365
366
367
368
369
370
371
372
373
374
375
376
377
378
379
380
381
382
383
384
385
386
387
388
389
390
391
392
393
394
395
396
397
398
399
400
401
402
403
404
405
406
407
408
409
410
411
412
413
414
415
416
417
418
419
420
421
422
423
424
425
426
427
428
429
430
431
432
433
434
435
436
437
438
439
440
441
442
443
444
445
446
447
448
449
450
451
452
453
454
455
456
457
458
459
460
461
462
463
464
465
466
467
468
469
470
471
472
473
474
475
476
477
478
479
480
481
482
483
484
485
486
487
488
489
490
491
492
493
494
495
496
497
498
499
500
501
502
503
504
505
506
507
508
509
510
511
512
513
514
515
516
517
518
519
520
521
522
523
524
525
526
527
528
529
530
531
532
533
534
535
536
537
538
539
540
541
542
543
544
545
546
547
548
549
550
551
552
553
554
555
556
557
558
559
560
561
562
563
564
565
566
567
568
569
570
571
572
573
574
575
576
577
578
579
580
581
582
583
584
585
586
587
588
589
590
591
592
593
594
595
596
597
598
599
600
601
602
603
604
605
606
607
608
609
610
611
612
613
614
615
616
617
618
619
620
621
622
623
624
625
626
627
628
629
630
631
632
633
634
635
636
637
638
639
640
641
642
643
644
645
646
647
648
649
650
651
652
653
654
655
656
657
658
659
660
661
662
663
664
665
666
667
668
669
670
671
672
673
674
675
676
677
678
679
680
681
682
683
684
685
686
687
688
689
690
691
692
693
694
695
696
697
698
699
700
701
702
703
704
705
706
707
708
709
710
711
712
713
714
715
716
717
718
719
720
721
722
723
724
725
726
727
728
729
730
731
732
733
734
735
736
737
738
739
740
741
742
743
744
745
746
747
748
749
750
751
752
753
754
755
756
757
758
759
760
761
762
763
764
765
766
767
768
769
770
771
772
773
774
775
776
777
778
779
780
781
782
783
784
785
786
787
788
789
790
791
792
793
794
795
796
797
798
799
800
801
802
803
804
805
806
807
808
809
810
811
812
813
814
815
816
817
818
819
820
821
822
823
824
825
826
827
828
829
830
831
832
833
834
835
836
837
838
839
840
841
842
843
844
845
846
847
848
849
850
851
852
853
854
855
856
857
858
859
860
861
862
863
864
865
866
867
868
869
870
871
872
873
874
875
876
877
878
879
880
881
882
883
884
885
886
887
888
889
890
891
892
893
894
895
896
897
898
899
900
901
902
903
904
905
906
907
908
909
910
911
912
913
914
915
916
917
918
919
920
921
922
923
924
925
926
927
928
929
930
931
932
933
934
935
936
937
938
939
940
941
942
943
944
945
946
947
948
949
950
951
952
953
954
955
956
957
958
959
960
961
962
963
964
965
966
967
968
969
970
971
972
973
974
975
976
977
978
979
980
981
982
983
984
985
986
987
988
989
990
Table of Contents

Advertisement

Quick Links

Download this manual
C6500/C6500e
User Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BIZHUB PRO C6500E and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Konica Minolta BIZHUB PRO C6500E

Summary of Contents for Konica Minolta BIZHUB PRO C6500E

  • Page 1 C6500/C6500e User Manual...

  • Page 3: Table Of Contents

    Automatically returning to the default settings: Auto Reset ..2-26 To use machine when Power Save LED lights......2-27 Making user authentication ............2-33 Paper and original information Paper information ................3-3 Original information................ 3-14 bizhub PRO C6500 / bizhub PRO C6500e Contents-1...
  • Page 4 Copying mixed size originals: Mixed ..........6-11 6.1.5 Copying Z-folded original: Z-Folded..........6-13 6.1.6 Specifying original thickness: Thickness ........6-14 6.1.7 Copying non-standard size original: Custom ....... 6-15 6.1.8 Copying tabbed originals: Tab Paper ........... 6-21 Contents-2 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 5 Setting image distinction level ............7-38 Selecting screen type or compression......... 7-41 7.10 Changing colors using CMYK value ..........7-44 7.11 Selecting glossy................7-46 7.12 Copy conditions incompatible with color adjustment ....7-48 bizhub PRO C6500 / bizhub PRO C6500e Contents-3...
  • Page 6 8.18 Overlaying image onto printed pages: Image Overlay....8-89 8.19 Storing overlay image in HDD/ overlaying image stored in HDD: Program Overlay............ 8-91 8.20 Copy conditions incompatible with application functions ..8-97 Contents-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 7 Cover sheet feeding (Paper inserter) ..........9-52 Using Finisher FS-607 manually ............ 9-54 9.10 Loading/sorting a volume of copies (Large capacity stacker LS-501) ........... 9-56 9.11 Copy conditions incompatible with output applications .... 9-58 bizhub PRO C6500 / bizhub PRO C6500e Contents-5...
  • Page 8 13 Paper setting 13.1 Paper setting outlines ..............13-3 13.1.1 Setting items in paper setting ............13-4 13.1.2 Paper type specifications ............. 13-6 13.2 Register paper type/weight ............13-10 13.3 Delete paper setting..............13-18 Contents-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 9 06 Saddle Stitcher Adj. \ 04 Half Fold Position Adj....14-68 14.7.5 06 Saddle Stitcher Adj. \ 05 Tri-Fold Position Adj..... 14-70 14.7.6 06 Saddle Stitcher Adj. \ 06 Fold Paper Width Adj....14-73 bizhub PRO C6500 / bizhub PRO C6500e Contents-7...
  • Page 10 03 Common Setting............... 16-43 16.5 04 Copy Setting ................16-45 16.6 05 Scan Setting................16-48 16.7 06 Printer Setting................16-50 16.8 07 Image Quality Setting............... 16-55 16.9 08 Change Password ..............16-63 Contents-8 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 11 Transmitting machine setting file..........19-30 20 Security functions 20.1 Security modes ................20-4 21 Security strengthen mode 21.1 Description of security strengthen mode........21-3 21.2 Data protected by security strengthen mode ......21-4 bizhub PRO C6500 / bizhub PRO C6500e Contents-9...
  • Page 12 If “Trim receiver exchange” message is displayed ....24-12 24.5 Preventive maintenance ............... 24-13 25 Specifications 25.1 Main body specifications..............25-3 25.2 Option specifications ..............25-5 26 Appendix 26.1 How to input characters ..............26-3 26.2 Index ....................26-5 Contents-10 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 13: Introduction/Safety Information

    Introduction/Safety information...

  • Page 15: Bizhub Pro C6500 / Bizhub Pro C6500E

    The illustrations used in this manual may appear slightly different from views of the actual equipment. ACKNOWLEDGEMENTS: - KONICA MINOLTA, KONICA MINOLTA Logo, and The essentials of imaging are registered trademarks or trademarks of KONICA MINOLTA HOLDINGS, INC. - bizhub is registered trademarks of KONICA MINOLTA BUSINESS TECHNOLOGIES, Inc.
  • Page 16 - Manufacturer and Sales Company will have no liability for any influences caused by using the printing system and this user manual. - The information written in this user manual is subject to change without prior notice. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 17: Energy Star

    As an ENERGY STAR Partner, we have determined that this product meets the ENERGY STAR guidelines for energy efficiency, based on the following features. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 18: License

    Here is a copy of the original text of the GPL, LGPL, and Open SSL licence granted to the software components included in this product. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 19: Bizhub Pro C6500 / Bizhub Pro C6500E

    To prevent this, we have made it clear that any patent must be licensed for everyone's free use or not licensed at all. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 20 (or else, saying that you provide a warranty) and that users may redistribute bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 21: Bizhub Pro C6500 / Bizhub Pro C6500E

    For an executable work, complete source code means all the source code for all modules it contains, plus any associated interface definition files, plus the scripts used to control bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 22 Program by all those who receive copies directly or indirectly through you, then the only way you could satisfy both it and this License would be to refrain entirely from distribution of the Program. 1-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 23 Our decision will be guided by the two goals of preserving the free status of all derivatives of our free software and of promoting the sharing and reuse of software generally. NO WARRANTY bizhub PRO C6500 / bizhub PRO C6500e 1-11...
  • Page 24 LOSSES SUSTAINED BY YOU OR THIRD PARTIES OR A FAILURE OF THE PROGRAM TO OPERATE WITH ANY OTHER PROGRAMS), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. END OF TERMS AND CONDITIONS 1-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 25 We protect your rights with a two-step method: (1) we copyright the library, and (2) we offer you this license, which gives you legal permission to copy, distribute and/or modify the library. bizhub PRO C6500 / bizhub PRO C6500e 1-13...
  • Page 26 Library has the freedom and the wherewithal to run that program using a modified version of the Library. 1-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 27 License along with the Library. You may charge a fee for the physical act of transferring a copy, and you may at your option offer warranty protection in exchange for a fee. bizhub PRO C6500 / bizhub PRO C6500e 1-15...
  • Page 28 Library (or with a work based on the Library) on a volume of a storage or distribution medium does not bring the other work under the scope of this License. 1-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 29 Whether this is true is especially significant if the work can be linked without the Library, or if the work is itself a library. The threshold for this to be true is not precisely defined by law. bizhub PRO C6500 / bizhub PRO C6500e 1-17...
  • Page 30 (2) will operate properly with a modified version of the library, if the user installs one, as long as the modified version is interface-compatible with the version that the work was made with. 1-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 31 License. However, parties who have received copies, or rights, from you under this License will not have their licenses terminated so long as such parties remain in full compliance. bizhub PRO C6500 / bizhub PRO C6500e 1-19...
  • Page 32 This section is intended to make thoroughly clear what is believed to be a consequence of the rest of this License. 1-20 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 33 PARTICULAR PURPOSE. THE ENTIRE RISK AS TO THE QUALITY AND PERFORMANCE OF THE LIBRARY IS WITH YOU. SHOULD THE LIBRARY PROVE DEFECTIVE, YOU ASSUME THE COST OF ALL NECESSARY SERVICING, REPAIR OR CORRECTION. bizhub PRO C6500 / bizhub PRO C6500e 1-21...
  • Page 34 THIRD PARTIES OR A FAILURE OF THE LIBRARY TO OPERATE WITH ANY OTHER SOFTWARE), EVEN IF SUCH HOLDER OR OTHER PARTY HAS BEEN ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. END OF TERMS AND CONDITIONS 1-22 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 35 Yoyodyne, Inc., hereby disclaims all copyright interest in the library `Frob' (a library for tweaking knobs) written by James Random Hacker. <signature of Ty Coon>, 1 April 1990 Ty Coon, President of Vice That's all there is to it! bizhub PRO C6500 / bizhub PRO C6500e 1-23...
  • Page 36 PROCUREMENT OF SUBSTITUTE GOODS OR SERVICES; LOSS OF USE, DATA, OR PROFITS; OR BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING 1-24 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 37 4. If you include any Windows specific code (or a derivative thereof) from the apps directory (application code) you must include an acknowledgement: "This product includes software written by Tin Hudson (tjh@cryptsoft.com)" bizhub PRO C6500 / bizhub PRO C6500e 1-25...
  • Page 38 The licence and distribution terms for any publically available version or derivative of this code cannot be changed. i.e. this code cannot simply be copied and put under another distribution licence [including the GNU Public Licence.] 1-26 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 39: Available Features

    Copies a fixed number (2, 4, or 8) of pages onto one sheet of copy paper to create a draft copy of a multi-page report at the same time as saving paper. bizhub PRO C6500 / bizhub PRO C6500e 1-27...
  • Page 40 Interrupt copying Interrupts copying-in-progress to perform an urgent copy, using any of the copier features for the interrupt job. 1-28 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 41 Non-Sort, Collate, Uncollate, and Staple modes using the primary (main) tray Collated and Uncollate modes using the secondary (sub) tray Selects an output tray and output mode on the Output Application screen. bizhub PRO C6500 / bizhub PRO C6500e 1-29...
  • Page 42 Proof copy To ensure correct output before running multiple copies, run a proof copy by pressing [Proof Copy] on the control panel or touching Proof Copy on the Check screen. 1-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 43 Timer Interrupt mode, which allows temporary use of the machine even when the machine is in the daily, weekly, or holiday Off mode. Z-folded in original setting This feature sets the ADF to accept Z-folded originals. bizhub PRO C6500 / bizhub PRO C6500e 1-31...
  • Page 44 Introduction/Safety information Zoom Selects fixed ratios, four reduction, four enlargement, and three user-set ratios. Zoom ratios can be selected from 25% ~ 400% in 0.1% increments. 1-32 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 45: Explanation Of Manual Conventions

    Text formatted in this style provides additional assistance. % Text formatted in this style describes the action that will ensure the desired results are achieved. bizhub PRO C6500 / bizhub PRO C6500e 1-33...
  • Page 46 Text highlighted in this manner contains references for more detailed information. Special text markings [Stop] key The names of keys on the control panel are written as shown above. MACHINE SETTING Display texts are written as shown above. 1-34 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 47: Legal Restrictions On Copying

    This machine also provides the forgery prevention function in order to prevent financial instruments from being copied illegally. We appreciate your understanding that the copied image may have some noise due to this forgery prevention function. bizhub PRO C6500 / bizhub PRO C6500e 1-35...

  • Page 48: For Eu Member States Only

    Recycling of this product will help to conserve natural resources and prevent potential negative consequences for the environment and human health caused by inappropriate waste handling. 1-36 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 49: Safety Information

    Ignoring this warnings could cause serious injury or even death. Do not ignore this safety advices. 7 CAUTION Ignoring this cautions could cause injury or damage to property. Do not ignore this safety advices. bizhub PRO C6500 / bizhub PRO C6500e 1-37...
  • Page 50 • Do not modify this product, as a fire, electrical shock, or breakdown could result. If the product employs a laser, the laser beam source could cause blindness. 1-38 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 51 Should any of these conditions be found, immediately turn OFF the power switch, unplug the power cord from the pow- er outlet, and then call your authorized service representa- tive. bizhub PRO C6500 / bizhub PRO C6500e 1-39...
  • Page 52 Do not ignore this safety advices. Caution Symbol • The outlet must be near the equipment and easily accessible. Otherwise you can not pull out the power plug when an emer- gency occurs. 1-40 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 53 Ignoring this warnings could cause serious injury or even death. Do not ignore this safety advices. Warning Symbol • Connect the power cord to an electrical outlet that is equipped with a grounding terminal. bizhub PRO C6500 / bizhub PRO C6500e 1-41...
  • Page 54 • Do not let any object plug the ventilation holes of this prod- uct. Heat could accumulate inside the product, resulting in a fire or malfunction. • Do not use flammable sprays, liquids, or gases near this product, as a fire could result. 1-42 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 55 If you keep on using it as is, a fire or electrical shock could result. bizhub PRO C6500 / bizhub PRO C6500e 1-43...
  • Page 56 • Do not store toner units and PC drum units near a floppy disk or watch that are susceptible to magnetism. They could cause these products to malfunction. 1-44 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 57 Ignoring this cautions could cause injury or damage to property. Do not ignore this safety advices. Caution Symbol • Unplug the product when you will not use the product for long periods of time. bizhub PRO C6500 / bizhub PRO C6500e 1-45...

  • Page 58: Regulation Notices

    This device must be used with a shielded network (10 Base-T/100 Base-TX) cable and a shielded parallel cable. The use of non-shielded cables is likely to result in interference with radio communications and is prohibited under FCC rules. 1-46 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 59 This device must be used with a shielded network (10 Base-T/100 Base-TX) cable and a shielded parallel cable. The use of non-shielded cables is likely to result in interference with radio communications and is prohibited under CISPR rules and local rules. bizhub PRO C6500 / bizhub PRO C6500e 1-47...

  • Page 60: Laser Safety

    Dersom apparatet brukes på annen måte enn spesifisert i denne bruksanvisning, kan brukeren utsettes for unsynlig laserstråling som overskrider grensen for laser klass 1. Dette en halvleder laser. Maksimal effekt till laserdiode er 10 mW og bølgelengde er 775-800 nm. 1-48 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 61 Om apparaten används på annat sätt än i denna bruksanvisning specificerats, kan användaren utsättas för osynlig laserstrålning, som överskrider gränsen för laserklass 1. Det här är en halvledarlaser. Den maximala effekten för laserdioden är 15 mW och våglängden är 775-800 nm. bizhub PRO C6500 / bizhub PRO C6500e 1-49...
  • Page 62 Introduction/Safety information 1-50 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 63: Ozone Release

    Placer l’appareil dans une pièce largement ventilée. 1.11 Acoustic noise (For European users only) Maschinenlärminformations-Verordnung 3. GPSGV: Der höchste Schalldruckpegel beträgt 70 dB(A) oder weniger gemäss EN ISO 7779. bizhub PRO C6500 / bizhub PRO C6500e 1-51...

  • Page 64: Caution Notations And Labels

    TOUCH. finger into the two RADF hinge portions; otherwise you may be injured. CAUTION DO NOT put your hand between the main body and developing fixing unit; otherwise you may be injured. 1-52 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 65 Introduction/Safety information WARNING DO NOT throw the toner recovery box into a fire. If it is thrown into a fire, the toner may ignite and cause a dangerous situation. bizhub PRO C6500 / bizhub PRO C6500e 1-53...
  • Page 66 Do not remove caution labels or notations. If any caution label or caution notation is soiled, please clean to make legible. If you cannot make them legible, or if the caution label or notation is damaged, please contact your service representative. 1-54 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 67: Space Requirements

    Combination size the main body and options may be different for the installation environment. unit: mm main body + OC-506 + OT-502 unit: mm main body + OC-506 + OT-502 (side view) bizhub PRO C6500 / bizhub PRO C6500e 1-55...
  • Page 68 Introduction/Safety information unit: mm 1619 1021 2142 main body + DF-609 + PF-601 (side-view) unit: mm 1619 1021 2142 main body + DF-609 + PF-601 + SD-501 (side-view) 1-56 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 69 1619 1179 1021 2997 main body + DF-609 + PF-601 + RU-504 + FS-503 unit: mm 1619 1231 1021 2866 main body + DF-609 + PF-601 + RU-503 + FD-501 bizhub PRO C6500 / bizhub PRO C6500e 1-57...
  • Page 70 1619 46.4 1021 1170 3252 main body + DF-609 + PF-601 + RU-503 + SD-501 unit: mm 1619 1179 1021 2867 main body + DF-609 + PF-601 + RU-503 + LS-501 1-58 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 71 3397 main body + DF-609 + PF-601 + RU-504 + FD-501 + FS-503 main body + DF-609 + LU-202+ FS-607 + PI-502 main body + DF-609 + LU-202+ FS-607 + PI-502 (side-view) bizhub PRO C6500 / bizhub PRO C6500e 1-59...
  • Page 72 Introduction/Safety information Reminder Be sure to allow a clearance of 200 mm or more at the back of this machine for the ventilation duct. 1-60 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 73: Operation Precautions

    - Adhesive that contains solvent (e.g., spray glue) may dissolve the toner on copies. bizhub PRO C6500 / bizhub PRO C6500e 1-61...
  • Page 74 Introduction/Safety information 1-62 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 75: Preparation For Use

    Preparation for use...

  • Page 77: Machine Configuration

    Preparation for use Preparation for use Machine configuration External bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 78 Holds 500 sheets of SRA3 w, SRA4 w/v, A3 w, B4 w, A4 w/v, B5 w/v, A5 w, 12" e 18" w, 11" e 17" w, 8.5" e 11" v, plain paper (80 g/m Front door Opens to allow removal of mishandled paper. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 79 Indicates the total number of prints made. Black print counter Indicates the total number of black prints made 7 CAUTION The internal fixing unit is very hot. To avoid getting burned, DO NOT TOUCH. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 80 Preparation for use Paper feeder unit PF-601 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 81 Pressed backward to slide the paper guides. Paper guides Slide the adjustable paper guides against the side edges of the copy paper. Bottom plate lock release Slide and turn to fix or release the bottom plate. knob bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 82 Preparation for use Finisher FS-503 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 83 Stapler unit conveyance lever Opens downward to remove mishandled paper. Stapler unit handle Withdraws the unit to allow removal of mishandled paper. Stapler unit knob Can be turned counterclockwise to ease removal of mis- handled paper. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 84 Preparation for use Large capacity stacker LS-501 2-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 85 Holds sets output in Non-sort mode or Collate mode (off- set). Outlet lever Opens downward to remove mishandled paper. Carriage Carries paper together with the stacker. Paper holder Mounts paper stopper for holding output paper. Paper stopper Holds output paper. bizhub PRO C6500 / bizhub PRO C6500e 2-11...
  • Page 86 Preparation for use Folding unit FD-501 2-12 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 87: External View

    Left side lever (right/left) Opens leftward to remove mishandled paper. Upper lever Opens upward to remove mishandled paper. Conveyance knob/2 Can be turned clockwise to ease removal of mishandled cover paper. bizhub PRO C6500 / bizhub PRO C6500e 2-13...
  • Page 88 Preparation for use Saddle stitcher SD-501 2-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 89 Stapling unit Staples folded sets. Stapling unit knob Can be turned clockwise to feed mishandled paper. Outlet lever Opens leftward to remove mishandled paper. Outlet conveyance lever Opens downward to remove mishandled paper. bizhub PRO C6500 / bizhub PRO C6500e 2-15...
  • Page 90 Preparation for use Finisher FS-607 2-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 91 Opens lower-leftward to remove mishandled paper. Stacker unit handle Withdraws unit to allow removal of mishandled paper and replacement of staple cartridge. Staple cartridge Holds staple case to be replaced when supplying staples. bizhub PRO C6500 / bizhub PRO C6500e 2-17...
  • Page 92 Upper tray Holds cover shets for use in cover sheet mode. Lower tray Holds cover sheets for use in cover sheet mode. Lower tray guide plates Hold cover sheets to fix the position. 2-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 93 Rear stopper knobs Can be turned to move or fix the rear stopper. Tray bottom plate Goes up automatically when paper supply becomes low, and goes down when the paper loading button is pressed. bizhub PRO C6500 / bizhub PRO C6500e 2-19...
  • Page 94 Preparation for use Standard/optional equipment SD-501 DF-609 OC-506 counter RU-503 LS-501 + SD-501 main body PF-601 LS-501 HD-506 IC-408 IC-303 FD-501 + LS-501 FD-501 2-20 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 95 Preparation for use DF-609 OC-506 FS-503 counter RU-504 PF-601 main body FD-501 + FS-503 HD-506 HT-504 IC-408 IC-303 LS-501 + FD-503 bizhub PRO C6500 / bizhub PRO C6500e 2-21...
  • Page 96 Preparation for use DF-609 OC-506 PI-502 PK-512 PK-513 counter LU-202 main body FS-607 HT-503 HD-506 IC-408 IC-303 DF-609 OC-506 counter OT-502 main body PF-601 HT-504 HD-506 IC-408 LU-202 IC-303 HT-503 2-22 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 97: Turning On/Off The Power

    % Touch the LCD screen to change the Machine Status screen with warm-up image to the screen with the job list, then check that the message "Ready to set reserve job" is displayed in the message area. bizhub PRO C6500 / bizhub PRO C6500e 2-23...
  • Page 98 See page 2-33 for details. If a key counter or copy card is required, follow the instruction on the screen. 2-24 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 99 Reminder When turning the main power switch off then on, be sure to wait 10 seconds or longer before turning it on again; otherwise the machine may not operate properly. bizhub PRO C6500 / bizhub PRO C6500e 2-25...

  • Page 100: Automatically Returning To The Default Settings: Auto Reset

    - Quality Adjustment: Standard - Output Application: Selection available in the Utility mode - Simplex/Duplex: 1->1 - Paper Setting: Auto Detail To change the selection of Output Application for Full-auto, see page 16-39. 2-26 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 101: To Use Machine When Power Save Led Lights

    Detail The Power Save function has two modes: Auto Low Power and Auto Shut-Off. See the following description for details. This function can also be activated manually. For details, see page 2-30. bizhub PRO C6500 / bizhub PRO C6500e 2-27...
  • Page 102 30 minutes/ 60 minutes/ 90 minutes/ 120 minutes/ 240 minutes. See page 16-24 or page 17-7 for details. To exit Auto low power Press or touch any key on the control panel and touch panel. 2-28 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 103 The Auto shut-off can be set for 30 minutes/ 60 minutes/ 90 minutes/ 120 minutes/ 240 minutes, or can be deactivated. For details, see page 16-24 or page 17-7. To exit Auto shut-off Press [Power Save]. The copying operation will become available. bizhub PRO C6500 / bizhub PRO C6500e 2-29...
  • Page 104 Keep POWER SAVER pressed more than one second to enter Low power mode Detail The machine is initially set to activate the Shut-Off function manually. To use Low Power instead, see page 16-24 or page 17-7. 2-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 105 Enter the Timer Interrupt password, then press [Start]. – Enter a 4-digit Timer Interrupt password using the control panel keypad, then press [Start]. Do you want to correct an invalid password? % Continue by entering the valid 4-digit password. bizhub PRO C6500 / bizhub PRO C6500e 2-31...
  • Page 106 Copying is available until the set time is up. When the machine operation is finished, press [Power Save] for one second or longer, then release it. The machine returns to OFF condition. 2-32 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 107: Making User Authentication

    Copy quantity limit for each section can also be set. When the machine is turned on, one of the following user authentication screen will be displayed according to the authentication setting. Copying will be available by the following procedure. bizhub PRO C6500 / bizhub PRO C6500e 2-33...
  • Page 108 The initial state will be restored, with the User Authentication screen displayed on the touch panel. Note If the message "Copy limit reached" is displayed and machine operation becomes unavailable, contact your administrator. 2-34 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 109: Paper And Original Information

    Paper and original information...

  • Page 111: Paper Information

    - Paper Inserter PI-502 (option for Finisher FS-607) - Punch kit PK-512/PK-513 (option for Finisher FS-607) - Output tray OT-502 (for the machine without finisher) Refer to the following information on paper capacity for each. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 112: Paper Weight

    Multi Half Fold of 1 sheet: 81 to 105 g/m Paper Inserter PI-502 (option 50 to 200 g/m for Finisher FS-607) Punch Kit PK-512/PK-513 60 to 128g/m Output tray OT-502 64 to 300 g/m bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 113 Detail The paper weight setting for trays 1 to 5 is described on page 13-10. The paper weight specified for each tray can be changed for temporary use. See page 6-48 for details. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 114 8K w, 13" e 19" w, 12" e 18" w, 11" e 17" w, 8.5" e 14" w) Primary 30 sheets (main) tray (fold) Post Inserter 500 sheets (80 g/m Upper/Low- er tray bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 115 Max. 50 sheets (80 g/m ) per set (main) tray 2-9 sheets stapled: 150 sets (Staple) 10-20 sheets stapled: 50 sets 21-30 sheets stapled: 30 sets 31-40 sheets stapled: 25 sets 41-50 sheets stapled: 20 sets bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 116 6 to 15 45 mm 50 mm Not specified Not specified 16 to 30 50 mm 55 mm Not specified Not specified 31 to 50 60 mm 65 mm Not specified Not specified bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 117 SRA3 w, SRA4 w/v, A3 w, B4 w, A4 w/v, B5 v, 13" e 19" w, 11" e 17" w, 8.5" e 11" v Custom Size: Max. 330.2 mm e 487.7 mm to Min. 210 mm e 182 mm Tab Paper: A4 v, 8.5" e 11" v bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 118 SRA4 w, A3 w, B4 w, F4 w, A4 w/v, B5 w/v, A5 w/v, 8K w, 16K w/v, 12" e 18" w, 11" e 17" w, 8.5" e 14" w, 8.5" e 11" w/v, 5.5" e 8.5" v Tab Paper: A4 v, 8.5" e 11" v 3-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 119 16K w, 12" e 18" w, 11" e 17" w, 8.5" e 14" w, 8.5" e 11" w Custom Size: Max. 324 mm e 460 mm to Min. 182 mm e 257 mm bizhub PRO C6500 / bizhub PRO C6500e 3-11...
  • Page 120 A3 w, B4 w, A4 v, B5 v, 8K w, 16K v, 11" e 17" w, 8.5" e 11" v Swedish 4 holes (PK-513): A3 w, B4 w, A4 v, B5 v 3-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 121 - Store paper in a cool, dry area. Using damp paper may cause a paper misfeed. - Keep partially used packages tightly wrapped during storage. - Do not place paper packages vertically to store. Paper curl due to the vertical storage may cause a paper misfeed. bizhub PRO C6500 / bizhub PRO C6500e 3-13...

  • Page 122: Original Information

    - Original pages that have been cut or contain cutouts - Label sheets - Offset printing masters - Original with binder holes - Original that have just been printed with this machine 3-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 123 Do not place too heavy originals, or do not press strongly when thick original is placed and is under pressure of ADF, otherwise the glass may be broken and you may be injured. bizhub PRO C6500 / bizhub PRO C6500e 3-15...
  • Page 124 Use the Thin original mode to copy original thinner than 50 g/m Original size 128 mm e 139.7 mm to 297 mm e 431.8 mm Feeder capacity 100 sheets (80 g/m Curling tolerance 10 mm or less Original placement Face up 3-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 125 Use the Thin original mode to copy original thinner than 50 g/m Feeder capacity 100 sheets (80 g/m Curling tolerance 10 mm or less Original placement Face up (see page 5-17 for details.) Note See below for the guide width of each combination. bizhub PRO C6500 / bizhub PRO C6500e 3-17...
  • Page 126 128 mm e 139.7 mm to 297 mm e 431.8 mm Feeder capacity 100 sheets (80 g/m Curling tolerance 10 mm or less Original placement Face up; orientation same as copy paper 3-18 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 127: Supplies & Handling

    Supplies & handling...

  • Page 129: Loading Paper

    Copy screen to indicate the paper level of the tray. (Five levels are provided) main body (tray 1 to 3) paper feeder unit trays (tray 4 and 5) large capacity unit tray (tray 4) bypass tray bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 130 Paper setting for each tray can be made from the Machine Status screen or from the Copy screen using the [Paper Setting] key. Be sure to load the specified paper; otherwise machine trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 131 See the size indication on the bottom plate of the tray to determine the position of the side guide plate. – Push down the lock lever firmly until it clicks in position in order to fix the side guide plate. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 132 When paper is seated properly, close the paper feed roller. Gently push in the tray until it locks into place. – The indicator “ ” on the Machine Status screen or Copy screen will change to “ ”. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 133 Do not move the stopper forcibly, otherwise it may be damaged. Be sure that the rear guide plate is securely aligned to the paper; otherwise machine trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 134 The indicator “ ” on the Machine Status screen and Copy screen will change to “ ”. When copying is completed, close the bypass tray. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 135 Pushing the paper guide lock release lever, move the lateral guides along the appropriate size guides for the paper to be loaded. Release the pressure applied to the paper guide lock release lever to lock it again. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 136 Do not bump the tray into the main body; otherwise machine trouble may be caused. 4-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 137 Turn the four paper guide knobs counterclockwise to loosen them. – Pushing the paper guide lock release lover, move the both guides closely until it stops. Move the auxiliary paper guides inwardly. bizhub PRO C6500 / bizhub PRO C6500e 4-11...
  • Page 138 Push in the tray 5 until it locks into place. – The indicator “ ” on the Machine Status screen or Copy screen will change to “ ”. 4-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 139 Do not bump the tray into the main body; otherwise machine trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e 4-13...
  • Page 140 Machine Status screen and Copy screen changes to “ ”. Withdrawing the tray at this point, you will find that t he bottom plate has been elevated to the top position. 4-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 141 If not, readjust paper guides. Turn the bottom plate lock release knob counterclockwise to unlock the tray bottom plate. The tray bottom plate goes down. bizhub PRO C6500 / bizhub PRO C6500e 4-15...
  • Page 142 Do not bump the tray into the main body; otherwise machine trouble may be caused. 4-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 143 Turn the four paper guide knobs and two rear stopper knobs coun- terclockwise to loosen them. – Move the upper part of the two paper guides to the appropriate positions according to the size indication. bizhub PRO C6500 / bizhub PRO C6500e 4-17...
  • Page 144 – Turn the two rear stopper knobs clockwise to fix the rear stopper. Load paper into the tray. 4-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 145 Do not load above the limit indicated on the tray paper guides. Be sure that the rear stopper is correctly positioned according to the paper size to be loaded; otherwise paper misfeed or machine trouble may occur. bizhub PRO C6500 / bizhub PRO C6500e 4-19...

  • Page 146: Loading Tabbed Sheets

    3 FINISHED SETS Withdraw the tray to be loaded with tabbed sheets. Open the paper feed roller. Place tabbed sheets on the tray. – Place paper referring to the illustration shown above. 4-20 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 147 Do not load above the limit level on the side guide plate. Be sure that the side guide plates and rear edge guide are securely aligned to the paper; otherwise the machine cannot detect the correct paper size, or machine trouble may occur. bizhub PRO C6500 / bizhub PRO C6500e 4-21...
  • Page 148 Specify the paper type as tabbed sheets for the bypass tray. – See page 6-48 for specifying the paper type of the bypass tray. Place tabbed sheets on the tray. – Place paper referring to the illustration shown above. 4-22 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 149 Do not load above the limit level on the side guide plate. Be sure that the side guide plates and rear edge guide are securely aligned to the paper; otherwise the machine cannot detect the correct paper size, or machine trouble may occur. bizhub PRO C6500 / bizhub PRO C6500e 4-23...
  • Page 150 Set paper aligning it to the paper feed roller side of the tray. – Move the side guide plates, and also move the rear stopper to the edge of the paper. Refer to p. 4-17 for details. Close the tray top door. 4-24 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 151: Adding Toner

    Add toner by following the procedure below to exchange the toner bottle. Reminder Use the same number toner bottle as described on the label applied on the toner bottle cover. Otherwise, machine trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e 4-25...
  • Page 152 If your hands become soiled with toner, immediately wash them with soap and water. If toner gets in your eyes, immediately flush them with water, and then seek professional medical attention. 4-26 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 153 Open the toner access door. Unlock and open the toner bottle cover of the empty toner bottle. Partially withdraw the toner bottle, then turn it to set the up-arrow mark (+) at the top. bizhub PRO C6500 / bizhub PRO C6500e 4-27...
  • Page 154 Remove the cap from the new toner bottle, then put it to the used empty one. 4-28 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 155 Close and lock the toner bottle cover, then close the toner access door. Reminder The toner bottle cover cannot be locked if the toner bottle is not set in place. Be sure to fully insert it. bizhub PRO C6500 / bizhub PRO C6500e 4-29...

  • Page 156: Exchanging Toner Recovery Box

    Precaution for the toner recovery box If it is thrown into a fire, the toner may ignite and cause a dangerous situation. DO NOT THROW the toner recovery box into a fire! 4-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 157 Withdraw the toner recovery box. Cover the used toner inlet of toner recovery box with a sticker. – Remove the sticker from the toner recovery box, then put it on the used toner inlet. bizhub PRO C6500 / bizhub PRO C6500e 4-31...
  • Page 158 Set the new toner recovery box, then close the toner recover box door. Reminder Be sure to completely cover the used toner inlet with the sticker, otherwise the used toner may leak out to soil the machine. 4-32 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 159: Replenishing Staples

    Follow the procedure below to replenish staples. Open the finisher door. Pull out the stapler unit. – Pull out the stapler unit slowly by holding the stapler unit handle until it stops. bizhub PRO C6500 / bizhub PRO C6500e 4-33...
  • Page 160 Set the staple cartridge. – Return the staple cartridge to its original position as shown in the illustration. Push up and in to secure it in place. 4-34 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 161 Return the stapler unit to its original position. Close the finisher door. Reminder Do not pull the lock tape upward, otherwise the tape may rip and remain inside the cartridge so that the staples cannot be used. bizhub PRO C6500 / bizhub PRO C6500e 4-35...
  • Page 162 Remove the empty cartridge. – Hold both left and right sides of the staple cartridge, then draw it forward. The machine is mounted with two staple cartridges. Be sure to remove the empty one. 4-36 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 163 Supplies & handling Set the new cartridge. – Check that the top side of the staple cartridge is up, otherwise it cannot be inserted. Close the left side door of the saddle stitcher. bizhub PRO C6500 / bizhub PRO C6500e 4-37...
  • Page 164 Follow the procedure below to replenish staples. Open the Finisher door. Pull out the stacker unit. – Pull out the stacker unit slowly by holding the stacker unit handle until it stops. 4-38 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 165 – Do not remove the staples re- maining inside the cartridge; oth- erwise, the first sheet output after the replenishment will not be stapled. bizhub PRO C6500 / bizhub PRO C6500e 4-39...
  • Page 166 Insert the cartridge while sliding it along the stapler rail, then push down and in to secure it in place. Return the stacker unit to its original position. Close the Finisher door. 4-40 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 167: Disposing Punch Waste

    Punch Waste Basket indicator lights in red in the option status area of the Machine Status Screen. Follow the procedure below to empty the waste basket. Open the Finisher door. Withdraw the waste basket. bizhub PRO C6500 / bizhub PRO C6500e 4-41...
  • Page 168 Supplies & handling Empty the waste basket. Return the waste basket to its origi- nal position, then close the Finisher door securely. 4-42 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 169 Waste Basket indicator lights in red in the option status area of the Machine Status screen. Follow the procedure below to empty the waste basket. Open the folding unit door, then withdraw the waste basket. bizhub PRO C6500 / bizhub PRO C6500e 4-43...
  • Page 170 Supplies & handling Empty the waste basket. Return the waste basket to its original position, then close the folding unit door securely. 4-44 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 171: Disposing Trimmings

    Waste indicator lights in red in the option status area of the Machine Status screen. If printing job is in progress, a message will be displayed on the Copy screen. Follow the procedure below to empty the waste basket. bizhub PRO C6500 / bizhub PRO C6500e 4-45...
  • Page 172 Open the top cover of the waste basket. Take trimmings out of the waste basket. Close the top cover of the waste basket, then return it to its original position. 4-46 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 173 Supplies & handling Reminder Be sure to return the waste basket to its original position, otherwise the trimming function cannot be performed. bizhub PRO C6500 / bizhub PRO C6500e 4-47...

  • Page 174: Removing Finished Sets From Large Capacity Stacker Ls-501

    – Once the stacker holds a sheet of output paper, the large capacity stacker door will be locked and cannot open till the stacker unit goes down fully to the carriage. 4-48 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 175 Remove the sheets from the carriage. The stacker unit can be removed from the carriage. Return the carriage to its original position, then close the large capacity stacker door. bizhub PRO C6500 / bizhub PRO C6500e 4-49...
  • Page 176 When returning the stacker unit to its original position, fit the two projections of the carriage to the two holes of the stacker unit, otherwise the carriage cannot be returned properly. 4-50 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 177 Pull the tow projections of paper stopper to the holder, then raise the another side as illustrated. Hold the paper using the paper stopper. – Turn the paper stopper to the paper. Push down the paper stopper. bizhub PRO C6500 / bizhub PRO C6500e 4-51...
  • Page 178 – Remove the stopper from the paper holder. Return the paper stopper to its original position. Return the paper stopper properly; otherwise the stacker door may not be closed. 4-52 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 179: Before Making Copies

    Before making copies...

  • Page 181: Control Panel And Basic Screens

    Before making copies Before making copies Control panel and basic screens 5.1.1 Control panel bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 182 Power LED Lights up in red when the main power is turned on, then turns green when the sub power switch is turned on. Data LED Blinks while a print job is being received. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 183 The touch panel is covered with glass. Do not drop heavy objects on the glass, or put excess weight or pressure on it; otherwise the glass may break or scratched and you may be injured. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 184: Copy Screen

    Before making copies 5.1.2 Copy screen The Copy screen is used to select the desired copy conditions when setting a new copy job and also reserve jobs. 7 8 9 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 185 [Original Setting] key Touched to specify the condition of the original to be scanned. Machine status icons Display to indicate various machine status. Message area Displays the machine status and procedure required at that time. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 186: Machine Status Screen

    Before making copies 5.1.3 Machine Status screen The Machine Status screen displays when copying operation becomes available after warmup, or when any copying job has been completed. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 187 Machine status display Prompts you if any door or cover is open. Scanner message Displays the current status of scanning job. Icon area Displays various machine status icons. Message area Displays messages concerning machine status. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 188: General Copy Operation

    When using a specific function, be sure to follow the procedure described in each section. Position the original. – For details on positioning the original, see page 5-15. 5-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 189 [Zoom]: see page 6-26. [Application]: see page 8-3. [Quality Adjust.]: see page 7-3. [Output Appli.]: see page 9-3. Simplex/Duplex mode: see page 6-33. [Paper Setting]: see page 6-43. [Rotation Off]: see page 6-46. bizhub PRO C6500 / bizhub PRO C6500e 5-11...
  • Page 190 Entered quantity will be displayed on the touch panel. Press [Start] on the control panel. – When the machine starts scanning the original, the current job status will be displayed on the popup menu. 5-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 191 Before making copies The reserve job setting is available from this popup menu. Touch [Yes] or [Close] to return to the Copy screen. See page 6-63 for details. bizhub PRO C6500 / bizhub PRO C6500e 5-13...
  • Page 192 The Job List screen is provided to change the operation order of reserve jobs or cancel the reserve job. See page 11-3 for details. To suspend the job in progress, press [Stop]. For details, see "To stop scanning/printing" on page 5-26. 5-14 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 193: Positioning The Original

    UP) in the ADF. – The direction of the original should conform to the original direction icon displayed on the Copy screen. Up to 100 sheets of the original can be set at a time. bizhub PRO C6500 / bizhub PRO C6500e 5-15...
  • Page 194 Before making copies Adjust paper guides. Reminder Once closed, do not open the document feeder, otherwise the selected copy conditions may be altered automatically. 5-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 195 Adjust paper guides. Reminder Once closed, do not open the document feeder, otherwise the selected copy conditions may be altered automatically. Detail To use the mixed mode, see procedure on page 6-11. bizhub PRO C6500 / bizhub PRO C6500e 5-17...
  • Page 196 Adjust paper guides. Reminder Once closed, do not open the document feeder, otherwise the selected copy conditions may be altered automatically. Detail To use the Z-folded original mode, see procedure on page 6-13. 5-18 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 197: Positioning The Original On Original Glass

    – The direction of the original should conform to the Original direction icon displayed on the Copy screen. Gently close the ADF to prevent the original from shifting on the glass. bizhub PRO C6500 / bizhub PRO C6500e 5-19...

  • Page 198: Setting Print Quantity

    0 Print quantity can be entered in any instance of the procedure unless the control panel keypad is temporarily used for entering other values. Enter the desired print quantity from the control panel keypad. Entered quantity will be displayed on the touch panel. 5-20 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 199 Press [C] (clear quantity). The quantity displayed on the touch panel will return to 1. Enter the correct quantity from the control panel keypad. Newly entered quantity will be displayed on the touch panel. bizhub PRO C6500 / bizhub PRO C6500e 5-21...

  • Page 200: Setting Job During Warmup

    Service can set the machine to disable this function. Contact your service representative, if desired. 5-22 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 201 Touch [COPY] tab to change the Machine Status screen to display the Copy screen, then check that the message "Ready to set reserve job" is displayed in the message area. bizhub PRO C6500 / bizhub PRO C6500e 5-23...
  • Page 202 When scanning the original for the job is started, the popup menu will appear on the Copy screen. Touch [Yes] or [Close] to return to the Copy screen to make another reserve job setting. See page 6-63 for details. 5-24 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 203 The Job List screen is provided to change the operation order of reserve jobs or cancel the reserve job. See page 11-3 for details. To suspend the job in progress, press [Stop]. For details, see "To stop scanning/printing" on page 5-26. bizhub PRO C6500 / bizhub PRO C6500e 5-25...

  • Page 204: To Stop Scanning/Printing

    The current machine operation of the selected job will be suspended, and the popup menu will be displayed on the Copy screen. Touch the desired key on the popup menu. – The popup menu will vary according to the job in progress. 5-26 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 205 Before making copies Both scanning and printing are in progress Touch [Stop Job] to cancel the job, or touch [Continue] to complete the job. Reminder Touching [Stop Job] will delete all the scanned data. bizhub PRO C6500 / bizhub PRO C6500e 5-27...
  • Page 206 Before making copies Scanning a job in separate scan mode Touch [Stop Job] to cancel the job, or touch [Continue] to complete the job. Reminder Touching [Stop Job] will delete all the scanned data. 5-28 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 207 Before making copies Batch printing is in progress Touch [Stop Job] to cancel the job, or touch [Continue] to complete the job. Reminder Touching [Stop Job] will delete all the scanned data. bizhub PRO C6500 / bizhub PRO C6500e 5-29...
  • Page 208 Scanning and printing the job using program job Touch [Stop Job] to cancel the job, or touch [Continue] to complete the job. Reminder Touching [Stop Job] will delete all the scanned data. 5-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 209 If machine has been set to display the Copy screen as the initial screen, touch [MACHINE] tab to restore the Machine Status screen. Press [Stop]. Machine operation will be ceased, and the following popup menu will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 5-31...
  • Page 210 Touch [Print] to stop printing and continue the scanning job. Touch [Scan/Print] to cancel both scanning and printing jobs. Touch [Continue] to complete both jobs. Reminder All the data scanned for stopped job will be deleted. 5-32 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 211: Basic Job Settings

    Basic job settings...

  • Page 213: Original Setting

    2-2 copying Detail See "Setting binding direction for duplex copies" on page 9-7 to make double-sided copies upside down on the reverse side, using the originals having the same edge as page top. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 214 Touch [Top] in the Bind Direction area to highlight it. Touch [OK] to complete the setting and return to the Copy screen. – Touch [Default Set] to restore the initial setting, or touch [Cancel] to resume the previous setting. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 215: Specifying Orientation Of The Original: Direction

    Select for the original positioned in the ADF with the top toward the right side of the machine. Or, select for the original positioned on the original glass with the top toward the left side of the machine. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 216 Touch the desired original direction key to highlight it. Touch [OK] to complete the setting and return to the Copy screen. – Touch [Default Set] to restore the initial setting, or touch [Cancel] to resume the previous setting. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 217: Specifying Original Type: Image/Type

    This function is provided in the User setting. For details, see page 16-57. The density level can be shifted in each of four Image modes. This function is provided in the User setting. For details, see page 17-28. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 218 Select for copying the original composed of text only. In this mode, the edges of copied text will be sharpened to provide higher legibility. Original Text Select for copying colored original with small text, such as a map. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 219 Use this function to improve the image quality by specifying the printed original type. Description Select for normal original. Select for photo-printed original. Select for copied original. Select for original printed using ink-jet printer. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 220 Select the desired mode for each of Image and Type. Touch [OK] to complete the setting and return to the Copy screen. – Touch [Default Set] to restore the initial setting, or touch [Cancel] to resume the previous setting. 6-10 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 221: Copying Mixed Size Originals: Mixed

    Auto Paper Select Makes a copy of the same size as the original set. Auto Zoom Copies onto a single and desired paper size in appropriate zoom ratio automatically selected for each original page. bizhub PRO C6500 / bizhub PRO C6500e 6-11...
  • Page 222 Touch [Mixed] to highlight it. Touch [OK] to complete the setting and return to the Copy screen. – Touch [Default Set] to restore the initial setting, or touch [Cancel] to resume the previous setting. 6-12 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 223: Copying Z-Folded Original: Z-Folded

    The Original Setting screen will be displayed. Touch [Z-Folded] to highlight it. Touch [OK] to return to the Copy screen. – Touch [Default Set] to restore the initial setting, or touch [Cancel] to resume the previous setting. bizhub PRO C6500 / bizhub PRO C6500e 6-13...

  • Page 224: Specifying Original Thickness: Thickness

    For the original of normal thickness (50 g/m to 128 g/m ), select [Normal]. Touch [OK] to return to the Copy screen. – Touch [Default Set] to restore the initial setting, or touch [Cancel] to resume the previous setting. 6-14 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 225: Copying Non-Standard Size Original: Custom

    Position the original. Touch [Original Setting] on the Copy screen. The Original Setting screen will be displayed. Touch [Custom]. The Custom Size screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 6-15...
  • Page 226 Touch the desired size key to highlight it. The machine scans the special size original as selected standard size. – Selecting [Full Area]: Select [Full Area] for small original that cannot be detected. 6-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 227 100 to 303 mm in lengthwise dimension, from 140 to 438 mm in widthwise dimension. (3) Touch [OK] to return to the Custom Size screen with specified size displayed. bizhub PRO C6500 / bizhub PRO C6500e 6-17...
  • Page 228 (5) Touch [Add] to display the Input Custom Size Name screen. Touching [Delete] will display a popup menu to confirm the data deletion. Touch [Yes] to delete the data registered for that key. 6-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 229 (3) Touch the desired number key to highlight it, using [Next] and [Previous] as needed. (4) Touch [OK] to restore the Size Setting screen with recalled size displayed. (5) Touch [OK] to return to the Custom Size screen with specified size displayed. bizhub PRO C6500 / bizhub PRO C6500e 6-19...
  • Page 230 The Original Setting screen will be restored. Touch [OK] to return to the Copy screen. – Touch [Default Set] to restore the initial setting, or touch [Cancel] to resume the previous setting. 6-20 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 231: Copying Tabbed Originals: Tab Paper

    0 The magnification ratio will be fixed to 1.000 (100%). Position the original. Touch [Original Setting] on the Copy screen. The Original Setting screen will be displayed. Touch [Tab Paper]. The Tab Paper screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 6-21...
  • Page 232 The Original Setting screen will be restored. Touch [OK] to return to the Copy screen. – Touch [Default Set] to restore the initial setting, or touch [Cancel] to resume the previous setting. 6-22 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 233: Separate Scan Mode

    FACE DOWN on the original glass. – Using the ADF, load the original arranged in page order with page one on the top. Make copying selections on the Copy screen, as desired. bizhub PRO C6500 / bizhub PRO C6500e 6-23...
  • Page 234 – Repeat steps 4 and 5 for all original pages to be scanned. When scanning is completed, touch [Separate Scan] to exit the Separate Scan mode. 6-24 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 235 All the data in memory will be output. Detail To delete the scanned data without printing or to suspend the printing job, press [Stop]. See "To stop scanning/printing" on page 5-26 for details. bizhub PRO C6500 / bizhub PRO C6500e 6-25...

  • Page 236: Selecting Color Mode

    Image Distinction Level, Type in Original Setting Position the original. Touch the desired color mode key on the Copy screen to highlight it. – [Full Color] is already highlighted if initial settings are restored. 6-26 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 237 Touching Single Color will display the Single Color screen. Select the desired color key, then touch [OK]. Select additional copy conditions, as desired. Enter the desired print quantity, then press [Start] on the control panel. bizhub PRO C6500 / bizhub PRO C6500e 6-27...

  • Page 238: Zoom

    Specifying paper size will release 1.000 magnification and set Auto Zoom automatically. In this case, touch [e 1.0] to highlight it again. Detail The initial settings may be altered by the machine manager. For details, see page 16-39. 6-28 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 239: Changing Magnification Ratio

    The entered ratio will be displayed on the screen. If wrong number is entered, continue by entering the correct number. Touching arrow keys [+] and [,] will change the ratio in 0.001 (0.1%) steps. bizhub PRO C6500 / bizhub PRO C6500e 6-29...
  • Page 240 If wrong number is entered, continue by entering the correct number. Touching arrow keys [+] and [,] will change the ratio in 0.001 (0.1%) steps – Enlarge/Reduce: Touch the desired zoom key in the Enlarge/Reduce area. 6-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 241 Basic job settings – Preset Zoom: Touch the desired preset zoom key in the Preset Zoom area. Touch [OK] to return to the Copy screen. – Touch [Cancel] to resume the previous setting. bizhub PRO C6500 / bizhub PRO C6500e 6-31...

  • Page 242: Setting Magnification Ratio Automatically: Auto Zoom

    The machine detects the original size automatically. Touch a tray key on the Copy screen to select the desired paper size. – Selected tray key will be highlighted, and the [Auto Zoom] key will also be highlighted. 6-32 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 243: Simplex/Duplex Setting

    Follow the procedure below to make double-sided copies from the single- sided or double-sided original scanned from the ADF. Front Front 2-2 copying Duplex copy Double-sided original Front Back Front 1-2 copying Single-sided original Duplex copy bizhub PRO C6500 / bizhub PRO C6500e 6-33...
  • Page 244 0 The machine is set to match the original binding direction and copy binding direction automatically. For details, see page 16-18, page 16-45 or page 17-134. Position the original in the ADF. Touch [1->2] or [2->2] on the Copy screen to highlight it. 6-34 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 245 [Top] in the Bind Direction area to highlight it. (4) Touch [OK] to return to the Copy screen. For details of original direction setting, see page 6-5. For details of original binding direction, see page 6-3. bizhub PRO C6500 / bizhub PRO C6500e 6-35...
  • Page 246 [Top]. (3) Touch [OK] to return to the Copy screen. For details in specifying binding direction of double-sided copies, see page 9-7. 6-36 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 247: Making Double-Sided Copies Using Original Glass

    The Separate Scan key will be automatically highlighted on the screen. – DO NOT press [Reset] at this point, otherwise the Separate Scan mode will be released to disable the machine from scanning the original placed on the original glass. bizhub PRO C6500 / bizhub PRO C6500e 6-37...
  • Page 248 (3) Touch [OK] to return to the Copy screen. For details of original direction setting, see "Specifying orientation of the original: Direction" on page 6-5. 6-38 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 249 Press [Start] to scan. – The front side image of the double-sided copy will be scanned into memory. Replace the original on the original glass with the back side image original, then press [Start]. bizhub PRO C6500 / bizhub PRO C6500e 6-39...
  • Page 250 All the data in memory will be output. Detail To delete the scanned data without printing, or to suspend the printing job, press [Stop]. For details, see "To stop scanning/printing" on page 5-26. 6-40 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 251: Making Single-Sided Copies From Double-Sided Originals

    ADF. 0 The normal single-sided copies (having the same edge as page top) can be made from double-sided originals printed upside down on the back pages. Position the original in the ADF. bizhub PRO C6500 / bizhub PRO C6500e 6-41...
  • Page 252 [Top] in the Bind Direction area to highlight it. (4) Touch [OK] to return to the Copy screen. For details of original direction setting, see page 6-5. For details of original binding direction, see page 6-3. 6-42 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 253: Paper Setting

    The following describes how to use Auto Paper Select, Auto Zoom, and Rotation functions, and how to temporarily change the paper size and other specifications registered for each tray as well as to recall preset specifications. bizhub PRO C6500 / bizhub PRO C6500e 6-43...

  • Page 254: Selecting Paper Size Automatically: Auto Paper Select

    0 Auto Paper Select will not select the tray of the size specified as Custom. Press [Reset] on the control panel. If the machine is equipped with the ADF, close it securely before pressing [Reset]. – [Auto Paper Select] is initially selected on the Copy screen. 6-44 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 255 In this case, load the paper of the size referred in the message. Reminder Auto Paper Select may not function for the tray of selected size due to the paper specifications registered for that tray. bizhub PRO C6500 / bizhub PRO C6500e 6-45...

  • Page 256: Turning On/Off The Rotation

    16-45 or page 17-134. Original Copy Original Copy Rotation copying Rotation copying Normal copying Normal copying The copier is initially set to activate the Rotation function automatically. Follow the procedure below to release/resume this function. 6-46 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 257 When Rotation is released, the Rotation icon on the Copy screen will disappear to indicate that this function is cancelled. Touch to deselect [Rotation Off] to resume this function. When Rotation is resumed, the Rotation icon will be displayed on the screen. bizhub PRO C6500 / bizhub PRO C6500e 6-47...

  • Page 258: Using Paper Not Specified To Any Tray: Paper Setting

    Load copy paper into the tray with the setting change made. – The changed setting will not be cleared when copying job is completed using that tray. Touch [Paper Setting]. The Paper Setting screen will be displayed. 6-48 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 259 (3) Touch [OK] to return to the Paper Setting screen. (4) Touch [Size Setting] to specify the paper size. For setting procedure, see step 6. (5) Touch [OK] to return to the Paper Setting screen. bizhub PRO C6500 / bizhub PRO C6500e 6-49...
  • Page 260 To program a new setting: (1) Touch [Change]. In this case, the paper name cannot be changed. (2) Touch [Paper Type], then select the desired paper type. Touch [OK] to complete the setting. 6-50 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 261 (3) Touch [Weight]. Touch the desired paper weight key to highlight it. Use [Unit Change] to select the desired unit of the paper weight. Touch [OK] to complete the setting. bizhub PRO C6500 / bizhub PRO C6500e 6-51...
  • Page 262 Use the screen keypad or arrow keys [+] and [,] to enter the desired adjustment value. Touch [OK] to complete the setting, or touch [Reset] to clear the setting. 6-52 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 263 This setting is unavailable if paper weight is specified as 106 - 135 g/m (6) Make a selection for Hole-Punch. Touch [Punched] if the paper has punch holes, or touch [No Punched] if not, then touch [OK]. bizhub PRO C6500 / bizhub PRO C6500e 6-53...
  • Page 264 (8) Touch [OK] to return to the Paper Setting screen with the new specifications displayed. The paper specifications made in this step can be registered. For details, see chapter "13 Paper setting". 6-54 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 265 The tray can be set to detect some specific standard sizes, if desired. Touch [Search Size Set], select the desired size to highlight it, then touch [OK]. (2) Touch [OK] to complete the setting. bizhub PRO C6500 / bizhub PRO C6500e 6-55...
  • Page 266 (4) Touch [Lead Edge], [Rear Edge], or [Center] to specify the desired image position. (5) Touch [OK] to complete the setting and return to the Paper Setting screen. Touching [Fix] will complete the setting and directly return to the Copy screen. 6-56 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 267 (9) Touch [Close] to restore the Size Setting screen. (10) Touch [OK] to complete the setting and return to the Paper Setting screen. Touching [Fix] will complete the setting and directly return to the Copy screen. bizhub PRO C6500 / bizhub PRO C6500e 6-57...
  • Page 268 (5) Touch [OK] to complete the setting and return to the Paper Setting screen. Touching [Fix] will complete the setting and directly return to the Copy screen. The smallest size of the custom size can be changed. Contact your service representative for details. 6-58 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 269 (2) Touch the desired tabbed paper size key to highlight it. (3) Touch [OK] to complete the setting. Touch [Close] on the Paper Setting screen. The Copy screen will be restored with the new paper specifications displayed on the specified tray key. bizhub PRO C6500 / bizhub PRO C6500e 6-59...
  • Page 270 (5) Touch [Adjustment Start]. (6)Repeat steps (2) to (5) until the desired result is obtained. Touch [Close] to complete the front side setting. (7) Similarly, touch [Back] and repeat the chart adjustment, if desired. 6-60 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 271: Adjusting Fixing Pressure Of Fixing Unit

    Move the fixing pressure adjustment knob. – Slide the knob rightward to align the arrow mark on the lever with the one on the right side, if printed image on large-sized paper becomes rugged. bizhub PRO C6500 / bizhub PRO C6500e 6-61...
  • Page 272 7 CAUTION The internal fixing unit is very hot. To avoid getting burned, DO NOT TOUCH. 6-62 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 273: Setting Reserve Job

    If the machine is initially set to display the Copy screen after scanning job is started, the above popup menu will provide only the [Close] key. Touching [Close] will also display the Copy screen to make the reserve job setting. bizhub PRO C6500 / bizhub PRO C6500e 6-63...
  • Page 274 To check and operate the reserve jobs, touch [JOB LIST] tab to display the Job List screen. See page 11-3 for details. Detail If any trouble occurs on a reserve job, see page 23-9. 6-64 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 275: Copy Conditions Incompatible With Basic Job Settings

    Basic job settings Copy conditions incompatible with basic job settings bizhub PRO C6500 / bizhub PRO C6500e 6-65...
  • Page 276 Basic job settings 6-66 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 277 Basic job settings bizhub PRO C6500 / bizhub PRO C6500e 6-67...
  • Page 278 Basic job settings 6-68 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 279 17 Output tray is limited to the secondary (sub) tray. 18 Auto Paper Select is unavailable with the ADF kept open. (The message "Select paper size" will be displayed when [Start] is pressed.) bizhub PRO C6500 / bizhub PRO C6500e 6-69...
  • Page 280 Basic job settings 6-70 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 281: Color Adjustment

    Color adjustment...

  • Page 283: About Colors

    We see the objects in color because they reflect or transmit visible light of different wavelengths or frequencies. (nm) Prism Slit Light Color Reflection White light Visible rays Electromagnetic wave bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 284 (C), magenta (M), and yellow (Y) pigments (such as ink or toner), however, black (K) is actually used as the fourth color in addition to the three primary pigments. Three primary colors of light Three primary colors of pigment bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 285 (B). The above three elements are called the three attributes of color. With these three attributes, the Munsell color system has been created to describe colors in a three-dimensional space. Brightness Saturation bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 286: Color Copy Quality

    To enhance the copy quality, this machine allows you to modify colors by means of the three attributes of color based upon the human eye and perception. The following methods are provided: Adjust the density of the whole image. Original Density bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 287 Saturation Brightness The hue adjustment leads the color of the image to another color adjacent in the color circle of red (R), yellow (Y), green (G), cyan (C), blue (B), and magenta (M). bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 288 Color adjustment Change the hue by varying the image’s red (R), green (G), and blue (B) individually or mutually. Original Green Blue bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 289 Color adjustment Change the hue by varying the image’s cyan (C), magenta (M), yellow (Y), and black (K) individually or mutually. Original Cyan Magenta Yellow Black bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 290 Dot screen Black images Color images Dots Dots Line screen Black images Color images Line Line 7-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 291 Solid Solid Detected as text bizhub PRO C6500 / bizhub PRO C6500e 7-11...
  • Page 292 Sharpen the outline of the image. (Sharpness) Original Sharpness Increase the contrast of the image. (Contrast) Original Contrast 7-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 293 Dot screen. The Image Distinction Level function will help in selecting the most appropriate method for each part of the original to make the copies of scanned image. For further improvement, use Copy Density or apply filters for Sharpness, Contrast, and Glossy. bizhub PRO C6500 / bizhub PRO C6500e 7-13...
  • Page 294 [Quality Adj.] key, so that the setting screen of that function can be directly accessed by a single touch from the Copy screen. For details, refer to "11 Short Cut Key Setting" on page 16-33. 7-14 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 295: Adjusting Density Level

    The density to be selected automatically using Automatic exposure can be adjusted on the machine. For details, see page 17-28. To adjust copy density Follow the procedure below to select the exposure (density) manually to make darker or lighter copies. bizhub PRO C6500 / bizhub PRO C6500e 7-15...
  • Page 296 Color adjustment Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. Touch [Copy Density] to display the Copy Density screen. 7-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 297 The Copy screen will be restored with the [Copy Density] key displayed and highlighted under the [Quality Adjust.] key. Use this key to directly jump to the Copy Density screen, if any setting change is desired. bizhub PRO C6500 / bizhub PRO C6500e 7-17...
  • Page 298 To adjust background Adjust the background whiteness when copying newspaper or recycled paper original. Background Original Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. 7-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 299 % Touch [Cancel]. Do you want to restore the initial setting? % Touch [Default Set]. Do you want to check the adjustment result? % Touch [Adj. Proof Copy] to print a sample copy. bizhub PRO C6500 / bizhub PRO C6500e 7-19...
  • Page 300 The Copy screen will be restored with the [Adj. Back.] key displayed and highlighted under the [Quality Adjust.] key. Use this key to directly jump to the Adjust Background screen, if any setting change is desired. 7-20 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 301 Adjust the density level of the back side lighter when copying dark originals. Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. Touch [B-Side Prevent] to display the B-Side Prevent screen. bizhub PRO C6500 / bizhub PRO C6500e 7-21...
  • Page 302 The Copy screen will be restored with the [B-Side Prevent] key displayed and highlighted under the [Quality Adjust.] key. Use this key to directly jump to the B-Side Prevent screen, if any setting change is desired. 7-22 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 303: Changing Colors Using Rgb Values

    To change the hue of the printed image in Single Color mode, see "Changing colors using CMYK value" on page 7-44. To modify RGB value Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 7-23...
  • Page 304 – Touch the desired level key from [–1] to [–4] to make the color weaker, or from [+1] to [+4] to make it stronger. – Touch [Standard] to select the middle level. 7-24 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 305 The Copy screen will be restored with the modified color key displayed and highlighted under the [Quality Adjust.] key. Use this key to directly jump to that color adjustment screen, if any setting change is desired. bizhub PRO C6500 / bizhub PRO C6500e 7-25...

  • Page 306: Changing Colors Using Hsb Values

    Change the color of the copy image by making adjustments to Hue, Saturation, and Brightness. To adjust hue Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. Touch [Hue] to display the Hue screen. 7-26 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 307 To adjust the hue by setting fine adjustment in each color of RGB, touch [RGB Adjustment] to display the Fine Adjustment screen. – Make fine adjustment on each color, then touch [OK] to return to the Hue screen. bizhub PRO C6500 / bizhub PRO C6500e 7-27...
  • Page 308 The Copy screen will be restored with the [Hue] key displayed and highlighted under the [Quality Adjust.] key. Use this key to directly jump to the Hue screen, if any setting change is desired. 7-28 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 309 Color adjustment To adjust saturation Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. Touch [Saturation] to display the Saturation screen. bizhub PRO C6500 / bizhub PRO C6500e 7-29...
  • Page 310 To adjust the saturation by setting fine adjustment in each color of RGB, touch [RGB Adjustment] to display the Fine Adjustment screen. – Make fine adjustment on each color, then touch [OK] to return to the Saturation screen. 7-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 311 The Copy screen will be restored with the [Saturation] key displayed and highlighted under the [Quality Adjust.] key. Use this key to jump to the Saturation screen, if any setting change is desired. bizhub PRO C6500 / bizhub PRO C6500e 7-31...
  • Page 312 Color adjustment To adjust brightness Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. Touch [Brightness] to display the Brightness screen. 7-32 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 313 The Copy screen will be restored with the [Brightness] key displayed and highlighted under the [Quality Adjust.] key. Use this key to jump to the Brightness screen, if any setting change is desired. bizhub PRO C6500 / bizhub PRO C6500e 7-33...

  • Page 314: Adjusting Sharpness

    Use this function to sharpen the outline of copy image. To adjust sharpness Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. Touch [Sharpness] to display the Sharpness screen. 7-34 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 315 The Copy screen will be restored with the [Sharpness] key displayed and highlighted under the [Quality Adjust.] key. Use this key to jump to the Sharpness screen, if any setting change is desired. bizhub PRO C6500 / bizhub PRO C6500e 7-35...

  • Page 316: Adjusting Contrast

    Use this function to increase the contrast of copy image. To adjust contrast Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. Touch [Contrast] to display the Contrast screen. 7-36 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 317 The Copy screen will be restored with the [Contrast] key displayed and highlighted under the [Quality Adjust.] key. Use this key to jump to the Contrast screen, if any setting change is desired. bizhub PRO C6500 / bizhub PRO C6500e 7-37...

  • Page 318: Setting Image Distinction Level

    For details on detecting images, see "What is image distinction level?" on page 7-11. To set image distinction level Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. 7-38 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 319 Touch the desired level key from [–1] to [–4] to increase the proportion of black text, or from [+1] to [+4] to increase the proportion of colored text. – Touch [Standard] to select the middle level. bizhub PRO C6500 / bizhub PRO C6500e 7-39...
  • Page 320 The Copy screen will be restored with the [Distinction] key displayed and highlighted under the [Quality Adjust.] key. Use this key to jump to the Image Distinction Level screen, if any setting change is desired. 7-40 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 321: Selecting Screen Type Or Compression

    The Dither method is used instead of Line screen or Dot screen. Auto Auto selects an appropriate reproducing method automatically according to the selected copy conditions. This mode is initially selected. bizhub PRO C6500 / bizhub PRO C6500e 7-41...
  • Page 322 Color adjustment To select reproducing method Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. Touch [Screen] to display the Screen Setting screen. 7-42 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 323 The Copy screen will be restored with the [Screen] key displayed and highlighted under the [Quality Adjust.] key. Use this key to jump to the Screen Setting screen, if any setting change is desired. bizhub PRO C6500 / bizhub PRO C6500e 7-43...

  • Page 324: Changing Colors Using Cmyk Value

    The adjustment value ranges from –10 to +10. To adjust color balance Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. Touch [Color Balance] to display the Color Balance screen. 7-44 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 325 The Copy screen will be restored with the [Color Balance] key displayed and highlighted under the [Quality Adjust.] key. Use this key to jump to the Color Balance screen, if any setting change is desired. bizhub PRO C6500 / bizhub PRO C6500e 7-45...

  • Page 326: Selecting Glossy

    Use this function to increase shine on the copy image. To specify glossy Position the original. Touch [Quality Adjust.] on the Copy screen. The Quality Adjustment screen will be displayed. Touch [Glossy] to highlight it. 7-46 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 327 The Copy screen will be restored with the [Glossy] key displayed and highlighted under the [Quality Adjust.] key. Do you want to restore the initial setting? % Touch [Default Set]. Detail Setting "Glossy" will lower the copy speed. For details, see page 13-6. bizhub PRO C6500 / bizhub PRO C6500e 7-47...

  • Page 328: Copy Conditions Incompatible With Color Adjustment

    Color adjustment 7.12 Copy conditions incompatible with color adjustment 7-48 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 329 Color adjustment bizhub PRO C6500 / bizhub PRO C6500e 7-49...
  • Page 330 C: Not specified D: Condition in the far left column does not function (ignored). E: Not grayed out but unavailable Image Distinction Level: Color Text only is grayed out or released automatically. 7-50 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 331: Application Functions

    Application functions...

  • Page 333: To Use Application Function

    Follow the procedure below to display the Application screen and select the desired copying features. To display application screen Touch [COPY] tab on the Machine Status screen to display the Copy screen. Touch [Application] on the Copy screen. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 334 % Press [Reset] on the control panel. Touch [OK] on the Application screen to return to the Copy screen. Reminder Only with the Copy screen displayed, you can press [Start] to start copying. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 335 [Application] key, so that the setting screen of that function can be directly accessed by a single touch from the Copy screen. For details, see page 16-33. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 336: Inserting Sheets And Covers: Insert Sheet

    Back Cover + Blank A blank sheet for back cover will be inserted as the last sheet of copied set. The same result will be obtained when making double-sided cop- ies. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 337 4th sheet of copied set. The 5th page of double-sided original is simplex-copied onto the inser- tion, which will be the 5th sheet of copied set. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 338 5th and 6th pages of double-sided original are duplex-copied. A blank insertion will be added as the 6th sheet of copied set, after the 5th page of double-sided original is simplex-copied. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 339 To use any other paper type/size than the specified paper, touch [Paper Setting] on the Copy screen to change the setting temporarily. page 6-43 for details. Touch [Application] on the Copy screen. Touch [Insert Sheet] on the Application screen. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 340 [Blank] to insert a blank front/back cover. – Touch [OK] to complete the setting and return to the Insert Sheet screen, or touch [Cancel] to restore the previous setting. 8-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 341 Repeat this procedure to make all the page entry. – Up to 30 insertion locations can be specified, including front and back covers. To enter the 16th to 30th page locations, touch [,] to scroll to the next page. bizhub PRO C6500 / bizhub PRO C6500e 8-11...
  • Page 342 – Touch [OK] to complete the setting and return to the Insert Sheet screen, or touch [Cancel] to restore the previous setting. 8-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 343 [Application] key. Use this key to jump to the subsequent screen to make any setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. bizhub PRO C6500 / bizhub PRO C6500e 8-13...

  • Page 344: Locating Title Pages On The Right Side: Chapters

    Chapter paper. 2%2 + Print Insertion The same page insertion is performed as above, and the chapter pages (2/3 and 5/6) will be printed on paper from another tray source. 8-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 345 0 Use Stamp together with this function to print chapter number onto chapter page in addition to page number, numbering, or watermark numbering. Position the original. Touch [Application] on the Copy screen. Touch [Chapters] on the Application screen. bizhub PRO C6500 / bizhub PRO C6500e 8-15...
  • Page 346 % The second entry will be ignored on the screen. Touch [OK] to complete the setting. – To restore the previous setting, touch [Cancel]. – To release the Chapters function with the current setting remained, touch [Function Off]. 8-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 347 Enter the desired print quantity from the control panel keypad, then press [Start]. Note Touch [Booklet Pagination] on the Chapters screen to use this function. In this case, touching [OK] on the Booklet Pagination screen will return to the Chapters screen. bizhub PRO C6500 / bizhub PRO C6500e 8-17...

  • Page 348: Lay Out Several Pages Onto One Sheet: Combine Originals

    Select this setting to print four original images onto one sheet. The page arrangement (Numbering Direction) can be specified. Horizontal order, left binding Horizontal order, right binding Vertical order, left binding Vertical order, right binding 8-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 349 Select this setting to print eight original images onto one page. The page arrangement (Numbering Direction) can be specified. Horizontal order, left binding Horizontal order, right binding Vertical order, left binding Vertical order, right binding bizhub PRO C6500 / bizhub PRO C6500e 8-19...
  • Page 350 Touch [Combine Originals] on the Application screen. Select the desired Combine Originals mode. – Touch [2 in 1], [4 in 1] or [8 in 1] in the desired order area, referring to the illustration on the previous page. 8-20 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 351 Auto Zoom is automatically selected. When selecting any tray other than the one that is set and displayed on the Copy screen, touch the desired tray key. Enter the desired print quantity from the control panel keypad, then press [Start]. bizhub PRO C6500 / bizhub PRO C6500e 8-21...

  • Page 352: Making A Multiple Page Signature Booklet: Booklet

    Left Bind Copies will be made from the left page to the right page......Right Bind Copies will be made from the right page to the left page......8-22 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 353 When selecting cover sheet mode (Cover With Copy Sheet or Cover With Blank Sheet), load the same size cover in any other tray. Touch [Application] on the Copy screen. Touch [Booklet Pagination] on the Application screen. bizhub PRO C6500 / bizhub PRO C6500e 8-23...
  • Page 354 Use this key to jump to the subsequent screen to make any setting change. Auto Zoom is selected automatically. To release Auto Zoom, select the desired magnification, then select paper size. Enter the desired print quantity from the control panel keypad, then press [Start]. 8-24 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 355: Inserting Different Original Images Into Printed Sets: Insert Image

    1%2 mode. The first scanned image will be inserted after page 2 of the finished set, and the second scanned image will be inserted after page 5. bizhub PRO C6500 / bizhub PRO C6500e 8-25...
  • Page 356 Use the control panel keypad to enter the page number. Touch [Set] after each entry to move to the next key. To clear an incorrect entry, touch [Delete]. Repeat this procedure to make all the page entry. 8-26 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 357 Touch [OK] to complete the setting and return to the Insert Image screen. Touch [OK] to complete the setting. – To restore the previous setting, touch [Cancel]. – To release the Insert Image function with the current setting remained, touch [Function Off]. bizhub PRO C6500 / bizhub PRO C6500e 8-27...
  • Page 358 9 and 10 for all the originals in page order. Touch [Separate Scan] to exit the Separate Scan mode. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-28 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 359: Dividing Spread Image Into Right And Left Pages: Book Copy

    Printed sets will be output from the front cover page, then divided doc- ument pages according to pagination. The original should be scanned from the front cover, then page spread originals in page order. Back Back Front cover cover cover Front Front cover cover bizhub PRO C6500 / bizhub PRO C6500e 8-29...
  • Page 360 ......Front/Back Cover + Spread + Booklet Pagination Back Front Back Front cover cover cover cover Back Front cover cover ......8-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 361 Page spread originals will be scanned from the left page to the right page, and will be output in page order. Right Bind Page spread originals will be scanned from the right page to the left page, and will be output in page order. bizhub PRO C6500 / bizhub PRO C6500e 8-31...
  • Page 362 When selecting the Front Cover or Front/Back Cover + Spread mode, follow the procedure on page 8-29 to scan the front cover first. Touch [Application] on the Copy screen. Touch [Book Copy] on the Application screen. 8-32 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 363 Use this key to jump to the subsequent screen to make any setting change. The [Separate Scan] key on the Copy screen also appears highlighted to show that the Separate Scan mode is automatically selected. bizhub PRO C6500 / bizhub PRO C6500e 8-33...
  • Page 364 When all originals are scanned, touch [Separate Scan] to exit the Separate Scan mode. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-34 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 365: Programming Different Settings For An Output Job: Program Job

    (referred to as JOB), then output them all as a complete set. Original A Original B Original C Output using Program Job bizhub PRO C6500 / bizhub PRO C6500e 8-35...
  • Page 366 The [Separate Scan] key on the Copy screen also appears highlighted to show that the Separate Scan mode is automatically selected. Select additional copy conditions, as desired. – The paper size determined at this time will be applied to all subsequent JOBs. 8-36 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 367 Touch [Decision] to store the current JOB images. – To delete the scanned images, touch [Cancel]. Repeat above steps until all JOB originals are scanned. When all originals are scanned, touch [Separate Scan] to exit the Separate Scan mode. bizhub PRO C6500 / bizhub PRO C6500e 8-37...
  • Page 368 Enter the desired print quantity from the control panel keypad. – Entered quantity will be the count of complete set. Press [Start]. The machine will start printing in conditions specified for each JOB. 8-38 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 369: Dividing An Image For Enlarged Copy

    Position the original on the original glass, then close the ADF or original cover. The machine will detect the original size placed on the original glass. Select the desired paper size on the Copy screen. bizhub PRO C6500 / bizhub PRO C6500e 8-39...
  • Page 370 If Auto Paper Select is selected (initial setting), the largest paper size loaded in a tray will be selected automatically. Touch [Application] on the Copy screen. Touch [Multi-Page Enlargement] on the Application screen. 8-40 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 371 Use this key to jump to the subsequent screen to make any setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. bizhub PRO C6500 / bizhub PRO C6500e 8-41...

  • Page 372: Erasing Outside Area Of Original: Non-Image Area Erase

    0 Original size should be larger than 3 e 3 cm. Position the original on original glass with the ADF or original cover kept open. – Do not close the ADF/original cover. Touch [Application] on the Copy screen. 8-42 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 373 Non-Image Area Erase may perform incorrectly if the lighting in the work place is directly over the original glass. In this case, consult your service representative about an appropriate place for installation. bizhub PRO C6500 / bizhub PRO C6500e 8-43...

  • Page 374: Reversing Color In Image: Neg./Positive Reverse

    - Black: Reverses the image from black-on-white to white-on-black, and vice versa - Full Color: Copies in complementary colors of the four colors. - Auto Color: Makes a reversed image according to the original image (detected as Full Color or Black). 8-44 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 375 This key can also be used to display the Application screen for making setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. bizhub PRO C6500 / bizhub PRO C6500e 8-45...

  • Page 376: Repeating Original Image On One Sheet: Image Repeat

    Size Auto Detect mode will automatically detect the original size (image and surrounding blank area also), then let the machine determine the number of repeats. Mode Description Size Manual Input Horizontal width Vertical Copy width Size Auto Detect Copy 8-46 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 377 In this case, Non-Image Area Erase is automatically selected. Be sure to keep the ADF/original cover open. Touch [Application] on the Copy screen. Touch [Image Repeat] on the Application screen. bizhub PRO C6500 / bizhub PRO C6500e 8-47...
  • Page 378 Image Size Input screen. Touch [Horizontal] or [Vertical] to highlight it, then enter the desired horizontal/vertical width. Touch Close to complete the setting and return to the Image Repeat screen. 8-48 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 379 Available copy modes are 1->1 and 1->2. Selecting [1->2] will select [Separate Scan] automatically. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. bizhub PRO C6500 / bizhub PRO C6500e 8-49...
  • Page 380 Size Input screen. Touch this key to highlight it, if desired, so that the screen may be directly accessed from the Copy screen or Check screen to change the setting you made. See page 10-3 for details. 8-50 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 381: Specifying Repeat Times: Repeat

    Repeat mode will scan the image area specified by the selected paper size and mode (2 Repeat, 4 Repeat, or 8 Repeat), then arrange the image by specified times in one copy sheet. 2 Repeat 4 Repeat 8 Repeat bizhub PRO C6500 / bizhub PRO C6500e 8-51...
  • Page 382 Touch [Application] on the Copy screen. Touch [Image Repeat] on the Application screen. Select the desired Repeat mode. – Touch [2 Repeat], [4 Repeat], or [8 Repeat] to highlight it. 8-52 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 383 Available copy modes are 1->1 and 1->2. Selecting [1->2] will select [Separate Scan] automatically. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. bizhub PRO C6500 / bizhub PRO C6500e 8-53...

  • Page 384: Eliminating Copy Marks Along Borders: Frame Center Erase

    Mode Description Frame erase Erases black copy marks along borders of the original image. Center erase Erases black copy marks along the center line of the original. 8-54 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 385 When lowering the ADF/original cover onto thick original (e.g. open book), do not press it down too hard. Keep the ADF/original cover open, if required. Touch [Application] on the Copy screen. Touch [Frame Center Erase] on the Application screen. bizhub PRO C6500 / bizhub PRO C6500e 8-55...
  • Page 386 To specify the erase amount for Erase/All Sides: Confirm that all the frame erase amounts in the illustration are highlighted. Use [,] and [+], or touch panel keypad to enter the desired erase amount. 8-56 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 387 Use [,] and [+], or touch panel keypad to enter the desired erase amount. Touch [OK] to complete the setting. – To restore the previous setting, touch [Cancel]. – To release the Frame Center Erase function with the current setting remained, touch [Function Off]. bizhub PRO C6500 / bizhub PRO C6500e 8-57...
  • Page 388 Use this key to jump to the subsequent screen to make any setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-58 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 389: Copying Image In The Center Of Copy Paper: Image Centering

    – If Book Copy is used in combination, the original smaller than the selected paper size will be printed in the center of the copy paper without image division performed. bizhub PRO C6500 / bizhub PRO C6500e 8-59...
  • Page 390 Reminder Image Centering may perform incorrectly if the lighting in the work place is directly over the original glass. In this case, consult your service representative about an appropriate place for installation. 8-60 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 391: Adjusting Position Of Copy Image: Page Margin - Shift

    If image loss is likely, see "Reducing images to create binding margin: Page Margin - Reduce & Shift" on page 8-66. Right Down Right Left Original Down Left Copies bizhub PRO C6500 / bizhub PRO C6500e 8-61...
  • Page 392 0 Available shift direction: Top, Bottom, Right, Left 0 Shift amount: 0 to 250 mm in 1 mm increments Position the original. Touch [Application] on the Copy screen. Touch [Page Margin] on the Application screen. Touch [Shift]. 8-62 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 393 Making single-sided copies, only the front side setting will be effective. – To have the same shift amount on both sides of double-sided copies, select [Double Sided]. – To specify the page space amount, touch [Page Space]. bizhub PRO C6500 / bizhub PRO C6500e 8-63...
  • Page 394 Use this key to jump to the subsequent screen to make any setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-64 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 395 Repeat mode of Image Repeat has been already selected. Use this function to make the desired amount of blank space between the two images on a page. Page space Booklet Original Page space 2 Repeat In Repeat Page space Original bizhub PRO C6500 / bizhub PRO C6500e 8-65...

  • Page 396: Reducing Images To Create Binding Margin: Page Margin - Reduce & Shift

    "Adjusting position of copy image: Page Margin - Shift" on page 8-61. Left binding margin Left Right Down Originals Front Back Front Right binding margin Right Left Down Front Back Back Top binding margin Left Right Right Down Back Front 8-66 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 397 0 Shift amount: 0 to 250 mm in 1 mm increments Position the original. Touch [Application] on the Copy screen. Touch [Page Margin] on the Application screen. Touch [Reduce & Shift]. bizhub PRO C6500 / bizhub PRO C6500e 8-67...
  • Page 398 Use this key to jump to the subsequent screen to make any setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-68 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 399: Printing Additional Information: Stamp/Image Overlay

    The following six modes are provided for the Stamp function. These are compatible with each other. Mode Description Built-in Stamp URGENT CONFIDENTIAL IMPORTANT Set Numbering 002/005 Page No. bizhub PRO C6500 / bizhub PRO C6500e 8-69...
  • Page 400 - Start number setting for Set Numbering mode - Start number setting for Page No. mode - Character size/type setting for Page No. and Date/Time modes - Cover/Insert print setting for Page No. - Color setting 8-70 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 401: Printing Stamp Onto Copies: Built-In Stamp

    0 To use this function, the optional HDD (HD-506) is required to be installed in the machine. Position the original. Touch [Application] on the Copy screen. Touch [Stamp/Image Overlay] on the Application screen. Touch [Built-in Stamp]. bizhub PRO C6500 / bizhub PRO C6500e 8-71...
  • Page 402 Use this key to jump to the subsequent screen to make any setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-72 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 403: Printing Distribution Number: Set Numbering

    8.17.2 Printing distribution number: Set Numbering Print a distribution number onto the specified position of copies. Position the original. Touch [Application] on the Copy screen. Touch [Stamp/Image Overlay] on the Application screen. Touch [Set Numbering]. bizhub PRO C6500 / bizhub PRO C6500e 8-73...
  • Page 404 Use this key to jump to the subsequent screen to make any setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-74 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 405: Printing Page Number

    8.17.3 Printing page number: Page No. Print a page number onto the specified position of copies. Position the original. Touch [Application] on the Copy screen. Touch [Stamp/Image Overlay] on the Application screen. Touch [Page No.]. bizhub PRO C6500 / bizhub PRO C6500e 8-75...
  • Page 406 Use this key to jump to the subsequent screen to make any setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-76 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 407: Printing Date/Time: Date/Time

    8.17.4 Printing date/time: Date/Time Print date and time onto the specified position of copies. Position the original. Touch [Application] on the Copy screen. Touch [Stamp/Image Overlay] on the Application screen. Touch [Date/Time]. bizhub PRO C6500 / bizhub PRO C6500e 8-77...
  • Page 408 Use this key to jump to the subsequent screen to make any setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-78 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 409: Printing Watermark Onto Copies: Watermark

    0 To use this function, the optional HDD (HD-506) is required to be installed in the machine. Position the original. Touch [Application] on the Copy screen. Touch [Stamp/Image Overlay] on the Application screen. Touch [Watermark]. bizhub PRO C6500 / bizhub PRO C6500e 8-79...
  • Page 410 Use this key to jump to the subsequent screen to make any setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-80 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 411: Printing Distribution Number As Watermark: Set Numbering

    Print a distribution number in the specified form repeatedly over the scanned image. Position the original. Touch [Application] on the Copy screen. Touch [Stamp/Image Overlay] on the Application screen. Touch [Set Numbering] in the Watermark area. bizhub PRO C6500 / bizhub PRO C6500e 8-81...
  • Page 412 Use this key to jump to the subsequent screen to make any setting change. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-82 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 413: Detailed Setting In "Stamp/Watermark

    Touch the desired direction key to highlight it, then use [,] and [+], or touch panel keypad to enter the desired amount. Touch [OK] to complete the setting and return to the previous screen. bizhub PRO C6500 / bizhub PRO C6500e 8-83...
  • Page 414 Use [,] and [+], or touch panel keypad to enter the desired start number. Up to four digits can be specified. Touch [OK] to complete the setting and return to the previous screen. 8-84 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 415 [+], or touch panel keypad to enter the desired start number. Up to two digits can be specified. Touch [Start Chapter] under Chapter to highlight it, then enter the desired start chapter. Touch [OK] to complete the setting and return to the previous screen. bizhub PRO C6500 / bizhub PRO C6500e 8-85...
  • Page 416 Touch one of the four keys under Character Size to highlight it. Touch either [Gothic] or [Ming] under Font to highlight it. Touch [OK] to complete the setting and return to the previous screen. 8-86 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 417 Select one of the keys under "Print Insert if Print mode has been specified", or one of the two under "Blank Insert for Blank mode". Touch [OK] to complete the setting and return to the previous screen. bizhub PRO C6500 / bizhub PRO C6500e 8-87...
  • Page 418 Use this function to select the desired color in Built-in Stamp, Set Numbering, Page No., and Date/Time. Touch one of the seven color keys to highlight it. Touch [OK] to complete the setting and return to the previous screen. 8-88 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 419: Overlaying Image Onto Printed Pages: Image Overlay

    Position a sheet of original faceup in the ADF or facedown on the original glass. Touch [Application] on the Copy screen. Touch [Stamp/Image Overlay] on the Application screen. Touch [Image Overlay] to highlight it. bizhub PRO C6500 / bizhub PRO C6500e 8-89...
  • Page 420 Repeat steps 9 and 10 for all originals. Touch [Separate Scan] to exit the Separate Scan mode. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. 8-90 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 421: Storing Overlay Image In Hdd/ Overlaying Image Stored In Hdd: Program Overlay

    Follow the steps 1, 2, 3, and 9 for printing only. Image Store Store in HDD Overlaying Image Recall overlaying Image Output Output Recalled Image Overlay originals Copies in Overlay Memory mode bizhub PRO C6500 / bizhub PRO C6500e 8-91...
  • Page 422 Touch [Application] on the Copy screen. Touch [Stamp/Image Overlay] on the Application screen. Touch [Program Overlay]. The Image Store/Recall screen will be displayed. Proceed to step 9 for recalling the image already stored in HDD. 8-92 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 423 The Copy screen to store the overlaying image will be displayed. Select copy conditions, as desired. If a popup menu is displayed to prompt you that the entered image name has been already used, see page 8-96. bizhub PRO C6500 / bizhub PRO C6500e 8-93...
  • Page 424 Position the original to be overlaid. – Position the original either in the ADF or on the original glass. Press [Start] to scan. – Repeat steps 12 and 13 for all originals. 8-94 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 425 Application functions Touch [Separate Scan] to exit the Separate Scan mode. Enter the desired print quantity from the control panel keypad, then press [Start]. The machine will start printing when ready for output. bizhub PRO C6500 / bizhub PRO C6500e 8-95...
  • Page 426 If the popup menu shows [OK] only, the existing image data cannot be overwritten. Touch [OK] to enter a new name. Either of the above two can be specified in the Administrator setting. 8-96 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 427: Copy Conditions Incompatible With Application Functions

    Application functions 8.20 Copy conditions incompatible with application functions bizhub PRO C6500 / bizhub PRO C6500e 8-97...
  • Page 428 Application functions 8-98 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 429 Application functions bizhub PRO C6500 / bizhub PRO C6500e 8-99...
  • Page 430 Application functions 8-100 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 431 Magnification ratio will be determined on the application screen provided for Multi-Page Enlargement. Auto Paper Select will be released and the tray loaded with the largest paper size will be selected automatically. bizhub PRO C6500 / bizhub PRO C6500e 8-101...
  • Page 432 *15 Compatible if Booklet Pagination is selected in combination. *16 Back cover cannot be attached. *19 Only 2 in 1 and 2 Repeat modes are available. *20 Only 2 in 1 mode is available. 8-102 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 433: Output Applications

    Output applications...

  • Page 435: Selecting An Output Tray

    Touch [Output Appli.] on the Copy screen. The Output Application screen will be displayed. Output tray positions are indicated as square marks on the front image of the machine, and the tray mark currently selected appears highlighted. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 436 On the popup menu, touch [Permit] if you allow paper from several jobs to pile up in the large capacity stacker, or touch [Prohibit] if you do not. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 437 Touch [OK] on the Output Tray Selection screen. The Output Application screen will be restored, with the selected tray mark highlighted. Touch [OK] on the Output Application screen. The Copy screen will be restored. bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 438 Never return the saddle stitcher tray to its original position with the tray stand opened. Be careful not to exceed the finisher tray/stacker capacity when selecting the print quantity, otherwise unexpected trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 439: Setting Binding Direction For Duplex Copies

    (printed upside down on back pages), use the setting for binding direction of duplex originals. See page 6-3 for details. Binding Direction for Duplex copying <R & L> <Upper> Originals Copies bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 440 0 Resetting the machine will restore the right & left binding mode. Position the original. Touch [Output Appli.] on the Copy screen. The Output Application screen will be displayed. Touch [Top] under Bind Direction to select it. Touch [OK]. bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 441: Sorting/Stapling Copies (Finisher Fs-503)

    Example: Make 3 copied sets from 4 original sheets Non-sort Staple Collated Uncollated 2 staples Offset by 30mm 1 oblique Offset by 30mm staple bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 442 Combined with the output modes above, you can also choose to output face up or face down, and output front to back or back to front. Example: Make 3 copied sets Face down Face down Face up Face up collated uncollated collated uncollated 9-10 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 443: Non-Sort/Collate/Uncollate Output To The Primary (Main) Tray

    Output tray positions are indicated as square marks on the front image of the machine, and the tray mark currently selected appears highlighted. If the primary (main) tray is not selected, touch [Output Tray] to select it. See page 9-3 for details. bizhub PRO C6500 / bizhub PRO C6500e 9-11...
  • Page 444 Be careful not to exceed the finisher tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. 9-12 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 445: Stapling Output To The Primary (Main) Tray

    Output Application icon shows the stapling position currently selected. If you want to change the stapling position, proceed to the following steps. Touch [Output Appli.] on the Copy screen. The Output Application screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 9-13...
  • Page 446 To release the Staple function with the current stapling position setting remained, touch [Function Off]. The Output Application screen will be restored. Touch [OK] on the Output Application screen. The specified output mode icon will be displayed on the Copy screen. 9-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 447 Be careful not to exceed the finisher tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e 9-15...

  • Page 448: Collate/Uncollate Output To The Secondary (Sub) Tray

    Select the secondary (sub) tray as the output tray. – Touch [Output Tray] to display the Output Tray Selection screen. – Touch the tray position key of the secondary (sub) tray to highlight it, then touch [OK]. 9-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 449 The specified output mode icon will be displayed on the Copy screen. Reminder Be careful not to exceed the finisher tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e 9-17...

  • Page 450: Output Modes Using Folding Unit Fd-501

    Parallel, Gate Fold, and Half Fold. Specify the print side (outside or inside) for each folding mode except Z-Fold. 80 mm Tri Fold-out Half Fold Z-Fold 80 mm Tri Fold-in Double Parallel Gate Fold 9-18 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 451: Punching File Holes In Copies

    If you want to change the number of punch holes and punch position, proceed to the following steps. Touch [Output Appli.] on the Copy screen. The Output Application screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 9-19...
  • Page 452 [Function Off]. The Output Application screen will be restored. Touch [OK] on the Output Application screen. The specified output mode icon will be displayed on the Copy screen. 9-20 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 453 Output applications Reminder Be careful not to exceed the finisher tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e 9-21...

  • Page 454: Folding Copies

    0 Sheets placed on the post inserter can also be folded. Position the original. Touch [Output Appli.] on the Copy screen. The Output Application screen will be displayed. Touch [Fold]. The Folding Type Setting screen will be displayed. 9-22 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 455 The specified output mode icon will be displayed on the Copy screen. Reminder Be careful not to exceed the finisher tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e 9-23...

  • Page 456: Attaching Cover Sheet (Post Inserter On Fd-501)

    Copied set with cover attached in cover and inter staple mode sheet attached Detail For detailed specifications, see "Paper tray/ exit tray capacity" on page 3-6 and "Folding unit FD-501" on page 25-8. 9-24 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 457 Do not load above the limit line indicated on the guide plate. Be careful not to exceed the finisher tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e 9-25...
  • Page 458 To lock the roller both sides, prevent paper from skewing. Push the both roller lock levers to inside to lock them. Reminder Besure to lock both sides, when locking the paper rollers. Do not lock the paper rollers normally. 9-26 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 459: Output Modes Using Saddle Stitcher Sd-501

    Use Trimming mode to trim the edge that opens the booklet, if desired. Fold & Staple Fold & Staple and Trimming Detail For detailed specifications, see "Paper tray/ exit tray capacity" on page 3-6 and "Saddle stitcher SD-501" on page 25-8. bizhub PRO C6500 / bizhub PRO C6500e 9-27...
  • Page 460 The Output Application screen will be displayed. Touch [Fold & Staple]. The screen to specify the Trimming mode will be displayed. Touch [Trimming] or [Non Trimming] to select whether or not to use Trimming mode. 9-28 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 461 Reminder Never return the saddle stitcher tray to its original position with the tray stand opened. bizhub PRO C6500 / bizhub PRO C6500e 9-29...

  • Page 462: Folding Copies

    0 Using Multi Tri-Fold mode, the finished sets will be delivered to the multi- folding mode tray. Position the original. Touch [Output Appli.] on the Copy screen. The Output Application screen will be displayed. Touch [Multi Half Fold] or [Multi Tri-Fold] to select it. 9-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 463 Print] to select it. Touch [OK]. – To restore the previous setting, touch [Cancel]. – To release the function with current setting remained, touch [Function Off]. The Output Application screen will be restored. bizhub PRO C6500 / bizhub PRO C6500e 9-31...
  • Page 464 The triple-folded sets will be delivered into the multi-folding mode tray. Reminder Never return the saddle stitcher tray to its original position with the tray stand opened. 9-32 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 465: Using Folder/Finisher Functions Manually

    Multi-Feed Detection button Staple Selection button Punch selection button Fold Selection button Start/Stop button Detail For detailed specifications, see "Paper tray/ exit tray capacity" on page 3-6 and "Folding unit FD-501" on page 25-8. bizhub PRO C6500 / bizhub PRO C6500e 9-33...
  • Page 466 When selecting 2- or 4-hole punching, press the Punch selection button to turn on the desired mode lamp. – When selecting folding (from 6 styles), press the Fold selection button to turn on the desired mode lamp. 9-34 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 467 Detection button to turn on the lamp below. Multi-Feed Detection button Reminder Be careful not to exceed the finisher tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e 9-35...

  • Page 468: Using Finisher Fs-607

    Example: Make 3 copied sets from 4 original sheets Non-sort Staple Collate Uncollate 2 staples Offset by 30mm 1 oblique staple Offset by 30mm 9-36 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 469 Combined with the output modes above, you can also choose to output face up or face down, and output front to back or back to front. Example: Make 3 copied sets Face down Face down Face up Face up collated uncollated collated uncollated bizhub PRO C6500 / bizhub PRO C6500e 9-37...

  • Page 470: Non-Sort/ Collate/ Uncollate Output To The Primary (Main) Tray

    Output tray positions are indicated as square marks on the front image of the machine, and the tray mark currently selected appears highlighted. If the primary (main) tray is not selected, touch [Output Tray] to select it. See page 9-3 for details. 9-38 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 471 Be careful not to exceed the finisher tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e 9-39...

  • Page 472: Stapling Output To The Primary (Main) Tray

    Output Application icon shows the stapling position currently selected. If you want to change the stapling position, proceed to the following steps. Touch [Output Appli.] on the Copy Screen. The Output Application Screen will be displayed. 9-40 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 473 To release the Staple function with the current stapling position setting remained, touch [Function Off]. The Output Application Screen will be restored. Touch [OK] on the Output Application Screen. The specified output mode icon will be displayed on the Copy Screen. bizhub PRO C6500 / bizhub PRO C6500e 9-41...
  • Page 474 Be careful not to exceed the finisher tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. 9-42 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 475: Collate/ Uncollate Output To The Secondary (Sub) Tray

    Select the secondary (sub) tray as the output tray. – Touch [Output Tray] to display the Output Tray Selection Screen. – Touch the tray position key [=] of the secondary (sub) tray to highlight it, then touch [OK]. bizhub PRO C6500 / bizhub PRO C6500e 9-43...
  • Page 476 The specified output mode icon will be displayed on the Copy Screen. Reminder Be careful not to exceed the finisher tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. 9-44 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 477: Making Folded Booklet (Multi Half Fold / Fold&Staple)

    Fold & Staple: 20 sets max. of 5-sheet-folded booklet (20 e 5 = 100 sheets) Fold & Staple: 5 sets max. of 20-sheet-folded booklet (5 e 20 = 100 sheets) 0 Use ADF to scan the original. bizhub PRO C6500 / bizhub PRO C6500e 9-45...
  • Page 478 Touch [OK] on the Output Application Screen. The specified output mode icon will be displayed on the Copy Screen. With Multi Half Fold selected, Booklet Pagination in Application is also selected automatically. 9-46 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 479: Folding Copies In Three (Multi Tri-Fold)

    0 Selecting Inside Print automatically sets the output face to Face Up, while Outside Print sets to Face Down. Position the original. Touch [Output Appli.] on the Copy Screen. The Output Application Screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 9-47...
  • Page 480 To release the function with current setting remained, touch [Function Off]. The Output Application Screen will be restored. Touch [OK] on the Output Application Screen. The specified output mode icon will be displayed on the Copy Screen. 9-48 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 481: Punching File Holes In Copies (Punch)

    21 mm 70 mm 70 mm 108 mm 21 mm Detail For detailed specifications, see "Paper tray/ exit tray capacity" on page 3-6 and "Finisher FS-607" on page 25-9. bizhub PRO C6500 / bizhub PRO C6500e 9-49...
  • Page 482 If you want to change the number of punch holes and punch position, proceed to the following steps. Touch [Output Appli.] on the Copy Screen. The Output Application Screen will be displayed. Touch [Hole-Punch]. The Hole-Punch Screen will be displayed. 9-50 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 483 The specified output mode icon will be displayed on the Copy Screen. Reminder Be careful not to exceed the finisher tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e 9-51...

  • Page 484: Cover Sheet Feeding (Paper Inserter)

    Fold/ Fold&Staple with Trimming mode, a booklet-type cover will be attached to the multiple page signature booklets. Cover sheet Copied set with Copied set with cover attached in covers and insertions staple mode attached 9-52 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 485 0 Cover paper loaded in the paper inserter cannot be copied. Load cover paper into the upper and Upper tray lower trays of the paper inserter. Lower tray Use Insert Sheet or Booklet Pagination function to attach covers to the output copies. bizhub PRO C6500 / bizhub PRO C6500e 9-53...

  • Page 486: Using Finisher Fs-607 Manually

    - Finisher FS-607 + Paper inserter PI-502 + Punch kit PK-512/513 – Staple (1 staple / 2 staples) – Fold & Staple – Multi Tri-Fold – Punch Start/Stop button Fold&Staple 1 oblique staple 2 parallel staples Multi Tri-Fold Punch 9-54 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 487 To select only the Punch mode, turn off all the other mode lamps. Press Start/Stop button. Do you want to stop the output operation? % Press Start/Stop button on the operation panel of paper inserter. bizhub PRO C6500 / bizhub PRO C6500e 9-55...

  • Page 488: Loading/Sorting A Volume Of Copies (Large Capacity Stacker Ls-501)

    Detail For detailed specifications, see "Paper tray/ exit tray capacity" on page 3-6 and "Large capacity stacker LS-501" on page 25-6. 9-56 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 489 The specified output mode icon will be displayed on the Copy screen. Reminder Be careful not to exceed the stacker or secondary (sub) tray capacity when selecting the print quantity, otherwise unexpected trouble may be caused. bizhub PRO C6500 / bizhub PRO C6500e 9-57...

  • Page 490: Copy Conditions Incompatible With Output Applications

    Output applications 9.11 Copy conditions incompatible with output applications 9-58 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 491 Output applications bizhub PRO C6500 / bizhub PRO C6500e 9-59...
  • Page 492 Output applications 9-60 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 493 Output applications bizhub PRO C6500 / bizhub PRO C6500e 9-61...
  • Page 494 D: Condition in the far left column does not function (ignored). E: Not grayed out but unavailable *15 Compatible if Booklet Pagination is selected in combination. *16 Back cover cannot be attached. 9-62 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 495: Advanced Information

    Advanced information...

  • Page 497: Checking Feature Selections Before Copying: Mode Check

    Position the original, then select the desired copy conditions on the Copy screen. – Or, use Separate Scan mode to scan all originals. Press [Mode Check] on the control panel. The Check screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 10-3...
  • Page 498 If settings are OK, proceed to step 7. Change the settings from the Check screen. – Touch the desired copying condition key (Basic Setting/ Output Application/ Original Setting/ Quality Adjustment/ Application) on the Check screen, then touch [Change]. 10-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 499 To start printing without proof copying, proceed to step 7. Release application functions. – Touch the desired application function key on the Check screen to highlight it, then touch [Clear]. The confirmation popup menu will appear on the Check screen. bizhub PRO C6500 / bizhub PRO C6500e 10-5...
  • Page 500 Change the print quantity as required, then press [Start]. – If proof copying has been made, the machine will simply start printing without scanning originals. 10-6 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 501: Making Sample Set For Checking Results: Proof Copy

    If Separate Scan mode has been used, a sample set will be delivered immediately. Check the sample copy for specified copy conditions. – Some conditions can be changed from the Copy screen. See page 10-3 for details. bizhub PRO C6500 / bizhub PRO C6500e 10-7...
  • Page 502 Change the settings or print quantity, as required, then press [Start]. – If the desired selection cannot be changed, press [Reset]] to delete all the data in memory and restart the job setting. 10-8 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 503: Interrupting Job In Progress: Interrupt Mode

    Interrupt mode. The Copy screen for interrupt copying will be displayed. Set copy conditions, as desired. – All copy conditions except Reserve mode can be specified. bizhub PRO C6500 / bizhub PRO C6500e 10-9...
  • Page 504 Position the original, then press [Start] to start the interrupt copying. When interrupt copying is completed, press [Interrupt] again. The [Interrupt] LED turns out and the settings of the previous job will be restored. Press [Start] to resume copying. 10-10 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 505: Storing And Recalling Job Conditions: Mode Memory

    0 Up to 30 jobs can be stored. Make job selections from the Copy screen. Press [Mode Memory] on the control panel. The Mode Memory screen will be displayed. Touch [Store]. The Job Store Check screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 10-11...
  • Page 506 The key with a lock icon displayed is locked and cannot be selected. – Touch [OK] to proceed to the screen for entering the job name. 10-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 507 Touch [OK] on the Mode Memory screen to complete the setting and return to the Copy screen. Note If you do not wish to enter a name, simply touch [OK]. The key displays 16 asterisks (*) in place of a name. bizhub PRO C6500 / bizhub PRO C6500e 10-13...

  • Page 508: Recalling Stored Job Settings

    The job keys numbered from 01 to 18 are displayed on the screen. Touching [Next] will display the keys from 19 to 30. – The desired job can also be selected by entering two-digit number from the control panel keypad. 10-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 509 The Job Recall Check screen displays to enable you to review the settings. Review the settings, then touch [OK]. The settings of the selected job will be recalled on the restored Copy screen. Press [Start] to print. bizhub PRO C6500 / bizhub PRO C6500e 10-15...

  • Page 510: Recalling Previous Job Settings

    Position the original. Press [Mode Memory] on the control panel. The Mode Memory screen will be displayed. Touch [Pre-Job Recall]. The [Job Check] key will be active on the screen. 10-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 511 Recalled settings can be altered from this screen. See page 10-3 for details. Touch [OK]. The settings of the previous output job will be recalled on the Copy screen. Press [Start] to print. bizhub PRO C6500 / bizhub PRO C6500e 10-17...

  • Page 512: Displaying Screen For Operation Guide: Help Mode

    Hard keys provides information on function and operation of the keys on control panel. - 06 Parts exchange provides information on adding toner, loading paper, adding staples, and emptying punch/trimmer waste basket. 10-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 513 Advanced information To display Help screen Press [Help] on the control panel. bizhub PRO C6500 / bizhub PRO C6500e 10-19...

  • Page 514: Adjusting Response Time Of Touch Keys: Accessibility

    To deactivated this function, press [Accessibility] for one second or longer. The Accessibility LED goes off, and normal response time will be restored in touch key operation. 10-20 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 515: Controlling Copier From Browser: Remote Panel

    The setting procedure for the IP address is provided on page 17-128. To specify the IP address of the PC to be used for Remote Panel function, see "Remote panel setting" on page 19-21. bizhub PRO C6500 / bizhub PRO C6500e 10-21...
  • Page 516 The Web Utilities screen will be displayed. Click [Remote Panel] on the Web Utilities screen. The browser displays control panel and touch panel screen currently displayed on the machine. 10-22 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 517 Advanced information Using a mouse and keyboard, perform job operation. bizhub PRO C6500 / bizhub PRO C6500e 10-23...
  • Page 518 Advanced information 10-24 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 519: Job Management

    Job management...

  • Page 521: Overview Of Job List Screen

    The Job List screen will be displayed. Touch the desired key at the bottom of the screen. – See the following pages for details of each subsequent screen. Touch other tab key to exit the Job List screen. bizhub PRO C6500 / bizhub PRO C6500e 11-3...

  • Page 522: Job Operation On Job List Screen

    Touch [JOB LIST] tab on the Copy screen, then touch [Reserved Job] if not highlighted. Check the status of the reserved jobs. – Touch [Next] to scroll, if 8 or more jobs are entered. Select the desired job, then select the job operation. 11-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 523 Job management Reminder This will not function if printing operation has already been started for the selected job. bizhub PRO C6500 / bizhub PRO C6500e 11-5...
  • Page 524 To check the settings of reserve job Touch to highlight the desired reserve job key, then touch [Details]. Check the settings of the selected job on the screen. Touch [Close] to return to the Job List screen. 11-6 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 525: To Display Output History

    Touch [Next] to scroll, if 8 or more jobs are entered. Touch the desired job key, then touch [Details]. Detailed settings of the selected job will be displayed. Touch [Close] to return to the previous screen. bizhub PRO C6500 / bizhub PRO C6500e 11-7...

  • Page 526: To Display Send History

    Touch [Next] to scroll, if 8 or more jobs are entered. Touch the desired job key, then touch [Details]. Detailed settings of the selected job will be displayed. Touch [Close] to return to the previous screen. 11-8 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 527: To Check Incomplete Jobs

    Touch [Next] to scroll, if 8 or more jobs are entered. Touch the desired job key, then touch [Details]. Detailed settings of the selected job will be displayed. Touch [Close] to return to the previous screen. bizhub PRO C6500 / bizhub PRO C6500e 11-9...

  • Page 528: To Check/Operate Suspended Jobs

    Check the status of the suspended jobs. – Touch [Next] to scroll, if 8 or more jobs are entered. Select the desired job, then select the job operation. 11-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 529 To check the settings of suspended job Touch to highlight the desired job key, then touch [Details]. Check the settings of the selected job on the screen. Touch [Close] to return to the Job List screen. bizhub PRO C6500 / bizhub PRO C6500e 11-11...
  • Page 530 Job management 11-12 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 531: Screen Setting Outlines

    Screen setting outlines...

  • Page 533: Machine Status Screen Setting Outlines

    Screen setting outlines 12.1 Machine status screen setting outlines The [Paper Setting], [Both Sides Adj.], [Adjustment], and [Controller] keys are located at the bottom of the Machine Status screen, to display each setting screen. bizhub PRO C6500 / bizhub PRO C6500e 12-3...
  • Page 534 Paper Setting on the Copy screen. Please refer to page 9-44 for more information. After completing the Paper Setting mode settings, touch [Close] to exit the Paper Setting mode. Note The Utility screen refers to any screen that is displayed when [Utility/Counter] is pressed. 12-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 535 Right/Left shift amount for both front and back pages. For the details, see page 6-48. After completing the Adjustment mode settings, touch [Close] to exit the Adjustment mode. Any other settings are unavailable during the Both Sides Adjustment mode. bizhub PRO C6500 / bizhub PRO C6500e 12-5...
  • Page 536 [Adjustment] key: The adjustment mode menu screen is displayed. Adjust the settings of Image Control and Output options. For the details, see page 14-3. After completing the Adjustment mode settings, touch [Exit] to exit the Adjustment mode. 12-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 537 Specify the settings concerning the optional Print Controller. For the details, please see the contents of the user manuals for the optional controllers. Touch the [MACHINE] tab to exit the Controller Setting mode. bizhub PRO C6500 / bizhub PRO C6500e 12-7...

  • Page 538: Utility Screen Setting Outlines

    It is recommended to assign the machine administrator who will be the sole person to control the machine administrator setting. Please contact your service representative to set up your password. 12-8 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 539 Screen setting outlines [Close] and [Exit] on the utility screen Touch [Close] to return to the previous screen. Touch [Exit] to return to the screen displayed before pressing [Utility/Counter] on the control panel. bizhub PRO C6500 / bizhub PRO C6500e 12-9...
  • Page 540 Screen setting outlines 12-10 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 541: Paper Setting

    Paper setting...

  • Page 543: Paper Setting Outlines

    (Paper Setting on Copy screen or Machine Status screen) This section provides information on, and instructions for, settings the items in the User Setting. bizhub PRO C6500 / bizhub PRO C6500e 13-3...

  • Page 544: Setting Items In Paper Setting

    The Horizontal zoom of the Back side is specified with 01 System Setting of the Machine Admin. Setting. This adjustment can be performed using a chart in Paper Setting accessed only from Copy Screen and Machine Status screen. 13-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 545 Use the Air Assist function to blow air to the paper from the guide plate inside the tray in order to prevent feeding troubles which a specific paper type tends to cause. Select one of the following four conditions. Auto, On (Strong), On (Weak), Off bizhub PRO C6500 / bizhub PRO C6500e 13-5...

  • Page 546: Paper Type Specifications

    Color specific paper is the type of paper used for color copying to prevent color dulling on high quality paper. Select [Color Specific] for those trays that are used for color specific paper. 13-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 547 Weight is classified into eight types as shown in the following table. Plain/Color Specific/ Coated-GL Coated-ML Coated-GO Coated-MO High Quality Plain Gloss Plain Gloss Plain Plain Gloss Plain (Disable) (Disable) (Disable) (Disable) (Disable) (Disable) (Disable) (Disable) (Disable) (Disable) (Disable) (Disable) bizhub PRO C6500 / bizhub PRO C6500e 13-7...
  • Page 548 Copy rate will be 32 cpm from 65 cpm (on A4 paper in simplex mode). * The coated paper of certain brand can not be used with installation environment. Contact your service representative. 13-8 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 549 144.0 118.7 160.0 175.9 270.0 71.9 100.0 149.5 123.3 166.1 182.7 280.0 74.6 103.7 155.1 127.9 172.3 189.4 290.0 77.2 107.4 160.6 132.4 178.4 196.2 300.0 79.9 111.1 166.1 137.0 184.6 202.9 bizhub PRO C6500 / bizhub PRO C6500e 13-9...

  • Page 550: Register Paper Type/Weight

    Follow the procedure below to register paper type/weight in the User Setting. Press [Utility/Counter] on the control panel. The Utility menu screen will be displayed. Touch [02 User Setting], [01 System Setting], and then [03 Feed Tray Setting]. 13-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 551 Touch the key to be registered. – To modify the a paper setting which is already registered, touch to select the corresponding name for the setting. To register a new setting, touch to highlight a blank line. bizhub PRO C6500 / bizhub PRO C6500e 13-11...
  • Page 552 Touch [Paper Type] to display the Paper Type screen. – Select the desired paper type, and the touch [OK] to complete the setting. See page 13-6 for details of the paper types. 13-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 553 Select a desired key to set the paper weight. To change the unit for paper weight, touch [Unit Change] until a desired unit is displayed. Touch [OK] on selecting an appropriate key. bizhub PRO C6500 / bizhub PRO C6500e 13-13...
  • Page 554 Touch [Front] or [Back] on the Front and Back Page Adjustment screen to select the printed side. Select the adjustment item (vertical zoom, horizontal zoom, vertical shift, horizontal shift, and Registration) Operate the process adjustment. – Touch [Process Adj.] 13-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 555 Select [Punched] or [No punched]. Specify whether to use color specific paper or not. – Select [Non White] or [White]. Specify the air assist setting. – Select [Auto], [On (Strong)], [On (Weak)], or [Off]. bizhub PRO C6500 / bizhub PRO C6500e 13-15...
  • Page 556 [OK] to complete the setting. Custom sizes can be registered on the Copy screen, or by selecting [Paper Setting] > [Size Setting] the Machine Status screen. Please refer to page 6-48 for more information. 13-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 557 Machine Status screen only. Paper Setting of User Setting does not provide this function. Contact your service representative for details. Air assist setting is available when tray 4 and tray 5. bizhub PRO C6500 / bizhub PRO C6500e 13-17...

  • Page 558: Delete Paper Setting

    Follow the procedure below to delete the paper setting previously registered. Press [Utility/Counter] on the control panel. The Utility menu screen will be displayed. Touch [02 User Setting], [01 System Setting], and then [03 Feed Tray Setting]. 13-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 559 Paper setting Touch [01 Paper Setting]. The Paper Setting screen will be displayed. Touch the key to be deleted. bizhub PRO C6500 / bizhub PRO C6500e 13-19...
  • Page 560 Return to the Input Condition screen. To delete multiple paper types, repeat steps 4 and 6. Touch [Close] on the Paper Setting screen. – Touch [Exit] to return to the Copy screen. 13-20 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 561: Machine Adjustment

    Machine adjustment...

  • Page 563: Machine Adjustment

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [01 Machine Adjustment], [01 Printer Adjustment], and then [01 Restart Timing Adjustment]. The Restart Timing Adjustment screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-3...
  • Page 564 The sample pattern (No. 16) will be output. Measure the resultant restart timing. If the desired result cannot be obtained, touch the [ADJUSTMENT] tab. The Restart Timing Adjustment screen will be restored. 14-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 565 Available range: -60 to +60, 1 step = 0.1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-5...

  • Page 566: Printer Adjustment \ 02 Centering Adjustment

    The Adjustment Menu screen will be displayed. Touch [01 Machine Adjustment], [01 Printer Adjustment], and then [02 Centering Adjustment]. The Centering Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. 14-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 567 Available range: -40 to +40, 1 step = 0.1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-7...

  • Page 568: Printer Adjustment \ 03 Fd-Mag. Adjustment

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [01 Machine Adjustment], [01 Printer Adjustment], and then [03 FD-Mag. Adjustment]. The FD-Mag. Adjustment screen will be displayed. 14-8 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 569 The sample pattern (No. 16) will be output. Measure the resultant magnification to the direction of paper feed. 205.7 If the desired result cannot be obtained, touch the [ADJUSTMENT] tab. The FD-Mag. Adjustment screen will be restored. bizhub PRO C6500 / bizhub PRO C6500e 14-9...
  • Page 570 [<<SET]. Available range: -100 to +100, 1 step = 0.01% Repeat the adjustment steps from 3 to 9 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. 14-10 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 571: Printer Adjustment \ 04 Cd-Mag. Adjustment

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [01 Machine Adjustment], [01 Printer Adjustment], and then [04 CD-Mag. Adjustment]. The CD-Mag. Adjustment screen will be displayed. Touch the required item key. bizhub PRO C6500 / bizhub PRO C6500e 14-11...
  • Page 572 The CD-Mag. Adjustment screen will be restored. Touch the required item key. Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: -100 to +100, 1 step = 0.01% 14-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 573 Machine adjustment Repeat the adjustment steps from 3 to 9 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-13...

  • Page 574: Scanner Adjustment \ 01 Restart Timing Adjustment

    The Adjustment Menu screen will be displayed. Touch [01 Machine Adjustment], [02 Scanner Adjustment], and then [01 Restart Timing Adjustment]. The Scanner Restart Timing Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. 14-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 575 Available range: -10 to +20, 1 step = 0.1 mm Repeat the adjustment steps from 3 to 7 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-15...

  • Page 576: Scanner Adjustment \ 02 Centering Adjustment

    The Adjustment Menu screen will be displayed. Touch [01 Machine Adjustment], [02 Scanner Adjustment], and then [02 Centering Adjustment]. The Centering Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. 14-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 577 Available range: -30 to +30, 1 step = 0.1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-17...

  • Page 578: Scanner Adjustment \ 03 Fd-Mag. Adjustment

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [01 Machine Adjustment], [02 Scanner Adjustment], and then [03 FD-Mag. Adjustment]. The FD-Mag. Adjustment screen will be displayed. 14-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 579 If the desired result cannot be obtained, touch the [ADJUSTMENT] tab. The Scanner FD-Mag. Adjustment screen will be restored. Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: -40 to +40, 1 step = 0.05% bizhub PRO C6500 / bizhub PRO C6500e 14-19...
  • Page 580 Machine adjustment Repeat the adjustment steps from 3 to 9 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. 14-20 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 581: Image Quality Stability

    The Adjustment Menu screen will be displayed. Touch [02 Image Quality Stability]. The Image Quality Stability screen will be displayed. Select [Speed] or [Stability] for a copying or printing job. Touch [OK] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-21...

  • Page 582: Execute Adjust Operation

    The Adjustment Menu screen will be displayed. Touch [03 Execute Adjust Operation]. The Execute Adjust Operation screen will be displayed. Touch an appropriate key to execute the adjustment operation. Touch [OK] to restore the Adjustment Menu screen. 14-22 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 583: Finisher Adjustment (Fs-503)

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [01 Stapler Position Adj.], and then [01 Staple Center Position]. The Staple Center Position screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-23...
  • Page 584 The Staple Center Position screen will be restored. Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: -20 (forward) to +20 (backward), 1 step = 0.1 mm 14-24 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 585 If the test desired result cannot be obtained, touch [ADJUSTMENT] tab. Repeat the adjustment steps from 3 to 7 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-25...

  • Page 586: Stapler Position Adj. \ 02 Paper Width (Staple)

    The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [01 Stapler Position Adj.], and then [02 Paper Width (Staple)]. The Paper Width (Staple) screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. 14-26 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 587 If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The Paper Width (Staple) screen will be restored. bizhub PRO C6500 / bizhub PRO C6500e 14-27...
  • Page 588 If the test desired result cannot be obtained, touch [ADJUSTMENT] tab. Repeat the adjustment steps from 3 to 10 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. 14-28 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 589: Stapler Position Adj. \ 03 Paper Width (Straight)

    The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [01 Stapler Position Adj.], and then [03 Paper Width (Straight)]. The Paper Width (Straight) screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-29...
  • Page 590 If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The Paper Width (Straight) screen will be restored. 14-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 591 If the test desired result cannot be obtained, touch [ADJUSTMENT] tab. Repeat the adjustment steps from 3 to 10 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-31...

  • Page 592: Finisher Adjustment (Fd-501)

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [02 Multi Folder (Punch) Adj.], and then [01 Paper Width Adjustment]. The Paper Width Adjustment screen will be displayed. 14-32 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 593 Check the diameter of penetrated holes when output sheets are piled If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The Paper Width Adjustment screen will be restored. Display the required size key using up/down arrow keys, and touch it. bizhub PRO C6500 / bizhub PRO C6500e 14-33...
  • Page 594 Touch [Return] to restore the Adjustment Menu screen. Note If the setting is too wide, the center position of punch holes may dislocate. If the setting is too narrow, the position of punch holes may vary. 14-34 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 595: Multi Folder (Punch) Adj. \ 02 Hole-Punch Vertical Pos

    The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [02 Multi Folder (Punch) Adj.], and then [02 Hole-Punch Vertical Pos.]. Touch [2-Hole Punch] or [4-Hole Punch]. The corresponding Paper Width Adjustment screen is displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-35...
  • Page 596 Check the distance (a) from the edge of the feeding sheet to the center position of the punch hole. If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The Paper Width Adjustment screen will be restored. 14-36 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 597 Repeat the adjustment steps from 4 to 9 until the desired result is obtained. If adjustment in any other size is required, repeat steps from 4 to 10. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-37...

  • Page 598: Multi Folder (Fold) Adj. \ 01 Half Fold Position Adj

    Touch [04 Finisher Adjustment], [03 Multi Folder (Fold) Adj.], and then [01 Half Fold Position Adj.]. The Half Fold Position Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. 14-38 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 599 Repeat the adjustment steps from 3 to 8 until the desired result is obtained. If adjustment in any other size is required, repeat steps from 3 to 9. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-39...

  • Page 600: Multi Folder (Fold) Adj. \ 02 Tri-Fold-In Pos. Adj

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [03 Multi Folder (Fold) Adj.], and then [02 Tri-Fold-in Pos. Adj.]. The Tri-Fold-in Position Adjustment screen will be displayed. 14-40 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 601 A sample pattern (No. 16) will be output. Check a distance (a) and distance (b) on the output sheet. If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The Tri-Fold-in Position Adjustment screen will be restored. bizhub PRO C6500 / bizhub PRO C6500e 14-41...
  • Page 602 Repeat steps 3 to 10 until the desired result is obtained. If adjustment in any other size is required, repeat steps from 3 to 11. Touch [Return] to restore the Adjustment Menu screen. 14-42 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 603: Multi Folder (Fold) Adj. \ 03 Tri-Fold-Out Pos. Adj

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [03 Multi Folder (Fold) Adj.], and then [03 Tri-Fold-out Pos. Adj.]. The Tri-Fold-out Position Adjustment screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-43...
  • Page 604 A sample pattern (No. 16) will be output. Check a distance (a) and distance (b) on the output sheet. If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The Tri-Fold-out Position Adjustment screen will be restored. 14-44 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 605 Repeat steps 3 to 10 until the desired result is obtained. If adjustment in any other size is required, repeat steps from 3 to 11. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-45...

  • Page 606: Multi Folder (Fold) Adj. \ 04 Double Parallel Pos. Adj

    The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [03 Multi Folder (Fold) Adj.], and then [04 Double Parallel Pos. Adj.]. The Double Parallel Position Adjustment screen will be displayed. 14-46 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 607 A sample pattern (No. 16) will be output. Check a distance (a) and distance (b) on the output sheet. If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The Double Parallel Position Adjustment screen will be restored. bizhub PRO C6500 / bizhub PRO C6500e 14-47...
  • Page 608 Repeat steps 3 to 10 until the desired result is obtained. If adjustment in any other size is required, repeat steps from 3 to 11. Touch [Return] to restore the Adjustment Menu screen. 14-48 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 609: Multi Folder (Fold) Adj. \ 05 Z-Fold Position Adj

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [03 Multi Folder (Fold) Adj.], and then [05 Z-Fold Position Adj.]. The Z-Fold Position Adjustment screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-49...
  • Page 610 A sample pattern (No. 16) will be output. Check a distance (a) and distance (b) on the output sheet. If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The Z-Fold Position Adjustment screen will be restored. 14-50 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 611 Repeat steps 3 to 10 until the desired result is obtained. If adjustment in any other size is required, repeat steps from 3 to 11. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-51...

  • Page 612: Multi Folder (Fold) Adj. \ 06 Gate Fold Position Adj

    The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [03 Multi Folder (Fold) Adj.], and then [06 Gate Fold Position Adj]. The Gate Fold Position Adjustment screen will be displayed. 14-52 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 613 Check a distance (a), distance (b) and distance (c) on the output sheet. If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The Gate Fold Position Adjustment screen will be restored. bizhub PRO C6500 / bizhub PRO C6500e 14-53...
  • Page 614 Repeat steps 3 to 10 until the desired result is obtained. If adjustment in any other size is required, repeat steps from 3 to 11. Touch [Return] to restore the Adjustment Menu screen. 14-54 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 615: Finisher Adjustment (Ls-501)

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [05 Stacker Adjustment], and then [01 Paper Width Adjustment]. The Paper Width Adjustment screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-55...
  • Page 616 [<<SET]. Available range: -20 (narrow) to +20 (wide), 1 step = 0.1 mm Repeat steps 3 to 6 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. 14-56 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 617: Stacker Adjustment \ 02 Paper Length Adjustment

    The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [05 Stacker Adjustment], and then [02 Paper Length Adjustment]. The Paper Length Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-57...
  • Page 618 [<<SET]. Available range: -20 (narrow) to +20 (wide), 1 step = 0.1 mm Repeat steps 3 to 6 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. 14-58 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 619: Finisher Adjustment (Sd-501)

    Touch Adjustment on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [06 Saddle Stitcher Adj.], and then [01 Staple Center Adj.]. The Staple Center Adjustment screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-59...
  • Page 620 A sample copy will be output. Check misalignment (a) of the folded line and stapling position. If the test desired result cannot be obtained, touch [ADJUSTMENT] tab. The Staple Center Adjustment screen will be restored. 14-60 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 621 Available range: -50 (forward) to +50 (backward), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 7 until the desired result is obtained. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-61...

  • Page 622: Saddle Stitcher Adj. \ 02 Staple Paper Width Adj

    Touch [04 Finisher Adjustment], [06 Saddle Stitcher Adj.], and then [02 Staple Paper Width Adj.]. The Staple Paper Width Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. 14-62 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 623 Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: -20 (wide) to +20 (narrow), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. bizhub PRO C6500 / bizhub PRO C6500e 14-63...
  • Page 624 * Using paper size of which actual width is less than 222 mm such as A4 w, the staple pitch will be set to 91 mm automatically even if the value shorter than 91 mm of staple pitch is entered. 14-64 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 625: Saddle Stitcher Adj. \ 03 Staple Pitch Adjustment

    The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [06 Saddle Stitcher Adj.], and then [03 Staple Pitch Adjustment]. The Staple Pitch Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-65...
  • Page 626 Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: -20 (wide) to +20 (narrow), 1 step = 1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. 14-66 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 627 Machine adjustment If adjustment in any other paper size is required, repeat steps from 3 to 9. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-67...

  • Page 628: Saddle Stitcher Adj. \ 04 Half Fold Position Adj

    Touch [04 Finisher Adjustment], [06 Saddle Stitcher Adj.], and then [04 Half Fold Position Adj.]. The Half Fold Position Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. 14-68 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 629 Repeat the adjustment steps from 3 to 8 until the desired result is obtained. If adjustment in any other size is required, repeat steps 3 to 9. Touch [Return] to restore the Adjustment Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 14-69...

  • Page 630: Saddle Stitcher Adj. \ 05 Tri-Fold Position Adj

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [06 Saddle Stitcher Adj.], and then [05 Tri-Fold Position Adj.]. The Tri-Fold Position Adjustment screen will be displayed. 14-70 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 631 A sample pattern (No. 16) will be output. Check a distance (a) and distance (b) on the output sheet. If the desired result cannot be obtained, touch [ADJUSTMENT] tab. The Tri-Fold Position Adjustment screen will be restored. bizhub PRO C6500 / bizhub PRO C6500e 14-71...
  • Page 632 Repeat steps 3 to 10 until the desired result is obtained. If adjustment in any other size is required, repeat steps 3 to 11. Touch [Return] to restore the Adjustment Menu screen. 14-72 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 633: Saddle Stitcher Adj. \ 06 Fold Paper Width Adj

    Touch [04 Finisher Adjustment], [06 Saddle Stitcher Adj.], and then [06 Fold Paper Width Adj.]. The Fold Paper Width Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-73...
  • Page 634 Repeat the adjustment steps from 3 to 8 until the desired result is obtained. If adjustment in any other size is required, repeat steps 3 to 9. Touch [Return] to restore the Adjustment Menu screen. 14-74 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 635: Saddle Stitcher Adj. \ 07 Trimming Adjustment

    The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [06 Saddle Stitcher Adj.], and then [07 Trimming Adjustment]. The Trimming Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-75...
  • Page 636 If "All Size" is selected as paper size, the entered adjustment value will be applied to all sizes. If specific paper size is selected, adjustment value will be the sum of the entered value and the value previously specified for "All Size". 14-76 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 637: Saddle Stitcher Adj. \ 08 Trimming Receiver Adj

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [06 Saddle Stitcher Adj.], and then [08 Trimming Receiver Adj.]. The Trimming Receiver Adjustment screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-77...
  • Page 638 Touch [Execute Compulsive Movement] to force the receiver to be moved. This operation takes effect immediately, and touching [Cancel] will not abort the operation. Touch [OK] to complete the setting. The Adjustment Menu screen will be restored. 14-78 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 639: Finisher Adjustment (Ru-503/Ru-504)

    Touch [Adjustment] on the Machine Status screen. The Adjustment Menu screen will be displayed. Touch [04 Finisher Adjustment], [07 RU Adjustment], and then [01Curl Reform Direction]. The Curl Reform Direction screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-79...
  • Page 640 Machine adjustment Touch to select [Upper] or [Lower]. Touch [Off] if you do not use the function. Touch [Return] to restore the Adjustment Menu screen. 14-80 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 641: Finisher Adjustment (Fs-607)

    The Adjustment Menu Screen will be displayed. Touch [04 Finisher Adjustment] and [01Fold & Staple Stopper Adjustment]. The Fold & Staple Stopper Adjustment Screen will be displayed. Touch [COPY] tab. The Copy Screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-81...
  • Page 642 [<<SET]. Available range: -128 (wide) to +127 (narrow), 1 step = 1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. 14-82 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 643 Machine adjustment If adjustment in any other paper size is required, repeat steps from 3 to 9. Touch [Return] to restore the Adjustment Menu Screen. bizhub PRO C6500 / bizhub PRO C6500e 14-83...

  • Page 644: Half Fold Stopper Adjustment

    The Adjustment Menu Screen will be displayed. Touch [04 Finisher Adjustment] and [02 Half Fold Stopper Adj.]. The Half Fold Stopper Adjustment Screen will be displayed. Touch [COPY] tab. The Copy Screen will be displayed. 14-84 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 645 Repeat the adjustment steps from 3 to 8 until the desired result is obtained. If adjustment in any other size is required, repeat steps 3 to 9. Touch [Return] to restore the Adjustment Menu Screen. bizhub PRO C6500 / bizhub PRO C6500e 14-85...

  • Page 646: Punch Adjustment \ 01 Vertical Position Adj

    The Adjustment Menu Screen will be displayed. Touch [04 Finisher Adjustment], [03 Punch Adjustment], and then [01 Vertical Position Adj.]. The Vertical Position Adjustment Screen is displayed. Touch [COPY] tab. The Copy Screen will be displayed. 14-86 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 647 Repeat the adjustment steps from 3 to 8 until the desired result is obtained. If adjustment in any other size is required, repeat steps from 3 to 9. Touch [Return] to restore the Adjustment Menu Screen. bizhub PRO C6500 / bizhub PRO C6500e 14-87...

  • Page 648: Punch Adjustment \ 02 Horizontcal Position Adj

    Touch [04 Finisher Adjustment], [03 Punch Adjustment], and then [02 Horizontal Position Adj.]. The Horizontal Position Adjustment Screen is displayed. Select the desired tray. Touch [COPY] tab. The Copy Screen will be displayed. 14-88 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 649 [<<SET]. Available range: -50 (wide) to +50 (narrow), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. bizhub PRO C6500 / bizhub PRO C6500e 14-89...
  • Page 650 Machine adjustment If adjustment in any other tray is required, repeat steps from 3 to 9. Touch [Return] to restore the Adjustment Menu Screen. 14-90 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 651: Punch Adjustment \ 03 Registration Adjustment

    Touch [Adjustment] on the Machine Status Screen. The Adjustment Menu Screen will be displayed. Touch [04 Finisher Adjustment], [03 Punch Adjustment], and then [03 Registration Adjustment]. The Registration Adjustment Screen is displayed. Select the desired tray. bizhub PRO C6500 / bizhub PRO C6500e 14-91...
  • Page 652 [<<SET]. Available range: -50 (wide) to +50 (narrow), 1 step = 0.1 mm Repeat the adjustment steps from 3 to 8 until the desired result is obtained. 14-92 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 653 Machine adjustment If adjustment in any other size is required, repeat steps from 3 to 9. Touch [Return] to restore the Adjustment Menu Screen. bizhub PRO C6500 / bizhub PRO C6500e 14-93...

  • Page 654: Punch Adjustment \ 04 Paper Edge Detect Sensor Adj

    Touch [04 Finisher Adjustment], [03 Punch Adjustment], and then [04 Paper Edged Detect Sensor Adj.]. The Paper Edged Detect Sensor Adjustment Screen is displayed. Touch [Start]. The adjustment result will be displayed. Touch [Return] to restore the Adjustment Menu Screen. 14-94 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 655: Tri-Fold Adjustment

    The Adjustment Menu Screen will be displayed. Touch [04 Finisher Adjustment], and then [04 Tri-Fold Adjustment]. The Tri-Fold Adjustment Screen will be displayed. Touch [COPY] tab. The Copy Screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 14-95...
  • Page 656 If specified value is positive, the folding positions move to the right. Or, if negative value is specified, the folding positions move to the left. Repeat steps 3 to 8 until the desired result is obtained. 14-96 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 657 Machine adjustment If adjustment in any other size is required, repeat steps 3 to 9. Touch [Return] to restore the Adjustment Menu Screen. bizhub PRO C6500 / bizhub PRO C6500e 14-97...

  • Page 658: 05 2 Position Staple Pitch Adjustment

    Touch [04 Finisher Adjustment], and then [05 2 Pos. Staple Pitch Adj.]. The 2 Position Staple Pitch Adjustment Screen will be displayed. Select the folding key to be adjusted. Touch [COPY] tab. The Copy Screen will be displayed. 14-98 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 659 Repeat the adjustment steps from 3 to 8 until the desired result is obtained. If adjustment in any other folding is required, repeat steps from 3 to 9. Touch [Return] to restore the Adjustment Menu Screen. bizhub PRO C6500 / bizhub PRO C6500e 14-99...

  • Page 660: Paper Inserter Tray Size Adj

    Load the A4 w or 8.5" e 11" w on the Upper tray of the Paper Inserter, and then touch [Start]. Touch [Next] to display the PI 2 Tray Size Adjustment Screen. 14-100 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 661 Machine adjustment Load the A4 w or 8.5" e 11" w on the Lower tray of the Paper Inserter, and then touch [Start]. Touch [Return] to restore the Adjustment Menu Screen. bizhub PRO C6500 / bizhub PRO C6500e 14-101...

  • Page 662: Output Quantity Limit

    : 2 to 16 sheets Half Fold 64 - 105 g/m : 1 to 3 sheets Tri-Fold 64 - 80 g/m : 1 to 3 sheets Touch [Return] to restore the Adjustment Menu Screen. 14-102 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 663: Utility Screen Outlines

    Utility screen outlines...

  • Page 665: Chart Of Setting Items On Utility Screen

    [03] ATS Per- mit Setting [04] Auto Pa- per Type [05] Dehu- midification [04] Reset Set- [01] Auto Re- ting set Setting [02] Mode Reset Setting [05] Default Screen Setting [06] Preset Zoom Setting bizhub PRO C6500 / bizhub PRO C6500e 15-3...
  • Page 666 Initial Setting [03] Common Setting [04] Copy Setting [05] Scan Setting [06] Printer [01] Gray Text Setting Outline En- hance [02] Thin Line Enhancement [03] Reserved Text Enhance- ment [04] Blur Pre- vention 15-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 667 [05] Timer In- terrupt Pass- word Set [04] Operation [01] Lock/De- [01] Copy Prohibit Set lete Mode Mode Memo- Memory [02] Scan Mode Memo- [02] Change Prohibit Set- ting [03] Scanner Prohibit Set- ting bizhub PRO C6500 / bizhub PRO C6500e 15-5...
  • Page 668 Edge Earse Adjustment [06] Registra- tion Loop Adj. [07] Pre-reg- istration Adj. [04] Finisher [01] Stapler [01] Staple Adjustement Position Adj. Center Posi- (FS-503) tion [02] Paper Width (staple) [03] Paper Width (straight) 15-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 669 Adj. [05] Z-Fold Position Adj. [06] Gate Fold Position Adj. [04] Multi Folder (PI) Adj. [04] Finisher [05] Stacker [01] Paper Adjustment Adjustment Width Adjust- (LS-501) ment [02] Paper Length Ad- justment bizhub PRO C6500 / bizhub PRO C6500e 15-7...
  • Page 670 Position Adj. [05] Tri-Fold Position Adj. [06] Fold Pa- per Width Adj. [07] Trimming Adjustment [08] Trimmer Receiver Adj. [04] Finisher [07] RU Ad- [01] Curl Re- Adjustment justment form Direc- (RU-503/504) tion 15-8 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 671 [05] Scanner [01] Restart Adjustment) Timing Ad- justment [02] Center- ing Adjust- ment [03] FD-Mag. Adjustment [06] Process [01] Front & Adjustment Back Density [02] Toner Density Sen- [03] Toner Quantity/ Ex- posure bizhub PRO C6500 / bizhub PRO C6500e 15-9...
  • Page 672 [01] Orig. ting Glass Size Detect [02] ADF Original Size Detect [03] Orig. Glass Mini- mum Detect [04] K Size [05] ADF/Orig. Glass Priority [06] PI Size Priority [02] Adminis- trator Regis- 15-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 673 [03] Account Track [04] Without Authentication [05] Network [01] Machine Setting NIC Setting [02] E-Mail Ini- tial Setting [06] Common Setting [07] Copy Setting [08] Scan Setting [09] System [01] Adminis- Connection trator bizhub PRO C6500 / bizhub PRO C6500e 15-11...
  • Page 674 9 The adjustment operation by selecting [03 Machine Admin. Setting] > [01 System Setting] > [05 Expert Adjustment] > [04 Finisher Adjustment] are exactly the same as the adjustments on the Machine Status screen by selecting [Adjustment] > [04 Finisher Adjustment]. 15-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 675 [01 System Setting] > [05 Expert Adjustment] > [05 Scanner Adjustment] are exactly the same as the adjustments on the Machine Status screen by selecting [Adjustment] > [01 Machine Adjustment] > [02 Scanner Adjustment]. bizhub PRO C6500 / bizhub PRO C6500e 15-13...

  • Page 676: Function List Of User Setting

    Fan Heater Control(Tray4): ATS function. Automatic Dryness preparation: on/off Fan Heater Control (Tray5): Fan Heater Control (Tray4): Automatic/ On (compulso- Automatic ry/ Off (compulsory) Fan Heater Control (Tray5): Automatic/ On (compulso- ry/ Off (compulsory) 15-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 677 Auto Shut Off: OFF/ 30 min./ 60 min./ 90 min./120 min./ 240 min.: OFF/90 min. 08 Time and Date Setting Setting Time/ Summer Time Set the present time, summer time, and time zone. (Off)/ Time zone Setting Time/ Summer Time/ Time zone bizhub PRO C6500 / bizhub PRO C6500e 15-15...
  • Page 678 Specify whether to use the service port device or not, and Keyboard Type: EN65 select the keyboard type if the service port device is used. On/ Off, Keyboard Type: EN65/ EN104/ JP101/ JP106/ JP109 15-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 679 Select whether to maintain the Temperature which is suited for the coated paper by turning the fixing unit roller. Others/ Coated Paper Un-compressing mode Specify when storing to HDD is not completed with memory overflow. Off/ On bizhub PRO C6500 / bizhub PRO C6500e 15-17...
  • Page 680 Set the timing to interrupt the present job when pressing [In- terrupt] while copying. Stop Immediately/ When Current Comp. Change Page Print Pos. (Booklet) Set the page number position when using Booklet with Page Numbering in Stamp. Off/ On (Outside Print) 15-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 681 Select the default destination to be displayed when select- ing the Scanner screen. E-Mail/ HDD/ FTP/ SMB/ QUEUE Compress Method Color/Gray Standard Select the default destination to be displayed when select- ing the Scanner screen. High Compress/ Standard/ Low Compress bizhub PRO C6500 / bizhub PRO C6500e 15-19...
  • Page 682 04 ACS adjustment Adj. Range: 0 Adjust the automatic color detection function. Adj. Range: -5~+5 08 Change Password Change a user password which the user has registered for user authentication. Enter new password 15-20 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 683: Function List Of Machine Administrator Setting

    Lens Mode], and [Change Program Image Overlay]. Permission • Change Send Address: Permission/ Prohibition Change Program Image • Change User Lens Mode: Permission/ Prohibition Overlay: Prohibition • Change Program Image Overlay: Permission/ Prohi- bition bizhub PRO C6500 / bizhub PRO C6500e 15-21...
  • Page 684 • Staple Center Position: -20 to +20 (1 step = 0.1mm) • Paper Width (staple): -20 to +20 (1 step = 0.1mm) • Paper Width (straight): -20 to +20 (1 step = 0.1mm) 15-22 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 685 0.1mm) • Trimmer Receiver Adj.: Trimmer Count, Move Pitch, Execute Compulsive Movement 07 RU Adjustment Adjust the settings related to the Relay Unit RU- 503/ RU-504. Curl Reform Direction: Off/ Upper/ Lower bizhub PRO C6500 / bizhub PRO C6500e 15-23...
  • Page 686 Adjust the settings related to the scanner. • Restart Timing Adjustment: -10 to +20 (1 step = 0.1mm) • Centering Adjustment: -30 to +30 (1 step = 0.1mm) • FD-Mag. Adjustment: -40 to +40 (1 step = 0.05%) 15-24 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 687 B4 w, B5 w, B5 v, 11 e 17 w, 8.5 e 11 v / 8K w, 16K w, 16K v A5 w / B6 w / 5.5 e 8.5 w Post / A6 w bizhub PRO C6500 / bizhub PRO C6500e 15-25...
  • Page 688 • Account Track Auth. Method: Account + Password/ Upper Limit Achieve Move- Password ment: Immediately • User/Section Auth. Connect: Connected/ Un-Connected • User Distribute Number: 0000 • Upper Limit Achieve Movement: Immediately/ After Print / Warning Only 15-26 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 689 Select the SHOT indication time to be displayed in the mes- sage indication area of the touch panel. 3 seconds/ 5 seconds Job Offset Mode Set the machine to offset the copies/printouts of different jobs. On/ Off bizhub PRO C6500 / bizhub PRO C6500e 15-27...
  • Page 690 On/ Off ADF AMS Set the machine to automatically select an appropriate ratio for copying when detecting the original size placed on the ADF. On/ Off 15-28 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 691 Select the default file form when transmitting to FTP. Packaged TIFF/ Divided TIFF/ Packaged PDF/ JPEG File Form Default SMB Packaged PDF Select the default file form when transmitting in SMB. Packaged TIFF/ Divided TIFF/ Packaged PDF/ JPEG bizhub PRO C6500 / bizhub PRO C6500e 15-29...
  • Page 692 Change the password when accessing data stored in HDD. 03 Overwrite image data Specify whether to overwrite image data. Yes/ No 04 Security Strengthen Set Set the Security Strengthen mode. On/ Off 15-30 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 693: User Setting

    User setting...

  • Page 695: User Setting Outlines

    [Machine Admin. Setting] on the Utility/Counter screen. The Machine Administrator Menu screen can optionally be set so as to be available to only those who enter the valid Administrator password. This section describes the user setting. bizhub PRO C6500 / bizhub PRO C6500e 16-3...
  • Page 696 How to display User Setting Menu screen Press the [Utility/Counter] on the control panel. The Utility menu screen will be displayed. Touch [User Setting]. The User Setting Menu screen will be displayed. 16-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 697 Touch [Close] to return to the previous screen. Touch the desired layer key on the left side area of the screen to jump to that screen. Touch [Exit] to restore the Copy screen. bizhub PRO C6500 / bizhub PRO C6500e 16-5...

  • Page 698: System Setting

    The initial setting is English. Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [01 System Setting], and then [01 Language Setting]. Select the desired language key to highlight it. 16-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 699 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the System Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-7...
  • Page 700 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the System Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-8 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 701 Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [01 System Setting], [03 Feed Tray Setting], and then [02 Feed Tray Auto Selection]. bizhub PRO C6500 / bizhub PRO C6500e 16-9...
  • Page 702 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Feed Tray Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 703 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Feed Tray Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-11...
  • Page 704 Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [01 System Setting], [03 Feed Tray Setting], and then [04 Auto Paper Type]. Select the paper type of the tray which is automatically selected when ATS functions. 16-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 705 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Feed Tray Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-13...
  • Page 706 To enable the dryness preparation function, touch [On], otherwise touch [Off]. The selection becomes highlighted. – Select [Automatic], [On (compulsory)], or [Off (compulsory)] to control the fun heater attached to each tray of the paper feeder unit. 16-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 707 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Feed Tray Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-15...
  • Page 708 Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [01 System Setting], [04 Reset Setting], and then [01 Auto Reset Setting]. Select the desired time to highlight it. 16-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 709 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Reset Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-17...
  • Page 710 Select to reset or save the original direction setting made on the Special Original screen and the binding position setting made on the Output Mode screen after completion of each copying job. 16-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 711 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Reset Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-19...
  • Page 712 [Copy]: Copy screen will be displayed. Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [01 System Setting], and then [05 Default Screen Setting]. Select the desired initial screen to highlight it. 16-20 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 713 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the System Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-21...
  • Page 714 Touch [01 System Setting], and then [06 Preset Zoom Setting]. Touch the desired preset zoom key (from 1 to 3) and display the desired zoom ratio on the right side of the keys using the touch panel keypad. 16-22 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 715 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the System Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-23...
  • Page 716 30 min. / 60 min. /90 min. / 120 min. / 240 min. Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [01 System Setting], and then [07 Power Save Setting]. 16-24 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 717 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the System Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-25...
  • Page 718 If the period of time selected for Auto Shut Off is shorter than that of for Auto Low Power, the period of time for Auto Low Power will be forcibly reset to the same period of time as Auto Shut Off. Auto Low Power will not function. 16-26 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 719 Enter the time by using the touch panel keypad. – Touch [Set] to move the highlighted section to the number to be changed. Repeat the same procedure for month, date, and time. bizhub PRO C6500 / bizhub PRO C6500e 16-27...
  • Page 720 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the System Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-28 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 721 Select the duration of the buzzer sound when the machine stops due to no paper and mishandled paper. Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [01 System Setting], [09 Buzzer Setting], and then [01 Buzzer Volume Regulation]. bizhub PRO C6500 / bizhub PRO C6500e 16-29...
  • Page 722 Touch [Off] to highlight it. The buzzer will go off. Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the System Setting Menu screen will be restored. Touch [02 Buzzer for Job Stop Set]. 16-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 723 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Buzzer Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-31...
  • Page 724 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the System Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-32 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 725 [Short Cut Display] under [Quality Adjust.] on the Copy screen can also be changed to [Density Setting Display]. Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [01 System Setting], and then [11 Short cut Key Setting]. bizhub PRO C6500 / bizhub PRO C6500e 16-33...
  • Page 726 To set short cut keys to be displayed under [Quality Adjust.] on the Copy screen, touch [02 Quality Adjust. (Copy) ]to display the Short cut Key Setting screen (Quality). – Touch appropriate keys to select up to 3 short cuts for [Quality Adjust.]. 16-34 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 727 (Scanner)] to display the Short cut Key Setting screen (Quality) – Touch appropriate keys to select up to 3 short cuts for [Quality Adjust.]. Touch [OK] to complete the setting. The Short Cut Key Setting Menu screen will be restored. bizhub PRO C6500 / bizhub PRO C6500e 16-35...
  • Page 728 Select either [Short Cut Display] or [Density Setting Display]. Touch [OK] to complete the setting. The Short Cut Key Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-36 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 729 Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [01 System Setting], and then [12 Service Port Device]. Select either [On] or [Off]. – When selecting [On], touch [Keyboard Type] to select a keyboard type. bizhub PRO C6500 / bizhub PRO C6500e 16-37...
  • Page 730 To cancel the change, touch [Cancel]. In either case, the System Setting Menu screen will be restored. If further changes are required, touch the desired key. Note When using the service port device, contact your service representative. 16-38 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 731: Initial Setting

    [OFF] for the Mode memory auto call. Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [02 Initial Setting], and then [01 Copy Initial setting]. bizhub PRO C6500 / bizhub PRO C6500e 16-39...
  • Page 732 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the System Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-40 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 733 04 Reset Setting \ 02 Mode Reset Setting], and then select [Initial] for the Reset button function. Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [02 Initial Setting], and then [02 Scan Initial setting]. bizhub PRO C6500 / bizhub PRO C6500e 16-41...
  • Page 734 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the System Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-42 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 735: Common Setting

    Select whether to maintain the temperature Others/Coated Paper which is suited for the coated paper by turning the fixing unit roller. Un-compressing mode Specify when storing to HDD is not com- Off/On pleted with memory overflow. bizhub PRO C6500 / bizhub PRO C6500e 16-43...
  • Page 736 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Reset Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-44 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 737: Copy Setting

    Bookmark function Specify whether to delete the set book- Off/Release Every mark or not, or select to disable the book- Job/Not release mark function. bizhub PRO C6500 / bizhub PRO C6500e 16-45...
  • Page 738 Choose Default Tray Select the tray to be automatically selected when APS Off when APS is released. Tray/Tray1/Tray2/Tray 3/Tray4/Tray5 Scan prohibit (pull out Set to stop scanning when pulling out the On/Off tray) tray. 16-46 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 739 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Reset Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-47...

  • Page 740: Scan Setting

    Select the default destination to be dis- played when selecting the Scanner screen. Mail/HDD/FTP/SMB/ QUEUE Compress Method Select the default destination to be dis- High Com- Color/Gray played when selecting the Scanner screen. press/Standard/Low Compress 16-48 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 741 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Reset Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 16-49...

  • Page 742: Printer Setting

    Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [06 Printer Setting], and then [01 Gray Text Outline Enhance]. 16-50 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 743 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Printer Setting Menu screen will be restored. Touch [06 Printer Setting], and then [02 Thin Line Enhancement]. bizhub PRO C6500 / bizhub PRO C6500e 16-51...
  • Page 744 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Printer Setting Menu screen will be restored. Touch [06 Printer Setting], and then [03 Reserved Text Enhancement]. 16-52 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 745 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Printer Setting Menu screen will be restored. Touch [06 Printer Setting], and then [04 Blur Prevention]. bizhub PRO C6500 / bizhub PRO C6500e 16-53...
  • Page 746 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Printer Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-54 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 747: Image Quality Setting

    Dot 2: Permission/Prohibition Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [07 Image Quality Setting], and then [01 Screen]. Select the desired key to highlight it. bizhub PRO C6500 / bizhub PRO C6500e 16-55...
  • Page 748 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Image Quality Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-56 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 749 Single Color-Text/Photo: Line 1/Line 2/Dot 1/Dot 2/Compression Single Color-Photo: Line 1/Line 2/Dot 1/Dot 2/Compression Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [07 Image Quality Setting], and then [02 Screen Initial setting]. bizhub PRO C6500 / bizhub PRO C6500e 16-57...
  • Page 750 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Image Quality Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-58 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 751 Touch [07 Image Quality Setting], and then [03 Original Density shift]. Display the required item using up/down arrow keys, and touch it. Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: 0 to +6 bizhub PRO C6500 / bizhub PRO C6500e 16-59...
  • Page 752 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Image Quality Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-60 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 753 Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [07 Image Quality Setting], and then [04 ACS adjustment]. Place the original onto the original glass, and touch [Scan]. Scanned result is displayed in the message area. bizhub PRO C6500 / bizhub PRO C6500e 16-61...
  • Page 754 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Image Quality Setting Menu screen will be restored. If further changes are required, touch the desired key. 16-62 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 755: Change Password

    The changed password is reflected to the user authentication setting description. Follow the procedure on page 16-3 to display the User Setting Menu screen. Touch [08 Change Password]. Enter current password, then touch [OK]. bizhub PRO C6500 / bizhub PRO C6500e 16-63...
  • Page 756 Be sure to make the user authentication before accessing the User Setting screen. The user password can not be changed without any user authentication made or if logged in user is different from the one who wants to change the password. 16-64 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 757: Machine Administrator Setting

    Machine administrator setting...

  • Page 759: Machine Administrator Setting Outlines

    Note The Machine Administrator Menu screen can optionally be set so as to be available to only those who enter the valid Administrator password. Contact your service representative for setting the password. bizhub PRO C6500 / bizhub PRO C6500e 17-3...
  • Page 760 Machine administrator setting How to access the Machine Administrator Setting screen Press the [Utility/Counter] on the control panel. The Utility menu screen will be displayed. Touch [03 Machine Admin. Setting]. 17-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 761 Machine administrator setting – If the Password Input screen is displayed, enter the eight-digit machine administrator password, then touch [OK]. The Machine Administrator Setting Menu screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 17-5...
  • Page 762 Touch [Close] to return to the previous screen. Touch the desired layer key on the left side area of the screen to jump to that screen. Touch [Exit] to restore the Copy screen. 17-6 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 763: System Setting

    30 min. / 60 min. /90 min. / 120 min. / 240 min. Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], and then [01 Power Save Setting]. bizhub PRO C6500 / bizhub PRO C6500e 17-7...
  • Page 764 Power Save Setting screen will be displayed. Detail The following operation is equivalent to selecting [User Setting \ 01 System Setting \ 07 Power Save Setting]. Please refer to page 16-18 for more information. 17-8 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 765 Time and Date Setting screen will be displayed. Detail The following operation is equivalent to selecting [User Setting \ 01 System Setting \ 08 Time and Date Setting]. Please refer to page 16-27 for more information. bizhub PRO C6500 / bizhub PRO C6500e 17-9...
  • Page 766 - The current date and time are correctly set. Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [03 Weekly Timer Setting], and then [01 Weekly Timer On/Off Set]. 17-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 767 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Weekly Timer Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-11...
  • Page 768 On and Off times will not turn on the machine even if the timer is set operational. Follow the procedure on page 17-3 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [03 Weekly Timer Setting], and then [02 Timer Setting]. 17-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 769 Touch [Set] to highlight the On time for the day of the week that you want to activate the machine. – User the touch panel keypad to enter the On time, and then touch [Set]. The Off time for the day becomes highlighted. bizhub PRO C6500 / bizhub PRO C6500e 17-13...
  • Page 770 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Weekly Timer Setting Menu screen will be restored. If further changes are required, touch the desired key. 17-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 771 Off for sundays. Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [03 Weekly Timer Set], and then [03 Timer Action On/Off Set]. bizhub PRO C6500 / bizhub PRO C6500e 17-15...
  • Page 772 Use the arrow keys [+] and [,] to scroll to the desired month. – Touch the key for the desired day to activate the timer on the calendar displayed on the center of the screen. 17-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 773 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Weekly Timer Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-17...
  • Page 774 The factory default setting is Function Invalid. Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [03 Weekly Timer Setting], and then [04 Lunch Hour Off Setting]. 17-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 775 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Weekly Timer Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-19...
  • Page 776 Use the touch panel keypad to enter a four-digit password. Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Weekly Timer Setting Menu screen will be restored. 17-20 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 777 [Power Save] on the control panel, then on. In this case, you will be asked to enter the duration of use (a period of time to turn the machine power on). bizhub PRO C6500 / bizhub PRO C6500e 17-21...
  • Page 778 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [04 Operation Prohibit Set], and then [01 Lock/Delete Mode Memory]. Touch [Copy Mode Memory] or [Scan Mode Memory]. 17-22 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 779 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Lock/Delete Mode Memory Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-23...
  • Page 780 Permit/prohibit to delete or overwrite a title of programmed overlay image. Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [04 Operation Prohibit Set], and then [02 Change Prohibit Setting]. 17-24 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 781 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Reset Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-25...
  • Page 782 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [04 Operation Prohibit Set], and then [03 Scanner Prohibit Setting]. Touch to highlight [Permit] or [Prohibit] for each item. 17-26 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 783 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Operation Prohibit Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-27...
  • Page 784 Touch appropriate keys to set required levels separately for [Color] and [Black]. Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Expert Adjustment Menu screen will be restored. 17-28 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 785 Machine administrator setting If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-29...
  • Page 786 (five levels). The default setting is Auto. 03 ADF Frame Erasure Set Frame Erasure to function anytime when copying in ADF mode, and set the amount of the outside area to be deleted. 17-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 787 Touch the desired key to highlight it. Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Operation Prohibit Setting Menu screen will be restored. bizhub PRO C6500 / bizhub PRO C6500e 17-31...
  • Page 788 In either case, the Erase Adjustment Menu screen will be restored. Touch [03 ADF Frame Erase]. – Touch the desired amount of outside area to be deleted. Touch [None] if deleting the outside area is not necessary. 17-32 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 789 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Expert Adjustment Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-33...
  • Page 790 Perform this adjustment after completing FD-Mag. Adjustment. Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [05 Expert Adjustment], [03 Printer Adjustment], and then [01 Restart Timing Adjustment]. 17-34 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 791 Machine administrator setting The Restart Timing Adjustment screen will be displayed. Detail Please refer to page 14-6 for the details on the subsequent operations. bizhub PRO C6500 / bizhub PRO C6500e 17-35...
  • Page 792 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [05 Expert Adjustment], [03 Printer Adjustment], and then [02 Centering Adjustment]. The Centering Adjustment screen will be displayed. 17-36 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 793 Machine administrator setting Detail Please refer to page 14-6 for the details on the subsequent operations. bizhub PRO C6500 / bizhub PRO C6500e 17-37...
  • Page 794 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [05 Expert Adjustment], [03 Printer Adjustment], and then [03 FD-Mag. Adjustment]. The FD-Mag. Adjustment screen will be displayed. 17-38 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 795 Machine administrator setting Detail Please refer to page 14-22 for the details on the subsequent operations. bizhub PRO C6500 / bizhub PRO C6500e 17-39...
  • Page 796 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [05 Expert Adjustment], [03 Printer Adjustment], and then [04 CD-Mag. Adjustment]. The CD-Mag. Adjustment screen will be displayed. 17-40 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 797 Machine administrator setting Detail Please refer to page 14-11 for the details on the subsequent operations. bizhub PRO C6500 / bizhub PRO C6500e 17-41...
  • Page 798 Touch [01 System Setting], [05 Expert Adjustment], [03 Printer Adjustment], and then [05 Lead Edge Erase Adjustment]. The Lead Edge Erase Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. 17-42 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 799 Repeat the adjustment steps from 3 to 7 until the desired result is obtained. Touch [Return] to restore the Printer Adjustment Menu screen. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-43...
  • Page 800 Touch [01 System Setting], [05 Expert Adjustment], [03 Printer Adjustment], and then [06 Registration Loop Adj.]. The Registration Loop Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. 17-44 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 801 Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Printer Adjustment Menu screen. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-45...
  • Page 802 Administrator Setting Menu screen. Touch [01 System Setting], [05 Expert Adjustment], [03 Printer Adjustment], and then [07 Pre-registration Adj.]. The Pre-registration Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. 17-46 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 803 Repeat the adjustment steps from 3 to 8 until the desired result is obtained. Touch [Return] to restore the Printer Adjustment Menu screen. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-47...
  • Page 804 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [05 Expert Adjustment], and then [04 Finisher Adjustment]. The Finisher Adjustment screen will be displayed. 17-48 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 805 Machine administrator setting Detail Please refer to page 14-23 for the details on the subsequent operations. bizhub PRO C6500 / bizhub PRO C6500e 17-49...
  • Page 806 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [05 Expert Adjustment], and then [05 Scanner Adjustment]. The Scanner Adjustment screen will be displayed. 17-50 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 807 Machine administrator setting Detail Please refer to page 14-14 for the details on the subsequent operations. bizhub PRO C6500 / bizhub PRO C6500e 17-51...
  • Page 808 Touch [+ <-> -] to specify the value to be positive or negative. Use the touch panel keypad to enter the desired adjustment value, then touch [<<SET]. Available range: -3 to +3 17-52 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 809 Machine administrator setting Touch [Return] to restore the Process Adjustment Menu screen. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-53...
  • Page 810 Touch [Start] to display the value of toner density sensor. – To cancel the sensor, touch [Stop]. Touch [Return] to restore the Process Adjustment Menu screen. If further changes are required, touch the desired key. 17-54 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 811 Adjustment], and then [03 Toner Quality/Exposure]. Touch [Next] or [Previous] to display the relevant screen for the color you want to adjust. Touch appropriate level keys under [Toner Quality] and [Exposure] to specify toner quantity and exposure. bizhub PRO C6500 / bizhub PRO C6500e 17-55...
  • Page 812 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Process Adjustment Menu screen will be restored. If further changes are required, touch the desired key. 17-56 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 813 Touch [01 System Setting], [05 Expert Adjustment], [07 Quality Adjustment], and then [01 Printer Gamma Offset Adj.]. The Printer Gamma Offset Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 17-57...
  • Page 814 Repeat the adjustment steps from 3 to 6 until the desired result is obtained. Touch [Return] to restore the Process Adjustment Menu screen. If further changes are required, touch the desired key. 17-58 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 815 Administrator Setting Menu screen. Touch [01 System Setting], [05 Expert Adjustment], [07 Quality Adjustment], and then [02 Printer Gamma Offset Auto Adj.]. The Printer Gamma Offset Automatic Adjustment screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 17-59...
  • Page 816 The test chart will be output. The Printer Gamma Offset Automatic Adjustment screen will be restored. Touch [Next] or [Previous] to display the relevant screen on which you want to make adjustments. 17-60 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 817 Touch [YES] to reset the adjustment value to the factory setting, or touch [NO] to cancel. Touch [Return] to restore the Quality Adjustment Menu screen. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-61...
  • Page 818 Touch [01 System Setting], [05 Expert Adjustment], [07 Quality Adjustment], and then [03 Printer Gamma Sensor Adj.]. The Printer Gamma Offset Automatic Adjustment screen will be displayed. Touch [COPY] tab. The Copy screen will be displayed. 17-62 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 819 The message "Completed" will be displayed. If an error code (Error 1, 2, or 10) is displayed, check that the test chart is placed properly. If any other error code is displayed, please contact your service representative. bizhub PRO C6500 / bizhub PRO C6500e 17-63...
  • Page 820 Touch [YES] to reset the adjustment value to the factory setting, or touch [NO] to cancel. Touch [Return] to restore the Quality Adjustment Menu screen. If further changes are required, touch the desired key. 17-64 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 821 Touch [01 System Setting], [05 Expert Adjustment], [07 Quality Adjustment], and then [04 Image Quality Stability]. The Image Quality Stability screen will be displayed. Select [Speed] or [Stability] separately for a copying and printing job. bizhub PRO C6500 / bizhub PRO C6500e 17-65...
  • Page 822 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Quality Adjustment Menu screen will be restored. If further changes are required, touch the desired key. 17-66 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 823 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], [05 Expert Adjustment], [07 Quality Adjustment], and then [05 Custom Screen]. The Custom Screen Setting screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 17-67...
  • Page 824 Copy screen. The gamma automatic adjustment will be performed. After the gamma adjustment is complete, adjust the printer gamma offset setting for the screen which was modified in the machine administrator setting. 17-68 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 825 Administrator Setting Menu screen. Touch [01 System Setting], [05 Expert Adjustment], and then [08 Execute Adjust Operation]. The Execute Adjustment Operation screen will be displayed. Touch an appropriate key to select the adjustment operation. bizhub PRO C6500 / bizhub PRO C6500e 17-69...
  • Page 826 Touch [OK] to complete the operation. – To cancel the change, touch [Cancel]. In either case, the Expert Adjustment Menu screen will be restored. If further changes are required, touch the desired key. 17-70 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 827 Font patterns used in the machine Audit log report Audited log Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], and then [06 List/Count]. bizhub PRO C6500 / bizhub PRO C6500e 17-71...
  • Page 828 To suspend printing, press [Stop]. Touch [UTILITY] tab to return to the List Print screen. Touch Return to restore the Machine Administrator Setting Menu screen. If further changes are required, touch the desired key. 17-72 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 829 FD-501 so as to prevent other similar sizes from being detected instead. Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 System Setting], and then [07 Size Setting]. bizhub PRO C6500 / bizhub PRO C6500e 17-73...
  • Page 830 – Touch the desired key to highlight it. Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Size Setting Menu screen will be restored. 17-74 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 831 Touch the desired size key to highlight it. Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Size Setting Menu screen will be restored. bizhub PRO C6500 / bizhub PRO C6500e 17-75...
  • Page 832 Touch the desired size key to highlight it. Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Size Setting Menu screen will be restored. 17-76 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 833 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Size Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-77...

  • Page 834: Administrator Register

    Utility/Counter screen. Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [02 Administrator Register]. The Machine Administrator Registration screen will be displayed. 17-78 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 835 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Machine Administrator Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-79...

  • Page 836: Scanner Send Address

    Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [01 Scanner Send Address], and then [01 Address Edit]. The Register/Edit Destination Address screen will be displayed. 17-80 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 837 Touch [Address] and display the screen for input. Repeat this operation for [Register Name] and [Search Character]. Set Daily Use by touching [On] or [Off]. Touch [OK] to restore the Register/Edit Destination Address screen. bizhub PRO C6500 / bizhub PRO C6500e 17-81...
  • Page 838 Select the changing item from [Address], [Register name] and [Search Character], and change it in the input screen. Set Daily Use by touching [On] or [Off]. Touch [OK] to restore the Register/Edit Destination Address screen. 17-82 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 839 Touch [OK] to restore the Register/Edit Destination Address screen. Add, change or delete the HDD destination address. To add the HDD destination address: – Touch [HDD], and touch [Add] to display the Input Destination Address screen. bizhub PRO C6500 / bizhub PRO C6500e 17-83...
  • Page 840 [,] to display the Register Name to be changed, and touch to highlight it. Touch [Change] to display the Input Destination Address screen. Select the changing item from [Address], [Name] and [Reference Name], and change it in the input screen. 17-84 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 841 [,] to display the Register Name to be deleted, and touch to highlight it. Touch [Delete]. The Delete Confirmation popup screen will be displayed. Touch [Yes]. To suspend deleting, touch [No]. Touch [OK] to restore the Register/Edit Destination Address screen. bizhub PRO C6500 / bizhub PRO C6500e 17-85...
  • Page 842 Name] and [Password]. Touch [Anonymous] to log in as anonymous. The port number is assigned automatically. Select proxy by touching [On] or [Off]. Set Daily Use by touching [On] or [Off]. Touch [OK] to restore the Register/Edit Destination Address screen. 17-86 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 843 [Host Address], [File Path], [Login Name] and [Password], and change it in the input screen. Select proxy by touching [On] or [Off]. Set Daily Use by touching [On] or [Off]. Touch [OK] to restore the Register/Edit Destination Address screen. bizhub PRO C6500 / bizhub PRO C6500e 17-87...
  • Page 844 [,] to display the Register Name to be deleted, and touch to highlight it. Touch [Delete]. The Delete Confirmation popup screen will be displayed. Touch [Yes]. To suspend deleting, touch [No]. Touch [OK] to restore the Register/Edit Destination Address screen. 17-88 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 845 Touch [Register Name] and display the screen for input. Repeat this operation for [Search Character], [Host Address], [File Path], [Login Name] and [Password]. Set Daily Use by touching [On] or [Off]. Touch [OK] to restore the Register/Edit Destination Address screen. bizhub PRO C6500 / bizhub PRO C6500e 17-89...
  • Page 846 [Host Address], [File Path], [Login Name] and [Password], and change it in the input screen. Set Daily Use by touching [On] or [Off]. Touch [OK] to restore the Register/Edit Destination Address screen. 17-90 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 847 Touch [Yes]. To suspend deleting, touch [No]. Touch [OK] to restore the Register/Edit Destination Address screen. Add, change or delete Group. To add Group – Touch [Group], and touch [Add] to display the Register/ Edit Destination Address screen. bizhub PRO C6500 / bizhub PRO C6500e 17-91...
  • Page 848 Touch [List] to view the e-mail address, HDD, FTP, and SMB which have been selected. Touch [OK] to return to the Destination List screen. Touch [OK] to restore the Register/Edit Destination Address screen. 17-92 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 849 Touch [List] to view the e-mail address, HDD, FTP, and SMB which have been selected. Touch [OK] to return to the Destination List screen. bizhub PRO C6500 / bizhub PRO C6500e 17-93...
  • Page 850 Touch [Delete]. The Delete Confirmation popup screen will be displayed. Touch [Yes]. To suspend deleting, touch [No]. Touch [Return] to restore the Scan Send Address Menu screen. If further changes are required, touch the desired key. 17-94 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 851 The E-Mail Title Setting screen will be displayed. Input the E-Mail title. – Touch an appropriate key by selecting from [1] to [5] to display the screen to input appropriate titles, and then touch [OK]. bizhub PRO C6500 / bizhub PRO C6500e 17-95...
  • Page 852 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Scan Send Address Menu screen will be restored. If further changes are required, touch the desired key. 17-96 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 853 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Scan Send Address Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-97...

  • Page 854: User Auth./Account Track

    Detail It is recommended to distribute authentication for both the user and the section, otherwise either party cannot be assigned authentication if it is distributed to only one party. 17-98 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 855 "User/Section Auth. Connect". Touch [User Distribute Number] to display the touch panel keypad. – Enter the number to distribute using the keypad or the arrow keys [+] and [,], then touch [OK]. bizhub PRO C6500 / bizhub PRO C6500e 17-99...
  • Page 856 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the User Auth./Account Track Menu screen will be restored. If further changes are required, touch the desired key. 17-100 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 857 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [04 User Auth./Account Track], [02 User Authentication Set], and then [01 Management Setting]. The Management Setting screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 17-101...
  • Page 858 Touch [Upper] to display the keypad which can be used to enter the upper limit. – Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. – In either case, the Management Setting screen will be restored. 17-102 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 859 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the User Authentication Setting screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-103...
  • Page 860 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [04 User Auth./Account Track], [02 User Authentication Set], and then [02 User Register]. The User Registration screen will be displayed. 17-104 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 861 [OK]. You may enter 64 digits for the password. For the details on entering texts in the input screen, see "26 Appendix". Touch [Belong Section] to display the screen to select a section belong to. bizhub PRO C6500 / bizhub PRO C6500e 17-105...
  • Page 862 Touch [Upper] to display the keypad which can be used to enter the upper limit. Touch [Copy], [Scanner], or [Printer] in the "Useable Function" to specify the functions made available to the user. 17-106 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 863 Touch [Next] or [Previous] to display the desired section name, touch to highlight it, then touch [OK]. Touch [Color] or [Black] in the "Output Permission" to select the type of printing operation made available to the user. bizhub PRO C6500 / bizhub PRO C6500e 17-107...
  • Page 864 Touch [From Address] to display the screen for entering the From address. Select an appropriate address or register a new address, and then touch [OK]. Touch [OK] to complete the setting. 17-108 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 865 Touch [Next] or [Previous] to display the user name to be deleted and touch to highlight it. Touch [Delete] to display the Delete Confirmation popup menu. Touch [Yes] to delete, or touch [No] to cancel. bizhub PRO C6500 / bizhub PRO C6500e 17-109...
  • Page 866 Touch [Upper] to display the keypad which can be used to enter the upper limit. Touch [Copy], [Scanner], or [Printer] in the "Useable Function" to specify the functions made available to all users. Touch [OK] to complete the setting. 17-110 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 867 Machine administrator setting Touch [Return] to restore the Machine Administrator Setting Menu screen. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-111...
  • Page 868 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [04 User Auth./Account Track], [02 User Authentication Set], and then [03 User Counter]. The User Counter List screen will be displayed. 17-112 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 869 Touch [Yes] to delete, or touch [No] to cancel. Touch [Yes] to display the screen to select the count to reset. Touch an appropriate key. Touch [Return] to restore the User Counter List screen. bizhub PRO C6500 / bizhub PRO C6500e 17-113...
  • Page 870 Touch [Clear (Package)] to display the All Reset Counter Confirmation popup menu. Touch [Yes] to reset, or touch [No] to cancel. Touch [Return] to restore the User Authentication Setting Menu screen. If further changes are required, touch the desired key. 17-114 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 871 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [04 User Auth./Account Track], [03 Account Track], and then [01 Account Register]. The Registered Section screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 17-115...

  • Page 872: How To Input Characters

    Touch [Name] to display the input screen. Enter the section name and touch [OK]. You may enter twenty letters for the section name. For the details on entering texts in the input screen, see "How to input characters" on page 26-3. 17-116 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 873 Touch [Upper] to display the keypad which can be used to enter the upper limit. Touch [Copy], [Scanner], or [Printer] in the "Useable Function" to specify the functions made available to the account. Touch [OK] to complete the setting. bizhub PRO C6500 / bizhub PRO C6500e 17-117...
  • Page 874 "How to input characters" on page 26-3. Touch [Name] to display the input screen. Enter the section name and touch [OK]. You may enter twenty letters for the section name. 17-118 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 875 Touch [Upper] to display the keypad which can be used to enter the upper limit. Touch [Copy], [Scanner], or [Printer] in the "Useable Function" to specify the functions made available to the account. Touch [OK] to complete the setting. bizhub PRO C6500 / bizhub PRO C6500e 17-119...
  • Page 876 Touch [Next] or [Previous] to display the section name to be deleted and touch to highlight it. Touch [Delete] to display the Delete Confirmation popup menu. Touch [Yes] to delete, or touch [No] to cancel. 17-120 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 877 Touch [Upper] to display the keypad which can be used to enter the upper limit. Touch [Copy], [Scanner], or [Printer] in the "Useable Function" to specify the functions made available to all users. Touch [OK] to complete the setting. bizhub PRO C6500 / bizhub PRO C6500e 17-121...
  • Page 878 Machine administrator setting Touch [Return] to restore the Machine Administrator Setting Menu screen. If further changes are required, touch the desired key. 17-122 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 879 Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [04 User Auth./Account Track], [03 Account Track], and then [02 Account Counter]. The Section Counter List screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 17-123...
  • Page 880 Touch [Yes] to delete, or touch [No] to cancel. Touch [Yes] to display the screen to select the count to reset. Touch an appropriate key. Touch [Return] to restore the User Counter List screen. 17-124 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 881 Touch [Clear (Package)] to display the All Reset Counter Confirmation popup menu. Touch [Yes] to reset, or touch [No] to cancel. Touch [Return] to restore the Account Track Setting Menu screen. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-125...
  • Page 882 Administrator Setting Menu screen. Touch [04 User Auth./Account Track], and then [04 Without Authentication]. The Without Authentication Setting screen will be displayed. Touch [Permission] or [Prohibition] separately under "Print" and the "Pull Scan". 17-126 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 883 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the User Auth./Account Track Setting screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-127...

  • Page 884: Network Setting

    Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [05 Network Setting], and then [01 Machine NIC Setting]. The Machine NIC Setting screen will be displayed. 17-128 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 885 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Network Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-129...
  • Page 886 The E-Mail Initial Setting screen will be displayed. Specify the following items. – Enter numeric values using the touch panel keypad. After entering a value, touch Set. The next item becomes highlighted for setting. Continue in this manner. 17-130 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 887 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Network Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-131...

  • Page 888: Common Setting

    Select whether to maintain the temperature Others/Coated Paper which is suited for the coated paper by turning the fixing unit roller. Un-compressing mode Specify when storing to HDD is not com- Off/On pleted with memory overflow. 17-132 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 889 Touch [06 Common Setting]. The Common Setting screen will be displayed. Detail The following operation is equivalent to selecting [User Setting \ 03 Common Setting]. Please refer to page 16-43 for more information. bizhub PRO C6500 / bizhub PRO C6500e 17-133...

  • Page 890: Copy Setting

    Bookmark function Specify whether to delete the set book- Off/Release Every mark or not, or select to disable the book- Job/Not release mark function. 17-134 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 891 Choose Default Tray Select the tray to be automatically selected when APS Off when APS is released. Tray/Tray1/Tray2/Tray 3/Tray4/Tray5 Scan prohibit (pull out Set to stop scanning when pulling out the On/Off tray) tray. bizhub PRO C6500 / bizhub PRO C6500e 17-135...
  • Page 892 Touch [07 Copy Setting]. The Copy Setting screen will be displayed. Detail The following operation is equivalent to selecting [User Setting \ 04 Copy Setting]. Please refer to page 16-45 for more information. 17-136 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 893: Scan Setting

    Select the default destination to be dis- played when selecting the Scanner screen. Mail/HDD/FTP/SMB/ QUEUE Compress Method Select the default destination to be dis- High Com- Color/Gray played when selecting the Scanner screen. press/Standard/Low Compress bizhub PRO C6500 / bizhub PRO C6500e 17-137...
  • Page 894 Touch [08 Scan Setting]. The Scan Setting screen will be displayed. Detail The following operation is equivalent to selecting [User Setting \ 05 Scan Setting]. Please refer to page 16-48 for more information. 17-138 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 895: System Connection

    Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [09 System Connection], and then [01 Administrator]. The Administrator Call screen will be displayed. Touch [Start]. bizhub PRO C6500 / bizhub PRO C6500e 17-139...
  • Page 896 Machine administrator setting Touch [Return] to restore the System Connection Menu screen. If further changes are required, touch the desired key. 17-140 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 897: Security Setting

    Set the new machine administrator password. Follow the procedure on page 17-4 to display the Machine Administrator Setting Menu screen. Touch [10 Security Setting], and then [01 Administrator Password]. The Administrator Password Input screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 17-141...
  • Page 898 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Security Setting Menu screen will be restored. If further changes are required, touch the desired key. 17-142 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 899 Touch [10 Security Setting], and then [02 Change HDD Lock Password]. The Change HDD Lock Password Menu screen will be displayed. Touch [Current Password] to display the Password Input screen. Enter the current password and touch [OK]. bizhub PRO C6500 / bizhub PRO C6500e 17-143...
  • Page 900 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Security Setting Menu screen will be restored. If further changes are required, touch the desired key. 17-144 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 901 Touch [OK] to complete the setting. – To cancel the change, touch [Cancel]. In either case, the Security Setting Menu screen will be restored. If further changes are required, touch the desired key. bizhub PRO C6500 / bizhub PRO C6500e 17-145...
  • Page 902 Administrator Setting Menu screen. Touch [10 Security Setting], and then [04 Security Strengthen Set]. The Security Strengthen Setting screen will be displayed. Touch [On] when activating this mode, or touch [Off] when deactivating this mode. 17-146 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 903 Touch [Yes] to complete the setting. The machine power will be turned off, then on. – Touch [No] to cancel the setting. Touch [Cancel] at the lower right side of the screen to restore the Machine Administrator Setting Menu screen. bizhub PRO C6500 / bizhub PRO C6500e 17-147...
  • Page 904 Machine administrator setting 17-148 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 905: Touch Screen Adjustment

    Touch Screen adjustment...
  • Page 907 [4] with the Utility menu screen displayed. Contact your service representative for details. Press the [Utility/Counter] on the control panel. The Utility menu screen will be displayed. Touch [04 Touch Screen Adjustment]. The Touch Screen Adjustment screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 18-3...
  • Page 908 Press [0] on the control panel keypad to complete the setting. – To cancel the change, press [1] on the control panel keypad. In either case, the Utility menu screen will be restored. 18-4 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 909: Web Utilities Setting

    Web Utilities setting...

  • Page 911: Web Utilities Outlines

    Note To clear the text boxes, click on [Reset]. To cancel adding a new account track data, click on [Back] or any Administrator Setting menu item to jump to the desired window. bizhub PRO C6500 / bizhub PRO C6500e 19-3...
  • Page 912 Enter the URL (http:// [IP address or host name of the machine]), then click on [OK]. The Main Page of the Web Utilities will be displayed. Note The Web Utilities window is subject to change without notice. 19-4 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 913: Setting Account Track Data

    Account Track is set "Manage". User authentication data is not yet registered. 19.2.1 Adding account track Open the Web Utilities window. Click on [Machine Manager Setting]. The Enter Network Password dialogue box will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 19-5...
  • Page 914 The Machine Manager Setting menu will be displayed. Click on [Volume Track setting]. The Volume Track Setting menu will be displayed. Click on [Volume Track data add]. The Volume Track Data Add window will be displayed. 19-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 915 Color Up to 99999999 Black Up to 99999999 Only effect Individual Management – Management System: Total Management/ Individual Management – Output Permission: Prohibit Color/ Prohibit Black – Useable Function: Prohibit Copy/ Prohibit Scanner/ Prohibit print bizhub PRO C6500 / bizhub PRO C6500e 19-7...
  • Page 916 The new account track data will be transmitted to the machine immediately so that is valid for the user operations. Click on [Back] to return to the Volume Track Setting menu or any menu item to jump to the desired window. 19-8 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 917 To clear the text boxes, click on [Reset]. To cancel adding a new account track data, click on [Back] or any Ad- ministrator Setting menu item to jump to the desired window. bizhub PRO C6500 / bizhub PRO C6500e 19-9...

  • Page 918: Editing Account Track Data

    The Enter Network Password dialogue box will be displayed. Enter "admin" in the User Name text box, and an 8-digit administrator password in the password text box, then click on [OK]. The Machine Manager Setting menu will be displayed. 19-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 919 Web Utilities setting Click on [Volume Track setting]. The Volume Track Setting menu will be displayed. Click on [Volume Track data list]. The Volume Track Data List will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 19-11...
  • Page 920 Web Utilities setting Change the Volume Track Data. – Click on the number of the data to be edited. The Volume Track Data Change window will be displayed. 19-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 921 The edited content will be displayed in the window. The edited data will be transmitted to the machine immediately so that is valid for the user operations. – Click on [Back] to return to the Volume Track Data List window. bizhub PRO C6500 / bizhub PRO C6500e 19-13...
  • Page 922 [Select All]. – Click on the radio button (a white circle) heading the "Copy/Printer Count reset." or "Scan Count reset." – Click on [Apply]. The Counter Reset Confirmation window will be displayed. 19-14 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 923 Click on [Apply] to immediately reset the counters to zero. The message "Setting was changed" will be displayed. – Click on [Back] to return to the Account Track Data List or any menu item to jump to the desired window. bizhub PRO C6500 / bizhub PRO C6500e 19-15...
  • Page 924 Click on the radio button (a white circle) heading the "Delete (Except for Another user count)". – Click on [Apply]. The Delete Confirmation window will be displayed. – Click on [Apply] to immediately delete the data. 19-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 925 Click on [Back] to return to the Volume Track Data List or any menu item to jump to the desired window. Save Counter. – Click on [Save this table as a file]. bizhub PRO C6500 / bizhub PRO C6500e 19-17...
  • Page 926 Web Utilities setting – Click on [Save]. 19-18 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 927 The data cannot be saved while the machine is in operation. In this case, try this procedure again after the machine starts idling. Click on [Back] in the browser window to return to the Account Track Data List for starting over. bizhub PRO C6500 / bizhub PRO C6500e 19-19...
  • Page 928 Web Utilities setting Example: Account track data list stored as a file The "Public User" will be stored by the name of "PUBLIC" in the last line. 19-20 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 929: Remote Panel Setting

    - The machine should be connected with a PC over a network with TCP/IP enabled. - Set the Enhance Security mode OFF on the machine. Open the Web Utilities window. Click on [Machine Manager Setting]. The Enter Network Password dialogue box will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 19-21...
  • Page 930 Click on [Remote Panel setting]. The Remote Panel Setting menu will be displayed. Specify the IP address of the PC to be used for Remote Panel function. Max. 3 IP addresses can be specified. 19-22 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 931 Click on [Registration]. The IP address will be applied to the machine immediately so that is valid for the user operations. Click on [Administrator Setup Menu] to restore the Administrator Setting menu. bizhub PRO C6500 / bizhub PRO C6500e 19-23...

  • Page 932: Setting Scan Transmission Function

    - The HDD Box No. will be registered as a 9-digit number. For example, entering [1] will be registered as [000000001]. Open the Web Utilities window. Click on [Machine Manager Setting]. The Enter Network Password dialogue box will be displayed. 19-24 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 933 Enter "admin" in the User Name text box, and an 8-digit administrator password in the password text box, then click on [OK]. The Administrator Setting menu will be displayed. Click on [Scan transmission setting]. The Scan Transmission Setting window will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 19-25...
  • Page 934 Web Utilities setting Register the E-Mail, HDD, FTP, and SMB, as required. 19-26 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 935 Display the Entry List. Click on [Entry List] of the desired item under the entry box to display the Entry List. Click on [Back] to return to the Scan Transmission Setting window. bizhub PRO C6500 / bizhub PRO C6500e 19-27...
  • Page 936 The window for changing the selected item will be displayed. Change the contents as desired, then click on [Registration]. The registered content will be displayed. Click on [Back] to return to the Scan Transmission Setting window. 19-28 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 937 Confirm the registered name to be deleted, then click on [Yes]. Click on [Back] to return to the Entry List window. Click on [Back] to return to the Scan Transmission Setting window. bizhub PRO C6500 / bizhub PRO C6500e 19-29...

  • Page 938: Transmitting Machine Setting File

    (E-mail data of Scan Transmission Setting data) ip_hdd.txt (HDD data of Scan Transmission Setting data) ip_ftp.txt (FTP data of Scan Transmission Setting data) ip_smb.txt (SMB data of Scan Transmission Setting data) 19-30 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 939 Enter "admin" in the User Name text box, and an 8-digit administrator password in the password text box, then click on [OK]. The Machine Manager Setting menu will be displayed. Click on [Setting data Import/Export]. The Setting Data Import/Export window will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 19-31...
  • Page 940 Web Utilities setting Export the machine setting file. Select the desired file type from the pull-down menu, then click on [Export….] The File Download dialogue box will be displayed. Click on [Save]. 19-32 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 941 Text Editor or Table Editor. A new setting file can also be created according to the specifications for each file type. See page 19-36 for details. bizhub PRO C6500 / bizhub PRO C6500e 19-33...
  • Page 942 The result message will be displayed when the registration is completed. Note The file cannot be accessed when the machine is operating. If an error message is displayed, try again to save the file after the current machine operation is completed. 19-34 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 943 - A line should be 300 bytes or less. - The file size should be 100,000 bytes or less. - The line that begins with "#" is a comment. ex. Machine setting file of an account track data bizhub PRO C6500 / bizhub PRO C6500e 19-35...
  • Page 944 - LOGINNAME should be 47 bytes or less. - PASSWORD should be 24 bytes or less. - REFERENCE should be 24 bytes or less. - Mark DAILY USE with "1" or DAILY NOT USE with "0" in each column. 19-36 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 945 - LOGINNAME should be 47 bytes or less. - PASSWORD should be 14 bytes or less. - REFERENCE should be 24 bytes or less. - Mark DAILY USE with "1" or DAILY NOT USE with "0" in each column. bizhub PRO C6500 / bizhub PRO C6500e 19-37...
  • Page 946 Web Utilities setting 19-38 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 947: Security Functions

    Security functions...
  • Page 949 Image control program (Image Control l1) version: G00 + 2 digits following the hyphen (Ex: G00-**) Please keep this in mind when checking the software version. Copyright © 2006 KONICA MINOLTA BUSINESS TECHNOLOGIES, Inc. bizhub PRO C6500 / bizhub PRO C6500e 20-3...

  • Page 950: Security Modes

    Security Strengthen mode is activated. Environments in which Security Strengthen mode is recommended - The machine is monitored by a telephone line or a network. 20-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 951 - Secure LAN Be sure to connect the machine to the LAN protected by firewall in order to prevent access from an external network. bizhub PRO C6500 / bizhub PRO C6500e 20-5...
  • Page 952 Security functions 20-6 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 953: Security Strengthen Mode

    Security strengthen mode...

  • Page 955: Description Of Security Strengthen Mode

    Be sure to exit the machine administrator Setting mode if you leave in front of the machine while using the machine administrator Setting mode. bizhub PRO C6500 / bizhub PRO C6500e 21-3...

  • Page 956: Data Protected By Security Strengthen Mode

    To turn security strengthen mode on/off The machine administrator can turn Security Strengthen mode ON/OFF. If Security Strengthen mode is OFF, data can potentially be accessed, so be careful. 21-4 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 957: Machine Administrator Security Functions

    Machine administrator security functions...
  • Page 959 Do not use your name, birthday, employee number, etc. for a password that others can easily figure out. Be careful not to inform anybody else of the password, or not to let it known to others. bizhub PRO C6500 / bizhub PRO C6500e 22-3...

  • Page 960: Turn Security Strengthen Mode On/Off

    If authentication fails, the information will be saved in the audit log. Press [Utility/Counter] on the control panel to display the Utility screen. Touch [03 Machine Admin. Setting]. The Input Password screen will be displayed. 22-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 961 Machine administrator security functions Enter the password. Use the touch screen keypad to enter the 8-digit Machine Administrator password, then touch [OK]. The Machine Administrator Setting Menu screen will be displayed. Touch [10 Security Setting]. bizhub PRO C6500 / bizhub PRO C6500e 22-5...
  • Page 962 Turn Security Strengthen mode ON or OFF If you want to turn Security Strengthen mode ON, touch [On] to highlight it. If you want to turn it OFF, touch [Off] to highlight it. 22-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 963 Machine administrator security functions Touch [OK]. The Restart Confirmation popup screen will appear Touch [Yes]. The machine will restart and the new setting will be activated. bizhub PRO C6500 / bizhub PRO C6500e 22-7...

  • Page 964: Hdd Lock Password

    For details, see the next section "Print audit log" and p. 17 for the sample log. If authentication fails, the information will be saved in the audit log. The current password cannot be used again as a new password. 22-8 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 965 The Input Password screen will be displayed. Enter the password. Use the touch screen keypad to enter the 8-digit Machine Administrator password, then touch [OK]. The Machine Administrator Setting Menu screen will be displayed. bizhub PRO C6500 / bizhub PRO C6500e 22-9...
  • Page 966 Machine administrator security functions Touch [10 Security Setting]. Touch [02 HDD Lock Password]. The HDD Lock Password Menu screen will be displayed. 22-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 967 The key will not be active until authentication is succeeded. – Touch [OK] to return to the previous screen. Touch [Check Input] to re-enter the same password as above. – Touch [OK] to return to the previous screen. Touch [OK]. bizhub PRO C6500 / bizhub PRO C6500e 22-11...

  • Page 968: Print Audit Log

    To stop printing, press [Stop] on the control panel, then touch [Cancel] on the confirmation popup screen. Press [Utility/Counter] on the control panel to display the Utility screen. Touch [03 Machine Admin. Setting]. The Input Password screen will be displayed. 22-12 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 969 Machine administrator security functions Enter the [password]. Use the touch screen keypad to enter the 8-digit Machine Administrator password, then touch [OK]. The Machine Administrator Setting Menu screen will be displayed. Touch [01 System Setting]. bizhub PRO C6500 / bizhub PRO C6500e 22-13...
  • Page 970 Machine administrator security functions Touch [06 List/Count]. The Management List Print screen will be displayed. Touch [Audit Log Report], then touch [COPY]. Press [Start] on the control panel. 22-14 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 971: Analyze Audit Log

    The machine is supposed to store up 750 logs per month. If more than 750 logs are assumed to be stored in a month, carry out the analysis in a shorter period before the unanalyzed logs reach that number. bizhub PRO C6500 / bizhub PRO C6500e 22-15...
  • Page 972 - result: Result of an operation. For password authentication, success or failure will be indicated as OK and NG. For operations without password authentication, all log entries will be indicated as OK. 22-16 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 973: Table Of Items Saved In Audit Log

    Whether or not data was accessed or tampered with - Subject of attack - Details of attack - Results of attack - For specific analysis methods, see the next page. bizhub PRO C6500 / bizhub PRO C6500e 22-17...
  • Page 974 - Check the time, and see if the user who operated the specific subject made any unauthorized actions. Actions to take if unauthorized operations are found If it's found that a password has been leaked after analyzing the audit log, change the password immediately. 22-18 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 975: Troubleshooting

    Troubleshooting...

  • Page 977: If "Please Call Service C-####" Message Is Displayed

    The Call for Service screen usually displays the telephone and facsimile numbers of your service representative. Be sure to contact your service representative immediately by following the procedure below. bizhub PRO C6500 / bizhub PRO C6500e 23-3...
  • Page 978 After calling for service using the Utility setting, be sure to turn OFF the power immediately, then unplug the machine as described here. 23-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 979 Precaution for limited use The machine should not keep operating by limited use for long time. Be sure to contact your service representative immediately when the Call for Service screen is displayed. bizhub PRO C6500 / bizhub PRO C6500e 23-5...

  • Page 980: Clearing Mishandled Paper

    A jam code can be displayed in the message area of the Jam Position screen. Contact your service representative, if desired. Before performing the clearing procedure, see page 1-52 for the caution label locations inside the machine. 23-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 981 The internal fixing unit is very hot. To avoid getting burned, DO NOT TOUCH. Be especially careful not to put your hand into the fixing unit area when withdrawing the fixing conveyance unit to remove mishandled paper. bizhub PRO C6500 / bizhub PRO C6500e 23-7...
  • Page 982 Troubleshooting 7 CAUTION Precaution for getting injured Be careful of removing staples stuck inside the machine so as not to get injured. 23-8 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 983: If [Machine] Tab Blinks In Orange

    [MACHINE] tab may blink in orange. If the Jam Position screen is displayed after touching [Detail Check], follow the procedure on page 23-6 to remove mishandled paper. bizhub PRO C6500 / bizhub PRO C6500e 23-9...
  • Page 984 If the popup screen shown below is displayed after touching [Detail Check], the selected tray has become empty. Follow the procedure below to change the tray selection for the current job, or supply the empty tray with copy paper. 23-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 985 Load paper in the empty tray. Touch [Close] to restore the Machine Status screen. Press [Start]. Printing operation will resume using the tray supplied with paper. Detail For details of loading paper, see page 4-3. bizhub PRO C6500 / bizhub PRO C6500e 23-11...
  • Page 986 Follow the procedure for each to continue the machine operation. Replace paper in the tray with that specified in the paper setting, then touch [Change]. Press [Start] to start the printing operation. 23-12 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 987: If "Memory Full" Message Is Displayed: Memory Overflow

    Occasional memory overflow may occur if the installed memory is inadequate for the copy conditions selected, and the machine will stop its operation with the following popup screen displayed. bizhub PRO C6500 / bizhub PRO C6500e 23-13...
  • Page 988 Troubleshooting Touch [Stop]. All the scanned data will be cleared to terminate the job. 23-14 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 989: If Power Off/On Screen Is Displayed

    Follow the procedure below to turn the machine power off then on. To turn machine power off/on Turn OFF the sub power switch. Turn OFF the main power switch. Wait about 10 seconds. Turn ON the main power switch and sub power switch. bizhub PRO C6500 / bizhub PRO C6500e 23-15...

  • Page 990: Troubleshooting Tips

    AFTER [Reset] IS PRESSED Originals should conform to the recommended size and weight. Position originals properly in the ADF. Set to use ADF in the Initial Setting. For details, see page 16-39. 23-16 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 991 Empty the waste basket. COPIES CANNOT BE STA- Check to make sure the side guide plates are securely aligned to PLED OR PUNCHED IN the copy paper in the paper tray to be used. POSITION bizhub PRO C6500 / bizhub PRO C6500e 23-17...
  • Page 992 Check to see if the Trim Waste indicator lights in red on the Ma- IES CANNOT BE TRIMMED chine Status screen. Empty the waste basket of saddle stitcher, or contact the ma- chine manager. 23-18 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 993: Maintenance

    Maintenance...

  • Page 995: Cleaning The Machine

    Keep the ADF guide cover clean; otherwise soil marks may be copied or the original size cannot be detected correctly. Raise the ADF, then clean the cover with a soft, dry cloth. bizhub PRO C6500 / bizhub PRO C6500e 24-3...
  • Page 996 Cleaning the machine external Clean the external surface of the machine with a soft cloth dampened with a mild household detergent. Reminder Be sure to turn off the main power switch before cleaning it. 24-4 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 997 Pressing too hard on the control panel or the touch panel may damage them. Never use a household detergent, glass cleaner, benzine, or thinner to clean the control panel and touch panel. bizhub PRO C6500 / bizhub PRO C6500e 24-5...

  • Page 998: Checking Copy Count

    Machine can be set to display the Utility menu screen available for displaying and editing the CMS part count list (part name, P/N, limit), and also resetting the count. For details, please contact your service representative. 24-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 999 The product life cycle such as of the drum, developer, transfer belt, charged electrode, etc. will be displayed. If printed list is not desired, touch [Exit] to exit the Utility mode and restore the previous screen. bizhub PRO C6500 / bizhub PRO C6500e 24-7...
  • Page 1000 Touch [COPY] tab to display the Copy screen. Select the desired paper size, then press [Start]. After the Counter list is printed out, the Utility mode will be released automatically and the previous screen will be restored. 24-8 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 1001: Cleaning Conveyance Belt Of Saddle Stitcher Tray

    To clean the conveyance belt Fully withdraw the saddle stitcher tray, then open the tray stand. – Never fail to open the tray stand, otherwise the machine may be damaged. bizhub PRO C6500 / bizhub PRO C6500e 24-9...
  • Page 1002 – Wipe the whole surface of the bottom plate with a soft cloth slightly dampened with alcohol (cleaner). Return the tray stand to its original position, then return the saddle stitcher tray. 24-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 1003 Maintenance Reminder Be sure to clean the whole round of the conveyance belt. Never return the saddle stitcher tray to its original position with the tray stand opened. bizhub PRO C6500 / bizhub PRO C6500e 24-11...

  • Page 1004: If "Trim Receiver Exchange" Message Is Displayed

    The machine manager can call for service using the Utility setting. For details, see page 17-139. In this case, you don’t have to make a call for preventive maintenance, because your machine has been monitored automatically by your service representative. 24-12 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 1005: Preventive Maintenance

    The machine manager can call for service using the Utility setting. For details, see page 17-139. In this case, you don’t have to make a call for preventive maintenance, because your machine has been monitored automatically by your service representative. bizhub PRO C6500 / bizhub PRO C6500e 24-13...
  • Page 1006 Maintenance 24-14 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 1007: Specifications

    Specifications...

  • Page 1009: Main Body Specifications

    (B4 w), 50 sheets/min. (A4 w), 56 sheets/min. (B5 w), 66 sheets/min. (B5 v) Multiple copies/sets 1 to 9,999 copies/1 to 9,999 sets Memory 256 MB per each color (C, M, Y, K) bizhub PRO C6500 / bizhub PRO C6500e 25-3...
  • Page 1010 Space requirements 293 mm or more on the back 100 mm or more on both sides In order to incorporate improvements, these product specifications are subject to change without notice. 25-4 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 1011: Option Specifications

    Upper tray (tray 4): 3,000 sheets (80 g/m Lower tray (tray 5): 3,000 sheets (80 g/m Dimensions 947 (W) e 750 (D) e 1,045(H) mm Weight Approx. 170 kg Power source Supplied from main body bizhub PRO C6500 / bizhub PRO C6500e 25-5...
  • Page 1012 3,000 sheets for Coated paper and 380 mm or longer pa- Secondary (sub) tray: 200 sheets Power source Supplied from internal battery Dimensions 785 (W) e 723 (D) e 1,020 (H) mm Weight Approx. 110 kg 25-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 1013 Contains 5,000 staples Power source Supplied from main body Dimensions 544 (W) e 723 (D) e 1,020 (H) mm Width including primary (main) tray: 798 mm/ 915 mm (pulled out) Weight Approx. 80 kg bizhub PRO C6500 / bizhub PRO C6500e 25-7...
  • Page 1014 See "Paper information" on page 3-3 for details. Maximum power consumption 270VA Dimensions 1,170 (W) e 775 (1,441 when tray is pulled out) (D) e 1,020 (H) mm Power source Supplied from internal battery 25-8 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 1015 Hole diameter 6.5 ± 0.5 mm Maximum power consumption 40 W or less Dimensions 130 (W) e 470 (D) e 115 (H) mm Power source Supplied from Finisher FS-607 Weight Approx. 3 kg bizhub PRO C6500 / bizhub PRO C6500e 25-9...
  • Page 1016 342 (470 when tray is pulled out) (W) x 456 (D) x 170 (H) Weight Approx. 1.85 kg Other options - Original cover OC-506 - Dehumidification fan heater HT-503/504 - Hard disk unit HD-506 - Relay unit RU-503/504 - Image controller 25-10 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 1017: Appendix

    Appendix...

  • Page 1019: How To Input Characters

    This key cancels the characters you input, and the character input screen closes. [Shift] This key switches between an upper case letter and a lower case letter, and between numbers and signs. bizhub PRO C6500 / bizhub PRO C6500e 26-3...
  • Page 1020 The followings describe basic steps to input characters on the character input screen. Touch the corresponding key to input the desired character. Touch [OK]. The character input screen closes. The input characters are displayed on the corresponding column. 26-4 bizhub PRO C6500 / bizhub PRO C6500e...

  • Page 1021: Index

    17-134 Bookmark function 17-139 Administrator 10-5 Bookmark key Administrator Password 17-141 12-5 13-4 Both Sides Adj. 10-3 Advanced information 7-32 Brightness 17-28 AES Level Adjustment Brightness (B) Air assist 13-5 10-21 Browser bizhub PRO C6500 / bizhub PRO C6500e 26-5...
  • Page 1022 Detailed Setting in Color adjustment 8-83 Stamp/Watermark Color Balance 7-44 Direction Color copy quality 4-41 Disposing punch waste 6-26 Color Mode 4-45 Disposing trimmings 8-18 Combine Originals 7-10 Dither (Error Diffusion) method 26-6 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 1023 Half Fold Stopper Adjustmen 14-84 14-23 17-143 Finisher Adjustment (FS-503) HDD Lock Password 14-81 Finisher Adjustment (FS-607) Help key 14-55 10-18 Finisher Adjustment (LS-501) Help mode 10-19 Finisher Adjustment (RU-503/ Help Screen 14-79 RU-504) bizhub PRO C6500 / bizhub PRO C6500e 26-7...
  • Page 1024 Mode Memory 10-11 16-6 Language Setting 16-18 Mode memory auto call 2-10 Large capacity stacker LS-501 Mode Memory key 2-19 Large Capacity Unit LU-202 16-18 Mode Reset Setting 1-48 Laser safety Modifying colors 26-8 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 1025 Original information 3-14 Please Call Service 23-3 16-18 Original Set/Bind Direction 24-13 PM icon Original setting 5-15 Positioning the original Output Applications Positioning the original in mixed 11-7 Output history 5-17 mode bizhub PRO C6500 / bizhub PRO C6500e 26-9...
  • Page 1026 17-134 Rotation 10-7 Proof Copy 14-79 RU Adjustment Proof Copy key 10-6 10-7 9-18 9-49 Punch 14-86 14-59 Punch Adjustment Saddle Stitcher Adj. Saddle stitcher SD-501 2-14 14-81 Saddle Stitcher Stopper Adj. 26-10 bizhub PRO C6500 / bizhub PRO C6500e...
  • Page 1027 Set Numbering (Stamp) 8-73 1-61 Storage of copies 8-81 Set Numbering (Watermark) 10-11 Storing job conditions 19-5 Setting account track data 2-23 Sub power switch Setting job during warmup 5-22 16-45 17-134 Suspend Interruption bizhub PRO C6500 / bizhub PRO C6500e 26-11...
