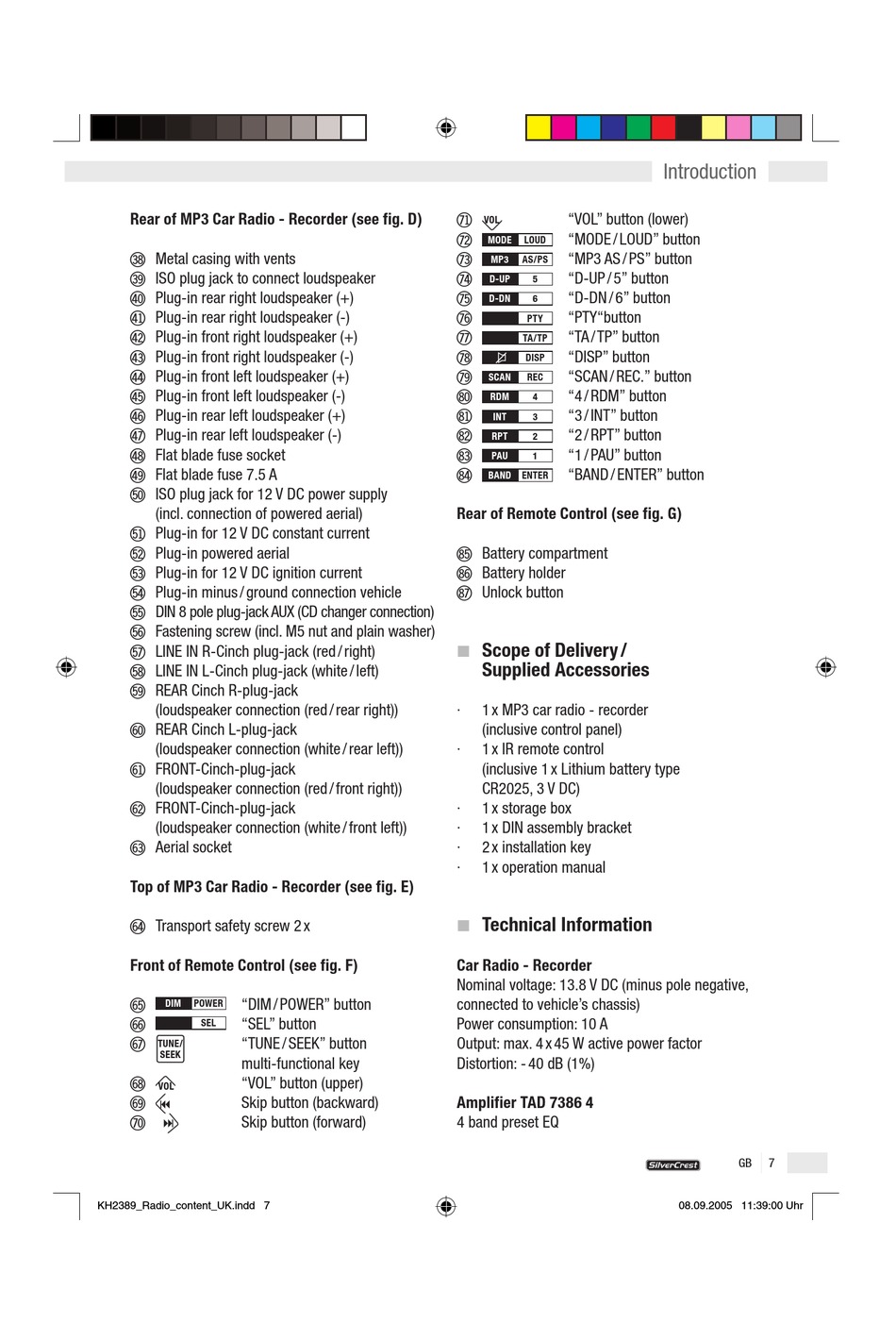

Scope Of Delivery / Supplied Accessories; Technical Information - Silvercrest KH 2389 Operating Instructions Manual

Rear of MP3 Car Radio - Recorder (see fig. D)
dt Metal casing with vents
du ISO plug jack to connect loudspeaker
el Plug-in rear right loudspeaker (+)
em Plug-in rear right loudspeaker (-)
en
Plug-in front right loudspeaker (+)
eo
Plug-in front right loudspeaker (-)
ep
Plug-in front left loudspeaker (+)
eq
Plug-in front left loudspeaker (-)
er
Plug-in rear left loudspeaker (+)
es Plug-in rear left loudspeaker (-)
et Flat blade fuse socket
eu Flat blade fuse 7.5 A
f l ISO plug jack for 12 V DC power supply
(incl. connection of powered aerial)
fm Plug-in for 12 V DC constant current
fn
Plug-in powered aerial
fo
Plug-in for 12 V DC ignition current
fp
Plug-in minus / ground connection vehicle
fq
DIN 8 pole plug-jack AUX (CD changer connection)
fr
Fastening screw (incl. M5 nut and plain washer)
fs LINE IN R-Cinch plug-jack (red / right)
ft LINE IN L-Cinch plug-jack (white / left)
fu REAR Cinch R-plug-jack
(loudspeaker connection (red / rear right))
gl REAR Cinch L-plug-jack
(loudspeaker connection (white / rear left))
gm
FRONT-Cinch-plug-jack
(loudspeaker connection (red / front right))
gn
FRONT-Cinch-plug-jack
(loudspeaker connection (white / front left))
go
Aerial socket
Top of MP3 Car Radio - Recorder (see fig. E)
gp Transport safety screw 2 x
Front of Remote Control (see fig. F)
gq
"DIM / POWER" button
DIM POWER
gr
"SEL" button
SEL
gs
"TUNE / SEEK" button
TUNE/
SEEK
multi-functional key
gt "VOL" button (upper)
VOL
gu Skip button (backward)
9
hl Skip button (forward)
:
KH2389_Radio_content_UK.indd 7 KH2389_Radio_content_UK.indd 7
hm "VOL" button (lower)
VOL
hn "MODE / LOUD" button
MODE LOUD
ho "MP3 AS / PS" button
MP3 AS/PS
hp "D-UP / 5" button
D-UP 5
hq "D-DN / 6" button
D-DN 6
hr "PTY"button
PTY
hs
"TA / TP" button
TA/TP
ht
"DISP" button
DISP
hu
"SCAN / REC." button
SCAN REC
il
"4 / RDM" button
RDM 4
im
"3 / INT" button
INT 3
in "2 / RPT" button
RPT 2
io "1 / PAU" button
PAU 1
ip "BAND / ENTER" button
BAND ENTER
Rear of Remote Control (see fig. G)
iq
Battery compartment
ir
Battery holder
is
Unlock button
í
Scope of Delivery /
Supplied Accessories
· 1 x MP3 car radio - recorder
(inclusive control panel)
· 1 x IR remote control
(inclusive 1 x Lithium battery type
CR2025, 3 V DC)
· 1 x storage box
· 1 x DIN assembly bracket
· 2 x installation key
· 1 x operation manual
í

Technical Information

Car Radio - Recorder
Nominal voltage: 13.8 V DC (minus pole negative,
connected to vehicle's chassis)
Power consumption: 10 A
Output: max. 4 x 45 W active power factor
Distortion: - 40 dB (1%)
Amplifier TAD 7386 4
4 band preset EQ
Introduction
GB 7
