Opticon M-5 Quick Start Manual

M-5
• Read this quick start guide carefully before installing and/or using this product.
• Keep this quick start guide for future reference and store it in a safe place.
• This quick start guide may be revised or withdrawn at any time without prior notice.
• This quick start guide may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any
electronic or machine readable form without prior written consent of Opticon.
• Trademarks used are property of their respective owners.
• Under no circumstances shall Opticon be held responsible for any special, incidental, consequential or indirect
damages howsoever caused.
1. LED Safety
Do not stare into the LED s.
2. Handling Instructions
M-5
• Do not attempt to disassemble, modify or update this device.
• Do not use the scanner while operating machinery.
• Do not drop or put heavy items on this product or its cable.
• Do not pinch or forcibly bend the cable, especially at very low temperature.
• Do not insert foreign substances into the device.
• Do not use/leave this device:
- In areas exposed to direct sunlight for long periods of time
- In dusty environments
- In risk for an exposure to chemicals
- Near water or other liquids, as well as in extremely high humidity
- Near heat sources such as radiators, heat registers, stoves, or other types of devices that produce heat
- Near microwaves, medical devices, or RF-emitting devices
- In the reach of blinking lights such as CRT
• Do not use this product during a lightning storm.
AC/DC Adapter
• Use only the supplied AC adapter with the enclosed region specific plugs for connection to the wall socket.
• This product may produce heat when in use, but it does not affect its performance.
• Do not pull on the cord when unplugging the power cord from a power outlet. Grasp the plug to remove it.
• Do not plug in or out this product with wet hands.
• Unplug this product when it is not in use or when it is being cleaned.

What's in the Box

Confirm that you have the following items before getting started. Please note that the contents may differ
depending on interface specifications. Please contact the nearest dealer if items are damaged or missing.
No. Item
Scanner
1
Interface cable
2
Wedge branch cable
3
Connector cover
4
Instruction of connector cover An instruction manual for the connector cover
5
AC adapter
6
Interchangeable plugs
7

Quick start guide

8
Introduction

Notice

Precautions for Use

Before Getting Started

Function

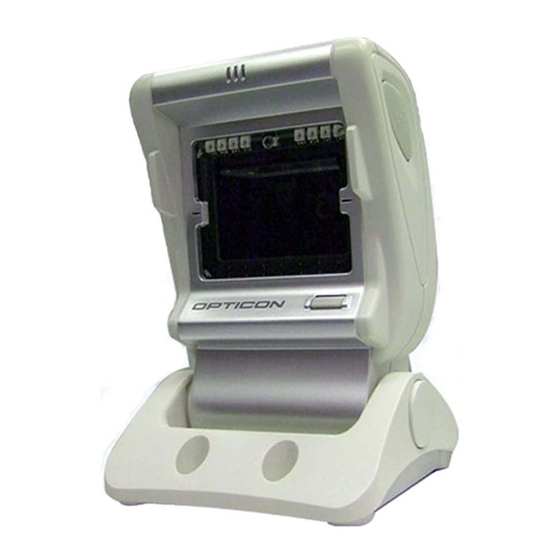

An omnidirectional imaging scanner
A cable for connecting the scanner
Y-cable: The cable that can be used to connect a keyboard
and the scanner's straight cable to a host computer.
A cover used to fix the connection between the
Y-cable and the straight cable.
AC adapter with interchangeable plugs
Plugs for different regions
This manual provides the basic product specification
and setup instructions.
©
Copyright 2009, Opticon All rights reserved.
Quick Start Guide
Notes
Different for each interface spec.
Only for Wedge interface.
Only for M-5-WEDGE+PS package.
Only for M-5-WEDGE+PS package.
Only for RS-232C and Wedge interface.
Only for RS-232C and Wedge interface.
