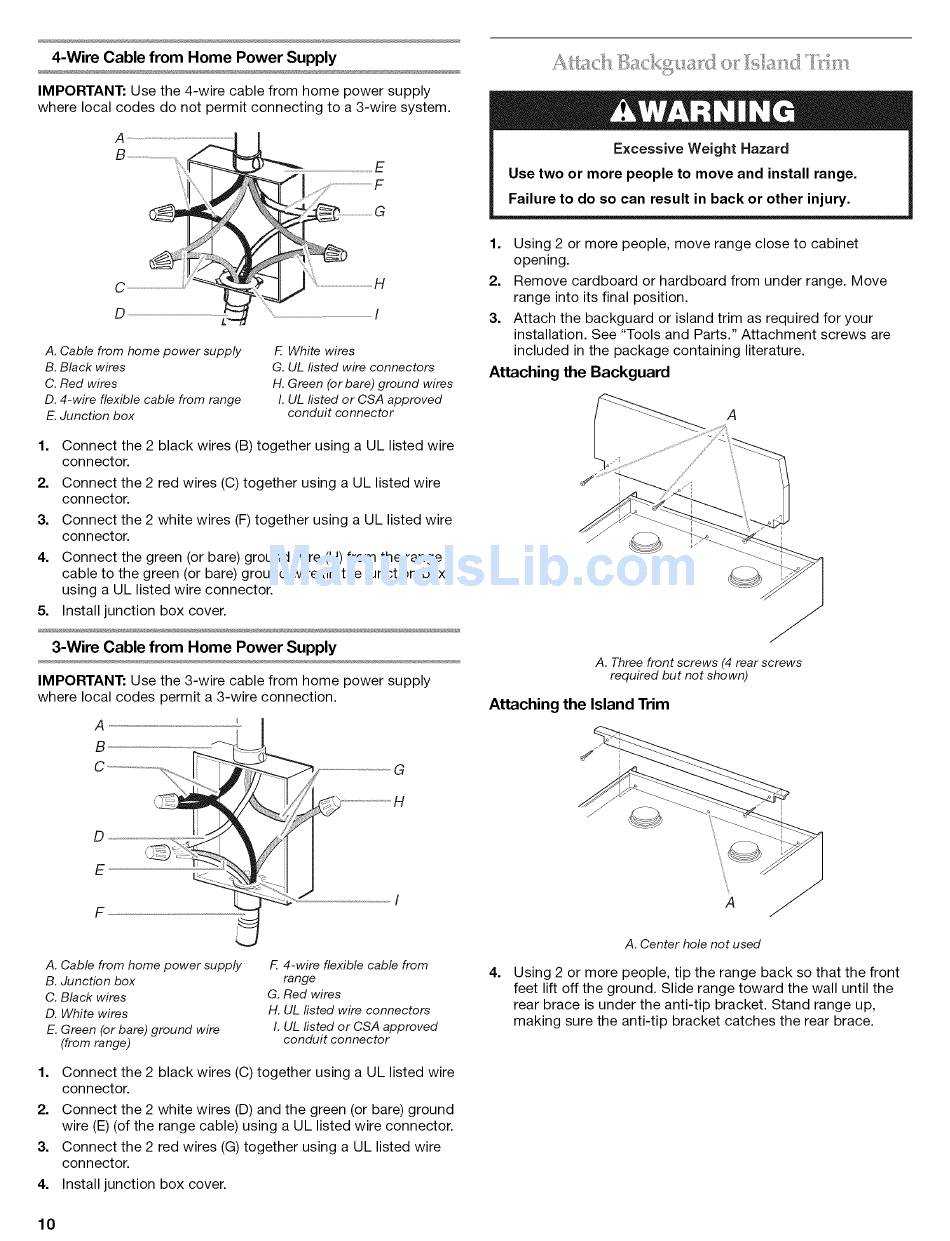

A. Cable from home power supply
B. Black wires
C. Red wires
D. 4-wire flexible cable from range
E Junction box
F. White wires
G. UL fisted wire connectors
H. Green (or bare) ground wires
I. UL fisted or CSA approved
conduit connector
1. Connect the 2 black wires (B) together using a UL listed wire
connector.
2. Connect the 2 red wires (C) together using a UL listed wire
connector.
3. Connect the 2 white wires (F) together using a UL listed wire
connector.
4. Connect the green (or bare) ground wire (H) from the range
cable to the green (or bare) ground wire (in the junction box)
using a UL listed wire connector.
5. Install junction box cover.
3-Wire Cable from Home Power Supply
IMPORTANT: Use the 3-wire cable from home power supply
where local codes permit a 3-wire connection.
A
B
G
D
E
F
A. Cable from home power supply
B. Junction box
C. Black wires
D. White wires
E. Green (or bare) ground wire
(from range)
F. 4-wire flexible cable from
range
G. Red wires
H. UL fisted wire connectors
I. UL fisted or CSA approved
conduit connector
1. Connect the 2 black wires (C) together using a UL listed wire
connector.
2. Connect the 2 white wires (D) and the green (or bare) ground
wire (E) (of the range cable) using a UL listed wire connector.
3. Connect the 2 red wires (G) together using a UL listed wire
connector.
4. Install junction box cover.
_,,_ _, _, _,- _-_/_ _-_,_ E_ ¸¸¸ .... ,_ __ t_ _
Excessive Weight Hazard
Use two or more people to move and install range.
Failure to do so can result in back or other injury.
1. Using 2 or more people, move range close to cabinet
opening.
2. Remove cardboard or hardboard from under range. Move
range into its final position.
3. Attach the backguard or island trim as required for your
installation. See "Tools and Parts." Attachment screws are
included in the package containing literature.
Attaching the Backguard
A
A. Three front screws (4 rear screws
required but not shown)
Attaching the Island Trim
4.
A. Center hole not used
Using 2 or more people, tip the range back so that the front
feet lift off the ground. Slide range toward the wall until the
rear brace is under the anti-tip bracket. Stand range up,
making sure the anti-tip bracket catches the rear brace.
10
