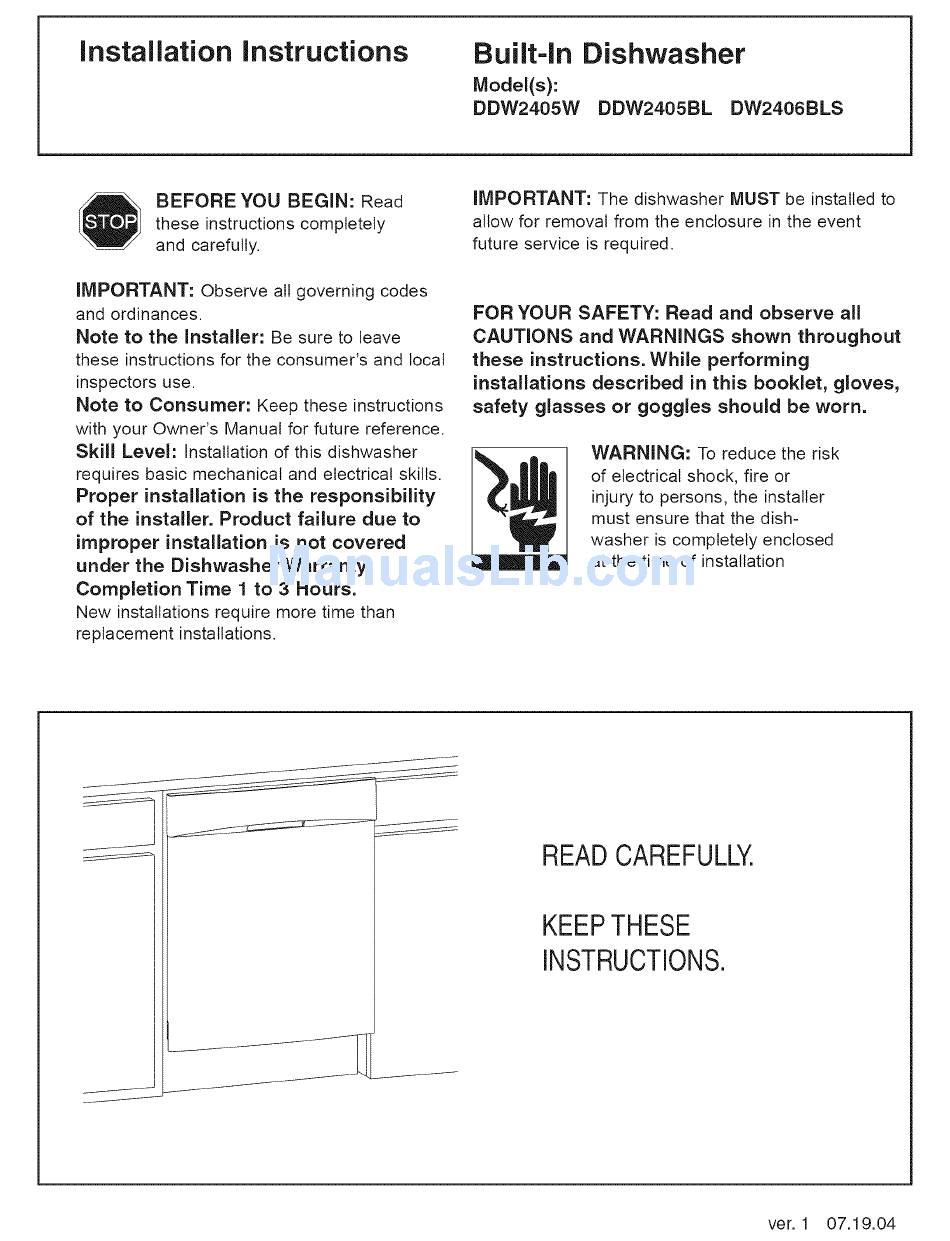

Built-in
Model(s):
DDW2405W
Dishwasher
DDW2405BL
DW2406BLS
BEFORE
YOU BEGIN:
Read
these instructions
completely
and carefully.
IMPORTANT:
Observe
all governing
codes
and ordinances.
Note
to the
Installer:
Be sure to leave
these instructions
for the consumer's
and local
inspectors
use.
Note
to Consumer:
Keep these instructions
with your Owner's
Manual for future reference.
Skill
Level:
Installation
of this dishwasher
requires
basic mechanical
and electrical
skills.
Proper
installation
is the
responsibility
of the
installer.
Product
failure
due
to
improper
installation
is not
covered
under
the
Dishwasher
Warranty.
Completion
Time
1 to 3 Hours.
New installations
require
more time than
replacement
installations.
IMPORTANT:
The dishwasher
MUST be installed
to
allow for removal
from the enclosure
in the event
future service
is required.
FOR YOUR SAFETY:
Read and observe
all
CAUTIONS
and WARNINGS
shown
throughout
these
instructions.
While
performing
installations
described
in this booklet,
gloves,
safety
glasses or goggles
should
be worn.
WARNING:
To reduce the risk
of electrical
shock, fire or
injury to persons,
the installer
must ensure
that the dish-
washer
is completely
enclosed
at the time of installation
J
J
J
READCAREFUL
KEEPTHESE
INSTRUCTIONS.
ver. 1
07.19.04
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Danby DDW2405W
Summary of Contents for Danby DDW2405W
- Page 1 Installation instructions Built-in Dishwasher Model(s): DDW2405W DDW2405BL DW2406BLS IMPORTANT: The dishwasher MUST be installed BEFORE YOU BEGIN: Read allow for removal from the enclosure in the event these instructions completely and carefully. future service is required. IMPORTANT: Observe all governing...
- Page 2 Installation Preparation PARTSSUPPLIED: 2 Wood Screws • Two #8 Phillips flat head wood screws 518" long to secure dishwasher to underside countertop. (Screws can be found inside the literature package) (Not MATERIALS YOU WILL NEED: included • Ferrule, compression nut and elbow (3/8"...
-
Page 3: Installation
INSTALLATION PREPARATION PREPAREDISHWASHER ENCLOSURE • The dishwasher must be installed so that the drain hose is no more than 10 feet in length for proper drainage. • The dishwasher must be fully enclosed on the top, side and back, and must not support part of the enclosure. - Page 4 INSTALLATION PRE PARATION PREPARE ELECTRICAL WIRING WARNING: j',/l FORPERSONALSAFETY: Remove house fuse or open circuit breaker before beginning installation. Do not use an extension cord or adapter 1-1/2" Dia. plug with this appliance. t01e(Max.) from Cabinet Electrical R equirements: * This appliance must be supplied with 120V / 60 Hz., and connected to an individual properly grounded branch circuit, protected by a 15 or 20 ampere circuit breaker or time delay fuse.
- Page 5 INSTALLATION INSTRUCTIONS PREPARE HOTWATERLINE: • The hot water line may enter from either side, rear or floor within the shaded area shown in Fig. 6 BEFORE YOUBEGIN • The line may pass through the same hole as the Locate and set aside the package containing the electrical cable and drain hose.
-
Page 6: Step 2 Adjust Leveling Legs
INSTALLATION INSTRUCTIONS STEP 2 ADJUST LEVELING LEGS STEP 4 INSTALL90o ELBOW Wrap the 90 ° elbow with thread seal tape, then install it onto the water valve. To avoid damage to the water valve bracket and/or fitting, do not over= tighten the 90 °... -
Page 7: Step 7 Slide Dishwasher Partiallyinto Cabinet
INSTALLATION INSTRUCTIONS STEP 6 INSERT DRAIN HOSE Maximum THROUGH CABINET Drain Hose • Position the dishwasher in front of he opening. Insulati Insert drain hose into cabinet wall hole. Blanket Drain TiP: Position water line and house wiring on the floor Hose to avoid interference with base of dishwasher, Wiring... -
Page 8: Step 8 Position Dishwasherunder Countertop
INSTALLATION INSTRUCTIONS STEP 8 POSITION DISHWASHERUNDER COUNTERTOP • Check to be sure that wires are secure under the Reposition Dishwasher dishwasher and not pinched or in contact with _'_/ by Grasping Both door springs or other dishwasher components. TIP: Check tub insulation blanket. Wi_ Hands It should be positioned so it is not bunched up or interfering with door springs. -
Page 9: Step 10 Secure Dishwasher To Cabinet
INSTALLATION INSTRUCTIONS STEP 10 SECURE DISHWASHER STEP 11 CONNECT WATER TO CABINET SUPPLY Connect water supply line to 90 ° elbow, The dishwasher must be secured to Method 1 - Braided flex hose the countertop. • Connect the stainless steel braided flex hose •... -
Page 10: Step 12 Connect Drain Line
INSTALLATION INSTRUCTIONS DRAIN LINE INSTALLATION STEP 12 CONNECT DRAIN LINE FOLLOW ALL LOCALCODES Connect drain line to air gap, waste tee or disposer AND ORDINANCES using either of the previously determined method. The drain hose molded end will fit 5/8", 3/4" or 1" Method 1 - Air gap with waste tee or disposer diameter connections on the air gap, waste tee or disposer. -
Page 11: Step 13 Connect Power Supply
INSTALLATION INSTRUCTIONS STEP 13 CONNECT POWER SUPPLY STEP 14 PRE-TEST CHECK LIST Review this list after installing your dishwasher • Remove junction box Cover "A ". to avoid charges for a service call that is not • Locate the three dishwasher wires, (white, black and covered by your warranty. -
Page 12: Step 15 Dishwasherwet Test
INSTALLATION INSTRUCTIONS STEP 15 DISHWASHERWET TEST Turn on power. Make sure door is closed. Select "Normal" wash program. Check to be sure that water enters the dishwasher. If water does not enter the dishwasher, check to be sure that water and power are turned on. Check for leaks under the dishwasher.
