6.For t ypical u nder c ounter i nstallation o fanelectric b uiltqnoven seeFigure b elow.
Only certain cooktop models m ay beinstalled o vercertain
builtqn ele(tri(oven models. Approved c ooktops a ndbuilt-
inovens a relisted bytheMFG IDnumber a ndproduct
code (see theinsert s heet i ncluded i ntheliterature p ack-
ageandcooktop installation instructions fordimensions
To reduce the risk of
personal injury and
tipping of the wa]l
oven, the walt oven
must be secured to
the cabinet (s) by
mounting brackets.
208/240 Volt junction box
for builtqn oven.
Approx. 3
(7.5 cm)
Cabinet side filler panels are
necessary to isolate the unit
from adjoining cabinets. Cabinet
side filler height should allow for
installation of approved cooktop
models
36" Min.
(91.4 cm) Min.
4
Use 3/4" (! .9 cm) plywood, installed on two
runners, flush with toe plate. Basemust be
capable of supporting 150 pounds (68 kg)
for 27" models and 200 pounds (90 kg) for
30" models.
Cut an opening in wood base minimum 9" x 9"
(23 X 23 cm), 2" (5 cm) from left side filler
panel, to route armoured cable to junction box.
4 1/2" (11.5 cm) Max.*
* If no cooktop is installed directly over
the oven unit, 5" (12.7 cm) maximum
is allowed above the floor.
' F°WIDTH H,HDGHT
27" (68,6 cm) 24%" (63,2 cm) blin. 27X" (69.2 cm) Min
Wall Oven 25X" (64.1 cm) Max. 23Y2" (59.7 cm) Min, 28%" (72.7 cm) Max.
:10" (76,2 cm) 28Y2" (72.4 cm) Mir/. 27X" (69.2 cm) Min
Wall Oven 29" (737 cm) Max. 23_//' (59.7 cm) Min 28%" (72.7 cm) Max.

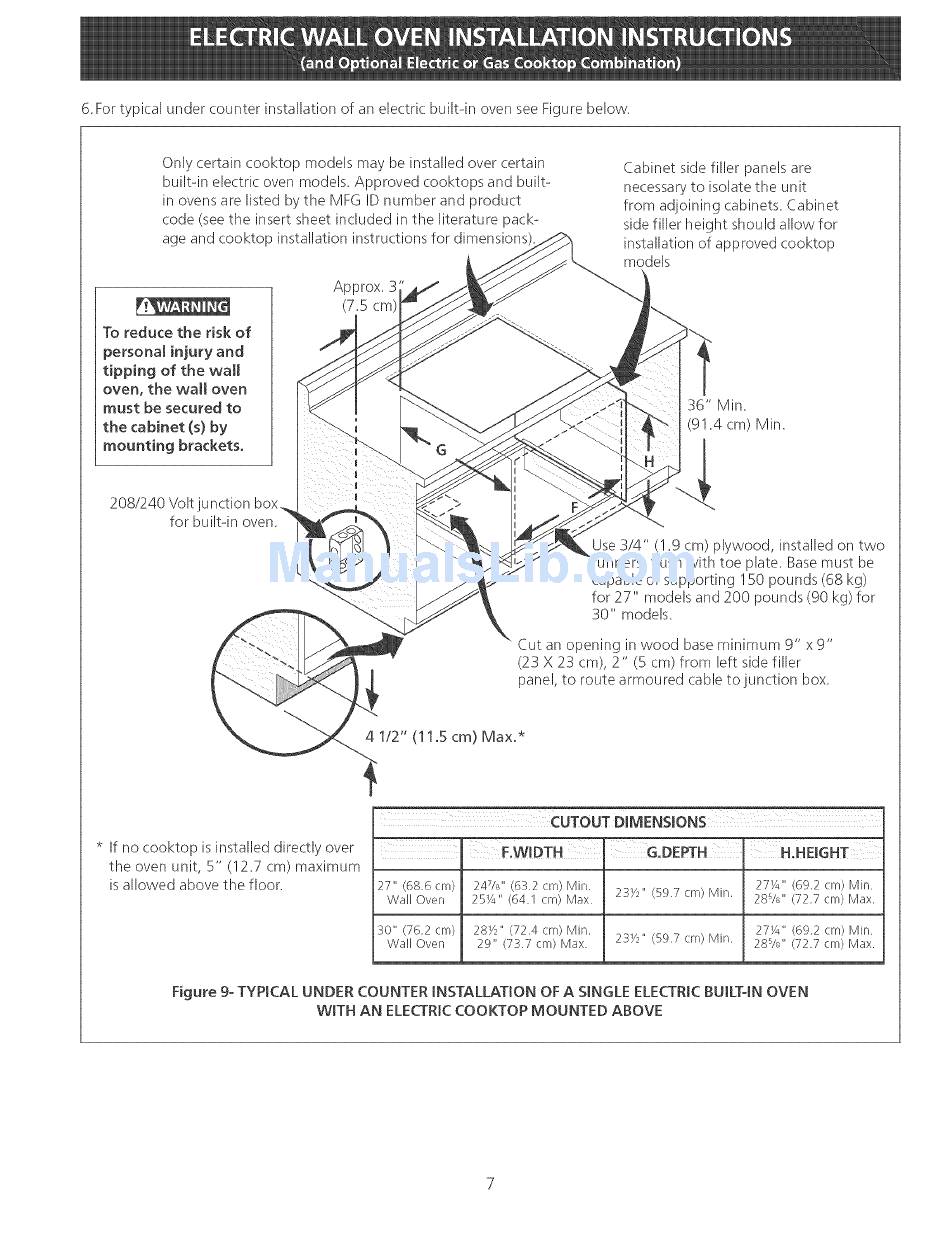

Figure 9- TYPICAL UNDER COUNTER INSTALLATION OF A SINGLE ELECTRICBUILT-IN OVEN
WITH AN ELECTRICCOOKTOP MOUNTED ABOVE
