Instructions for Using

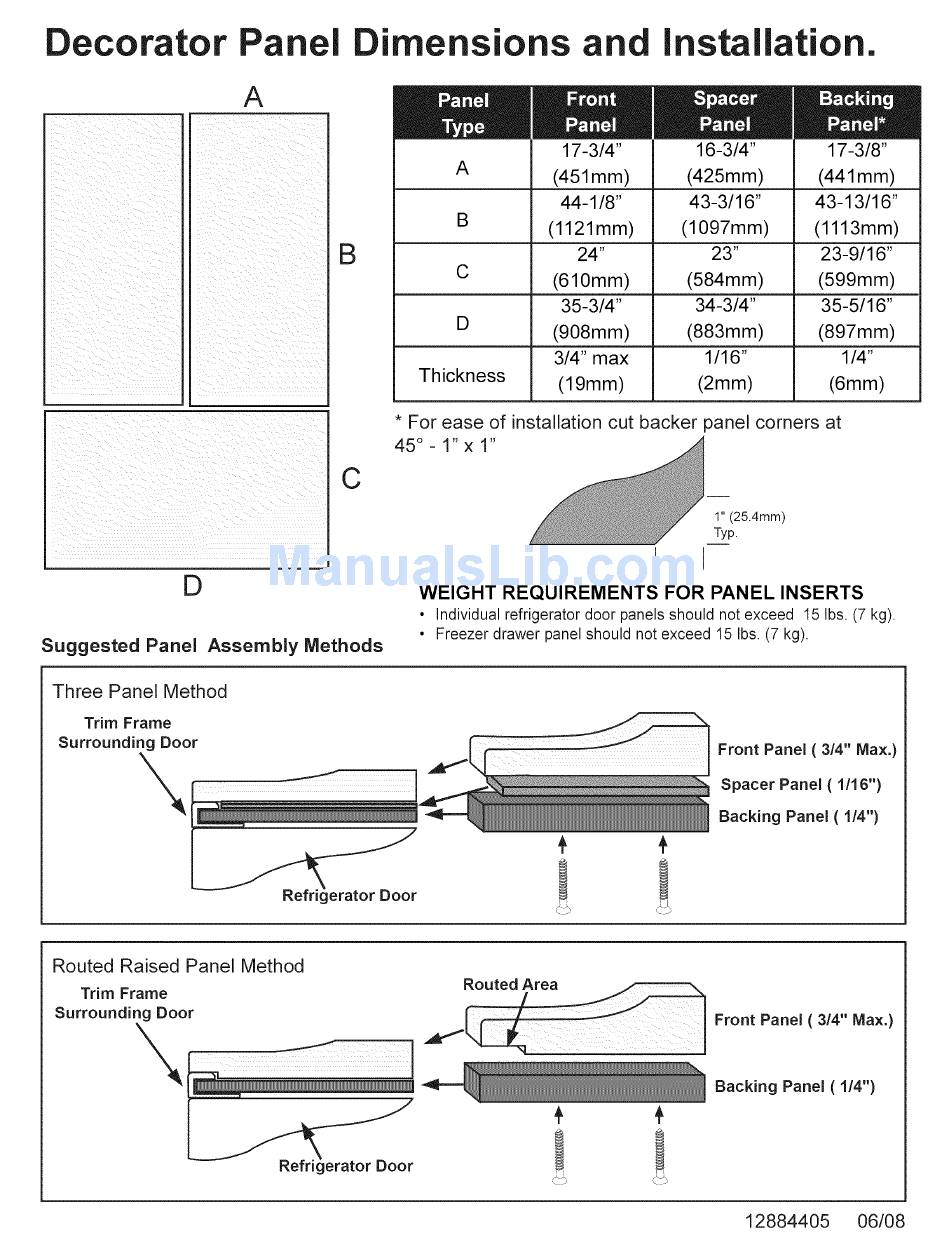

Decorator Panel
mensions
an
Installation.
A
m i
= B
D
B
C
Suggested
Panel
Assembly
Methods
A
B
C
D
Thickness
B
17-3/4"
(451mm)
44 - 1/8"
(1121mm)
24"
(610mm)
35-3/4"
(908mm)
3/4" max
(19mm)
16-3/4"
(425mm)
43-3/16"
(1097mm)
23"
(584mm)
34-3/4"
(883mm)
1/16"
(2mm)
17-3/8"
(441mm)
43-13/16"
(1113mm)
23-9/16"
(599mm)
35-5/16"
(897mm)
1/4"
(6mm)
* For ease of installation cut backer panel corners at
45o_ 1,,x 1,,
1" (25.4mm)
Typ.
I
I
WEIGHT
REQUIREMENTS
FOR PANEL INSERTS
• individual refrigerator door panels should not exceed 15 Ibs. (7 kg).
• Freezer drawer panel should not exceed 15 Ibs. (7 kg).
Three Panel Method
Trim Frame
Surrounding
Door
Refrigerator
Door
Front Panel ( 3/4" Max.)
Spacer Panel (1/16")
Backing Panel (1/4")
Routed Raised Panel Method
Trim Frame
Surrounding
Door
Routed Area
Front Panel ( 3/4" Max.)
i ]
+
Backing
Panel (1/4")
12884405
06/08
Advertisement
Related Manuals for Jenn-Air JFC2290VTB1
Summary of Contents for Jenn-Air JFC2290VTB1
- Page 1 Decorator Panel mensions Installation. 17-3/4" 16-3/4" 17-3/8" (451mm) (425mm) (441mm) 44 - 1/8" 43-3/16" 43-13/16" (1121mm) (1097mm) (1113mm) 24" 23" 23-9/16" (610mm) (584mm) (599mm) 35-3/4" 34-3/4" 35-5/16" (908mm) (883mm) (897mm) 3/4" max 1/16" 1/4" Thickness (19mm) (2mm) (6mm) * For ease of installation cut backer panel corners at 45o_ 1,,x 1,, 1"...
- Page 2 Decorator Panel Installation 1. Lift upper locking trim from the door. Excessive Weight Hazard Use two or more people to move and install refrigerator. Failure to do so can result in back or other injury. Door Panel Backing Panel Spacer Panel Trim Front Panel Door...
- Page 3 7. Align the upper locking trim with the clips on 3. Align the bottom edge of the decorator panel top of the side trim. to the lower fixed trim and center the panel with the door. StDE TRtM CLIP Front Panel 4.
- Page 4 Dimensions et installation du panneau ddcoratif. 17-3/4" 16-3/4" 17-3/8" (451mm) (425mm) (441mm) 44 - 1/8" 43-3/16" 43-13/16" (1121mm) (1097mm) (1113mm) 24" 23" 23-9/16" (610mm) (584mm) (599mm) 35-3/4" 34-3/4" 35-5/16" (908mm) (883mm) (897mm) 3/4" max 1/16" 1/4" I_paisseur (19mm) (2ram) (6mm) *Pour faciliter rinstallation, d6couper les coins du panneau...
- Page 5 Installation du panneau d coratif 1. D6gager la garniture de blocage superieure de la porte en la soulevant. Poureviterun chocelectriquepouvantcauserdesblessures gravesou memela mort,debrancher l e r6frigerateur d e la prise de courantavantde deposerles portes.Le rebrancher u nefois les portesremises en place. Panneau de porte Panneau...
- Page 6 5. Aligner la garniture de blocage superieure 3. Faire glisser le panneau d6coratif sous les les attaches situees sur le dessus de la garniture rebords des garnitures inf6rieures et laterales. laterale. ATTACHE DE Reinstaller la garniture laterale en veillant & ce que RETENUE DE I'attache de retenue de la garniture...
- Page 7 Medidas e instalacibn de los paneles decorativos 17-3/4" 16-3/4" 17-3/16" (451mm) (425mm) (437mm) 44-1/8" 43-3/16" 43-3/4" (1121mm) (1097mm) (1111mm) 24" 23" 23-9/16" (610mm) (584mm) (599mm) 35-3/4" 34-3/4" 35-1/4" (908mm) (883mm) (895mm) 3/4" max 1/16" 1/4" Espesor (19mm) (2mm) (6mm) * Para facilitar la instalaci6n, corte las esquinas panel de soporte a un angulo de 45 °...
- Page 8 Instalacibn del panel decorativo 1. Levante eladorno superiorde bloqueo dela pueRa. Para evitar las sacudidas electricas, que pueden causar lesiones graves o la muerte, corte el suministro electrico al refrigerador antes de sacar las puertas. Despues de colocar las puertas, conecte el suministro electrico. Panel de la puerta Panel de soporte Panel espaciador...
- Page 9 5. Alinee el adorno superior de bloqueo con los 3. Deslice el panel decorativo por debajo de los sujetadores que estan sobre el adorno lateral. extremos de las piezas de adorno inferiores laterales. Vuelva a instalar el adorno lateral, SUJETADOR asegurandose de que el sujetador del adorno...
- Page 10 12884405 06/08...
