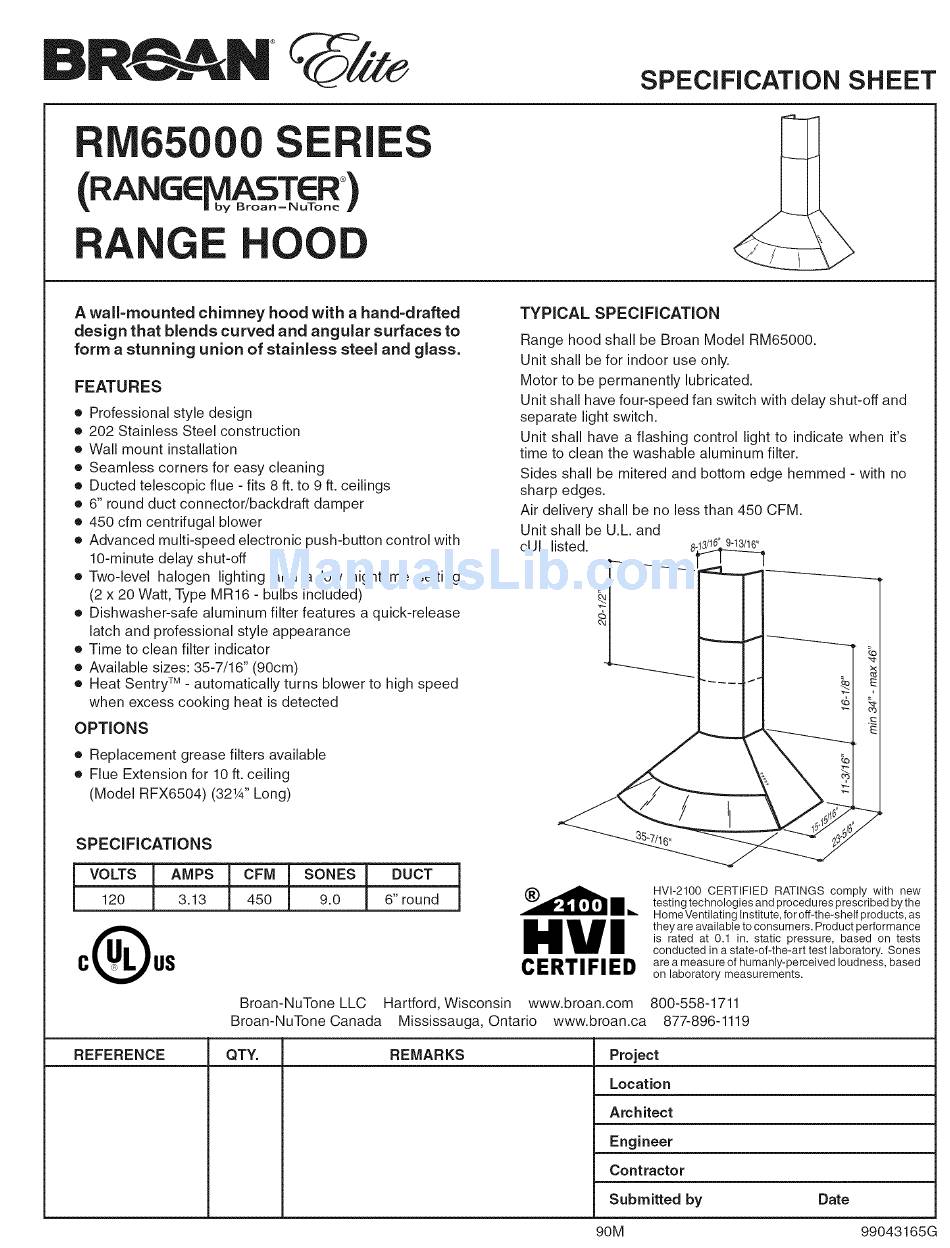

Broan Elite RangeMaster RM65000 Series Specification Sheet

BReAN
E
(RANGE AST oR)
GE O0
SPECiFiCATiON SHEET
A wall-mounted chimney hood with a hand=drafted
design that blends curved and angular surfaces to
form a stunning union of stainless steel and glass.
FEATURES
® Professional style design
• 202 Stainless Steel construction
® Wall mount installation
• Seamless corners for easy cleaning
• Ducted telescopic flue - fits 8 ft. to 9 ft. ceilings
® 6" round duct connector/backdraft damper
® 450 cfm centrifugal blower
® Advanced multi-speed electronic push-button control with
10-minute delay shut-off
® Two-level halogen lighting and a low nighttime setting
(2 x 20 Watt, Type MR16 - bulbs included)
• Dishwasher-safe aluminum filter features a quick-release
latch and professional style appearance
® Time to clean filter indicator
• Available sizes: 35-7/16" (90cm)
® Heat Sentry
TM
- automatically turns blower to high speed
when excess cooking heat is detected
OPTIONS
® Replacement grease filters available
® Flue Extension for 10 ft. ceiling
(Model RFX6504) (32W' Long)
TYPICAL SPECiFiCATiON
Range hood shall be Broan Model RM65000.
Unit shall be for indoor use only.
Motor to be permanently lubricated.
Unit shall have four-speed fan switch with delay shut-off and
separate light switch.
Unit shall have a flashing control light to indicate when it's
time to clean the washable aluminum filter.
Sides shall be mitered and bottom edge hemmed - with no
sharp edges.
Air delivery shall be no less than 450 CFM.
Unit shall be U.L and
cUL listed. 9-13/16.
SPECiFiCATiONS
VOLTS AMPS CFM SONES DUCT
120 3.13 450 9.0 6" round
CERTIFIED
HVI-2100 CERTIFIED RATINGS comply with new
testing technologies and procedures prescribed by the
Home Ventilating Institute, for off-the-shelf products, as
they are available to consumers. Product performance
is rated at 0.1 in. static pressure, based on tests
conducted in a state-of-the-art test laboratory. Sones
are a measure of humanly-perceived loudness, based
on laboratory measurements.
Broan-NuTone LLC Hartford, Wisconsin www.broan.com 800-558-1711
Broan-NuTone Canada Mississauga, Ontario www.broan.ca 877-896-1119
REFERENCE QTY. REMARKS
Project
Location
Architect
Engineer
Contractor
Submitted by
Date
90M 99043165G
