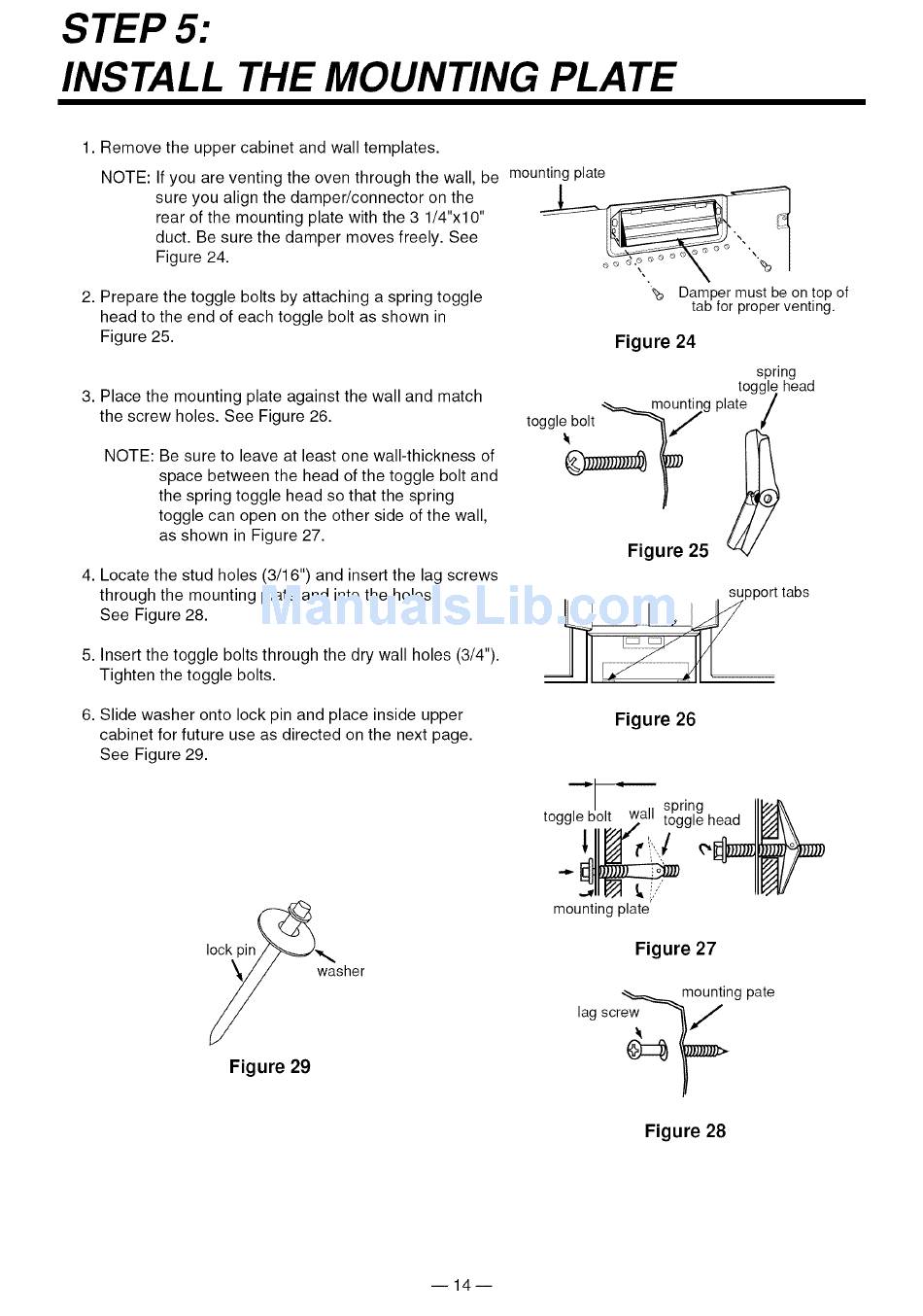

STEP 5:
INSTALL THE MOUNTING PLATE
1. Remove the upper cabinet and wall templates.
NOTE: If you are venting the oven through the wall, be
sure you align the damper/connector on the
rear of the mounting plate with the 3 1/4"x10"
duct. Be sure the damper moves freely. See
Figure 24.
2. Prepare the toggle bolts by attaching a spring toggle
head to the end of each toggle bolt as shown in
Figure 25.
3. Place the mounting plate against the wall and match
the screw holes. See Figure 26.
NOTE: Be sure to leave at least one wall-thickness of
space between the head of the toggle bolt and
the spring toggle head so that the spring
toggle can open on the other side of the wall,
as shown in Figure 27.
4. Locate the stud holes (3/16") and insert the lag screws
through the mounting plate and into the holes.
See Figure 28.
5. Insert the toggle bolts through the dry wall holes (3/4").
Tighten the toggle bolts.
6. Slide washer onto lock pin and place inside upper
cabinet for future use as directed on the next page.
See Figure 29.
lock pin_,,,,.
washer
Figure 29
mounting plate
% Damper must be on top of
tab for proper venting.
Figure 24
spring
toggle, head
mounting plate /
toggl___J
/
Figure 26
gl_b_ spring
tog toggle head
mounting plate'
Figure 27
mounting pate
lag screw ")_Z2_ _
Figure 28
i14i
