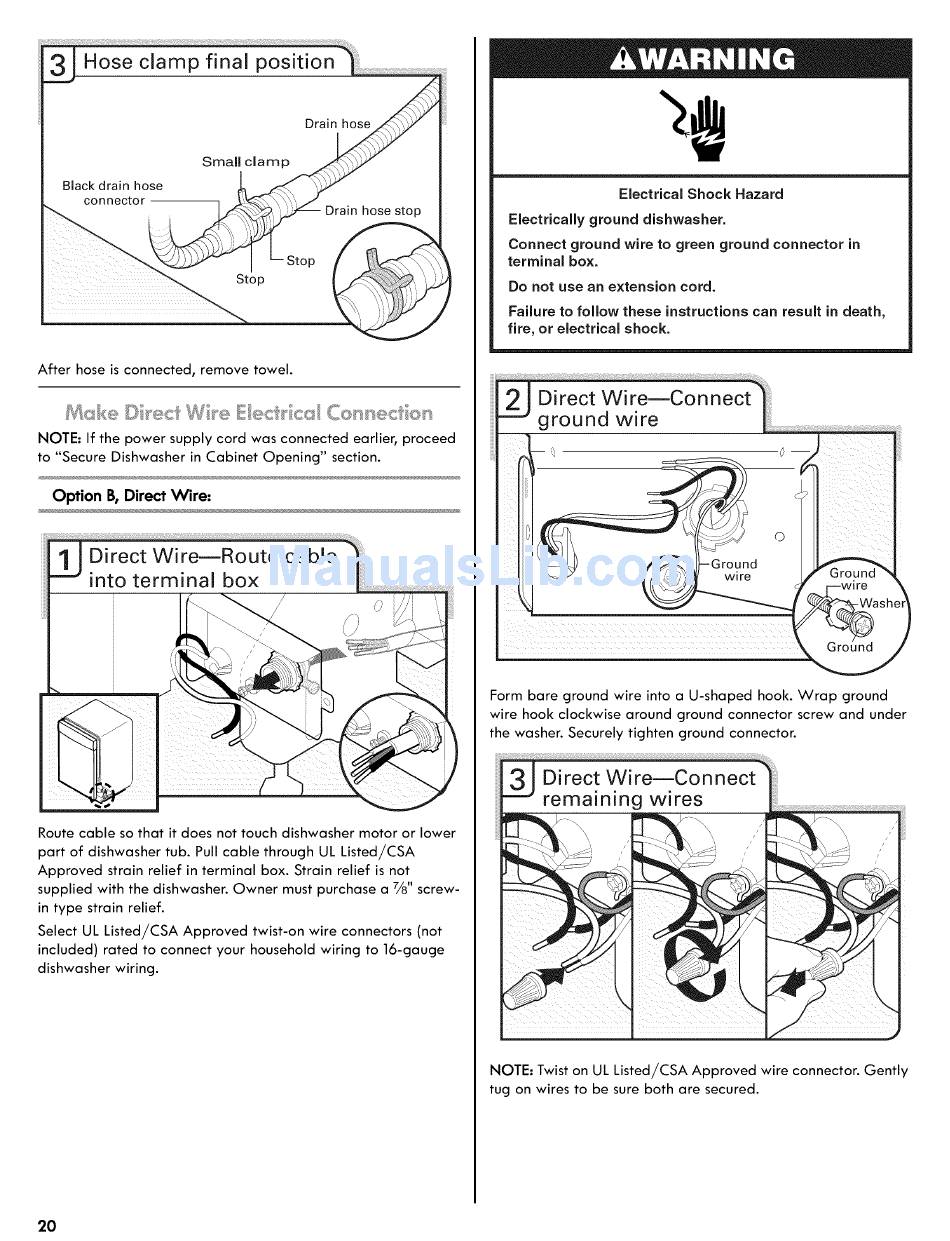

Hose clamp final
position
After
hose is connected,
remove
towel.
NOTE: If the power supply cord was connected earlier, proceed
to "Secure Dishwasher in Cabinet Opening"
section.
Option B, Direct Wire:
Route cable so that it does not touch dishwasher motor or lower
part of dishwasher tub. Pull cable through UL Listed/CSA
Approved
strain relief in terminal
box. Strain relief is not
supplied with the dishwasher. Owner must purchase a 7/8" screw-
in type strain relief.
Select UL Listed/CSA
Approved
twist-on wire connectors (not
included)
rated to connect your household wiring to 16-gauge
dishwasher wiring.
Electrical Shock Hazard
Electrically ground dishwasher.
Connect ground wire to green ground connector in
terminal box.
Do not use an extension cord.
Failure to follow these instructions can result in death,
fire, or electrical shock.
!!i!!i!!
g ro u n d w i re
<P
\
o
N_
Form bare ground wire into a U-shaped hook. Wrap
ground
wire hook clockwise around ground connector screw and under
the washer. Securely tighten ground connector.
NOTE: Twist on UL Listed/CSA Approved wire connector. Gently
tug on wires to be sure both are secured.
