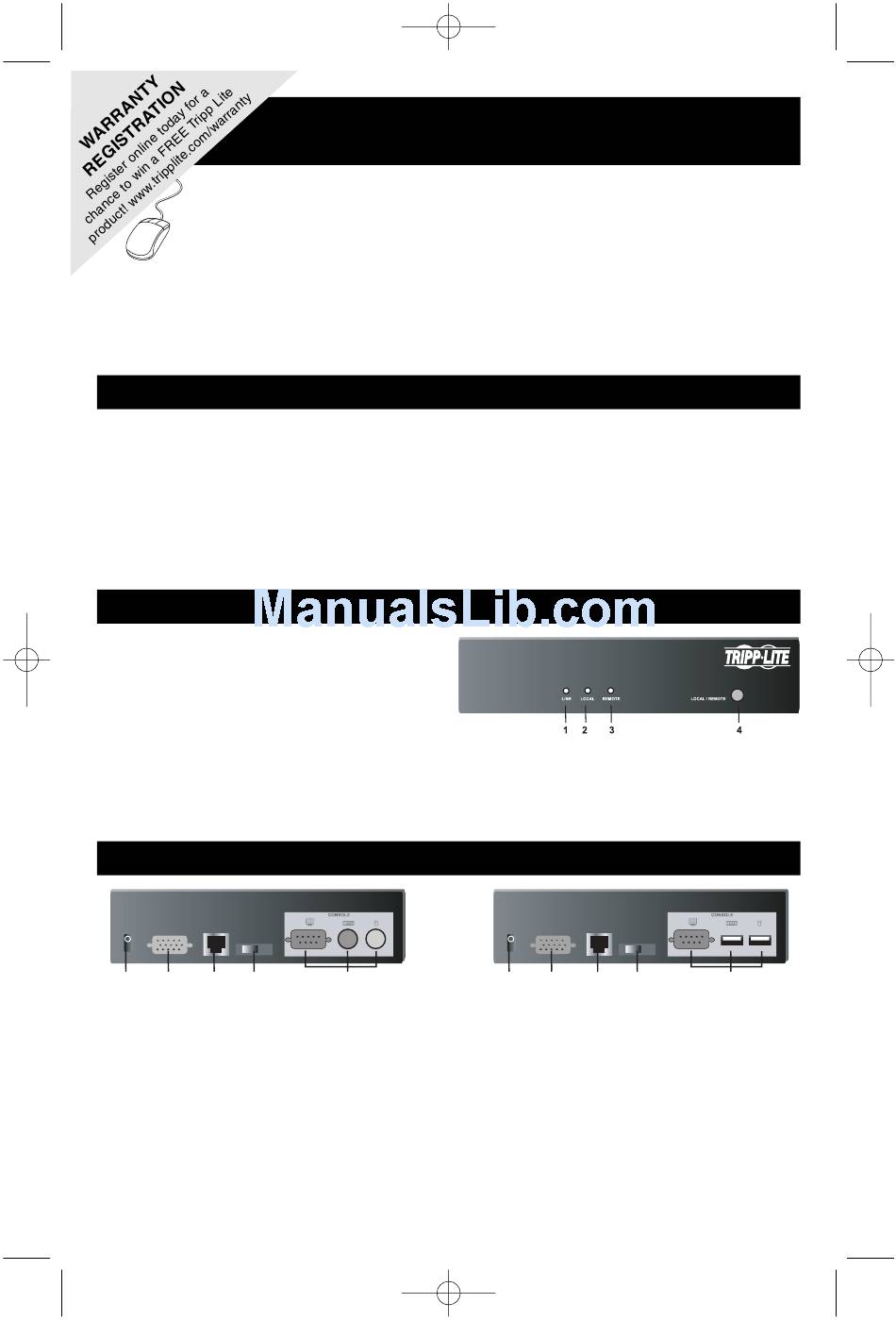

This Quick Start Guide briefly describes how to install and operate the B062-002-USB and
B062-002-PS2 Console Module with the B060-032 NetDirector KVM Switch

Package Contents

The complete package consists of:
• B062-002-USB or B062-002-PS2 Console Module
• Custom KVM Cable
• AC Power Adapter
• Quick Start Guide
If anything is missing or damaged, please contact your dealer immediately.

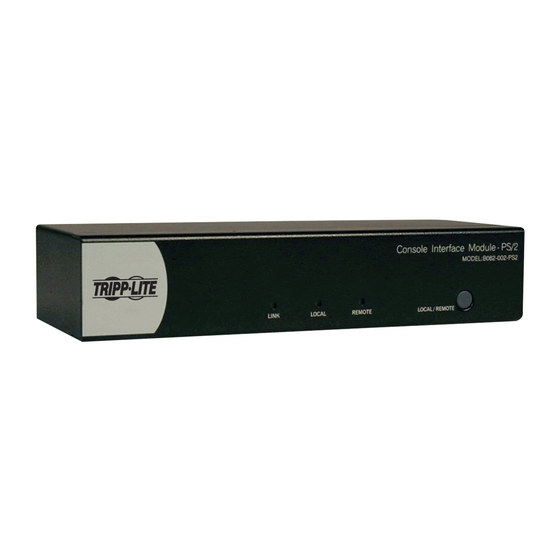

Front View

1. Link LED. Indicates good connection
2. Local LED. Indicates Local PC operation
3. Remote LED. Indicates Remote
Console operation
4. Local / Remote. Toggle Pushbutton
Note: Local PC / KVM Switch operation may also be toggled using the keyboard hotkey combination of [NumLock] + [-][-]
1.Press and hold [NumLock] key
2.Press and release [-] key twice
3.Releass [NumLock] key

Rear View

1 2 3
B062-002-PS2
1. Power Jack
2. Local PC Connection
3. KVM Switch Connection
4. Firmware Recovery Switch
5. Console Port Section
Copyright © 2006 Tripp Lite. All rights reserved. All trademarks are the property of their respective owners.
The policy of Tripp Lite is one of continuous improvement. Specifications are subject to change without notice.
7/7/2006
Owner's Manual
KVM Console Module
Models: B062-002-PS2 & B062-002-USB
4 5
2:53 PM Page 1
1 2 3
B062-002-USB
4 5
